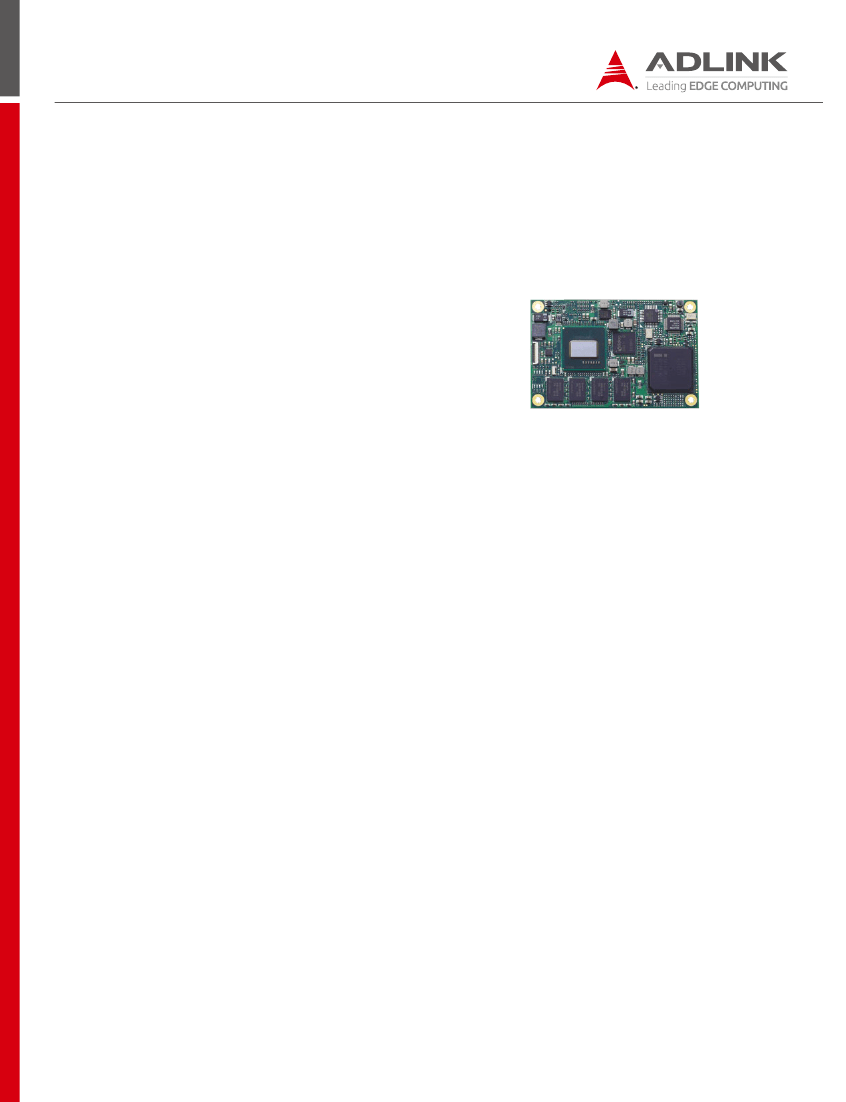

Single channel 18- or 24-bit pixel color depths with maximum resolution of
up to 1280x768 @ 60 Hz. Pixel clock rate between 19.75 MHz (minimum) and
80 MHz (maximum)
Memory
Soldered 512 MB, 1 or 2 GB DDR2 at 800 MHz
BIOS
License-free bootloader or AMI UEFI flash
SDVO
Serial digital video output supporting devices for DVI, TV-out, analog VGA.
Maximum resolution of up to 1280x1024 @ 85 Hz and pixel clock rate up to
160 MHz.
Hardware Monitor
Supply voltages and CPU temperature
●
Audio
High Definition Audio
Integrated in Intel
®
Atom™ Processor E6xx
Debug Interface
XDP SFF-26 extension for ICE debug
Embedded Features Instant on with Intel Bootloader support, OEM BIOS
settings, Board Info & Statistics, ACPI 3.0, Smart Battery Management
support, Watchdog with programmable timer ranges
Characteristics
Multi-channel audio stream, 32-bit sample depth, sample rate up to 192 kHz
Expansion Busses
4 PCI Express x1 (0/1/2/3, port 3 is used for EG20T PCH build option; no PCIe
x4 support)
LPC Bus, SMBus (system) , I2C (user)
4 GPI and 4 GPO (shared with SDIO on optional EG20T)
SPI (supports BIOS only)
Audio Codec
On carrier (standard support for ALC886)
●
Ethernet
Serial and CAN: One RS-232 (RX/TX) and one CAN (AX/RX) port
(optional 2x RS-232 w/o CAN)
GbE MAC: Integrated in Intel
®
EG20T PCH
PHY: Realtek RTL8211CL
Speed: 10/100/1000 Mbps
Note: “build option” indicates an alternative BOM configuration to support additional or alternative functions that are not available on the standard product.
Be aware that these “build option” part numbers will need to be newly created and this will result in production lead times.
Specifications
●
I/O
Chipset: Integrated in Intel PCH EG20T
USB: Six USB 2.0 host ports and one USB 2.0 client port
SATA: Two ports supporting SATA 1.5 Gb/s and 3 Gb/s
SDIO Port: SDIO/MMC supporting SDHC speed class 6 (shared with GPIO,
selectable in the BIOS setup)
®
●
Mechanical and Environmental
Specification: PICMG COM.0: Rev 2.1 Type 10
Form Factor: Mini size: 84 mm x 55 mm
Operating Temperature
Standard: 0°C to +60°C
Storage Temperature: -20°C to +80°C
●
Power
Input Power: 4.75 V – 21 V wide range, supports AT mode and ATX mode
(with additional 5 Vsb)
Power States: Supports S0, S1, S3, S4, S5
Power Consumption : 5W at 5V typical, 3W idle
Smart Battery Support: Yes
Humidity
90% at +60°C
Shock
15G peak-to-peak, 11ms duration, non-operation
●
Operating Systems
Standard Support
Windows XP/Windows 7, Linux
Vibration
Non-operating: 1.88 Grms, 5-500 Hz, each axis
Operating: 0.5 Grms, 5-500 Hz, each axis
Certification: CE, FCC, HALT
Extended Support (BSP)
Embedded XP, WinCE 6.0, Linux, VxWorks 6.x,
QNX, AIDI Library
Functional Diagram
BIOS
Soldered Memory
512 MB ~ 2 GB DDR2
SPI
LPC bus
18/24-bit LVDS
SDVO
HDA Audio
3x PCIe x1 (port 1~3)
PCIe x1 (port 0)
Intel
®
Atom™
Processor
E6xx
SFF-26
XDP
PCIe x1 (port 0)
CAN bus (Ax/Rx)
UART (Tx/Rx)
2x SATA (port 0,1)
6x USB Host
1x USB Client
LAN PHY
RTL8211CL
Intel
®
Platform
Controller Hub
EG20T
Switch
SDIO/MMC port 0
4x GPI
4x GP0
GPIO
PCA9535
SMBus
I
2
C
BC
Ordering Information
●
Accessories
Heat Spreaders
●
nanoX-TC-E620-1G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E620 at 600 MHz, PCH EG20T, and 1 GB soldered DDR2 SDRAM
nanoX-TC-E640-1G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E640 at 1.0GHz, PCH EG20T, and 1 GB soldered DDR2 SDRAM
nanoX-TC-E660-1G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E660 at 1.3GHz, PCH EG20T, and 1 GB soldered DDR2 SDRAM
nanoX-TC-E680-1G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E680 at 1.6GHz, PCH EG20T and 1 GB soldered DDR2 SDRAM
nanoX-TC-E680-2G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E680 at 1.6GHz, PCH EG20T and 2 GB soldered DDR2 SDRAM
nanoX-TC-E660-2G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E660 at 1.3GHz, PCH EG20T, and 2 GB soldered DDR2 SDRAM
nanoX-TC-E640-2G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E640 at 1.0GHz, PCH EG20T, and 2 GB soldered DDR2 SDRAM
nanoX-TC-E620-2G
COM Express
®
Mini Size Type 10 Module with Intel
®
Atom™
E620 at 600 MHz, PCH EG20T, and 2 GB soldered DDR2 SDRAM
●
HTS-nXTC-B
Heatspreader for nanoX-TC with threaded standoffs for bottom
mounting
HTS-nXTC-BT
Heatspreader for nanoX-TC with through hole standoffs for top
mounting
●
●
●
Passive Heatsinks
●
●
THS-nXTC-B
Multidirectional Heatsink for nanoX-TC with threaded standoffs
for bottom mounting
THS-nXTC-BT
Multidirectional Heatsink for nanoX-TC with threaded standoffs
for top mounting
●
●
●
Starter Kit
●
●
COM Express Type 10 Starter Kit Plus
COM Express formfactor starter kit with miniBase-10R carrier
board, power supply, and accessory kit
www.adlinktech.com
