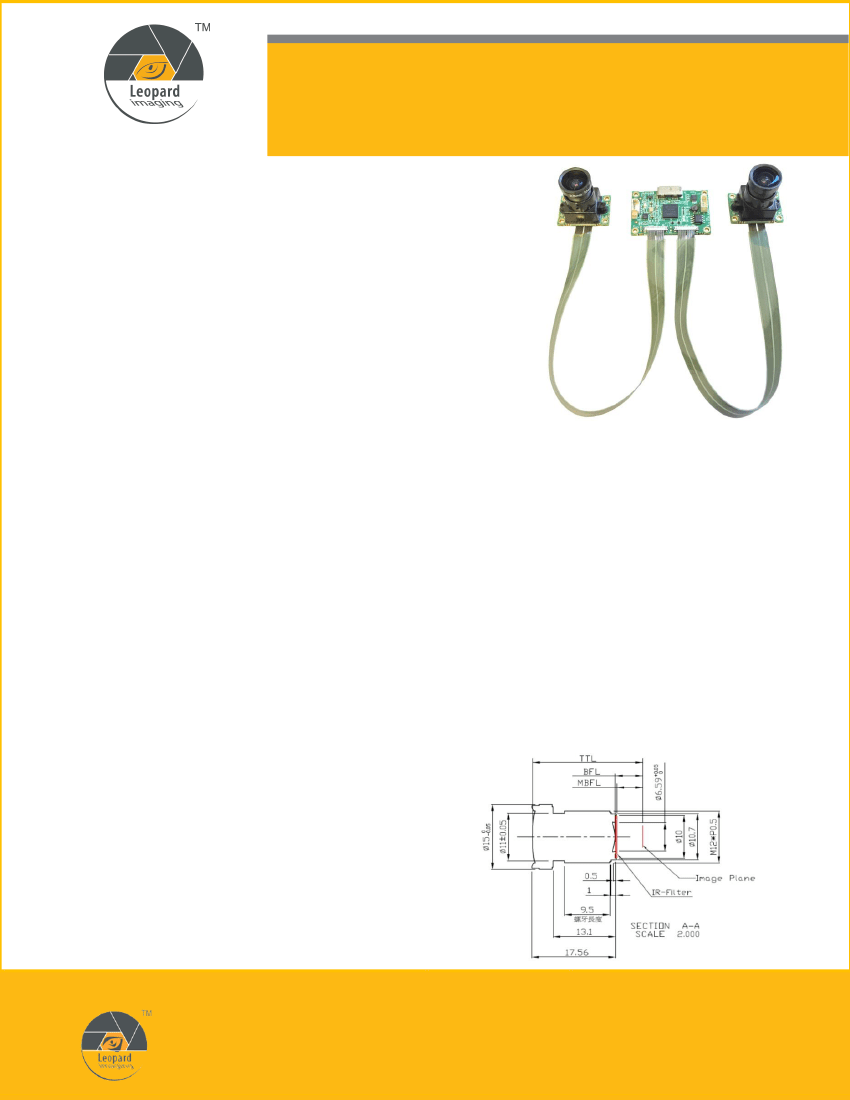

LEOPARD IMAGING INC
Rev. 1.1
LI-OV580-STEREO
Data Sheet
Key Features
USB 3.0 Super Speed support
YUV output without compression
UVC compliance
USB 2.0 backwards compatible
Dual Camera
Adjustable two cameras distance
Provide customization services
USB +5VDC powered device
color CMOS 4M image sensor
Optical format: 1/3"
3 boards: 1 OV580 and 2 OV4689
2 I-PEX cables: FAW-1212-TX
Length: 200mm
Part#:
LI-OV580-STEREO
Lens Spec
Interface
Part#: 20498-026E-41
Number of Positions: 26
Shell Plating: Sn
Vaccum Clip: With
Part#: YC-155N
Sensor size: 1/3"
Focal Length: 2.8 mm
Aperture, F/#: 2.0
Built in 650 nm IR cut filter
FOV (D/H/V): 109° /72°
/88°
TV Distortion: < 12%
TTL: 23.07 mm
BFL/MBFL: 5.81 mm/ 5.61 mm
Mount: M12
SDK Supported
Camera Tool Source Code in C#
Capture & Display
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035,USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com
www.leopard-security.com

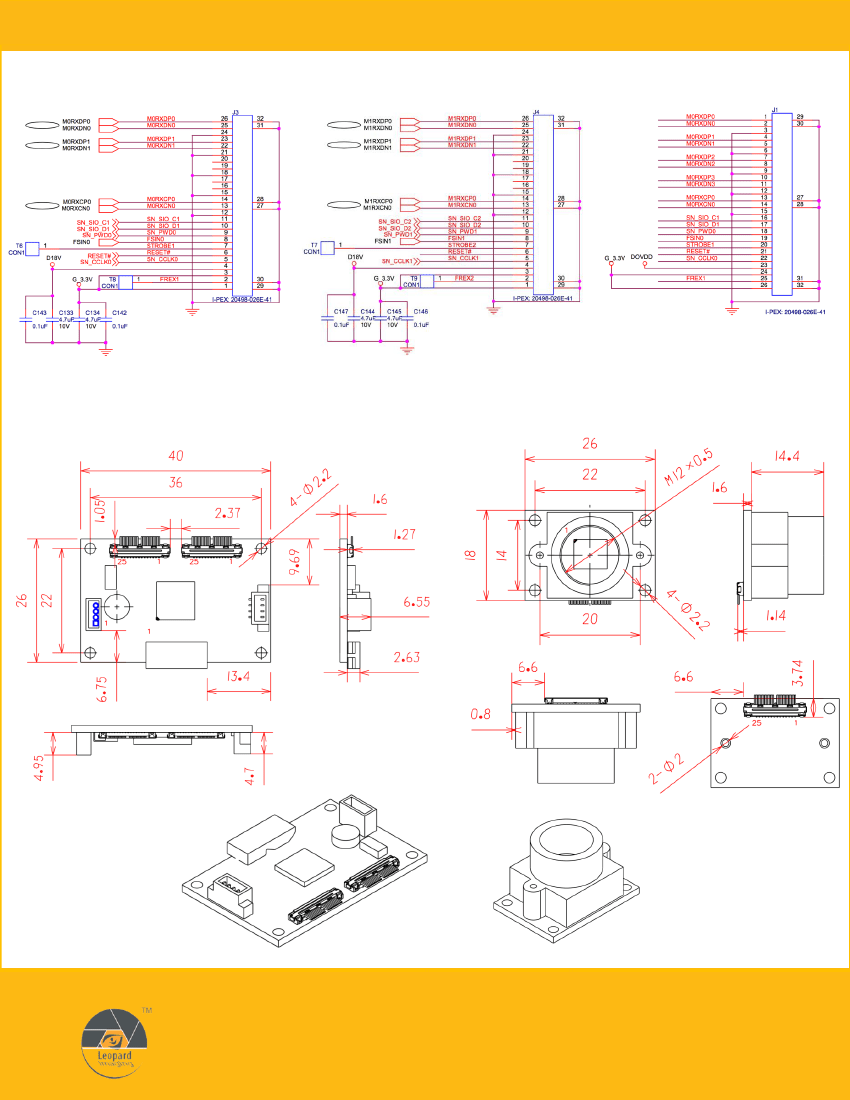

Pin Assignment
J3 (OV580)
J4 (OV580)
J1 (OV468 9)
Dimensions
OV580
OV4689
(without lens)
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035,USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com
www.leopard-security.com

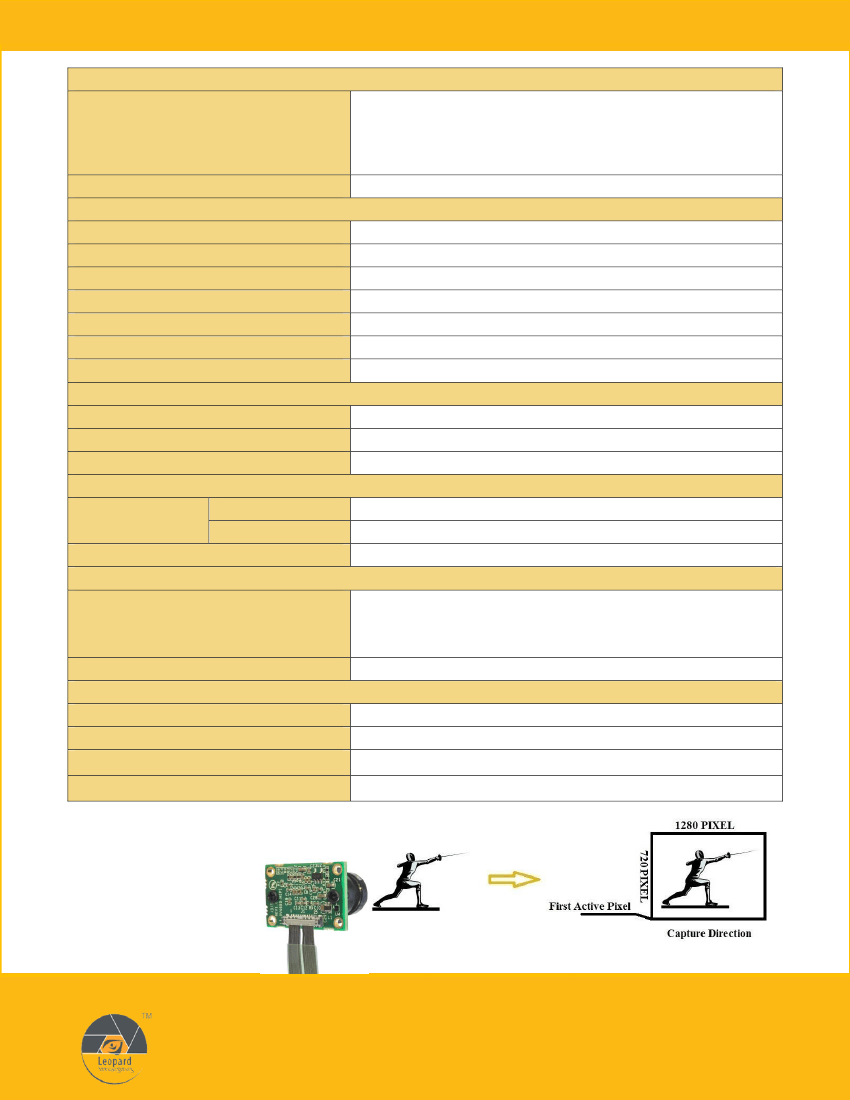

General Behavior
Video Resolution @ Frame rate
4416 x 1242 (2 x 2208 x 1242) @ 15 fps
3840 x 1080 (2 x 1920 x 1080) @ 30 fps
2560 x 720 (2 x 1280 x 720) @ 60 fps
1280 x 480 (2 x 640 x 480) @ 100 fps
Sensitivity
Interface (Optical)
IR cut filter
Sensor specification
Shutter
Format
Resolution
Pixel size
Lens mount
Interface (Electrical)
Interface
Supply voltage
Current consumption
Interface (Mechanical)
Dimensions
OV580
OV4689
Weight (with lens)
Adjustment
Manual
Auto
Environmental
Max. temperature (operation)
Max. temperature (storage)
Max. humidity (operation)
Max. humidity (storage)
1900 mV/Lux-sec
Yes
OmniVision color CMOS 4M image sensor
Rolling
1/3”
H:2688, V:1520
H: 2 um, V: 2 um
M12 lens mount support
USB 3.0
USB 3.0 +5 VDC power source
Approx. 295 mA at 5 VDC
L: 40 mm, W: 26 mm, H: 6.55 mm
L: 26 mm, W: 18 mm, H: 16 mm (without lens)
30 g
Brightness, Contrast, Hue, Saturation, Sharpness,
White Balance (Default Auto), Gain,
Exposure (Default Auto)
White Balance, Exposure
0 °C ~ 50 °C (32 °F~ 122 °F)
-20 °C ~ 80 °C (-4 °F~176 °F)
20 % ~ 80 %, relative, non-condensing
20 % ~ 80 %, relative, non-condensing
Capture Direction
