Powerful Intel
®
Core™ i7 Processor-based Fanless Expandable Embedded Computer
with PCI/PCIe Slots
Introduction
The Matrix MXC-6000 series of powerful fanless, expandable embedded computers feature the Intel
®
Core i7 2.0
GHz processor for maximized computing. The MXC-6000 inherits its exceptional fanless and cable-free design
from ADLINK’s existing Matrix C series.
The MXC-6000 series’ Intel
®
Core i7 2.0 GHz processor and Intel
®
QM57 chipset deliver a level of performance
ideal for image and vision measurement and automation applications. PCI and PCIe slots allow integration of off-
the-shelf PCI/PCIe cards for development of configurable application platforms. 16 built-in isolated DIO channels
enable standardized industrial control. A DVI-I connector output on the front panel allows direct connection to a
LCD panel, and one eSATA port supports storage expansion or hot-swapping SATA drives.
Leveraging a reliable fanless and durable cable-free design, the MXC-6000 series exhibits excellent dependability
in harsh environments, where severe temperature variation and vibration may exist. The MXC-6000 series
provides an optional hot-pluggable fan module to dissipate heat generated within the system when high power
consumption PCI/PCIe cards are installed. This inventive mechanical design retains a cable-free structure which
dramatically improves thermal stability when PCI/PCIe cards are installed.
The MXC-6000 also provides an USB 2.0 port internally located on a riser card, enabling heightened reliability
for secure applications, with license keys or password encryption on an internal USB dongle dramatically
improve system security. Combining a reliable design with computing power and innovative features, the Matrix
MXC-6000 series is the optimal choice on which to base any rugged application system.
*Extending the operating temperature is optional and requires use of an industrial solid-state drive storage device.
Heat dissipation from inserted PCI/PCIe cards may affect thermal performance
MXC-6000 Series
Features
■
■
■
■
■
■
■
■
Intel
®
Core i7-620LE 2.0 GHz processor + Intel
®
QM57 chipset
Configurable, providing PCI and PCIe x4 slots
Rugged, -10°C to 60°C (-14˚F to 140˚F) fanless operation*
Built-in 9 V
DC
to 32 V
DC
wide-range DC power input
VGA+DVI-D display by DVI-I connector
Dual 1000/100/10 Mbps Ethernet ports, 2 RS-232 ports and 2
software-selectable RS-232/422/485 ports
USB 2.0 port internally on riser card, built-in 16-CH isolated DI
and 16-CH isolated DO
RAID 0, 1 function available through 2 internal
SATA-connected HDD or one internal SATA-connected
HDD and one external eSATA-connected HDD
■

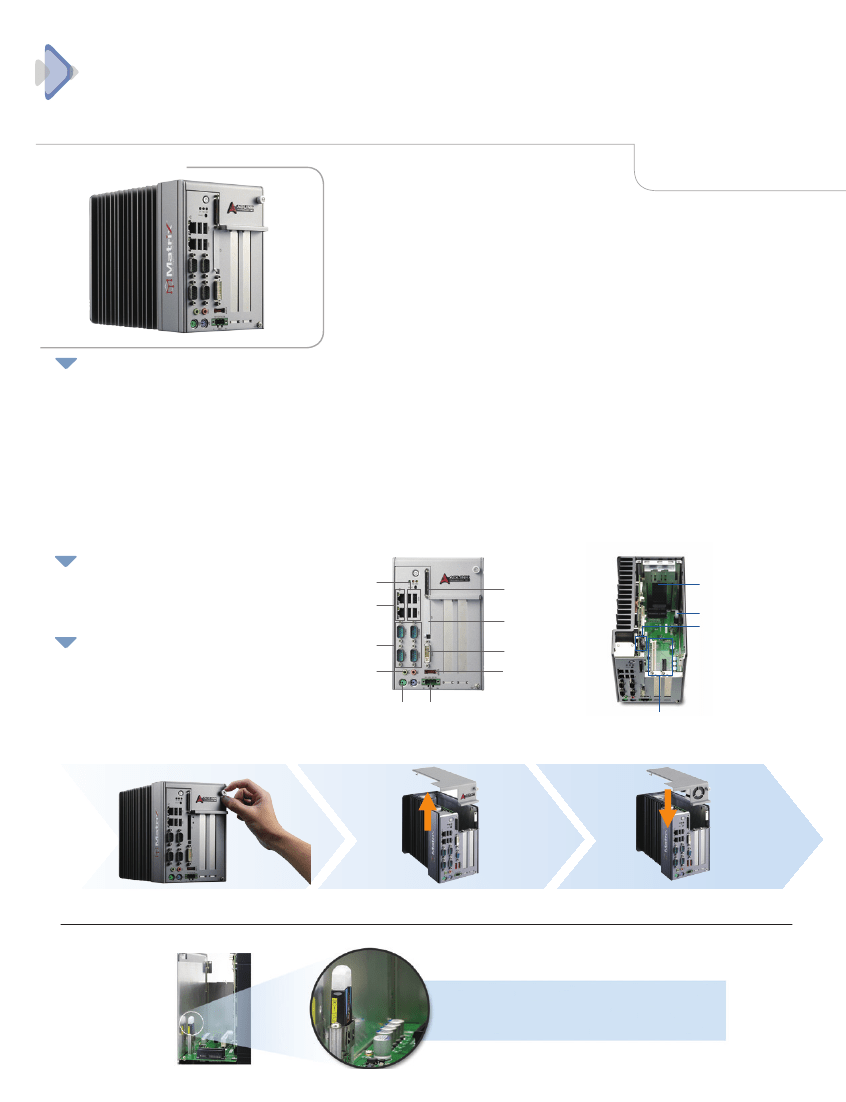

MXC-6000 Series Front Panel
■
Inside of the MXC-6000 Series
Applications
■
■
■
■
Machine Automation / Factory Automation
Image & Vision Measurement
Test Instrumentation
Safety Surveillance
USB 2.0 Port x 4
GbE Port x 2
16-CH DI+
16-CH DO
Hot-Swappable
CF
Air In-take Apertures
with Filter
Internal USB Port
Proprietary Connector
for Optional Fan Module
Installation
Software Support
■ OS
Information
• Windows
®
XP/XP Embedded/7
• Linux*
• INtime*
*Linux Distribution by Request
*Custom BIOS is necessary to support INtime
®
COM Port x 4
MIC-In &
Line-out
PS2 KB/MS
DC Input (9-32 V)
DVI-I
eSATA
2 PCI Slots for MXC-6101D /
1 PCI Slot + 1 PCIe x4 Slot for MXC-6201D
■
Easy-to-install Hot-pluggable Fan Module
1. Undo the thumbscrew by hand
■
A More Reliable Design of Internal USB Port
2. Withdraw the thumbscrew and
remove the top cover
3. Replace it by plugging the hot-pluggable fan
module cover into the fan connector on CPU board
The Matrix internal USB 2.0 port provides increased
application security with connectivity for license keys
or password encryption on USB dongle.
Specifications
Model Name
System Core
■
■
■
MXC-6101D
MXC-6201D
Processor
Chipset
Video
Intel
®
Core i7-620LE 2.0 GHz CPU
Intel
®
QM57
VGA+DVI display by DVI-I connector
• Analog CRT, supports QXGA (2048 x 1536) resolution
• DVI-I 1.0 (DVI + VGA) (with external cable for connecting DVI-I connector to DVI-D and VGA device)
• Optional 48-bit LVDS (by Internal box header)
2 GB DDR3 800/1066 MHz SODIMM module (Max. capacity 4 GB SODIMM module option)
2 PCI slots
®
■
Memory
I/O Interface
Expansion Slots
■
Ethernet
■
Serial Port
■
■
■
■
■
■
1 PCI slot and 1 PCIe x4 slot
USB
Audio
KB/MS
DIO
WDT
2 GbE ports (2 Intel 82574L)
2 software-programmable RS-232/422/485 (COM1 & COM2)
2 RS-232 (COM3 & COM4)
4 USB 2.0 ports (external), 1 USB 2.0 port (internal)
1 mic-in and 1 line-out
1 PS/2 keyboard and 1 PS/2 mouse
16-CH isolated DI + 16-CH isolated DO
Supports a watchdog timer
AT/ATX, built-in 9-32 V
DC
wide-range DC power input
3P pluggable connector with latch (GND, V-, V+)
Optional 100 W external AC-DC adapter for AC input
On-board SATA port for 2.5" HDD/SSD installation Support SATA RAID 0, 1
1 external type II CompactFlash socket
1 internal type II CompactFlash socket
1 eSATA interface connector for external storage expansion
Optional hot-pluggable fan module for dissipating heat generated by PCI/PCIe card
130 mm (W) x 225 mm (D) x 183 mm (H) (5.1" x 8.9" x 7.2")
3.5 kg (7.72 lbs)
Wall-mount kit
Standard: 0°C to 50°C (32˚F to 122˚F)
Extended temperature option*: -10°C to 60°C (-14˚F to 140˚F) (w/industrial SSD)
-40°C to 85°C (-40˚F to 185˚F) (excl. HDD/SSD/CF)
~95% @ 40°C (104˚F) (non-condensing)
Operating, 5 Grms, 5-500 Hz, 3 axes (w/ CF or SSD)
Operating, 0.5 Grms, 5-500 Hz, 3 axes (w/ HDD)
Operating, 50 G, Half sine 11 ms duration (w/ CF or SSD)
CE and FCC Class A
Power Supply
■
DC Input
■
AC Input
SATA HDD
CompactFlash
eSATA
Storage Device
■
■
■
■
■
■
■
Mechanical
Optional Fan Module
Dimensions
Weight
Mounting
Environmental
■
Operating Temperature*
■
■
■
Storage Temperature
Humidity
Vibration
Shock
EMC
■
■
*Without PCI/PCIe card installation.
Ordering Information
Model Name
MXC-6101D
MXC-6201D
Description
Intel
®
Core i7-620LE 2.0 GHz fanless expandable embedded computer
Intel
®
Core i7-620LE 2.0 GHz fanless expandable embedded computer
PCI
2
1
PCIe x4
0
1
GbE
2
2
eSATA
1
1
COM
4
4
USB
5
5
Memory
2 GB DDR3
2 GB DDR3
DIO
16 DI+16 DO
16 DI+16 DO
Optional Accessories
MXC-6000 Optional Fan Module
4 GB DDR3 Upgrade
500 GB HDD Option
32/64/128 GB SSD Option
100 W AC-DC Adapter
90 W AC-DC Adapter
Extended Temperature Option*
Optional Fan module fan module for the MXC-6000 series
Upgrade to 4 GB DDR3 memory
Factory-installed 500 GB SATA hard disk drive (0°C to 60°C, 32˚F to 140˚F)
Factory-installed 32/64/128 GB SATA solid-state drive (0°C to 70°C, 32˚F to 158˚F)
100 W industrial-grade AC-DC adapter (-20°C to 70°C, -4˚F to 158˚F)
90 W commercial grade AC-DC adapter (0°C to 50°C, 32˚F to 122˚F)
Optional Screening to extend the operating temperature of the MXC-6000 series to -10°C to 60°C (-14˚F to 140˚F)
*For more options regarding display and COM port cables, please refer to page 1-28.
*Updated January 24, 2014. ©2014 ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
