Modular, Managed Four E1
Plus Data Extension Over Fiber

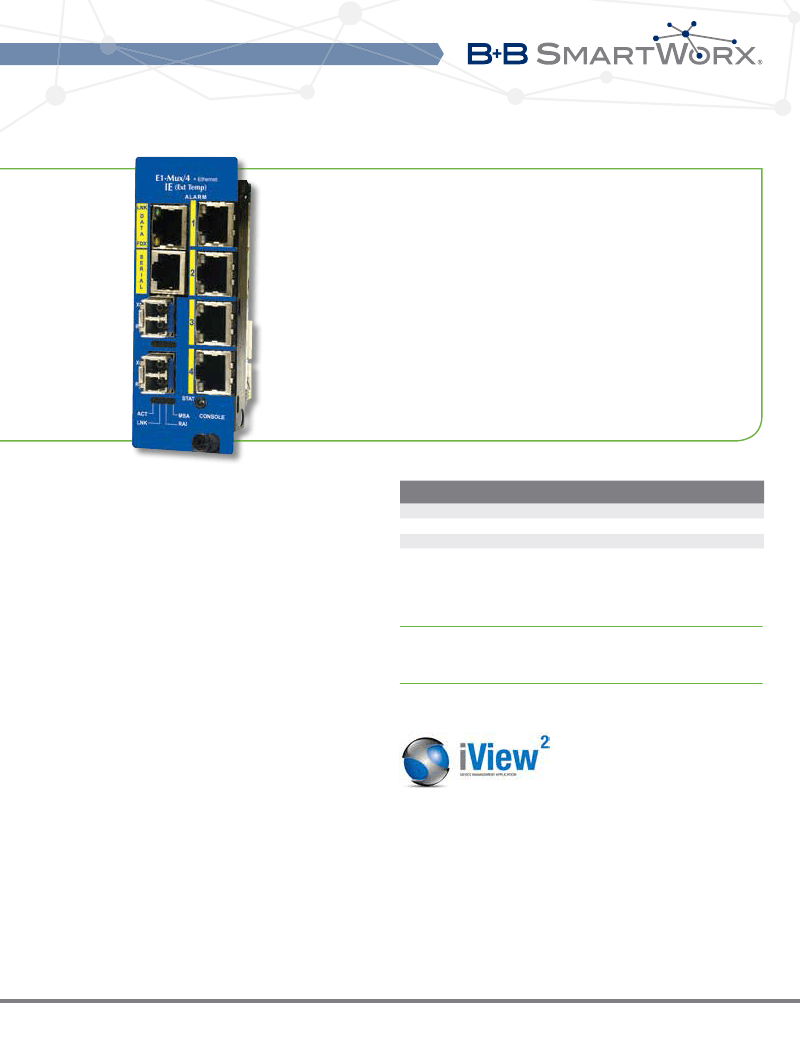

IE-iMcV-E1-Mux/4+Ethernet (Enhanced)
PRODUCT FEATURES
•
•
•
•
•
•
•
•
•
•
•
Four independent E1 ports on RJ-48 connectors with surge protection
AIS generation on signal loss on all E1 and fiber interfaces
Supports local and remote loopback functions
Supports the Link Fault Pass-Through Function (LFPT)
Dual SFP fiber ports with 1+1 protection switching
One RS-232 interface to support low speed data up to 120 kbps via
MiniJack adapter
Both Host/Remote are managed from the Host unit
Command Line Interface (CLI) management provided via one MiniJack
RS-232 console port
Remote Graphical User Interface (GUI) management through a managed
iMediaChassis
SNMP Alarm TRAP reporting in managed chassis, including Last Gasp
Full LED diagnostics on front panel
The IE-iMcV-E1-Mux/4 is a managed modular media converter,
installed as a Host/Remote pair, that transports four independent E1
lines over a single or dual fiber optic line plus one 10/100 ethernet
port. The module is ideal for applications requiring TDM extension,
such as remote office PABX connectivity, with support for a full
bandwidth 10/100BaseT Ethernet connection over the same optical link.
The IE-iMcV-E1-Mux/4 allows for Bandwidth Limiting control in 32
Kbps increments up to 100 Mbps. It also detects Ethernet, AIS, E1 and
fiber LOS events as well as degraded lines with full LED indications
including a Remote Alarm Indicator (RAI) over the fiber link. E1
ports can also be enabled or disabled via the CLI, Telnet or SNMP
management software, allowing the user to perform maintenance on a
particular line without affecting others.
Fiber redundancy (1+1) on removable SFP modules offers the
enhanced reliability of a protected fiber link while supporting the
complete range of optical types and distances. The 1+1 protection
system automatically switches to the best fiber line within 50
milliseconds, should one line become impaired or fail.
The module also features an independent serial link (RS-232) which
is carried over the same fiber link(s), and can be used for transporting
serial traffic from other equipment located at the remote point of
presence (POP) back to the central office. The RS-232 console port is
useful for local monitoring and configuration of the unit by technical
support personnel.
ORDERing inFORMATiOn
Model
Fiber Fiber raNge e
NuMber
Ports
Ports
* iMcV-e1-Mux/4+ethernet (enhanced)
857-18111 SFP
1 or 2 Various 4 - RJ48
* iMcV-e1-Mux/4+ethernet
857-14400 SFP
1 or 2 Various 4 - RJ48
etherNet rs-232
Port
1 - RJ45
1 - RJ45
rs-232
MiNiJack
1 - RJ45 1
1 - RJ45 1
* SFPs Sold Separately
ACCESSORiES
825-39951 - Serial Cable, MiniJack to DB9 (female)
iView: Windows 2000/XP/Vista/Win7
www.bb-smartworx.com
|
Enabling connEctEd intElligEncE
IE-iMcV-E1-Mux/E+Ethernet Enhanced_1115ds
Modular, Managed Four E1
Plus Data Extension Over Fiber
IE-iMcV-E1-Mux/4+Ethernet (Enhanced)
SpecificationS
Technical
2 x MSA compliant optical SFP slots
4 x E1 (RJ-48) copper ports
Local RS-232 Console port
RS-232 transparent to 120 Kbps
IEEE 802.3x Flow Control
IEEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX or SX fiber
ITU G.775
GR-820-CORE
Supports over-sized packets up to 1916 bytes per packet
Configurable as Host/ Remote pairs (DIP Switch selection)
SNMP management via GUI-based iView2 application software
10/100BaseT Full Bandwidth (144,800 fps/FDX)
RoHS compliant
Last Gasp Trap

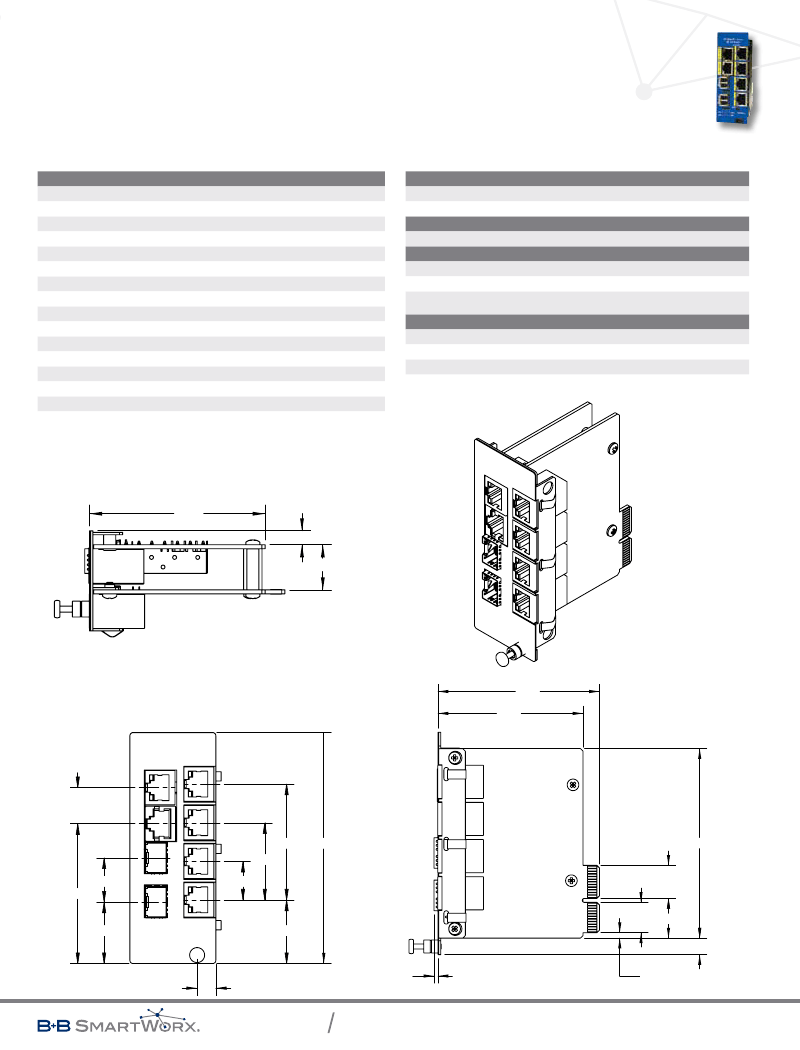

MEChAniCAl DiAgRAM
(dimensions in inches)
Mechanical
Dimensions
Shipping Weight
Power consuMPtion
0.96A @ +5 VDC
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory aPProvals
IEEE-802.3u
ITU G.775 (AIS, LOS)
GR-820-CORE
Double-wide chassis module
1.1 lbs. (0.50 kg)
-40°F to 158°F (-40°C to +70°C)
-40°F to 158°F (-40°C to +70°C)
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
2.73
.22
.70
3.04
2.73
.66
2.10
1.40
.80
2.54
.70
4.19
3.57
.62
.57
.75
.31
1.12
1.15
.08
.10
.34
