MI961F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> MI961F

MI961F: DescriptionSingle Board Computers MINI-ITX SBC Intel H61 Corei3/5/7/Cel; CategoryModule/solution; File Size563KB，1 Pages; ManufacturerIBASE

Download Datasheet Parametric View All

MI961F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MI961F	-	-	View	Buy Now

MI961F Overview

Single Board Computers MINI-ITX SBC Intel H61 Corei3/5/7/Cel

MI961F Parametric

Parameter Name	Attribute value
Product Category	Single Board Computers
Manufacturer	IBASE
RoHS	Details
Form Factor	Mini-ITX
Processor Brand	Intel
Processor Type	Intel Core i3/i5/i7/Pentium/Celeron
Frequency	3.4 GHz
Memory Size	16 GB
Interface Type	LAN, RJ-45, RS-232, RS-422, RS-485, SATA, USB
Operating Supply Voltage	12 V
Maximum Operating Temperature	+ 60 C
Dimensions	170 mm x 170 mm
Chipsets	H61
Description/Function	LGA1155 H61 Mini-ITX motherboard with HDMI, VGA and DVI-D, dual gigabit LAN, 3x SATA II, 1x PCI-E 16x,1x Mini PCI-E, iSMART
Memory Type	DDR3
Minimum Operating Temperature	0 C
Packaging	Bulk
Processor Series	Intel Core i3/i5/i7, Intel Pentium, Intel Celeron
Factory Pack Quantity	1

Preview

Download Datasheet

View All

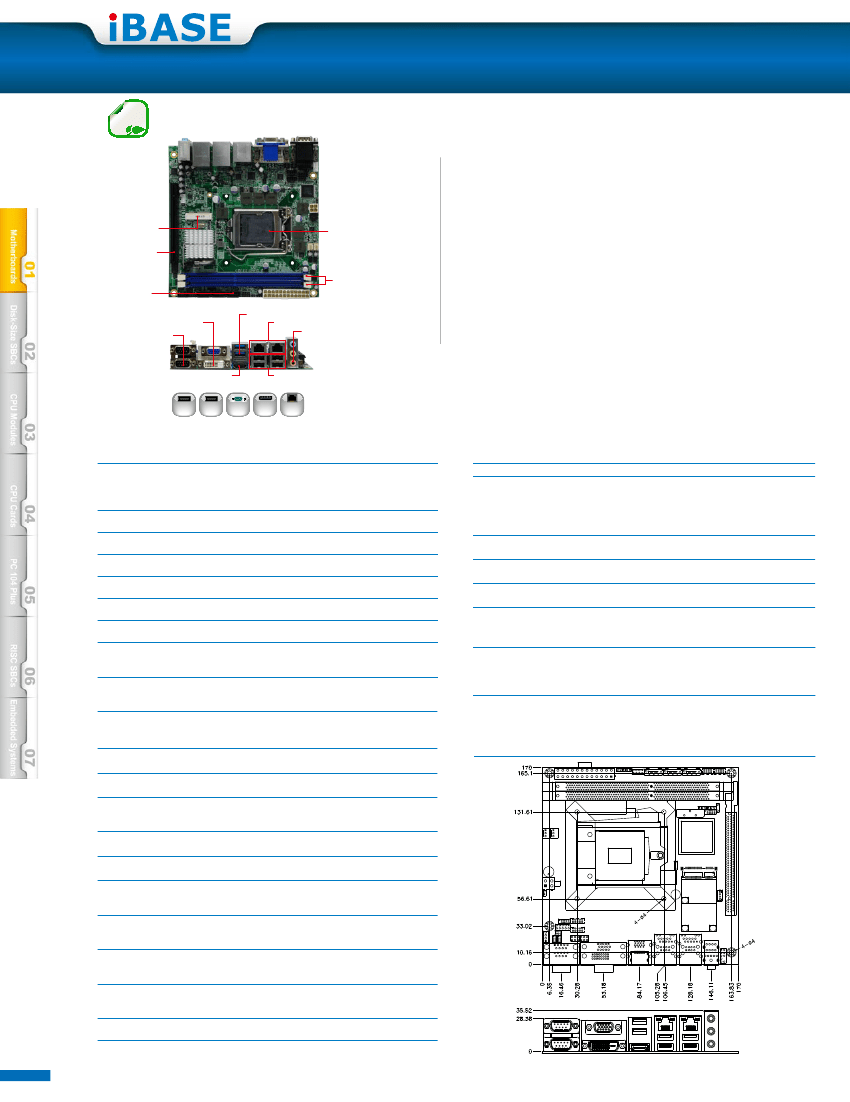

Mini-ITX Motherboard

MI961

NEW

FANLESS

iSMART

LGA1155 2nd/3rd Generation Intel

Core™ i7/i5/i3 / Pentium

Celeron

Mini-ITX Motherboard w/ Intel

H61 PCH

Mini PCI-E(x1)

PCI-E (x16)

LGA1155

Socket

SATA II

USB 3.0

DDR3

DIMM

Sockets

DVI-D/ VGA

COM

Dual GbE

Audio

HDMI

USB 2.0

● Supports 2nd/3rd Generation Intel

Core

i7/i5/i3 /

Pentium

/ Celeron

processors, up to 3.4GHz

● 2x DDR3 DIMM, Max. 16GB

● iSMART - for EuP/ErP power saving, auto-scheduler

and power resume

● Intel

processor integrated graphics, supports HDMI,

DVI-D and VGA

● Dual Gigabit LAN

● 8x USB 2.0, 2x USB 3.0, 4x COM, 3x SATA II

● 1x PCI-E(x16), 1x Mini PCI-E(x1)

● Watchdog timer, Digital I/O

Features

USB(3.0) USB(2.0)

COM

SATA III Gbe LAN

System

CPU

System Memory

System Chipset

BIOS

Watchdog Timer

SSD

H/W Monitor

Expansion Slots

LGA1155 for 2nd/3rd Generation Intel

Core

i7/i5 /i3/ Pentium

/ Celeron

processors, up to

3.4GHz

2x DDR3 DIMM, Max. 16GB (Non-ECC)

Intel

H61 PCH

AMI BIOS

256 levels

1x mSATA via Mini PCI-E

Yes

1x PCI-E(x16)

1x Mini PCI-E(x1) - w/ USB signal (full-size)

Mechanical and Environmental

Dimensions

170mm x 170mm (6.7” x 6.7”)

Intel

Core™ i7-2600 3.40GHz

w/ 2x 2GB DDR3-1333

+3.3V: 1.18A +5V: 2.37A

+12V: 1.29A +5Vsb: 0.39A

0°C~60°C (32°F~140°F)

-20°C~80°C (-4°F~176°F)

10%~90% (non-condensing)

Max. Power

Requirement

Operating

Temperature

Storage

Temperature

Relative

Humidity

Ordering Information

MI961F

LGA1155 H61 Mini-ITX motherboard with HDMI, VGA

and DVI-D, Dual Gigabit LAN, 3x SATA II,

1x PCI-E(16x),1x Mini PCI-E, iSMART

Graphics

VGA Controller

VGA Memory

Display Interface

Intel

Core

i7/i5/i3/ Pentium

/ Celeron

processors

integrated

Max. Shared Memory - 1024 MB

Supports HDMI, DVI-D and VGA

Dimensions Drawing

LAN

Controller

Connector

2x Realtek RTL8111E Gigabit LAN

RJ-45 on board

Multi I/O

I/O Chipset

USB

Audio

Others

Fintek F81846AD-I

3x RS232, 1x RS232/422/485, 3x SATA II

4 ports on board, 4 ports via pin-header (USB 2.0)

2 ports on board (USB 3.0)

Intel

H61 PCH built-in HD audio + Realtek ALC892

codec

Digital I/O(4-in/4-out), iSMART

1-14

Remarks: 1. Specifications are subject to change without prior notice.

2. ODM/OEM is available.

3. For user’s manual & datasheet download, visit www.ibase.com.tw.
