Although most installations will not require power, a Micro USB port is provided in the event power is
needed. Using a Micro USB cable(such as Tripp Lite's UR05C-Series), connect the Micro USB port to a
USB wall charger, the USB port on your monitor, or the USB port on a computer.
Highlights
q
Extend a 1080p @ 24Hz (or
1920 x 1200) HDMI signal up to
150 ft. from the source

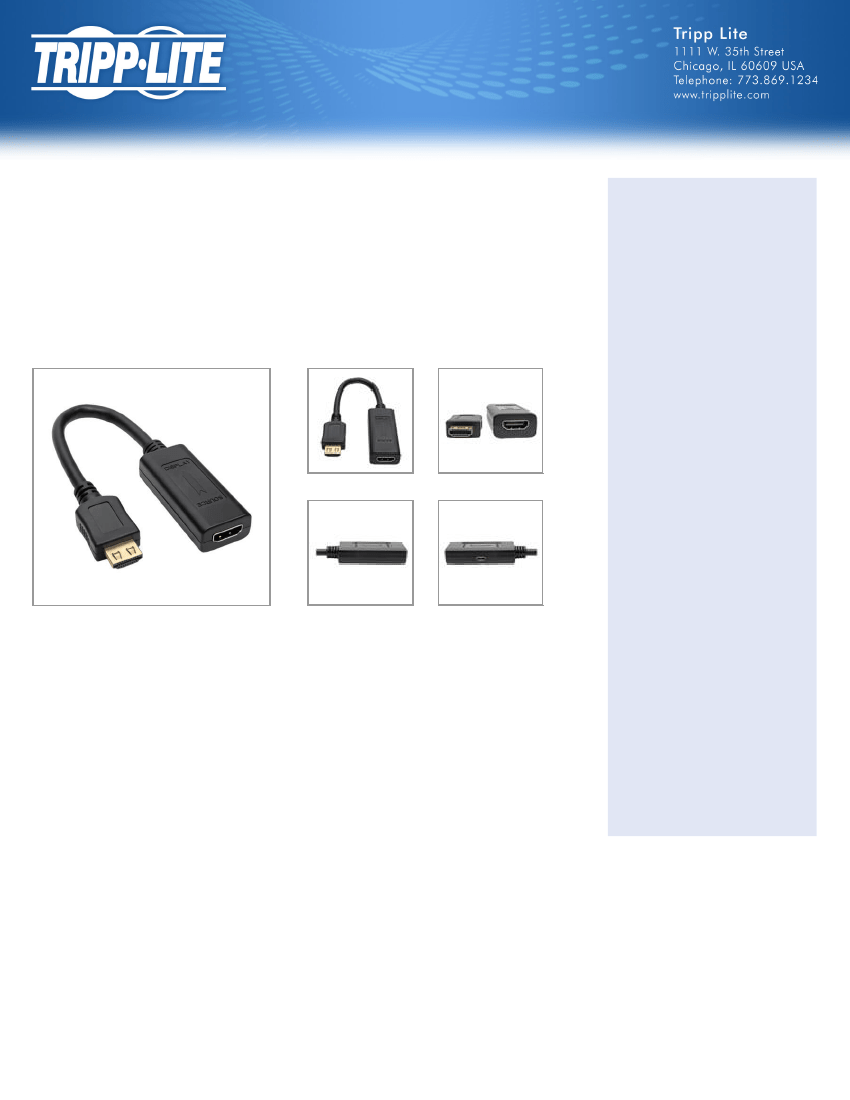

HDMI Signal Booster/Extender Cable (1-ft.),
1920x1200 at 24Hz/1080p (HDMI M/F), Up to 150-
ft., TAA
MODEL NUMBER:
B123-001
q
When extending a 1080p @
24Hz (or 1920 x 1200) signal
more than 75 ft., use cable
made with 24Awg wiring, such
as the P568-100-HD
q
24Awg HDMI cable is also
needed when extending a 3D
signal more than 50 ft.. A 3D
signal can be extended up to
125 ft. using 24Awg HDMI cable
q
Supports DTS-HD, Dolby True
HD and 7.1 Channel Surround
Sound Audio
q
No external power required in
most installations
q
Built-in HDMI cable features a
latching connector for a more
secure connection
Description
Tripp Lite's B123-001 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200)
signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions
up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, at a maximum distance of 150 ft. from the
source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x
1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths
over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when
extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI
cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-
in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure
connection. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade
Agreements Act (TAA) for GSA Schedule purchases.
q
Compliant with the Federal
Trade Agreements Act (TAA) for
GSA Schedule purchases
Package Includes
q
HDMI Active Extender Cable,
M/F, 1 ft.
Features
q
Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source
Use P568-Series HDMI cables in most applications
Built-in HDMI cable features a latching connector for a more secure connection
When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg
wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order)
q
q
q
q
24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be
extended up to 125 ft. using 24Awg HDMI cable
1/3
q
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
HDCP compliant
No software or drivers required
No external power required in most installations
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
q
q
q
q
Specifications
OVERVIEW
UPC Code
037332141057
INPUT
Cable Length (ft.)
Cable Length (m)
1
0.3
PHYSICAL
Color
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
150
155
150
150
150
155
150
150
150
150
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
1
HDMI (MALE)
HDMI (FEMALE)
FEATURES & SPECIFICATIONS
Technology
HDMI
