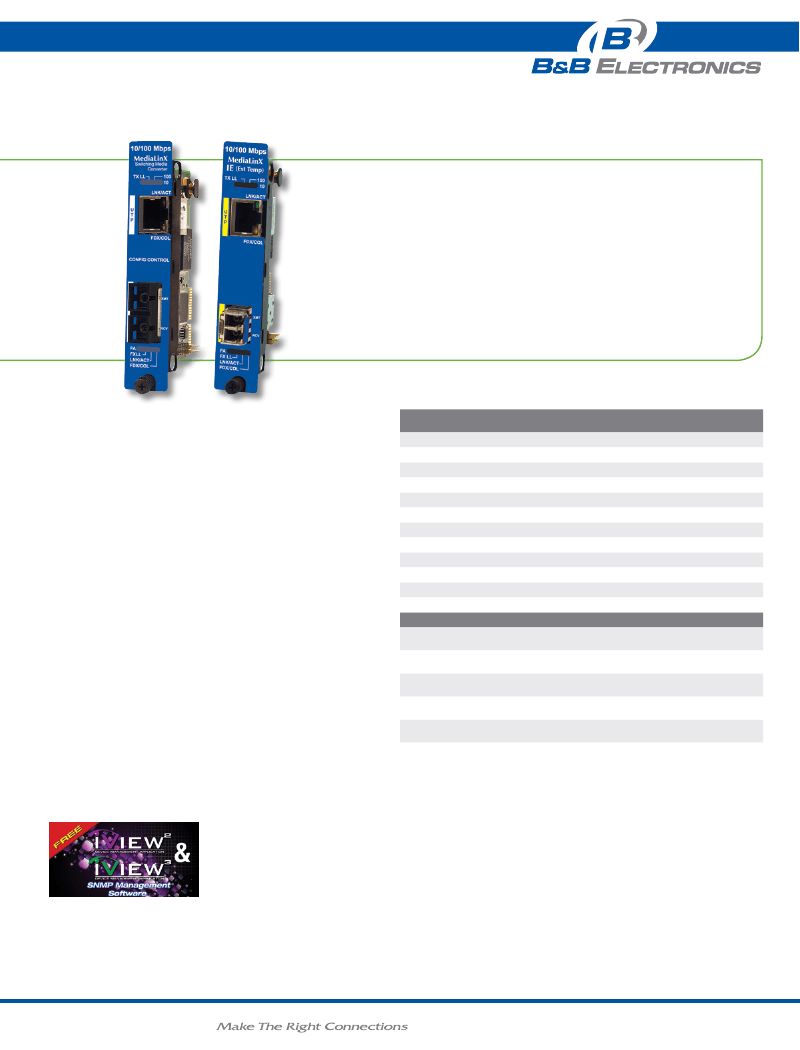

10/100 mbps Ethernet media converter
iMcV-MediaLinX & IE-iMcV-MediaLinX
product FEaturEs
• Available for multi-mode or single-mode fiber
• Double fiber capacity with single-strand fiber versions
• IE-iMcV-MediaLinX supports SFP transceivers and extended
operating temperatures
• Modular, hot-swappable architecture reduces operational costs
associated with product installation, upgrades and maintenance
• SNMP Manageable
• Converts 10 or 100 Mbps Copper to 100 Mbps Fiber
• Supports Configuration Control
• Features Link Fault Pass-Through (LFPT)
Satisfying today’s networking needs while preparing for tomorrow’s
cabling requirements can make designing and installing the physical
layer of networks a daunting task. The decreasing cost of fiber optic
cabling and switching equipment makes all-optical LANs the obvious
choice when future-proofing network equipment. Replacing legacy
equipment and wiring infrastructure is a costly choice. Managed media
conversion allows implementation of new technologies on existing
networks, while monitoring all connections, to keep networks running
and up-to-date.
B&B Electronics offers a wide range of SNMP-managed Ethernet
copper to fiber media converters, with a choice of fixed rate or
rate conversion capabilities. The “iMcV-“ modules also include
troubleshooting features and LEDs to assist in network diagnostics as
well as make isolating cable breaks easier. The iMcV-MediaLinX and
IE-iMcV-MediaLinX also features Link Fault Pass-Through. In addition,
the IE-Module provides support for Config Control if using SNMP
management.
All converters feature an RJ-45 copper port and a fiber port, with a
choice of SC, ST or SFP (IE-iMcV-MediaLinX only) connectors, and are
hot-swappable.
Rate converters employ Auto Negotiation functionality on the twisted
pair port for plug-and-play operation, or they can be manually
configured for the desired speed and duplex mode.
ordErIng InFormatIon
Model
FiBer range ethernet ethernet
FiBer
nuMBer
Ports
Ports
ConneCtor
ie-iMcv-Medialinx tx/sFP 10/100 Mbps with (lFPt) and Config Control * **
856-18700 SFP
1
Various
1
RJ45
iMcv-Medialinx tx/Fx 10/100 Mbps with (lFPt) and Config Control
856-15711 MM850-ST
1
2 km
1
RJ45
856-15712 MM850-SC
1
2 km
1
RJ45
856-15713 MM1300-ST
1
5 km
1
RJ45
856-15714 MM1300-SC
1
5 km
1
RJ45
856-15717 SM1310/PLUS-ST
1
40 km 1
RJ45
856-15718 SM1310/PLUS-SC
1
40 km 1
RJ45
856-15719 SM1310/LONG-ST
1
80 km 1
RJ45
856-15720 SM1310/LONG-SC
1
80 km 1
RJ45
856-15723 SM1550/LONG-SC
1
80 km 1
RJ45
single strand FiBer *
856-15731
SSFX-SM1310-SC
1
20 km 1
RJ45
(1310xmt/1550rcv)
856-15732
SSFX-SM1550-SC
1
20 km 1
RJ45
(1550xmt/1310rcv)
SSFX-SM1310/PLUS-SC
856-15733 (1310xmt/1550rcv)
1
40 km 1
RJ45
SSFX-SM1550/PLUS-SC
856-15734 (1550xmt/1310rcv)
1
40 km 1
RJ45
856-15735
SSFX-SM1310/LONG-SC
1
60 km 1
RJ45
(1310xmt/1550rcv)
856-15736
SSFX-SM1550/LONG-SC
1
60 km 1
RJ45
(1550xmt/1310rcv)
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
** SFP Fiber sold separately
iMcV-MediaLinX 10/100 Mbps also available in CWDM
Fiber. Call for details.
iView: Windows 2000/XP/Vista/Win7
www
.
bb
-
elec
.
com
|
iMcV-MediaLinX & IE-iMcV-MediaLinX_3713ds
10/100 mbps Ethernet
media converter
iMcV-MediaLinX & IE-iMcV-MediaLinX
SpecificationS
Technical
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3u 100Base-FX or SX fiber
IE-SFP 100/155 Mbps (OC-3) (IE-iMcV-MediaLinX)
Supports jumbo packets up to 1916 bytes
Supports Config Control
Connectors: RJ-45 and ST, SC, LC or SFP
IEEE 802.3x Flow Control
AutoCross for MDI/MDIX
Features LinkLoss and FiberAlert
Features Link Fault Pass-Through (LFPT)
Features Auto Negotiation and Selective Advertising
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps (Gig only)
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available for single-strand fiber
Installs in any iMediaChassis or MediaChassis
Supports GUI-Based iView²
Supports Half- and Full-Duplex operation
Includes diagnostic LEDs
Includes hot-swappable architecture

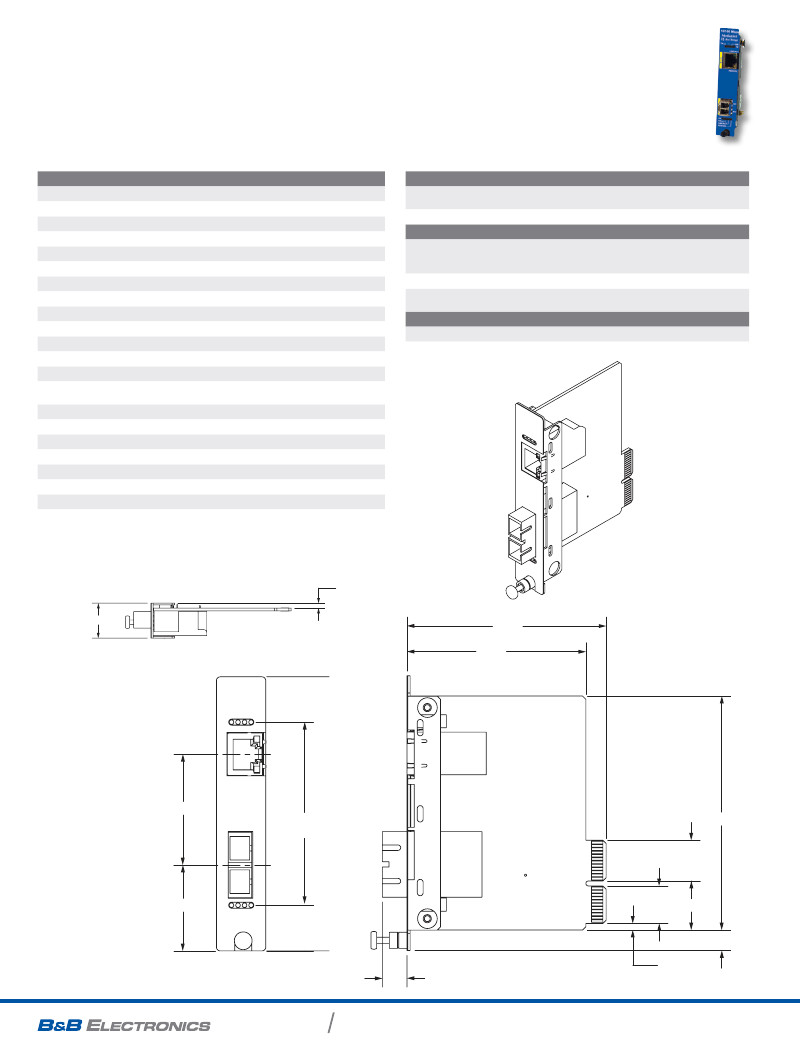

mEchanIcal dIagram
(dimensions in inches )
.11
Mechanical
Dimensions
Shipping Weight
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory approvals
FCC Class B
CE
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
0.30 lbs (.11 kg)
+32° to +122° F (0° to +50° C)
-40° to +185° F (-40° to +85° C) IE-iMcV-
MediaLinX
-13° to +158° F (-25° to +70° C)
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
.76
3.04
2.73
1.69
2.80
4.19
3.57
.62
1.31
.70
.57
.75
.31
.38
orders@bb-elec.com
support@bb-elec.com
.10
