109998-HMC520LC4

Description
RF Development Tools Eval PCB
CategoryDevelopment board/suite/development tools
File Size372KB,8 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric View All

109998-HMC520LC4 Online Shopping

Suppliers Part Number Price MOQ In stock
109998-HMC520LC4 - - View Buy Now

109998-HMC520LC4 Overview

RF Development Tools Eval PCB

109998-HMC520LC4 Parametric

Parameter NameAttribute value
Product CategoryRF Development Tools
ManufacturerADI
RoHSDetails
ProductEvaluation Boards
TypeRF Mixers
Tool Is For Evaluation OfHMC520LC4
Frequency6 GHz to 10 GHz
PackagingBulk
Factory Pack Quantity1
HMC520LC4
v03.0514
GaAs MMIC I/Q MIXER
6 - 10 GHz
Typical Applications
The HMC520LC4 is ideal for:
Features
Wide IF Bandwidth: DC - 3.5 GHz
Image Rejection: 40 dB
LO to RF Isolation: 50 dB
High Input IP3: +23 dBm

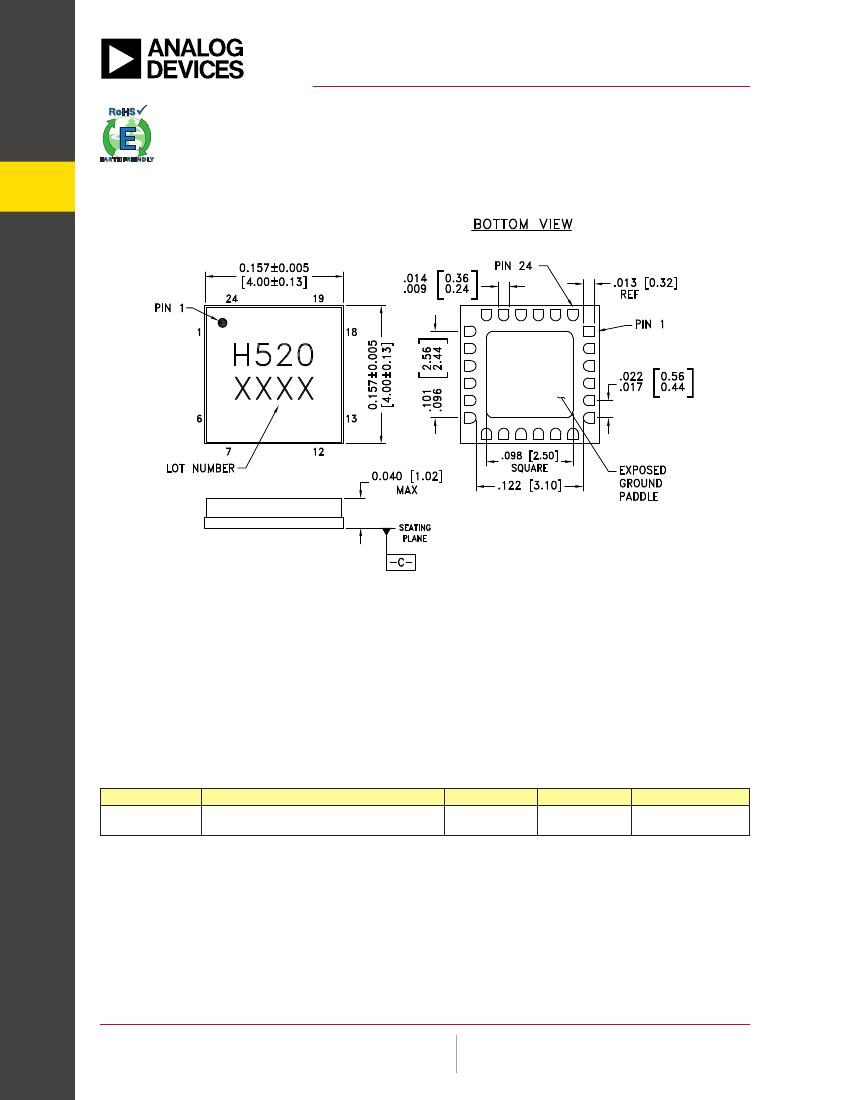

24 Lead 4x4mm SMT Package: 16mm²
MIXERS, I/Q MIXERS, IRMS & RECEIVERS - SMT
• Point-to-Point and Point-to-Multi-Point Radio
• Digital Radio
• VSAT

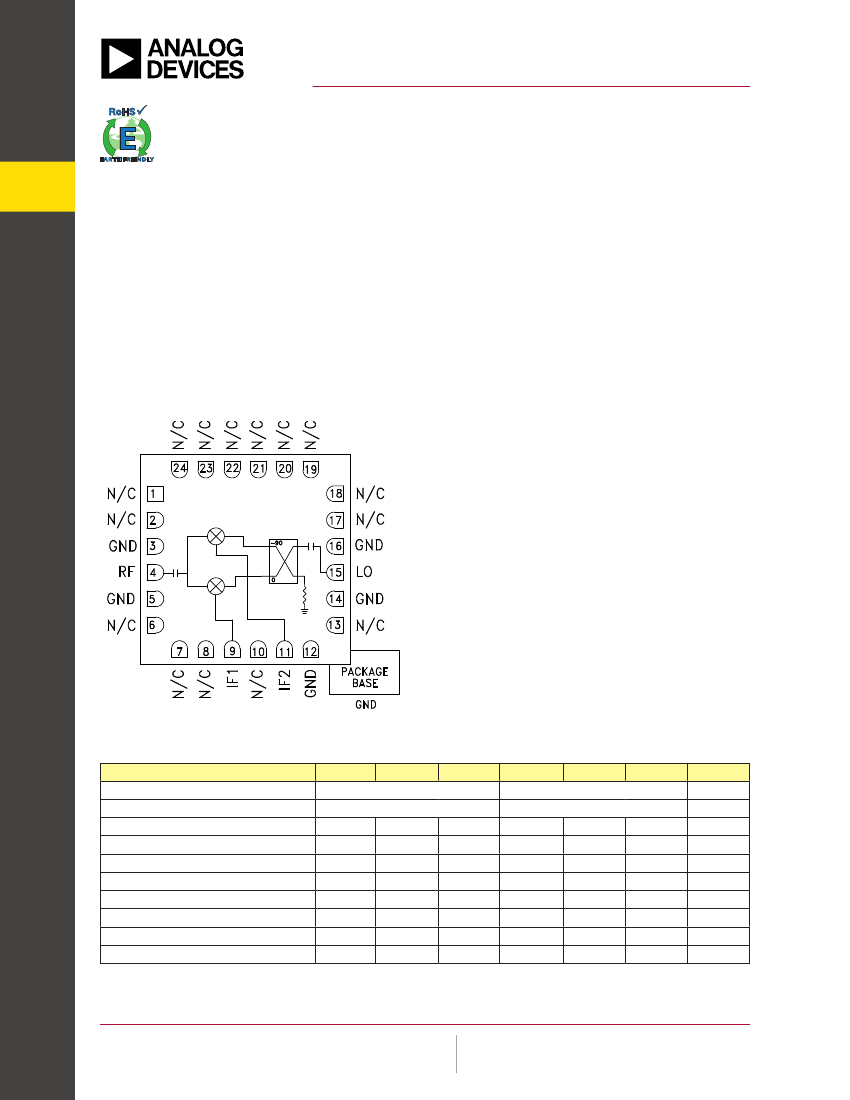

Functional Diagram
General Description
The HMC520LC4 is a compact I/Q MMIC mixer in a
leadless “Pb free” SMT package, which can be used
as either an Image Reject Mixer or a Single Sideband
Upconverter. The mixer utilizes two standard Hittite
double balanced mixer cells and a 90 degree hybrid
fabricated in a GaAs MESFET process. A low frequ-
ency quadrature hybrid was used to produce a 100
MHz USB IF output. This product is a much smaller
alternative to hybrid style Image Reject Mixers
and Single Sideband Upconverter assemblies. The
HMC520LC4 eliminates the need for wire bonding
allowing use of surface mount manufacturing
techniques.
Electrical Specifications,
T
A
= +25 °C, IF= 100 MHz, LO = +15 dBm*
Parameter
Frequency Range, RF/LO
Frequency Range, IF
Conversion Loss (As IRM)
Image Rejection
1 dB Compression (Input)
LO to RF Isolation
LO to IF Isolation
IP3 (Input)
Amplitude Balance
Phase Balance
35
16
20
Min.
Typ.
6 - 10
DC - 3.5
7
30
+12
45
20
+22
0.3
4
40
18
10
28
Max.
Min.
Typ.
7.1 - 8.5
DC - 3.5
7
40
+12
50
22
+23
0.2
4
9
Max.
Units
GHz
GHz
dB
dB
dBm
dB
dB
dBm
dB
Deg
* Unless otherwise noted, all measurements performed as downconverter.
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
