EDM2CFIMX6Q10R2GBNI4GBWLS2C datasheet, PDF

Datasheet> All Categories > Module/solution> EDM2CFIMX6Q10R2GBNI4GBWLS2C

EDM2CFIMX6Q10R2GBNI4GBWLS2C: DescriptionSystem-On-Modules - SOM EDM2 SOM ARM CTX A9 iMX6 QUAD 1Ghz WIFI; CategoryModule/solution; File Size234KB，2 Pages; ManufacturerTechnexion; Websitehttps://www.technexion.com/

Download Datasheet Parametric View All

EDM2CFIMX6Q10R2GBNI4GBWLS2C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EDM2CFIMX6Q10R2GBNI4GBWLS2C	-	-	View	Buy Now

EDM2CFIMX6Q10R2GBNI4GBWLS2C Overview

System-On-Modules - SOM EDM2 SOM ARM CTX A9 iMX6 QUAD 1Ghz WIFI

EDM2CFIMX6Q10R2GBNI4GBWLS2C Parametric

Parameter Name	Attribute value
Product Category	System-On-Modules - SOM
Manufacturer	Technexion
RoHS	Details
Form Factor	EDM Compact
Processor Brand	Freescale
Processor Type	i.MX6
Frequency	1 GHz
Memory Size	2 GB
Interface Type	CAN, GPIO, I2C, I2S, SPI, UART, USB
Operating Supply Voltage	5 V
Maximum Operating Temperature	+ 60 C
Dimensions	82 mm x 60 mm
Battery Backup Switching	No Backup Battery
Description/Function	EDM compact type 2 Freescale i.MX6 quad 1Ghz + 2GB RAM + 4GB iNAND + Gigabit LAN + 2 CAN + SATA + 802.11abgn + Bluetooth 4.0
Flash	4 GB
Memory Type	DDR3
Minimum Operating Temperature	0 C
Factory Pack Quantity	10

Preview

Download Datasheet

View All

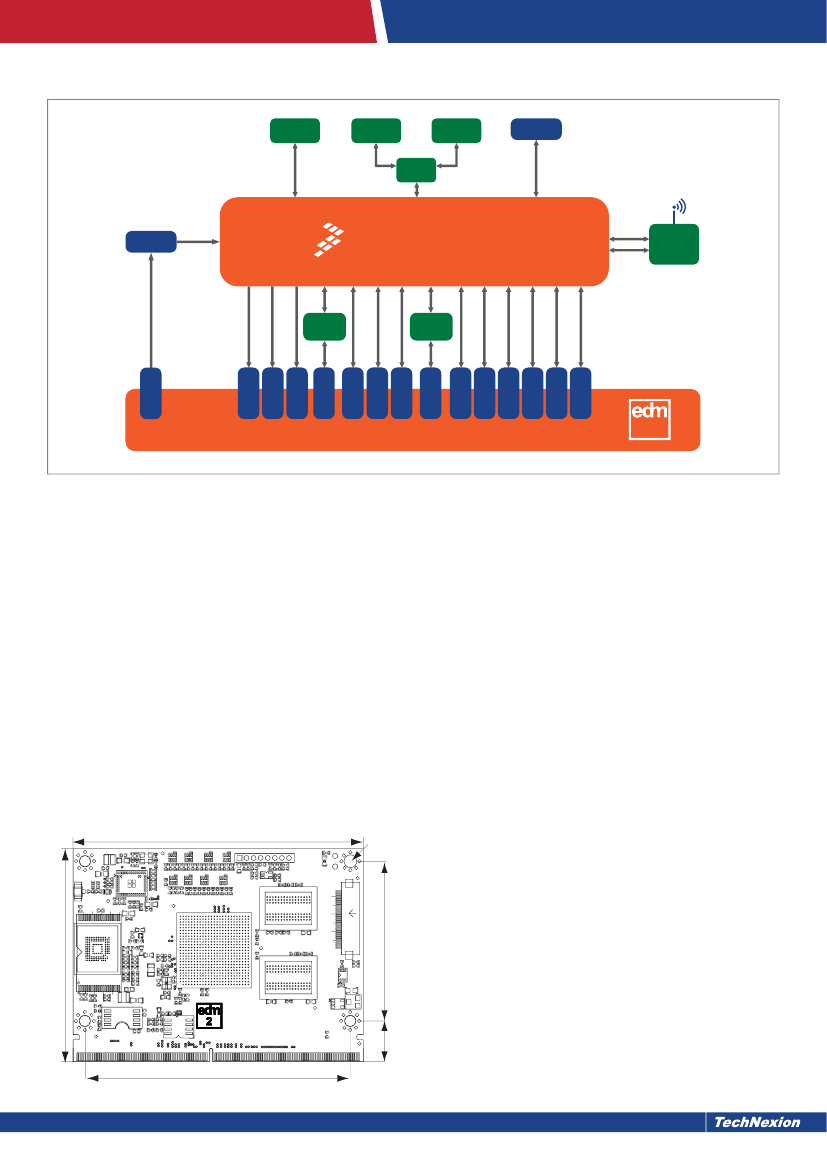

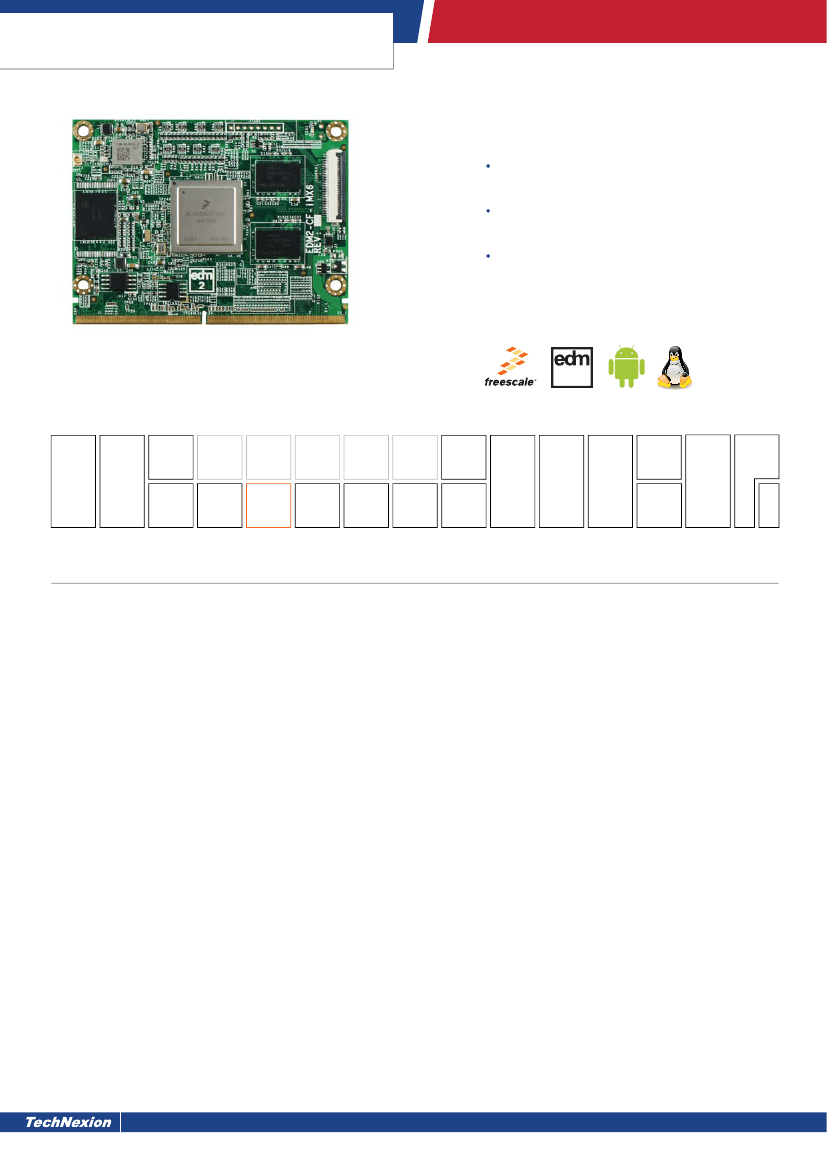

EDM2-CF-IMX6

Main Features

ARM Cortex-A9 Freescale i.MX6 scalable single/dual/

quad core EDM type 2 compact System-on-Module

Gigabit LAN, WiFi 802.11 b/g/n and Bluetooth v. 4.0

communication interface

Targeting multimedia applications with LVDS,

HDMI, S/PDIF, I

S, MIPI camera and display

LVDS

Power

5 VDC

LAN

LVDS

HDMI

PCIe

SATA

LPC

USB

OTG

HDA

USB

Host

SPDIF

CANBus

SPI

UART

RSVD

Buttons

+ GPIO

RTC

HDMI

Specifications

Core System

Signalling

CPU

EDM Type 2 compliant

Freescale i.MX6Quad @ 1Ghz

Freescale i.MX6Dual @ 1Ghz

Freescale i.MX6DualLite @ 1Ghz

Freescale i.MX6Solo @ 1Ghz

up to 2GB DDR3

eMMC (default 4GB)

optional NAND Flash (MOQ apply)

JTAG Interface by thruhole

MIPI Interface Camera

MIPI Interface Display

Video

GPU 3D

Solo / Duallite

Vivante GC880

35Mtri/s 266Mpxl/s

Open GL ES 2.0

Dual / Quad

Vivante GC2000

200Mtri/s 1000Mpxl/s

OpenGL ES 2.0

& Halti, CL EP

Vivante GC355

300Mpxl/s

OpenVG 1.1

Vivante GC320

600Mpxl/s, BLIT

1080p60 H.264

1080p30 H.264

BP / Dual 720p

System Memory

Storage

Debug Interface

FPC Connector

GPU 2D

(Vector Graphics)

emulated on GPU 3D

GPU 2D

(Composition)

Video Decode

Video Encode

Vivante GC320

600Mpxl/s, BLIT

1080p30 + D1

1080p30 H.264

BP / Dual 720p

Connectivity

Network

WiFi

Bluetooth

Atheros AR8031 Gigabit LAN

Broadcom BCM4330 802.11bgn

Broadcom BCM4330 BT 4.0

I/O Interfaces

Storage

Expansion

Display

USB

CAN Bus

Serial Port

Other

1x SATA 2.0 (Dual /Quad only)

1x SDIO / MMC

1x PCIe 2.0

HDMI v1.4

2 channel LVDS 18/24 bit

USB Host 2.0

USB OTG 2.0

2x Flex CAN version 2.0B compliant

2x UART

SPI, I

C, GPIO

Audio

Interface

Audio Codec

S (2 channel), S/PDIF

on EDM Carrier Board

Power Specifications

Input power

5 VDC +/- 5%

Operation Systems

Standard Support

Extended Support

Linux

Android

Commercial Linux

Windows Embedded Compact

Real Time OS

EDM Standard SOM’s and Carrier Boards
