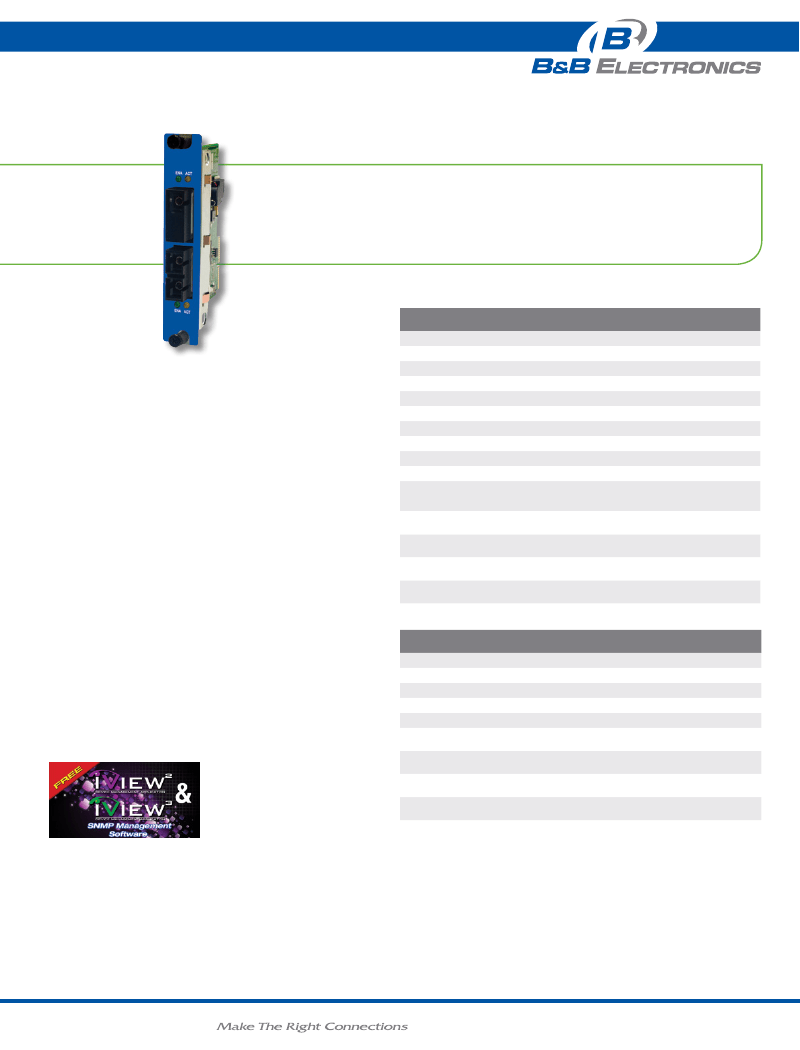

protocol-Independent, snmp-manageable
Fiber mode conversion modules
iMcV-S2MM
product FEaturEs
• Includes protocol-independent operation
• Converts multi-mode to single-mode fiber
• Supports 10 Mbps Ethernet to 155 Mbps or 1.25 Gbps
Gigabit Ethernet
In today’s dynamic networks, changing requirements are a fact of
life. The multi-mode fiber products and cabling which were the most
cost-effective and sound choice for your network yesterday may no
longer give you the flexibility you require when adding remote offices
today. Easily overcome the distance limitations inherent to multi-mode
fiber by converting to single-mode fiber. Fiber mode converters are
the solution.
Extend the reach of your network without replacing multi-mode fiber
equipment. As an economical alternative to using a switch with single-
mode fiber ports, simply install an IMC Networks fiber mode converter
into your multi-mode fiber network. This enables you to easily connect
to single-mode cabling and achieve distances up to 80 km. Our fiber
mode converters also give you the flexibility to add single-mode fiber
links only where needed. The iMcV-S2MM fiber mode conversion
modules includes:
•
Converts multi-mode to single-mode fiber
•
Supports 10 Mbps Ethernet to 155 Mbps or 1.25 Gbps
Gigabit Ethernet
Hot-swappable fiber mode conversion modules significantly reduce
operation costs by allowing other modules within the same chassis
to remain up and running during product upgrades, maintenance and
troubleshooting.
ordErIng InFormatIon
Model
desCriPtion
distanCe
nuMBer
Port 1
Port 1
iMcv-s2MM/155 (single-mode to Multi-mode)
850-14520 SM1310/PLUS-ST
40 km
850-14530 SM1310/PLUS-SC
40 km
850-14540 SM1310/LONG-ST
40 km
850-14550 SM1310/LONG-SC
40 km
850-14555 SM1550/LONG-SC
80 km
850-14560 SM1310/PLUS-ST
40 km
850-14570 SM1310/PLUS-SC
40 km
850-14580 SM1310/LONG-ST
40 km
850-14590 SM1310/LONG-SC
40 km
850-14595 SM1550/LONG-SC
80 km
single-strand Fiber
850-14532
SSFX-SM1310-SC
20 km
(1310xmt/1550rcv)
850-14533
SSFX-SM1550-SC
20 km
(1550xmt/1310rcv)
850-14535
SSFX-SM1310/PLUS-SC
40 km
(1310xmt/1550rcv)
SSFX-SM1550/PLUS-SC
850-14536 (1550xmt/1310rcv)
40 km
ordErIng InFormatIon
Model
desCriPtion
distanCe
nuMBer
Port 1
Port 1
iMcv-s2MM/1250 (single-mode to Multi-mode)
859-14799
LX-SM1310-SC
15 km
859-14800
LX-SM1310/PLUS-SC
40 km
859-14801
LX-SM1550/LONG-SC
80 km
single-strand Fiber
859-14806
SSLX-SM1310-SC
15 km
(1310xmt/1550rcv)
SSLX-SM1550-SC
859-14807 (1550xmt/1310rcv)
15 km
859-14808
SSLX-SM1310/PLUS-SC
40 km
(1310xmt/1550rcv)
859-14809
SSLX-SM1550/PLUS-SC
40 km
(1550xmt/1310rcv)
desCriPtion
Port 2
MM1300-ST
MM1300-SC
MM1300-ST
MM1300-SC
MM1300-SC
MM850-ST
MM850-SC
MM850-ST
MM850-SC
MM850-SC
MM1300-SC
MM1300-SC
MM1300-SC
MM1300-SC
distanCe
Port 2
5 km
5 km
5 km
5 km
5 km
2 km
2 km
2 km
2 km
2 km
5 km
5 km
5 km
5 km
desCriPtion
Port 2
SX-MM850-SC
SX-MM850-SC
SX-MM850-SC
SX-MM850-SC
SX-MM850-SC
SX-MM850-SC
SX-MM850-SC
distanCe
Port 2
220/550 m
220/550 m
220/550 m
220/550 m
220/550 m
220/550 m
220/550 m
iView: Windows 2000/XP/Vista/Win7
iMcV-S2MM also available in CWDM Fiber.
Call for details.
www
.
bb
-
elec
.
com
|
iMcV-S2MM_3713ds
protocol-Independent, snmp-manageable
Fiber mode conversion modules
iMcV-S2MM
SpecificationS
Technical
Includes protocol-independent operation
Converts between dissimilar fiber modes and wavelengths:
Single-Mode to Multi-Mode
Ethernet, Fast Ethernet
OC-12, Gigabit Ethernet and FibreChannel
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available for single-strand fiber
Connectors: ST, SC or MT-RJ
Installs in any iMediaChassis or MediaChassis
Supports GUI-Based iView²
Includes diagnostic LEDs
Includes hot-swappable architecture

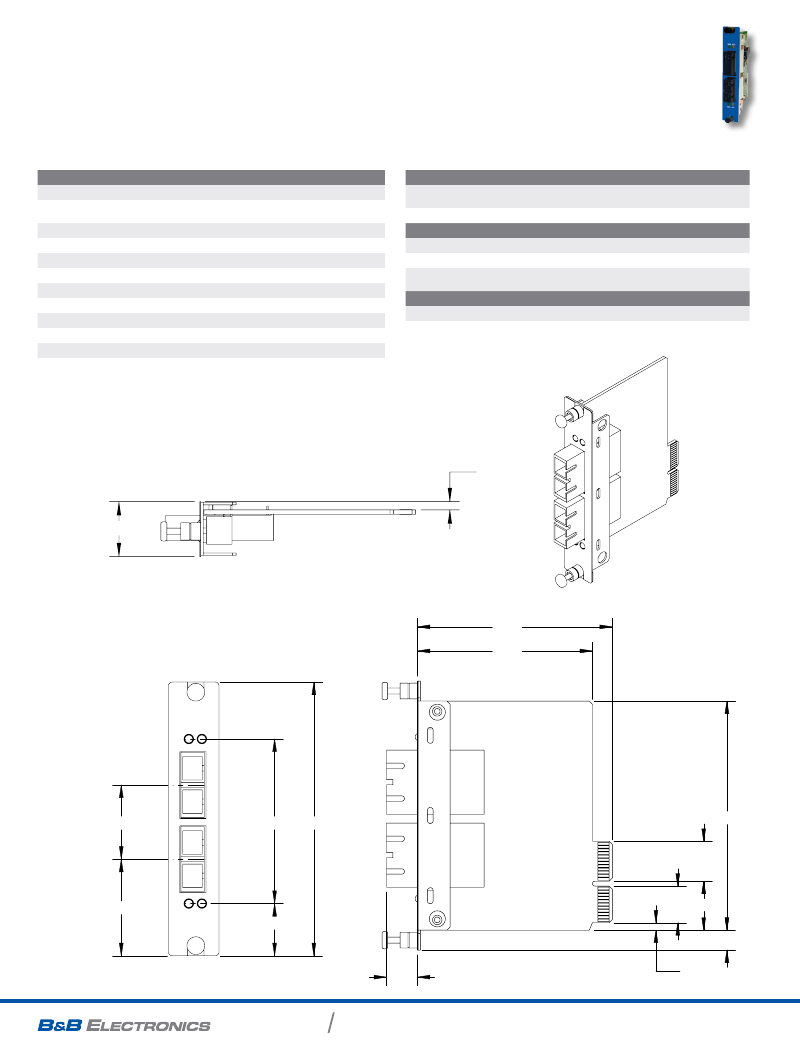

mEchanIcal dIagram
(dimensions in inches)
Mechanical
Dimensions
Shipping Weight
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory approvals
FCC Class A
UL/cUL, CSA, CE
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
0.30 lbs (.11 kg)
+32° to +122° F (0° to +50° C)
-13° to +158° F (-25° to +70° C)
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
.14
.78
3.04
2.73
1.14
2.52
4.19
.62
3.57
1.48
.80
.57 .75
.31
.48
orders@bb-elec.com
support@bb-elec.com
.12
