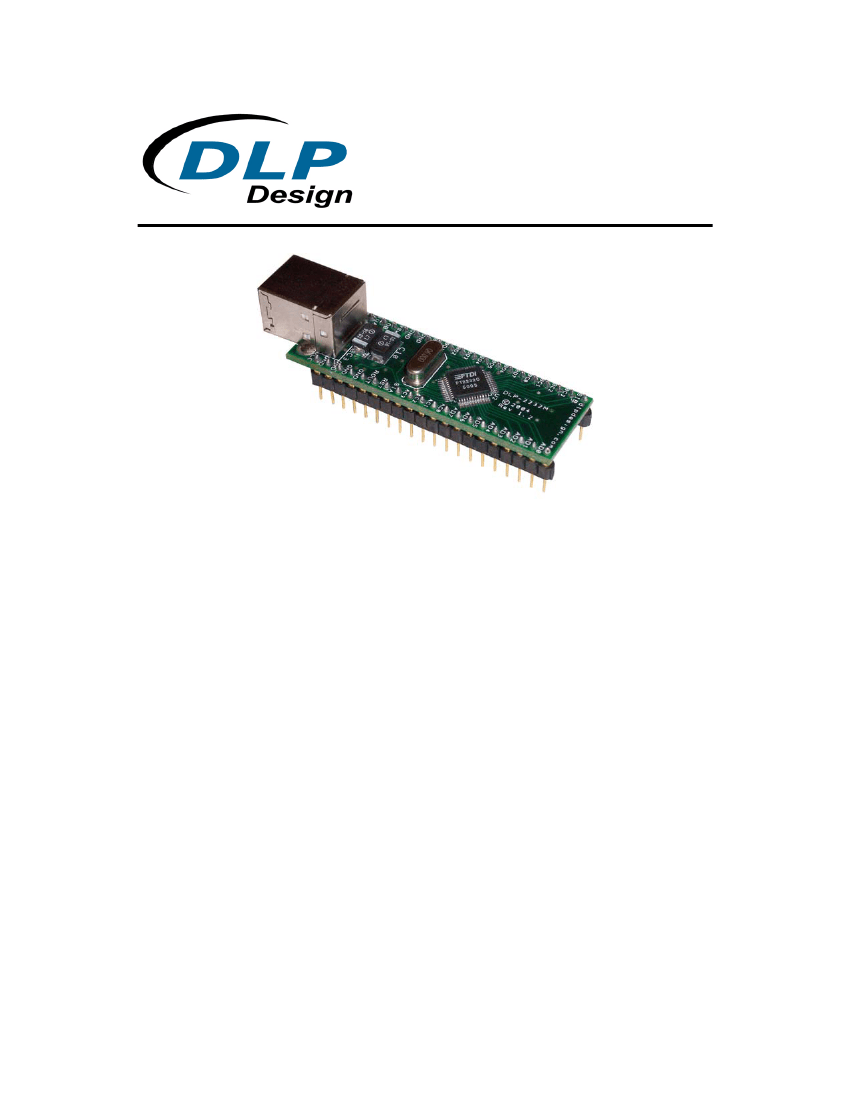

DLP-2232M-G MODULE / EVALUATION KIT
*LEAD-FREE*
1.0 Introduction
The DLP-2232M-G utilizes FTDI's third-generation USB UART/FIFO I.C., the
FT2232D. This low-cost development tool features two Multi-Purpose UART/FIFO
controllers that can be configured individually in several different modes. In addition to
the UART interface, FIFO interface, and Bit-Bang IO modes of the second-generation
FT232BM and FT245BM devices, the FT2232D offers a variety of additional modes of
operation including a Multi-Protocol Synchronous Serial Engine interface designed
specifically for synchronous serial protocols such as JTAG and SPI bus.
The DLP-2232M-G features a quality four-layer printed circuit board with a solid ground
plane, an integral 93C56 EEPROM on board for easy OEM customization and a standard
40-pin, 0.6in wide footprint. Integral power control and on-board MOSFET power
switch make the DLP-2232M-G a perfect choice for USB bus-powered, high-power
designs as well as self- and low-powered products.
Rev 1.7 (May 2014)
1
DLP-2232M-G DLP Design, Inc.
1.1 Features Summary
• Single board, USB Dual Channel Serial / Parallel Ports with a variety of configurations
• Entire USB protocol handled on-board. No USB-specific firmware programming
required
• DLP-USB232M-style UART interface option with full Handshaking & Modem
interface signals
• UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No
Parity
• Transfer Data Rate 300 to 1 Mega Baud (RS232)
• Transfer Data Rate 300 to 3 Mega Baud (TTL and RS422 / RS485)
• Auto Transmit Enable control for RS485 serial applications using TXDEN pin
• DLP-USB245M-style FIFO interface option with bi-directional data bus and simple 4-
wire handshake interface
• Transfer Data Rate up to 1 MegaByte / Second
• Enhanced Bit-Bang Mode interface option
• New Synchronous Bit-Bang Mode interface option
• New CPU-Style FIFO Interface Mode option
• New Multi-Protocol Synchronous Serial Engine (MPSSE) interface option
• New MCU Host Bus Emulation Mode option
• New Fast Opto-Isolated Serial Interface Mode option
• Interface mode and USB Description strings configurable in on-board EEPROM
• EEPROM Configurable in-circuit via USB
• Support for USB Suspend and Resume conditions via PWREN#, and SI/WUx pins
• Support for bus powered, self powered, and high-power bus powered USB
configurations
• Integrated Power-On-Reset circuit, with optional Reset input and Reset Output pins
• 5V and 3.3V logic IO Interfacing with independent level conversion on each channel
• USB Bulk or Isochronous data transfer modes
• 4.35V to 5.25V single supply operating voltage range
• UHCI / OHCI / EHCI host controller compatible
• USB 2.0 Full Speed (12 Mbits / Second) compatible
• Standard 40-pin, 0.6in wide footprint
VIRTUAL COM PORT (VCP) DRIVERS
• Windows 98 / 98 SE / 2000 / ME / XP
• Windows CE **
• MAC OS-8 and OS-9**
• MAC OS-X**
• Linux 2.40 and greater**
[ ** = In planning or under development ]
D2XX (Direct Drivers + DLL S/W
• Windows 98 / 98 SE / 2000 / ME / XP
APPLICATION AREAS
• USB Dual Port RS232 Converters
• USB Dual Port RS422 / RS485
• Upgrading Legacy Peripheral Designs
• USB Instrumentation
• USB JTAG Programming
• USB to SPI Bus Interfaces
• USB Industrial Control
• Field Upgradeable USB Products
• Galvanically Isolated Products
With USB Interface
Rev 1.7 (May 2014)
2
DLP-2232M-G DLP Design, Inc.
1.2 General Description
The DLP-2232M-G module is a USB interface that incorporates the functionality of two
DLP-USB2xxM modules into a single 40-pin module. A single downstream USB port is
converted to two IO channels that can each be individually configured as a DLP-
USB232M-style UART interface, or a DLP-USB245M-style FIFO interface, without the
need to add a USB hub.
There are also several new modes which can be enabled in the external EEPROM, or by
using DLL driver commands. These include Synchronous Bit-Bang Mode, a CPU-Style
FIFO Interface Mode, a Multi-Protocol Synchronous Serial Engine Interface Mode, MCU
Host Bus Emulation Mode, and Fast Opto-Isolated Serial Interface Mode. Additionally,
a new high output drive level option means that the device UART / FIFO IO pins will
drive out at around three times the normal power level, allowing the data bus to be shared
by several devices.
Classic BM-style Asynchronous Bit-Bang Mode is also supported, but has been enhanced
to give the user access to the device’s internal RD# and WR# strobes.
FTDI provides a royalty free Virtual Com Port (VCP) driver that makes the peripheral
ports look like a standard COM port to the PC. Most existing software applications
should be able interface with the Virtual Com Port simply by reconfiguring them to use
the new ports created by the driver. Using the VCP drivers, an application programmer
would communicate with the device in exactly the same way as they would a regular PC
COM port - using the Windows VCOMM API calls or a COM port library.
The FT2232D driver also incorporates the functions defined for FTDI’s D2XX drivers,
allowing applications programmers to interface software directly to the device using a
Windows DLL.
Rev 1.7 (May 2014)
3
DLP-2232M-G DLP Design, Inc.
2.0 Features and Enhancements
The DLP-2232M-G incorporates all of the enhancements introduced for the second
generation DLP-USB232M and DLP-USB245M modules, summarized here:
• Two Individually Configurable IO Channels
Each of the DLP-2232M-G’s Channels (A and B) can be individually configured as a
DLP-USB232M-style UART interface, or as a DL-USB245M-style FIFO interface.
Additionally, these channels can be configured in a number of special IO modes.
• Integrated Power-On-Reset (POR) circuit
The module incorporates an internal POR function. A RESET# pin is available to allow
external logic to reset the module where required, however for most applications this pin
can simply be left disconnected as the RESET input to the FT2232D is pulled to VCC
through a 47K resistor. A RSTOUT# pin is provided in order to allow the new POR
circuit to provide a stable reset to external MCU and other devices.
• Integrated level converter on UART / FIFO interface and control signals
Each channel of the DLP-2232M-G has its own independent VCCIO pin that can be
supplied by between 3V to 5V. This allows each channel’s output voltage drive level to
be individually configured. Thus allowing, for example, 3.3V logic to be interfaced to
the device without the need for external level converter I.C.’s.
• Improved power management control for high-power USB Bus Powered devices
The PWREN# pin of the FT2232D directly drives a P-Channel MOSFET for applications
where power switching of external circuitry is required. The BM pull down enable
feature (configured in the external EEPROM) is also retained. This will make the
module gently pull down on the FIFO / UART IO lines when the power is shut off
(PWREN# is high). In this mode, any residual voltage on external circuitry is bled to
GND when power is removed, thus ensuring that external circuitry controlled by
PWREN# resets reliably when power is restored.
• Support for Isochronous USB Transfers
Whilst USB Bulk transfer is usually the best choice for data transfer, the scheduling time
of the data is not guaranteed. For applications where scheduling latency takes priority
over data integrity such as transferring audio and low bandwidth video data, the DLP-
2232M-G offers the option of USB Isochronous transfer via configuration of bit in the
EEPROM.
• Send Immediate / Wake Up Signal Pin on each channel
There is a Send Immediate / Wake Up (SI/WU) signal pin on each of the two channels.
These combine two functions on one pin. If USB is in suspend mode (and remote
wakeup is enabled in the EEPROM), strobing this pin low will cause the device to
request a resume from suspend (WakeUp) on the USB Bus. Normally, this can be used
to wake up the Host PC. During normal operation, if this pin is strobed low any data in
the device RX buffer will be sent out over USB on the next Bulk-IN request from the
Rev 1.7 (May 2014)
4
DLP-2232M-G DLP Design, Inc.
drivers regardless of the packet size. This can be used to optimize USB transfer speed for
applications that send small packets of data to the host PC.
• Programmable Receive Buffer Timeout
The TX buffer timeout is programmable over USB in 1ms increments from 1ms to
255ms, thus allowing the module to be better optimized for protocols requiring faster
response times from short data packets.
• Baud Rate Pre-Scaler Divisors
The DLP-2232M-G (UART mode) baud rate pre-scaler supports division by (n+0),
(n+0.125), (n+0.25), (n+0.375), (n+0.5), (n+0.625), (n+0.75) and (n+0.875) where n is an
integer between 2 and 16,384.
• USB 2.0 (full speed option)
An EEPROM based option allows the DLP-2232M-G to return a USB 2.0 device
descriptor as opposed to USB 1.1. Note: The device would be a USB 2.0 Full Speed
device (12Mb/s) as opposed to a USB 2.0 High Speed device (480Mb/s).
For more details on these features please see the FT232BM and FT245BM datasheets and
application notes.
In addition to the DLP-USB2xxM module features, the DLP-2232M-G incorporates the
following new features and interface modes:
• Enhanced Asynchronous Bit-Bang Interface
The DLP-2232M-G supports FTDI’s BM chip Bit Bang mode. In Bit Bang mode, the
eight FIFO data lines can be switched between FIFO interface mode and an 8-bit Parallel
IO port. Data packets can be sent to the device and they will be sequentially sent to the
interface at a rate controlled by an internal timer (equivalent to the baud rate prescaler).
With the DLP-2232M-G module, this mode has been enhanced so that the internal RD#
and WR# strobes are now brought out of the device which can be used to allow external
logic to be clocked by accesses to the Bit-Bang IO bus.
• Synchronous Bit-Bang Interface
With Synchronous Bit-Bang Mode, the device is only read when it is written to, as
opposed to asynchronously by the data rate generator. This makes it easier for the
controlling program to measure the response to an output stimulus, as the data returned is
synchronous to the output data.
• High Output Drive Level Capability
The IO interface pins can be made to drive out at 12 mA, instead of the normal 4 mA
allowing multiple devices to be interfaced to the bus.
Rev 1.7 (May 2014)
5
DLP-2232M-G DLP Design, Inc.
