MIO-2260NF-S6A1E datasheet, PDF

Datasheet> All Categories > Module/solution> MIO-2260NF-S6A1E

MIO-2260NF-S6A1E: DescriptionDevelopment Boards u0026 Kits - x86; CategoryModule/solution; File Size829KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Parametric View All

MIO-2260NF-S6A1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MIO-2260NF-S6A1E	-	-	View	Buy Now

MIO-2260NF-S6A1E Overview

Development Boards u0026 Kits - x86

MIO-2260NF-S6A1E Parametric

Parameter Name	Attribute value
Product Category	Single Board Computers
Manufacturer	Advantech
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

MIO-2260

VGA

Power button/

HDD LED/

Power LED

HD Audio

(Line-in, Line-out)

2x RS-232

Intel

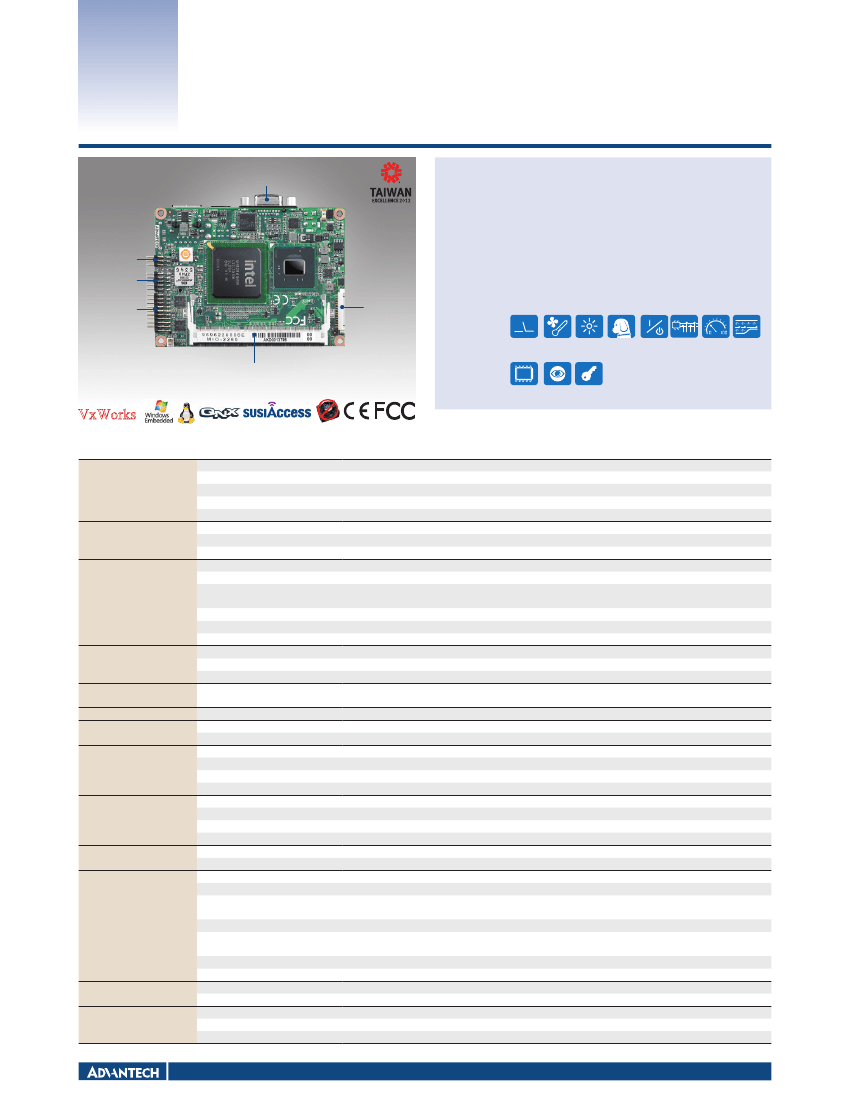

Atom™ N455 Pico-ITX SBC, DDR3, 18-bit

LVDS, VGA, 1 GbE, Mini PCIe, 2 USB, 2 COM, MIOe

Features

Embedded Intel

Atom™ N455 Single-Core + ICH8M, DDR3 memory support

Intel Gen 3.5 DX9, MPEG2 Decode in HW, Dual Independent display: 18-bit

LVDS + VGA

Supports 12 V +/- 10% input power and DC power hot plug design

Intel GbE support, Rich I/O interface with 2 COM, 1 SATA, 2 USB 2.0, GPIO,

SMBus, CF, and MIOe expansion interface

18-bit LVDS

Supports SUSIAccess and Embedded Software APIs

Software APIs:

GPIO

H/W Brightness Watchdog Backlight SMBus/ CPU Speed System

Monitor

On/Off

Throttling

DDR3 SO-DIMM Socket

Utilities:

BIOS Flash MonitoringEmbedded

Security ID

VxWorks

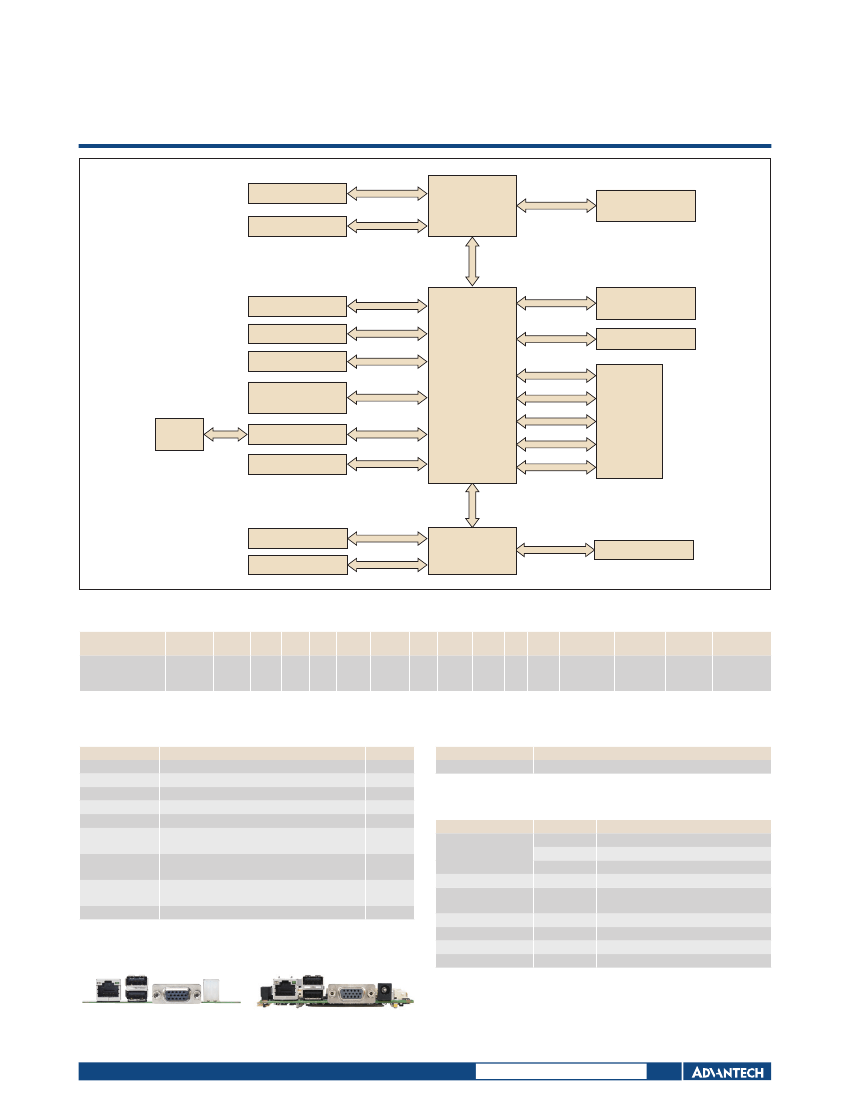

Specifications

Processor System

CPU

Frequency

L2 Cache

System Chipset

BIOS

Technology

Max. Capacity

Socket

Controller

VRAM

Graphic Engine

LVDS

VGA

Dual Display

Speed

Controller

Connector

Chipset

Compact Flash

SATA

Ethernet

VGA

USB

DC Power Jack

Serial

SMBus

GPIO

Mini PCI Express

MIOe

Power Type

Power Supply Voltage

Total peripheral power supply

output

Power Consumption (Typical)

Power Consumption

(Max, test in HCT)

Power Management

Battery

Operational

Non-Operational

Dimensions (L x W)

Weight

Total Height

Intel Atom N455 Single-Core 1.66 GHz Processor

1.66 GHz

512 KB

Intel N455 + ICH8M

AMI 16 Mbit Flash BIOS

DDR3 667 MHz

2 GB

1 x 204-pin SODIMM

Integrated Intel GMA 3150

Optimized Shared Memory Architecture up to 224 MB system memory

Intel Gen 3.5 DX9, MPEG2 Decode in HW

Embedded Gen3.5+ GFX Core

LVDS: Single channel 18-bit LVDS up to WXGA 1366 x 768

Intel Atom N455 Single Core up to 1400 x 1050 (SXGA)

VGA+LVDS

10/100/1000 Mbps (Supports Wake on LAN)

ICH8M + Intel 82567V

RJ45

Realtek ALC892

High Definition Audio (HD), Line-in, Line out

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

CompactFlach TYPE I (Primary Master IDE Channel)

1, up to 3Gb/s (300MB/s)

1 (supported by request)

2 x RS-232 (ESD protection for RS-232: Air gap ±15 kV, Contact ±8 kV)

1 (Shares with SMBus pin, supported by request)

8-bit general purpose input/ output (5 V tolerance)

1 x Half-size

SMBus, 3 x USB2.0, LPC, 4 x PCIe x1, line out, +5 Vsb/+12 Vsb power, Power On, Reset

AT (Supports DC power hot plug design)

Supports single 12V input (12 V +/- 10%)

5V@ 2.8A for CPU board and MIOe module totally, 12V@ 2A for MIOe module

0.64 A, 12 V (7.68 W)

0.86 A, 12 V (10.32 W)

ACPI

Lithium 3 V/210 mAH

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH, Non-Condensing)

-40° C ~ 85° C and 60° C @ 95% RH, Non-Condensing

100 x 72 mm (3.9" x 2.8")

0.42 kg (0.93 lb), weight of total package

33.48 mm

Memory

Display

Ethernet

Audio

WatchDog Timer

Storage

Rear I/O

Internal I/O

Expansion

Power

Environment

Physical Characteristics

MI/O Extension SBCs, Modules and Chassis

All product specifications are subject to change without notice

Last updated : 15-Jan-2014
