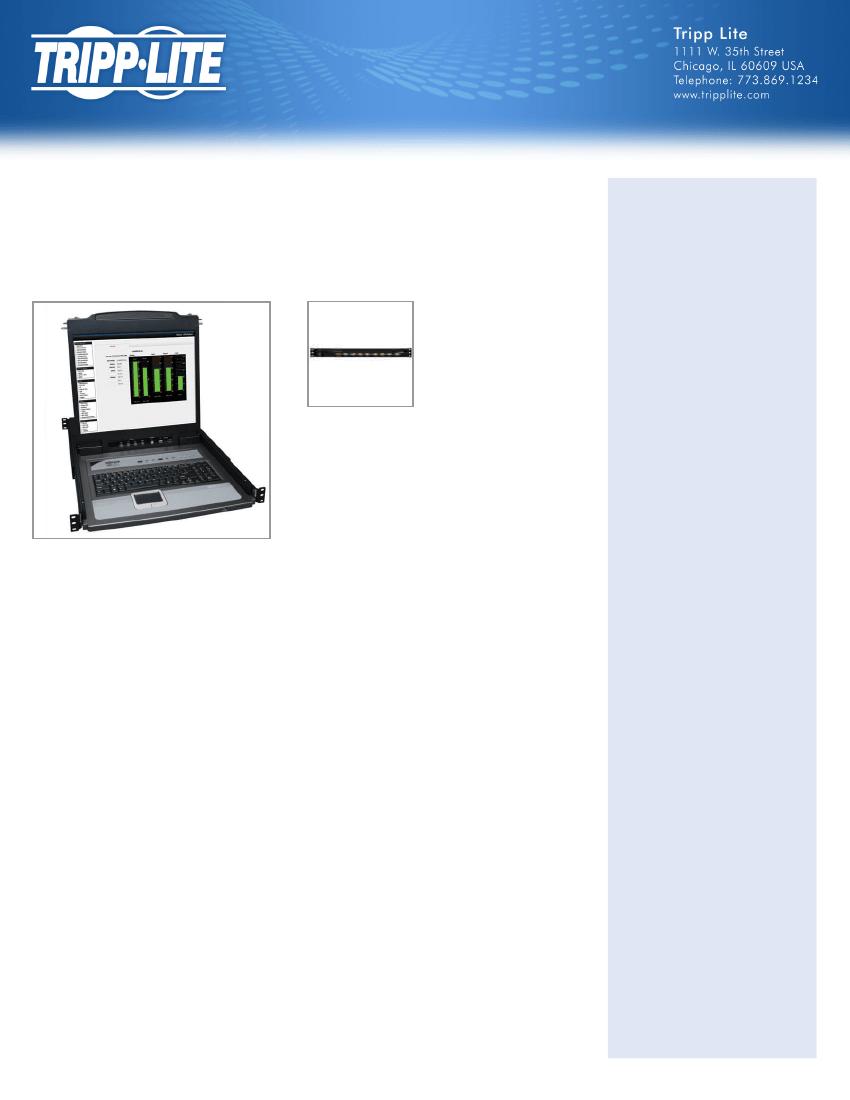

NetDirector 8-Port 1U Rack-Mount Console KVM
Switch with 19-in. LCD + 8 PS2/USB Combo
Cables
MODEL NUMBER:
B020-U08-19-K
Highlights
q
Occupies just 1U of space in a
rack-mountable drawer
q
19” LCD screen supports video
resolutions up to 1280 x 1024
q
Simplifies IT tasks with easy
switching between all 8 ports
q
Provides 2-level password
security (administrator and user)
q
Combo cables (included)
connect to PS/2 or USB servers
System Requirements
q
Computer with HD15 port, and
USB port or PS/2
keyboard/mouse ports
q
P778-006 USB/PS2 combo
KVM cable kit is required for
each connected
computer/server
Control up to 8 computers with a single KVM switch with integrated console. This KVM switch is a smart
solution for secure and centralized server control that saves rack space and money.
Description
Tripp Lite’s B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a
single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for
controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-
chaining up to 31 B022-U08 KVM switches
q
q
Compatible with all major
operating systems
Power consumption: 120V,
60Hz, 28.5W; 230V, 50Hz,
29.1W
The B020-U08-19-K has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024. You
can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or
keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4
local users to ensure only those with authorization can access the connected computers.
Package Includes
q
B020-U08-19-K 1U rackmount
console KVM switch with 19”
LCD
q
The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters
are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp
Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets
you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can
be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack
drawer and pulls out when needed. This KVM console is compatible with all major operating systems.
Heavy-duty steel housing stands up to frequent use.
q
q
q
(x8) P778-006 6 ft. USB/PS2
combo KVM cable kits
USB/PS2 combo console cable
kit
RJ11 to DB9 firmware upgrade
cable
C13 to 5-15P power cord
Grounding wire
Rackmount hardware
Features
Saves Space and Money
q
q
q
Combines an 8-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable
1/4
drawer
q
q
CD with owner's manual
Quick start guide
Mounts into 19”-wide rack, 26”-38” deep
Control up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium
Includes eight P778-Series cables that support computers with either PS/2 or USB connections
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server
q
q
q
q
q
Simplifies IT Tasks
q
Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be
set to English, Spanish, French, German or Japanese
q
Hot pluggable; add or remove computers without having to power down the switch
Auto-scan mode automatically sequences through all active ports that are accessible to the user
q
Large 19” LCD
q
Extra-wide display makes multitasking easier
Supports video resolutions up to 1280 x 1024
DDC emulation allows optimal output to the LCD
q
q
Multi-Level Password Security
q
Enhances security by limiting access to an administrator and up to 4 local users
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has
passed
q
Expandability and Long-Lasting Reliability
q
Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM
switches
q
A console cable kit is included so you can connect the external console port to a keyboard, mouse or
monitor, or a Tripp Lite B051-000 IP Remote Access Unit
q
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is
also available to share a peripheral such as a flash drive or external hard drive with all the connected
servers
q
Compatible with all major operating systems for easy integration into your existing structure
Firmware is upgradable with included cable and utility
Heavy-duty steel housing stands up to frequent use
q
q
Specifications
OVERVIEW
UPC Code
037332150776
2/4
Console
Max CPU
Yes
8
INPUT
Nominal Input Voltage(s) Supported
Input Frequency
Input Current
100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
50/60Hz
120V (0.8A) / 230V (0.4A)
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Included Mounting Accessories
Color
LCD Monitor (in.)
LCD Monitor (cm)
5.00 x 26.10 x 32.50
12.70 x 66.29 x 82.55
43.00
19.50
1.75 x 17 x 27
4.45 x 43.18 x 68.58
30.6
13.88
Yes
Black
19
48.26
ENVIRONMENTAL
Storage Temperature Range
Relative Humidity
Operating Temperature
-4 Degrees F to 140 degrees F (-20 to +60 C)
0 to 80% RH, Non-condensing
32 Degrees F to 120 Degrees F (0 to 50 C)
COMMUNICATIONS
Port Control
IP Remote Access
Push Buttons, Hotkeys, OSD
No
CONNECTIONS
Ports
Computer/Server Ports
Firmware Upgrade Port
PC/Server Connections
Included Cable (Side A) - Connector
1
8
(x8) HD18 (Female)
RJ45
PS/2; USB; VGA
HD18 Male
3/4
Included Cable (Side B) - Connector
2
Included Cable (Side B) - Connector
3
Included Cable (Side B) - Connector
4
PS/2 male
PS/2 Male
USB A Male
FEATURES & SPECIFICATIONS
Autoscan (Y,N)
Number of Users
NIAP-Certified Secure
Cat5 KVM Switch
Technology
Y
1
No
No
PS/2; USB; VGA/SVGA
CERTIFICATIONS
Certifications
Approvals
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
UL, cUL, CE, FCC, RoHS
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
4/4
