MT4LC1M16H5DJ-70 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MT4LC1M16H5DJ-70

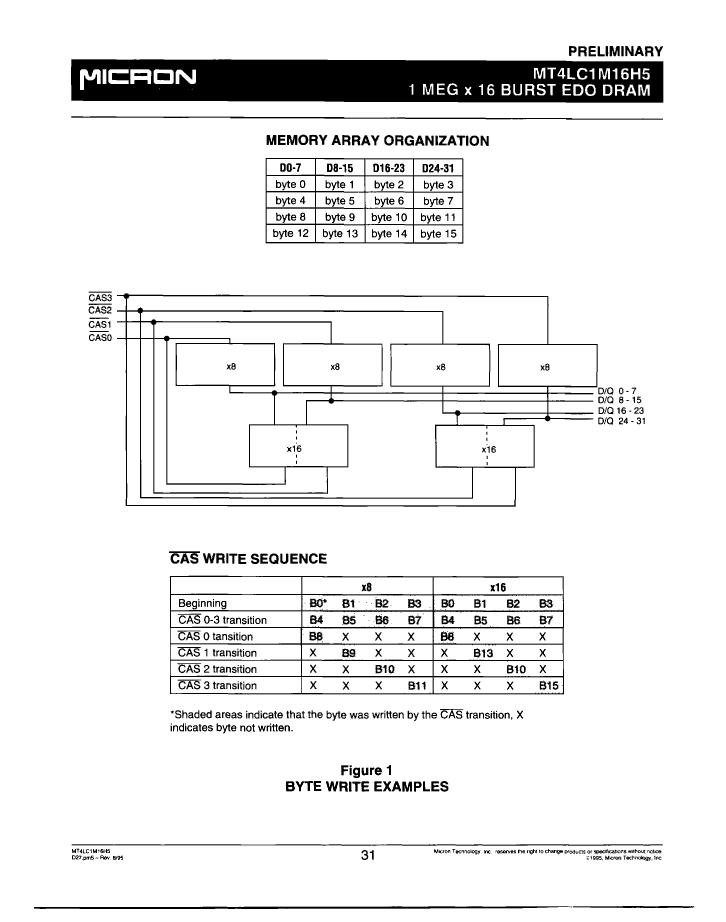

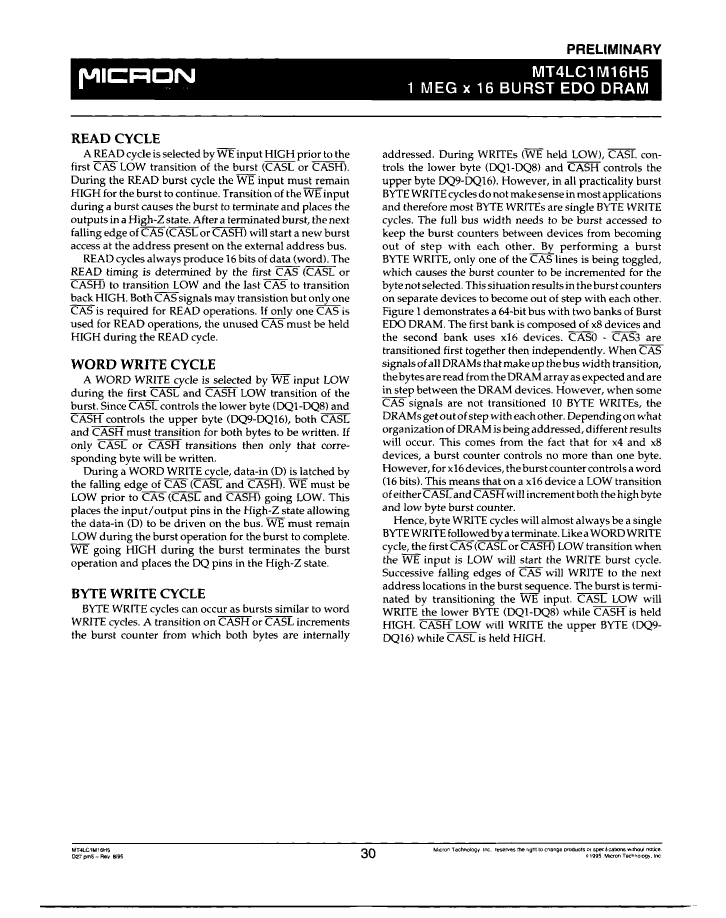

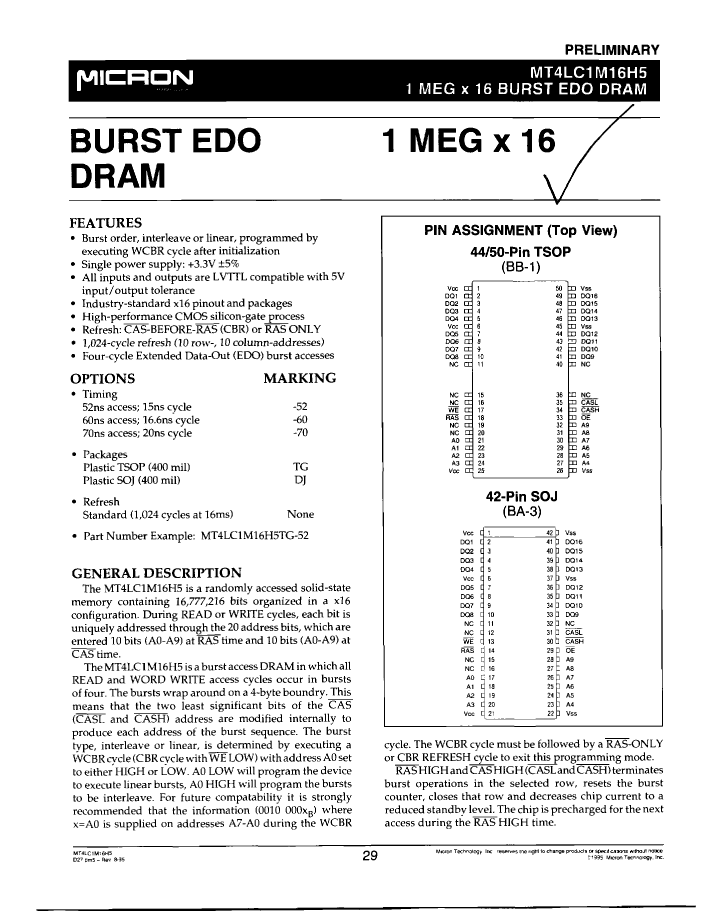

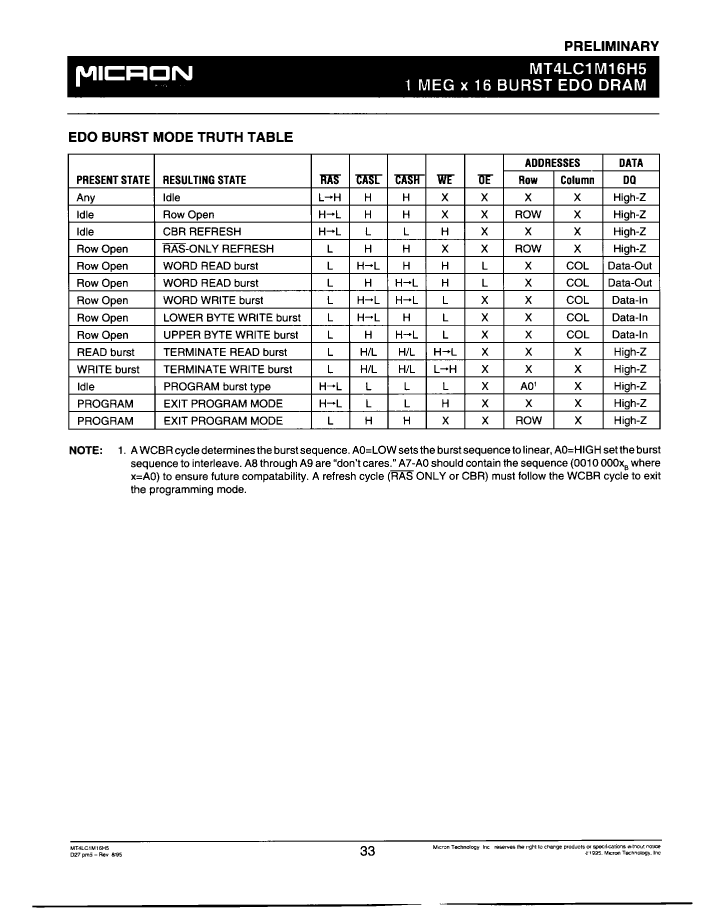

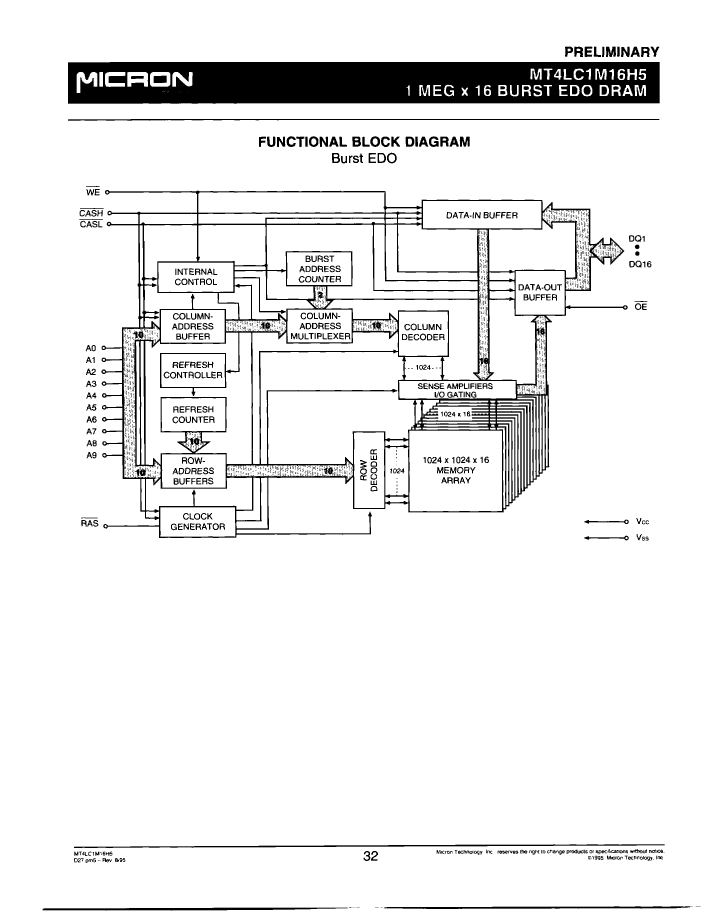

Preview

MT4LC1M16H5DJ-70: DescriptionEDO DRAM, 1MX16, 70ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42; Categorystorage storage; File Size549KB，18 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT4LC1M16H5DJ-70 Overview

EDO DRAM, 1MX16, 70ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42

MT4LC1M16H5DJ-70 Parametric

Parameter Name	Attribute value
Maker	Micron Technology
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	42
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH
JESD-30 code	R-PDSO-J42
length	27.33 mm
memory density	16777216 bi
Memory IC Type	EDO DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	42
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.76 mm
Maximum supply voltage (Vsup)	3.47 V
Minimum supply voltage (Vsup)	3.13 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.21 mm

Preview

Download Datasheet

View All

MT4LC1M16H5DJ-70 Related Products

	MT4LC1M16H5DJ-70	MT4LC1M16H5DJ-52TR	MT4LC1M16H5TG-70TR	MT4LC1M16H5TG-60TR	MT4LC1M16H5TG-52TR	MT4LC1M16H5DJ-70TR	MT4LC1M16H5TG-70	MT4LC1M16H5DJ-60TR
Description	EDO DRAM, 1MX16, 70ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42	EDO DRAM, 1MX16, 52ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42	EDO DRAM, 1MX16, 70ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	EDO DRAM, 1MX16, 60ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	EDO DRAM, 1MX16, 52ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	EDO DRAM, 1MX16, 70ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42	EDO DRAM, 1MX16, 70ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-50/44	EDO DRAM, 1MX16, 60ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	SOJ	SOJ	TSOP	TSOP	TSOP	SOJ	TSOP	SOJ
package instruction	SOJ,	SOJ,	TSOP2,	TSOP2,	TSOP2,	SOJ,	TSOP2,	SOJ,
Contacts	42	42	50/44	50/44	50/44	42	50/44	42
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	52 ns	70 ns	60 ns	52 ns	70 ns	70 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH
JESD-30 code	R-PDSO-J42	R-PDSO-J42	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-J42	R-PDSO-G44	R-PDSO-J42
length	27.33 mm	27.33 mm	20.95 mm	20.95 mm	20.95 mm	27.33 mm	20.95 mm	27.33 mm
memory density	16777216 bi	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	42	42	44	44	44	42	44	42
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	TSOP2	TSOP2	TSOP2	SOJ	TSOP2	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024
Maximum seat height	3.76 mm	3.76 mm	1.2 mm	1.2 mm	1.2 mm	3.76 mm	1.2 mm	3.76 mm
Maximum supply voltage (Vsup)	3.47 V	3.47 V	3.47 V	3.47 V	3.47 V	3.47 V	3.47 V	3.47 V
Minimum supply voltage (Vsup)	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	GULL WING	GULL WING	GULL WING	J BEND	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm	1.27 mm	0.8 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.21 mm	10.21 mm	10.16 mm	10.16 mm	10.16 mm	10.21 mm	10.16 mm	10.21 mm
