BAS40
THRU
BAS70
Surface Mount
Schottky Barrier Diode
200 mWatt
SOT-23
A
D
Features
SOT-23 Package For surface mount application
Protects from line to V
CC
and line to ground
Low forward voltage and reverse recovery characteristics
Bidirectional-low-forward available with “ -04” suffix (Figure 2)
Tape & Reel EIA Standard 481.
Mechanical Data
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Halogen free available upon request by adding suffix "-HF"
Mounting Position: Any
Weight: .008 grams (approx.)
C
B
MAXIMUM RATINGS
Operating Temperature: -55 C to +125 C
Storage Temperature: -55 C to +150 C
Power Dissipation: 200 mWatts @ T
amb
=25 C
BAS40
I
F
o
o
=200mA
@
T
a
=
25 C
o
=70mA
@
T
a
=
25 C
G
H
J
o
o
F
E
o
o
Forward Continuous Current:
BAS70
I
F
BAS40 I
FSM
=600mA @ tp<1s, Tamb=25
o
C
Surge Forward Current:
o
BAS70 I
FSM
=100mA @ tp<1s, Tamb=25 C
DIM
A
B
C
D
E
F
G
H
J
K
K
DIMENSIONS
INCHES
MIN
.110
.083
.047
.035
.070
.018
.0005
.035
.003
.015
MM
MIN
2.80
2.10
1.20
.89
1.78
.45
.013
.89
.085
.37
DESCRIPTION
Various configurations of Schottky barrier’ s diodes in SOT-23
package are provided for general-purpose use in high-speed
switching ,mixers and detector applications. They may also be
used for signal integrity and counteract the transmission-line
effects with (PC) board trances by clamping over/and undershoot
from signal reflections with the schottky-low-threshold voltages.
This type of termination also does not depend on matching
the transmission line characteristic impedance, making it
particularly useful where line impendance is unknown or a
variable. This methode of termination can control distortions of
clock, data, address, and control lines as well as provides a
stabilizing effect on signal jitter. It can also significantly reduce
power consumption compared to standard resistor-based
termination methods.
MAX
.120
.104
.055
.041
.081
.024
.0039
.044
.007
.020
MAX
3.04
2.64
1.40
1.03
2.05
.60
.100
1.12
.180
.51
NOTE
Suggested Solder
Pad Layout
.031
.800
.035
.900
.079
2.000
inches
mm
.037
.950
.037
.950
Revision:
D
www.mccsemi.com
1 of
4
2013/11/25
BAS40 and BAS70
MCC
Micro Commercial Components
TM
ELECTRICAL CHARACTERISTICS PER DIODE @ 25
0
C Unless otherwise specified
Repetitive
Peak Reverse
Voltage
DEVICE
TYPE
DEVICE
FIGURE
MARKING
V
RRM
(VOLTS)
TYP
BAS40
BAS40-04
BAS40-05
BAS40-06
BAS70
BAS70-04
BAS70-05
BAS70-06
43
44
45
46
73
74
75
76
1
2
3
4
1
2
3
4
40
40
40
40
70
70
70
70
V
(BR)R
(VOLTS)
MIN
40
40
40
40
70
70
70
70
Reverse
Breakdown
Voltage
Tested with
10µA Pulse
Leakage Current
Pulse test
tp < 300µs @
For BAS40
V
R
= 30 V
For BAS70
V
R
= 50 V
I
R
(nA)
TYP
10
10
10
10
10
10
10
10
MAX
200
200
200
200
200
200
200
200
I
F
=1mA
380
380
380
380
410
410
410
410
1000
1000
1000
1000
I
F
=15mA I
F
=40mA
1000
1000
1000
1000
MAX
5
5
5
5
5
5
5
5
MAX
430
430
430
430
430
430
430
430
MAX
5
5
5
5
2
2
2
2
Forward Voltage Pulse Test
tp < 300µs
at I
F
= 1 mA
at I
F
= 40 mA
Reverse
Recovery
Time from
I
F
= 10 mA
through
I
R
=10mA to
I
R
=1mA
t
rr
(ns)
Thermal
Resistance
Junction to
Ambient Air
Capacitance
At V
R
= 0V
F = 1 MHz
C
tot
V
F
(mV)
R
thJA
(K/W)
pF

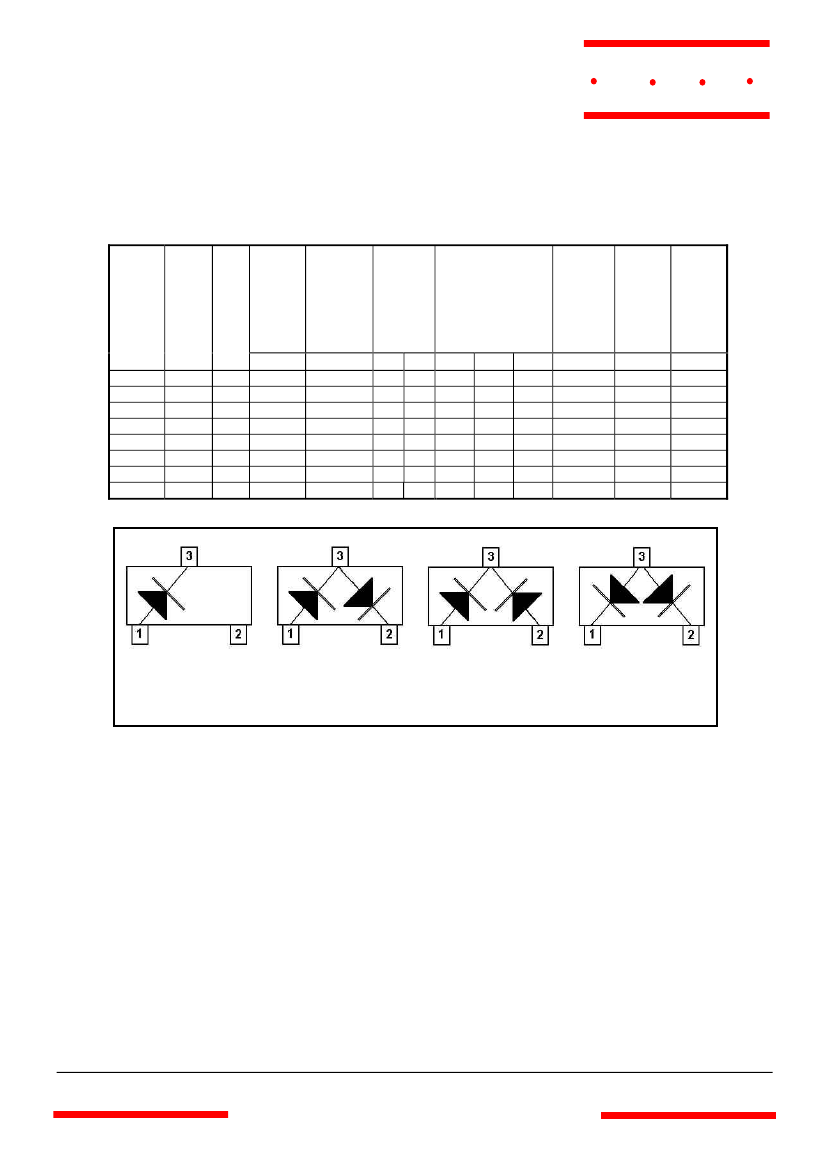

Figure 1
Figure 2
Figure 3
Figure 4
Revision: D
www.mccsemi.com
2 of
4
2013/11/25
MCC
BAS40 and BAS70
Typical Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
TM
Micro Commercial Components
10000
T
A
= 125ºC
1000
T
A
= 75ºC
0.1
100
0.01
T
A
= -40ºC
T
A
= 0ºC
T
A
= 25ºC
T
A
= 25ºC
10
T
A
= 0ºC
0.001
1
T
A
= -40ºC
T
A
= 75ºC
T
A
= 125ºC
0.0001
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

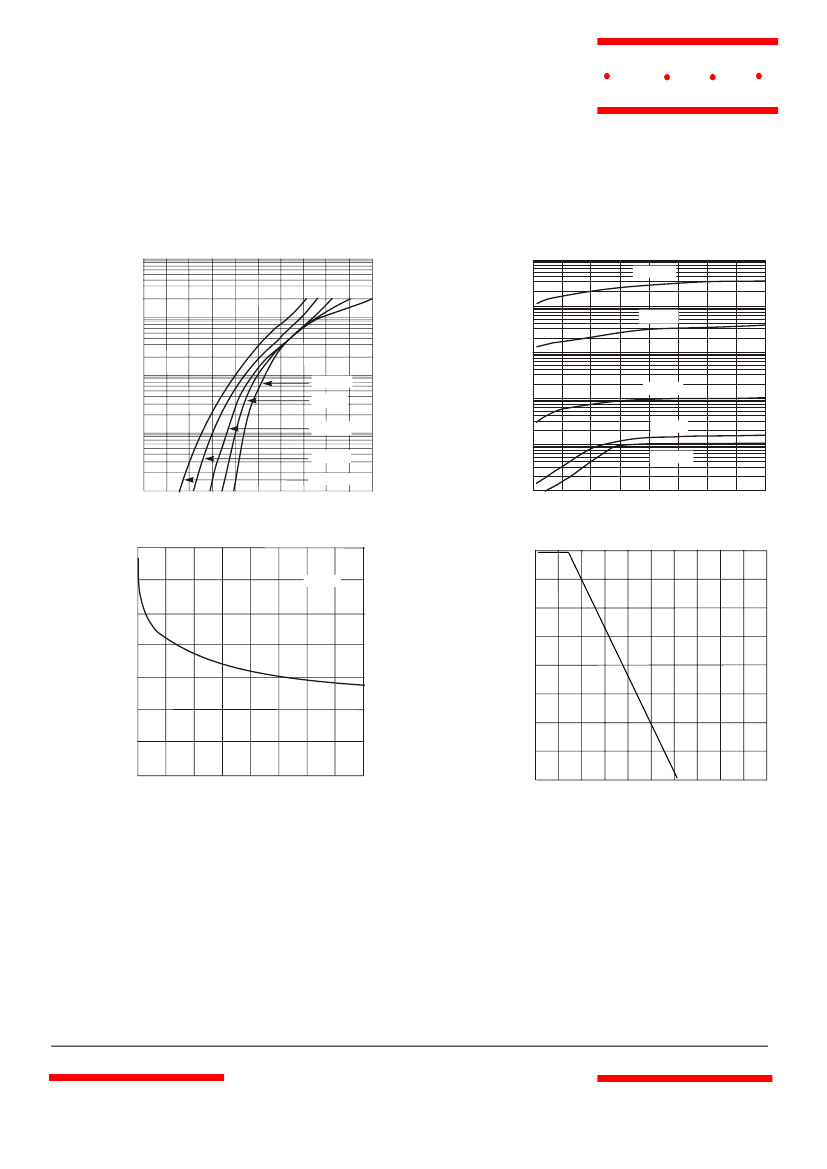

Fig. 1 Typical Forward Voltage
0.1
0
10
20
30
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
200
3
C
T
, TOTAL CAPACITANCE (pF)
f = 1MHz
P
d
, POWER DISSIPATION (mW)
150
2
100
1
50
0
0
10
20
30
40
0
0
100
200
T
A
, AMBIENT TEMPERATURE (ºC)
Fig. 4 Power Derating Curve, Total Package
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance
www.mccsemi.com
Revision: D
3 of
4
2013/11/25
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
3Kpcs/Reel
