CMLD6263DO
SURFACE MOUNT SILICON
DUAL OPPOSING
HIGH VOLTAGE
SCHOTTKY DIODE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMLD6263DO
incorporates two galvanically isolated, high voltage,
low VF silicon diodes with an opposing Anode/Cathode
configuration, in a space saving SOT-563 surface
mount package. These diodes are designed for fast
switching applications requiring a low forward voltage
drop.
MARKING CODE: 63O

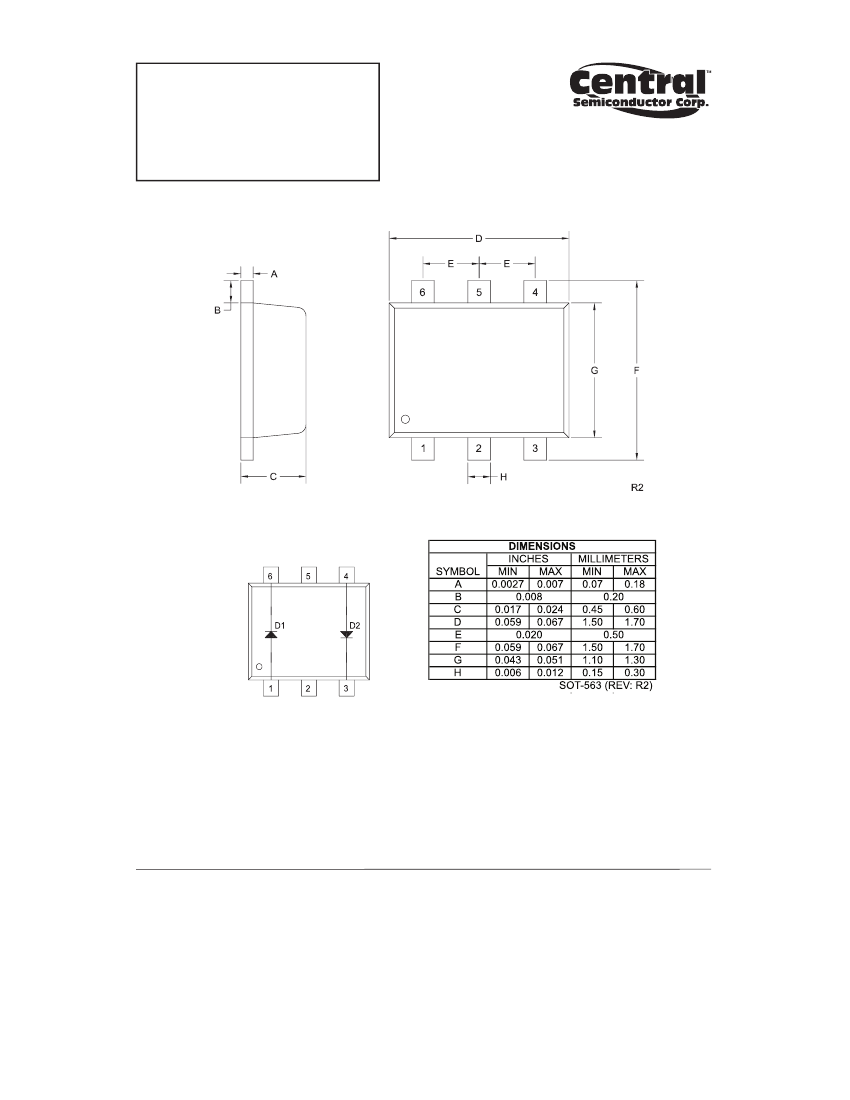

SOT-563 CASE
FEATURES:
• Dual Opposing (DO) Schottky Diodes
• High Voltage (70V)
• Low Forward Voltage
• Galvanically Isolated
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Continuous Forward Current
Peak Forward Surge Current, tp=1.0s
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VRRM
IF
IFSM
PD
TJ, Tstg
Θ
JA
70
15
50
250
-65 to +150
500
UNITS
V
mA
mA
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
IR
BVR
VF
CJ
trr
VR=50V
IR=10μA
IF=1.0mA
VR=0, f=1.0MHz
IR=IF=10mA, Irr=1.0mA, RL=100Ω
70
395
410
2.0
5.0
10
200
UNITS
nA
V
mV
pF
ns

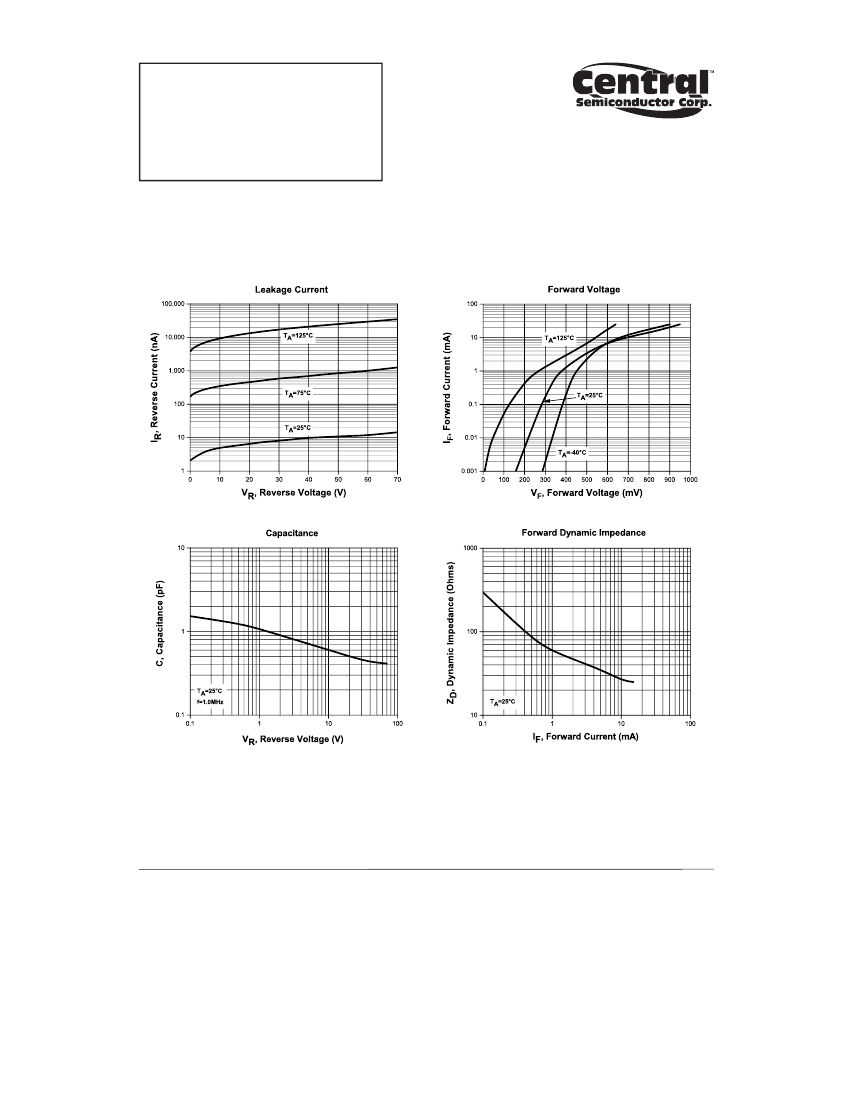

R6 (11-December 2015)
