SF801G - SF808G
Taiwan Semiconductor
CREAT BY ART

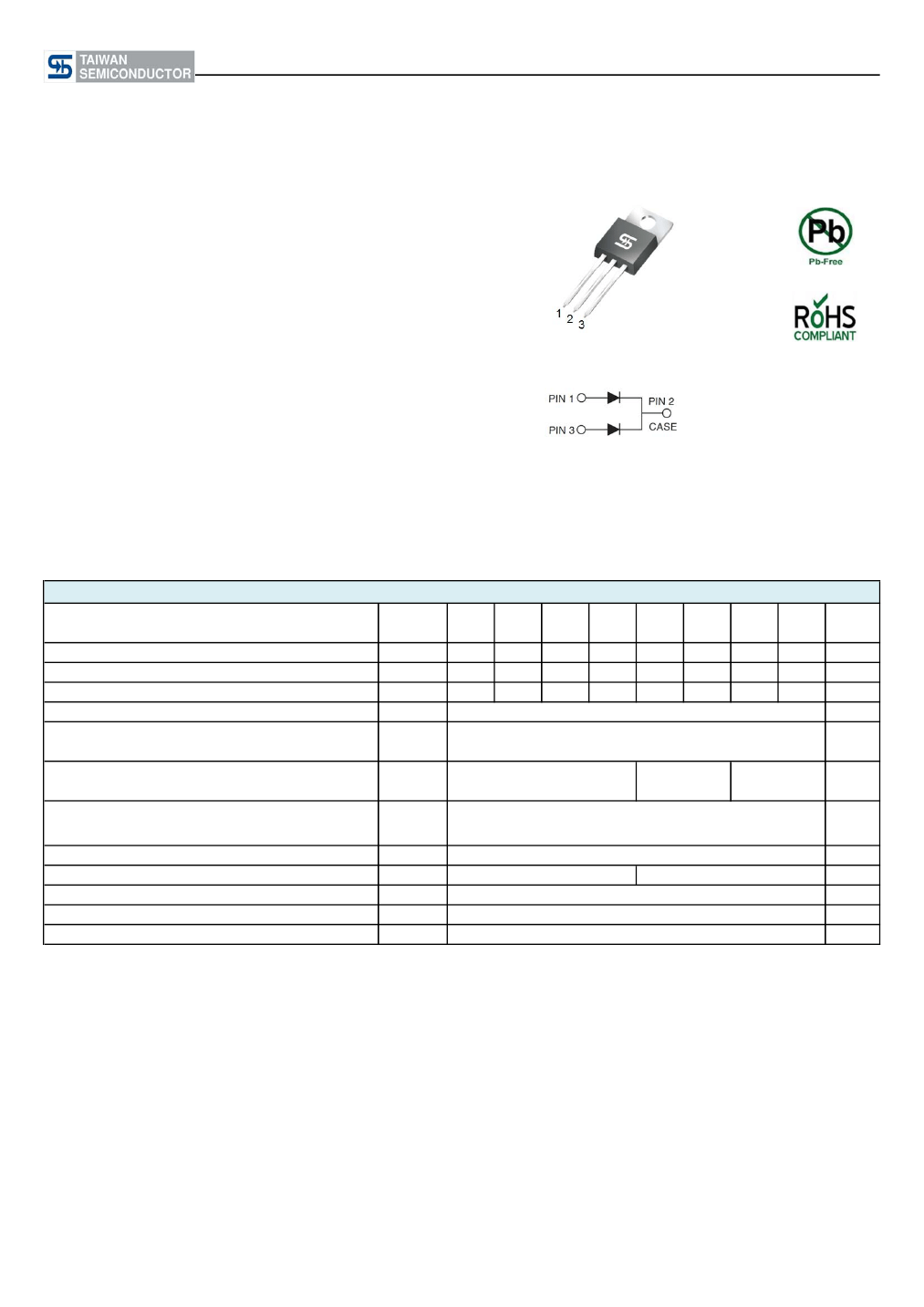

8A, 50V - 600V Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency, low VF
- High current capability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
TO-220AB
MECHANICAL DATA
Case:
TO-220AB
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.82 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage
@4A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Test conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and applied reverse voltage of 4.0 V DC.
(Note 1)
T
J
=25°C
T
J
=100°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
70
3
- 55 to +150
- 55 to +150
0.975
10
400
35
50
SF
50
35
50
SF
100
70
100
SF
150
105
150
SF
200
140
200
8
125
1.3
1.7
SF
300
210
300
SF
400
280
400
SF
500
350
500
SF
600
480
600
801G 802G 803G 804G 805G 806G 807G 808G
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Version: H1511
SF801G - SF808G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SF80xG
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING
CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
TO-220AB
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (SF801G) to 600V (SF808G)
EXAMPLE
EXAMPLE
PART NO.
SF808GHC0G
PART NO.
SF808G
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

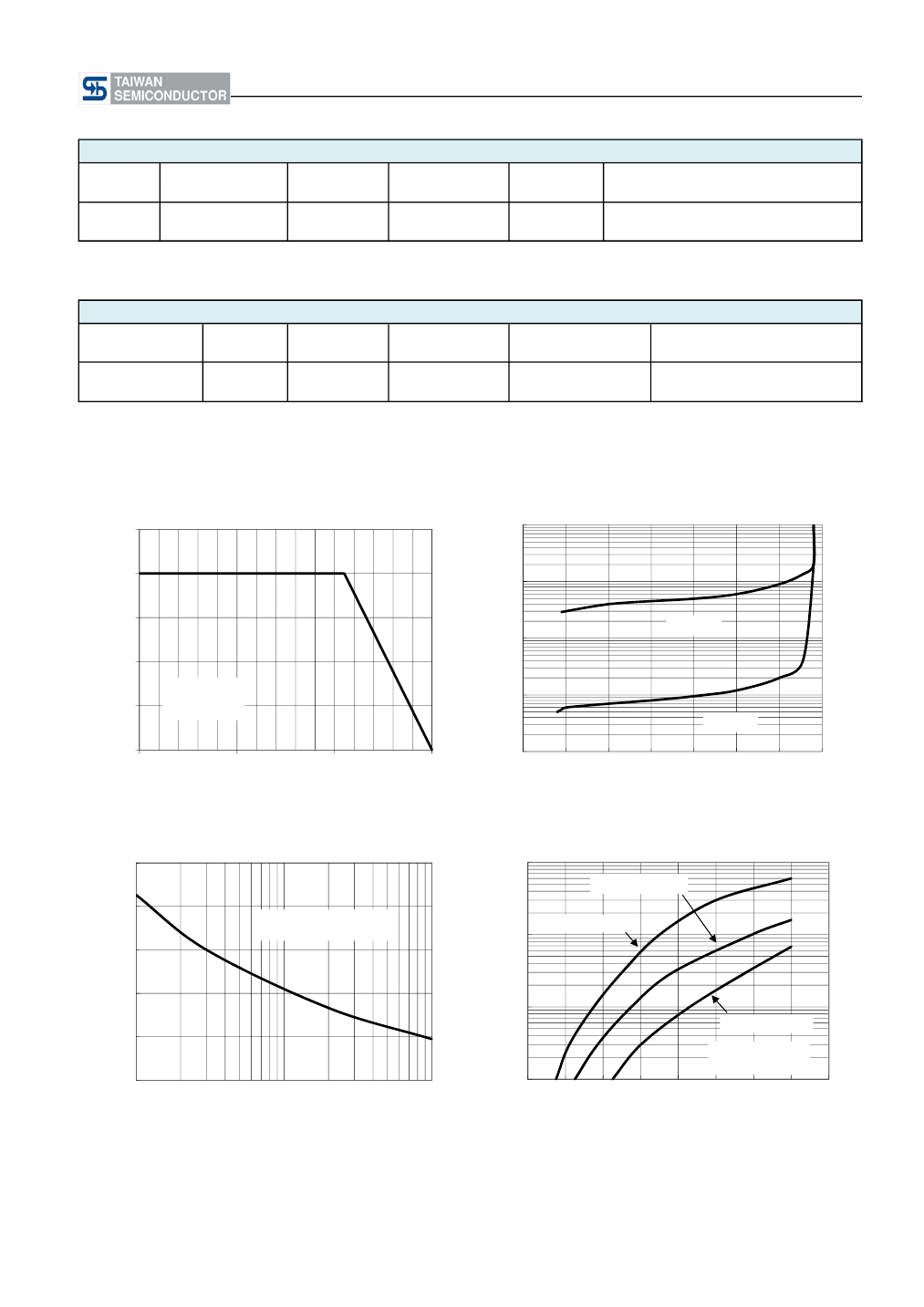

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
10
INSTANTANEOUS REVERSE CURRENT (μA)
AVERAGE FORWARD CURRENT (A)
1000
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
8
100
6
10
T
J
=100°C
4
Resistive or
inductive load
with heatsink
2
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0
0
50
100
150
CASE TEMPERATURE (
°
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
150
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT (A)
SF805G~SF806G
PEAK FORWARD SURGE CURRENT(A)
120
8.3ms single half sine wave
90
10
SF801G~SF804G
60
1
SF807G~SF808G
Pulse width=300μs
1% duty cycle
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE. (V)
Version: H1511
SF801G - SF808G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
90
CAPACITANCE (pF)
80
70
60
50
40
1
10
100
1000
REVERSE VOLTAGE. (V)
f=1.0MHz
Vslg=50mVp-p
SF801G~SF804
SF805G~SF808G

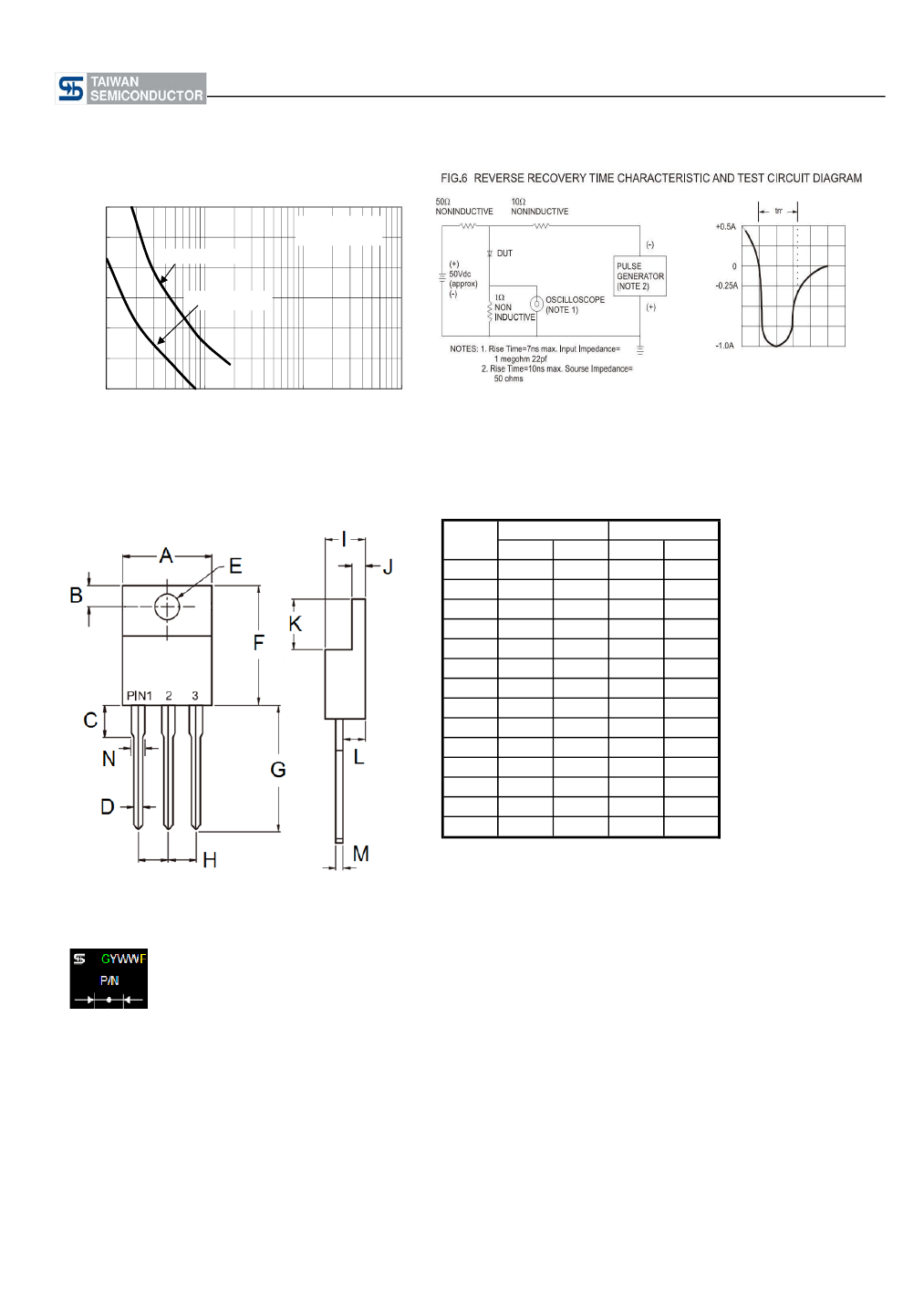

PACKAGE OUTLINE DIMENSIONS
TO-220AB
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Unit (mm)
Min
-
2.62
2.80
0.68
3.54
14.60
13.19
2.41
4.42
1.14
5.84
2.20
0.35
1.14
Max
10.50
3.44
4.20
0.94
4.00
16.00
14.79
2.67
4.76
1.40
6.86
2.80
0.64
1.77
Unit (inch)
Min
-
0.103
0.110
0.027
0.139
0.575
0.519
0.095
0.174
0.045
0.230
0.087
0.014
0.045
Max
0.413
0.135
0.165
0.037
0.157
0.630
0.582
0.105
0.187
0.055
0.270
0.110
0.025
0.070
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: H1511
SF801G - SF808G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: H1511
