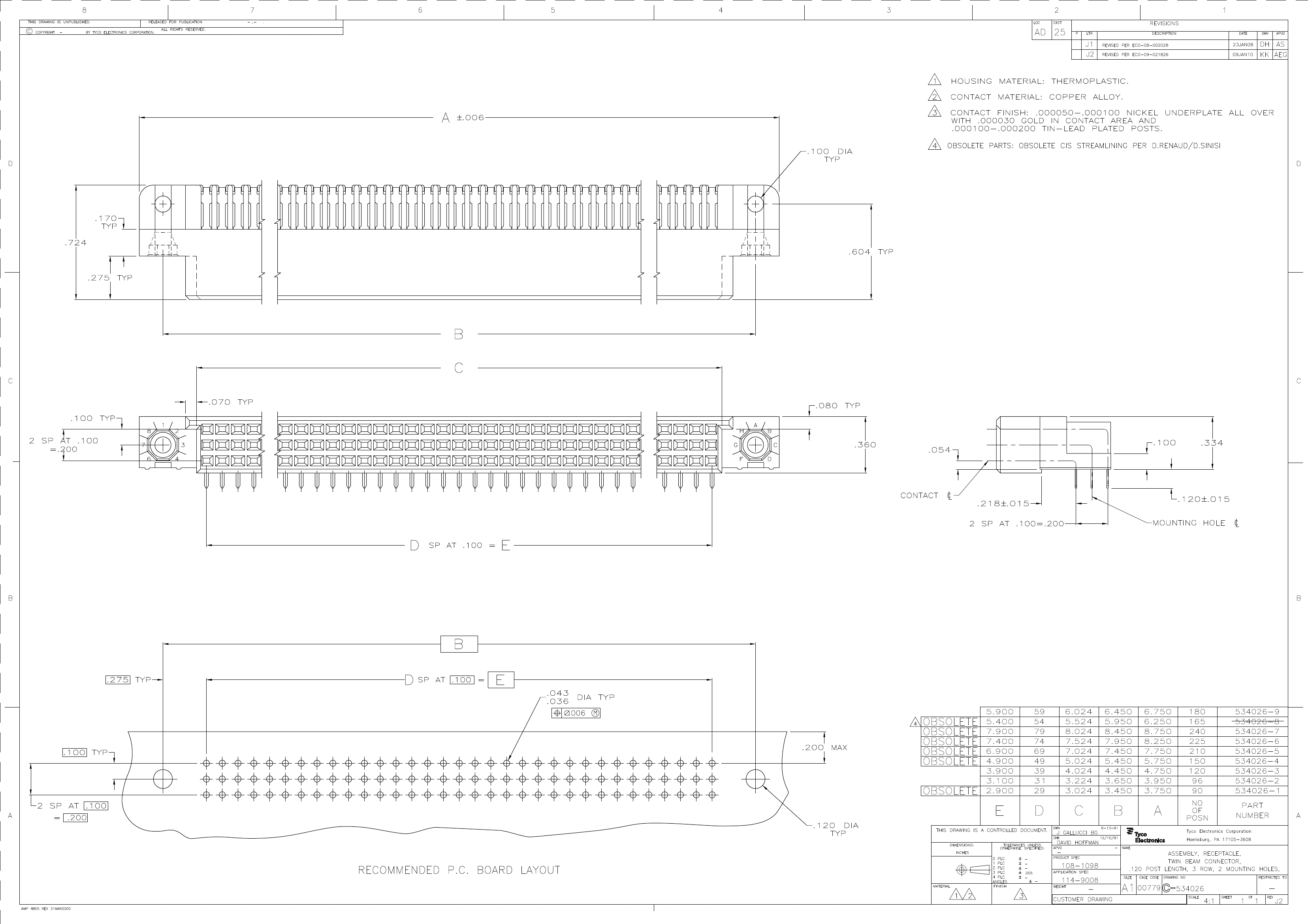

534026-9 |
534026-2 |
| Description |
180 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE |
96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE |
| Is it Rohs certified? |
incompatible |
incompatible |
| Reach Compliance Code |
unknown |
compliant |
| ECCN code |
EAR99 |
EAR99 |
| Board mount options |
#2-56 THD HOLE |
#2-56 THD HOLE |
| body width |
0.36 inch |
0.36 inch |
| subject depth |
0.724 inch |
0.724 inch |
| body length |
6.75 inch |
3.95 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact completed and terminated |
TIN LEAD |
TIN LEAD |
| Contact point gender |
FEMALE |
FEMALE |
| Contact material |
COPPER ALLOY |
COPPER ALLOY |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
20 mΩ |
20 mΩ |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
900VAC V |
900VAC V |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
.6672 N |
.6672 N |
| Insulator color |
BROWN |
BROWN |
| insulator material |
POLYPHENYLENE SULPHIDE |
POLYPHENYLENE SULPHIDE |
| JESD-609 code |
e0 |
e0 |
| MIL compliance |
NO |
NO |
| Manufacturer's serial number |
534026 |
534026 |
| Plug contact pitch |
0.1 inch |
0.1 inch |
| Match contact row spacing |
0.1 inch |
0.1 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
HOLE .099-.111 |
HOLE .099-.111 |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
3 |
3 |
| Number of rows loaded |
3 |
3 |
| Maximum operating temperature |
125 °C |
125 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
2.54 mm |
2.54 mm |
| Plating thickness |
30u inch |
30u inch |
| polarization key |
POLARIZED KEY |
POLARIZED KEY |
| Rated current (signal) |
1 A |
1 A |
| Guideline |
UL, CSA |
UL, CSA |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.12 inch |
0.12 inch |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
180 |
96 |
| Evacuation force-minimum value |
1.39 N |
1.39 N |
| Base Number Matches |
1 |
1 |
