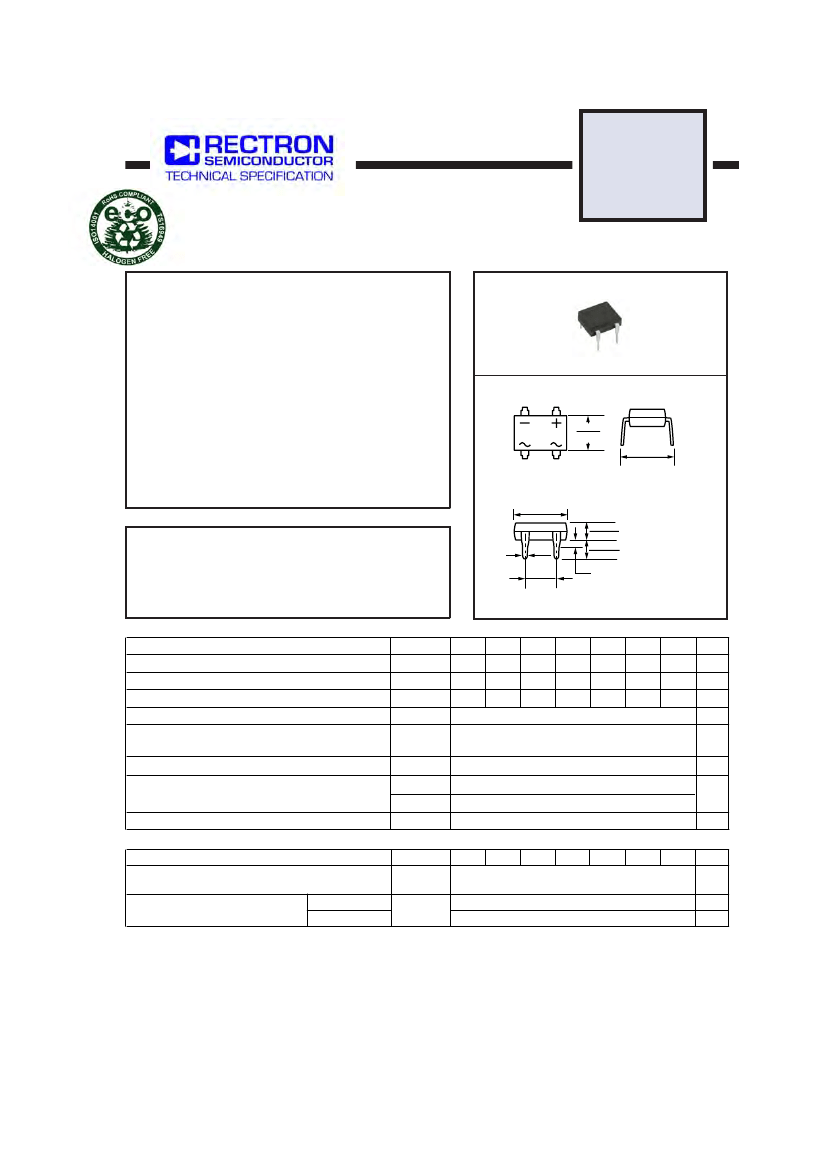

SINGLE-PHASE GLASS PASSIVATED
SILICON BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere
FEATURES
*
*
*
*
*
*
*
*
Good for automation insertion
Surge overload rating - 40 amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizing molded
Glass passivated device
Polarity symbols molded on body
Mounting position: Any
Weight: 1.0 gram
DB101
THRU
DB107
DB-1
MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* UL listed under the recognized component directory, file #E94233.

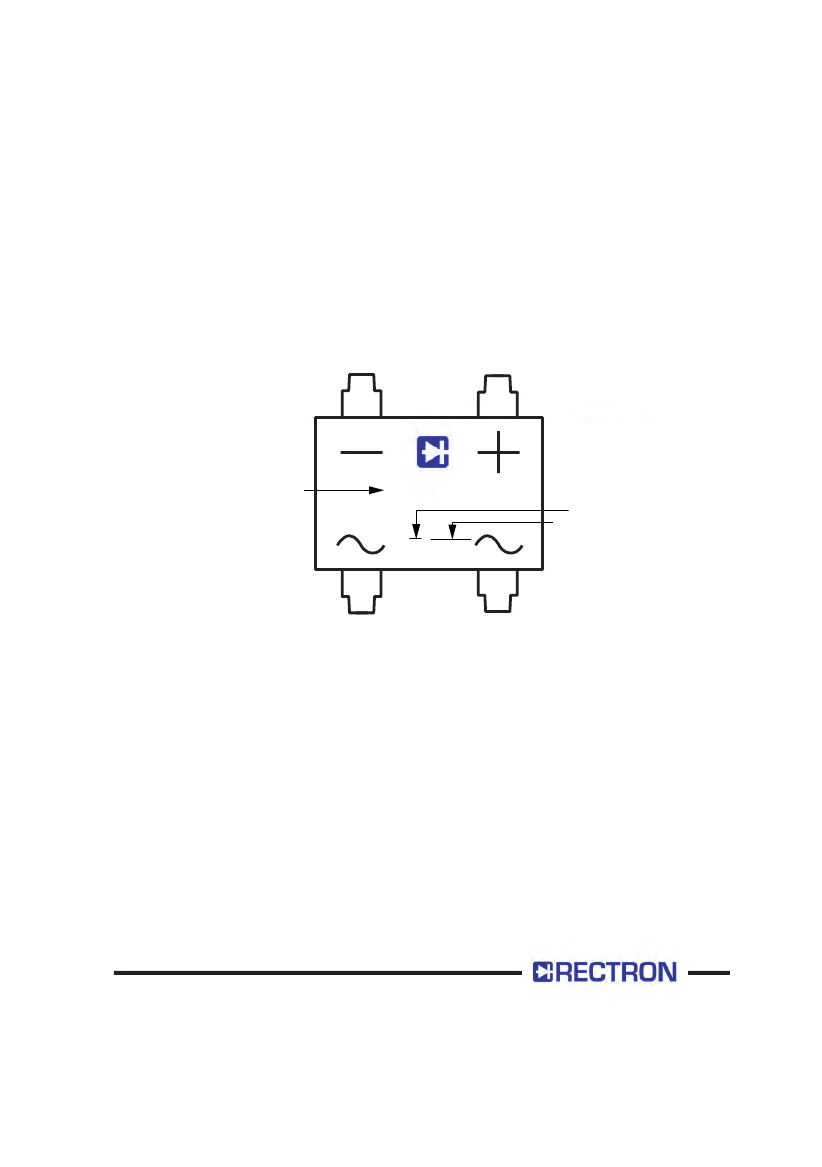

.255 (6.5)
.245 (6.2)
.350 (8.9)
.300 (7.6)
.335 (8.8)
.320 (7.8)
.135 (3.4)
.115 (2.9)
.165 (4.2)
.020
(0.5)
.205 (5.2)
.195 (5.0)
.060
(1.5)
.155 (3.9)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
resistive or inductive load.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25 C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output Current at T
A
= 40 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Current Squarad Time
Typical Thermal Resistance (Note 2)
R
q
JL
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS
(At T
A
= 25
o
C unless otherwise noted)
CHARACTERISTICS
Maximum Forward Voltage Drop per Bridge
Element at 1.0A DC
Maximum Reverse Current at Rated
DC Blocking Voltage per element
@T
A
= 25
o
C
@T
A
= 125 C
o
o
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
t
R
q
JA
DB101
50
35
50
DB102
100
70
100
DB103
200
140
200
DB104
400
280
400
1.0
40
DB105
600
420
600
DB106
800
560
800
DB107
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
6.6
40
15
-55 to + 150
A /Sec
0
2
C/W
0
T
J,
T
STG
C
SYMBOL
V
F
I
R
DB101
DB102
DB103
DB104
1.1
5.0
0.5
DB105
DB106
DB107
UNITS
Volts
mAmps
mAmps
2011-04
REV:B
Note: 1.”Fully ROHS compliant”,”100% Sn plating(Pb-free).
2. Thermal Resistance: PCB mounted.
3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr.
RATING AND CHARACTERISTICS CURVES ( DB101 THRU DB107 )
8.3mS Single Half Sine-Wave
JEDEC Method
50
40
30
20
10
0
0
2
4
6
INSTANTANEOUS FORWARD CURRENT, (A)
PEAK FORWARD SURGE CURRENT, (A)
60
10
1
0.1
T
J
= 25
O
C
Pulse Width = 300mS
1% Duty Cycle
10
20
40
60
100
0.01
0
0.5
1.0
1.5
2.0
2.5
NUMBER OF CYCLES AT 60Hz
INSTANTANEOUS FORWARD VOLTAGE, (V)
INSTANTANEOUS REVERSE CURRENT, (uA)
1000

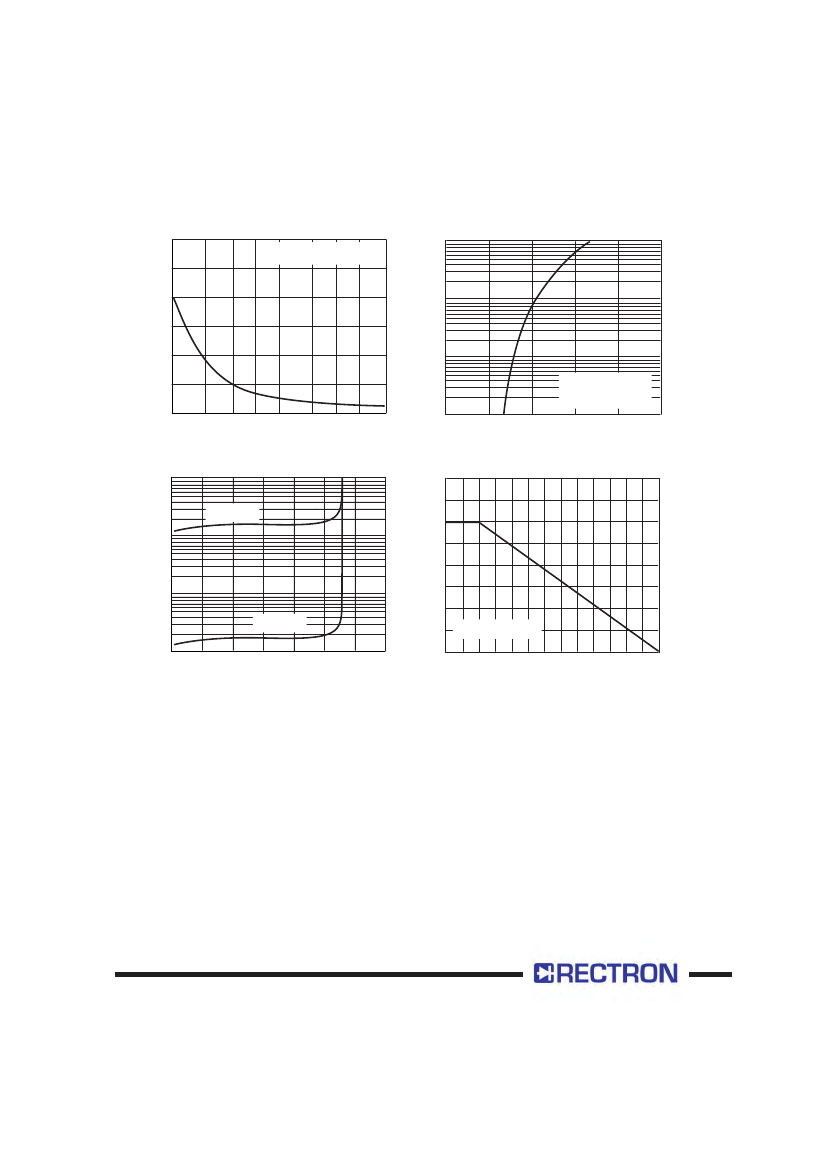

FIG. 1 - MAXIMUM NON-REPETITIVE
FORWARD SURGE CURRENT
AVERAGE FORWARD CURRENT, (A)
1.5
FIG.2 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
T
A
= 125
O
C
1.0
100
10
T
A
= 25
O
C
0.5
60 Hz RESISTIVE OR
INDUCTIVE LOAD
1.0
0
20
40
60
80
100
120
140
0
20
40
60
80
100
120
140 150
PERCENT RATED PEAK REVERSE VOLTAGE, (%)
AMBIENT TEMPERATURE, (
O
C)
FIG.3 TYPICAL REVERSE CHARACTERISTICS
FIG.4 TYPICAL FORWARD CURRENT
DERATING CURVE
