BAT54A-G3-18

Description
Non-Isolated DC/DC Converters SW0.5A 7.5V-36Vto5V
CategoryDiscrete semiconductor    diode
File Size96KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BAT54A-G3-18 Online Shopping

Suppliers Part Number Price MOQ In stock
BAT54A-G3-18 - - View Buy Now

BAT54A-G3-18 Overview

Non-Isolated DC/DC Converters SW0.5A 7.5V-36Vto5V

BAT54A-G3-18 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instructionGREEN PACKAGE-3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
ConfigurationCOMMON ANODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.24 V
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Maximum non-repetitive peak forward current0.6 A
Number of components2
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Maximum power dissipation0.23 W
Maximum repetitive peak reverse voltage30 V
Maximum reverse recovery time0.005 µs
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10

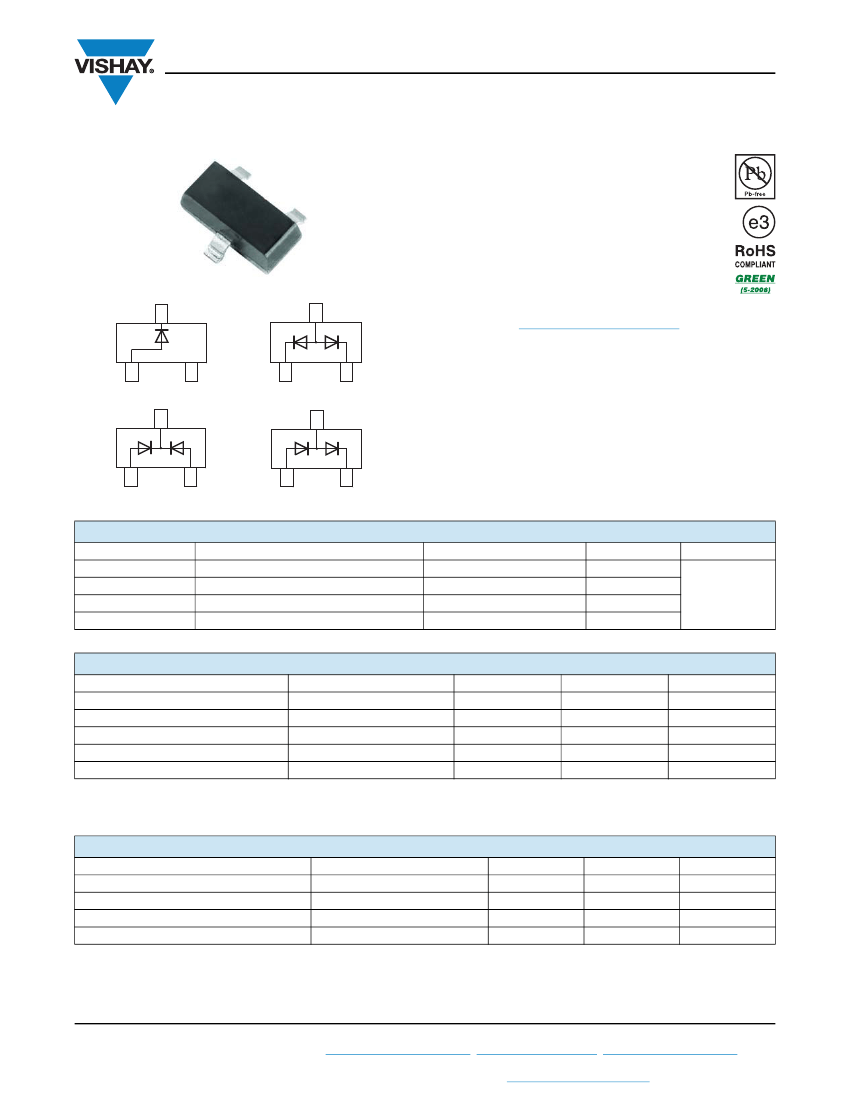

BAT54-G, BAT54A-G, BAT54C-G, BAT54S-G
www.vishay.com
Vishay Semiconductors
Small Signal Schottky Diodes, Single and Dual
FEATURES
• These diodes feature very low turn-on voltage
and fast switching
• These devices are protected by a PN junction
guardring against excessive voltage, such as
electrostatic discharges
• AEC-Q101 qualified
• Base P/N-G3 - green, commercial grade
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
BAT54-G
3
BAT54A-G
3
Top View
MECHANICAL DATA
1
2
1
2
Case:
SOT-23
Weight:
approx. 8.1 mg
Packaging codes/options:
18/10K per 13" reel (8 mm tape), 10K/box
08/3K per 7" reel (8 mm tape), 15K/box
BAT54C-G
3
BAT54S-G
3
Top View
1
2
1
2
PARTS TABLE
PART
BAT54-G
BAT54A-G
BAT54C-G
BAT54S-G
ORDERING CODE
BAT54-G3-08 or BAT54-G3-18
BAT54A-G3-08 or BAT54A-G3-18
BAT54C-G3-08 or BAT54C-G3-18
BAT54S-G3-08 or BAT54S-G3-18
INTERNAL CONSTRUCTION
Single diode
Dual diodes common anode
Dual diodes common cathode
Dual diodes serial
TYPE MARKING
L8
L46
L47
L48
Tape and reel
REMARKS
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Repetitive peak reverse voltage
Forward continuous current
Surge forward current
(1)
Power dissipation
Note
(1)
Device on fiberglass substrate, see layout on next page.
(1)
(1)
TEST CONDITION
SYMBOL
V
RRM
I
F
I
FRM
VALUE
30
200
300
600
230
UNIT
V
mA
mA
mA
mW
Repetitive peak forward current
t
p
< 1 s
I
FSM
P
tot
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
Operating temperature range
Note
(1)
Device on fiberglass substrate, see layout on next page.
(1)
TEST CONDITION
SYMBOL
R
thJA
T
j
T
stg
T
op
VALUE
430
125
- 65 to + 150
- 55 to + 125
UNIT
K/W
°C
°C
°C
Rev. 1.2, 25-Feb-13
Document Number: 83344
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
