Ordering number :EN1896B
DCC010
Sillicon Epitaxial Planar Type (Series Connection)
Ultrahigh-Speed Switching Diode
Features
· Ideally suited for use in hybrid ICs because of very
small package.
· Fast switching speed.
· Small interterminal capacitance.
Package Dimensions
unit:mm
1147A
[DCC010]
1:Anode
2:Cathode
3:Cathode, Anode
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Peak Reverse Voltage
Reverse Voltage
Peak Forward Current
Average Rectified Current
Surge Current (1µs)
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
VRM
VR
IFM
IO
IFSM
P
Tj
Tstg
Unit Rating
Unit Rating
Unit Rating
Conditions
SANYO:CP
Ratings
85
80
300
210
100
70
4
2.8
200
125
–55 to +125
Unit
V
V
mA
mA
mA
mA
A
A
mW
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Forward Voltage
Symbol
VF(1)
VF(2)
VF(3)
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
IR(1)
IR(2)
C
trr
IF=1mA
IF=10mA
IF=100mA
VR=30V
VR=80V
VR=0V, f=1MHz
IF=10mA, VR=6V, RL=50
Ω
, Irr=0.1Irp
Conditions
Ratings
min
typ
0.60
0.72
1.20
0.1
0.5
3.0
4.0
max
Unit
V
V
V
µA
µA
pF
ns
· Marking:W7
Reverse Recovery Time Test Circuit
Electrical Connection
(Top view)
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/32996GI (KOTO)/D2028TA/N148TA, TS No.1896-1/2

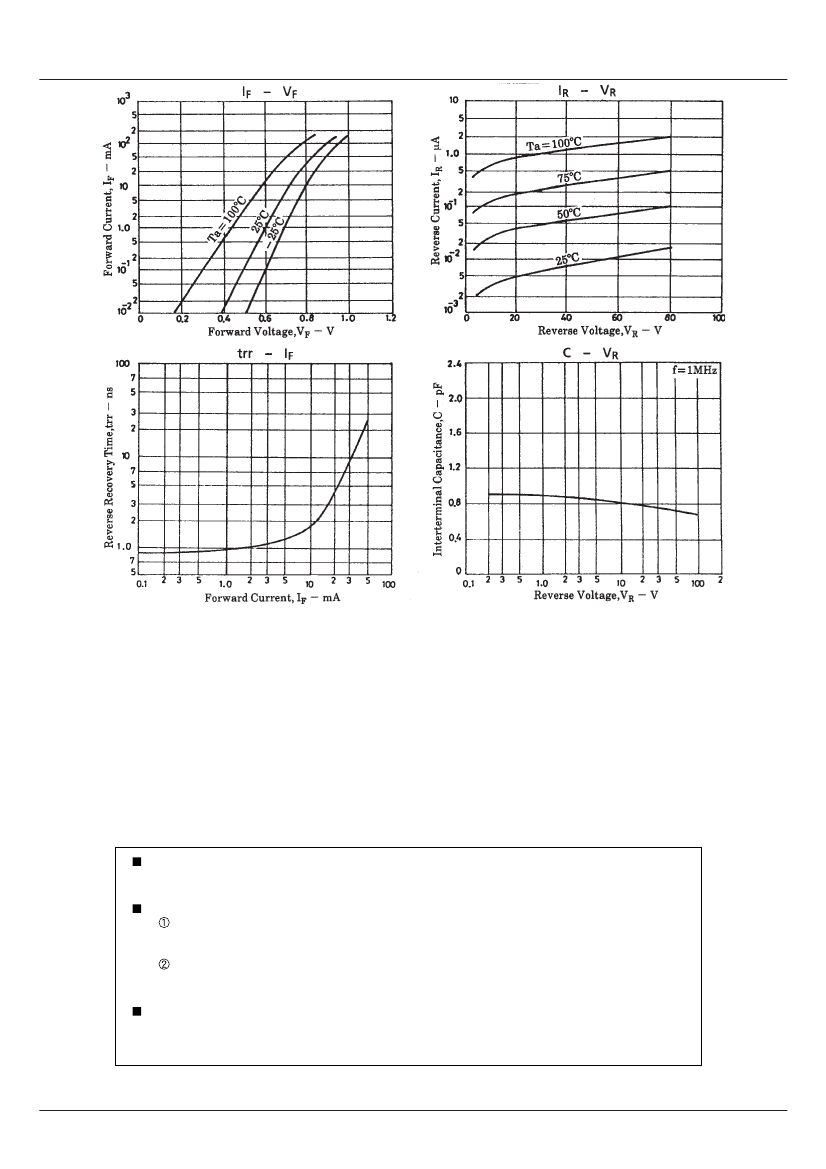

DCC010
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of March, 1998. Specifications and information herein are subject to
change without notice.
PS No.1896-2/2
