BSP296NH6433XTMA1 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> BSP296NH6433XTMA1

BSP296NH6433XTMA1: DescriptionMOSFET SMALL SIGNAL N-CH; CategoryDiscrete semiconductor The transistor; File Size552KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric View All

BSP296NH6433XTMA1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BSP296NH6433XTMA1	-	-	View	Buy Now

BSP296NH6433XTMA1 Overview

MOSFET SMALL SIGNAL N-CH

BSP296NH6433XTMA1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	AVALANCHE RATED; LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	15 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	1.2 A
Maximum drain-source on-resistance	0.6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	4.6 A
Guideline	AEC-Q101
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON

Preview

Download Datasheet

View All

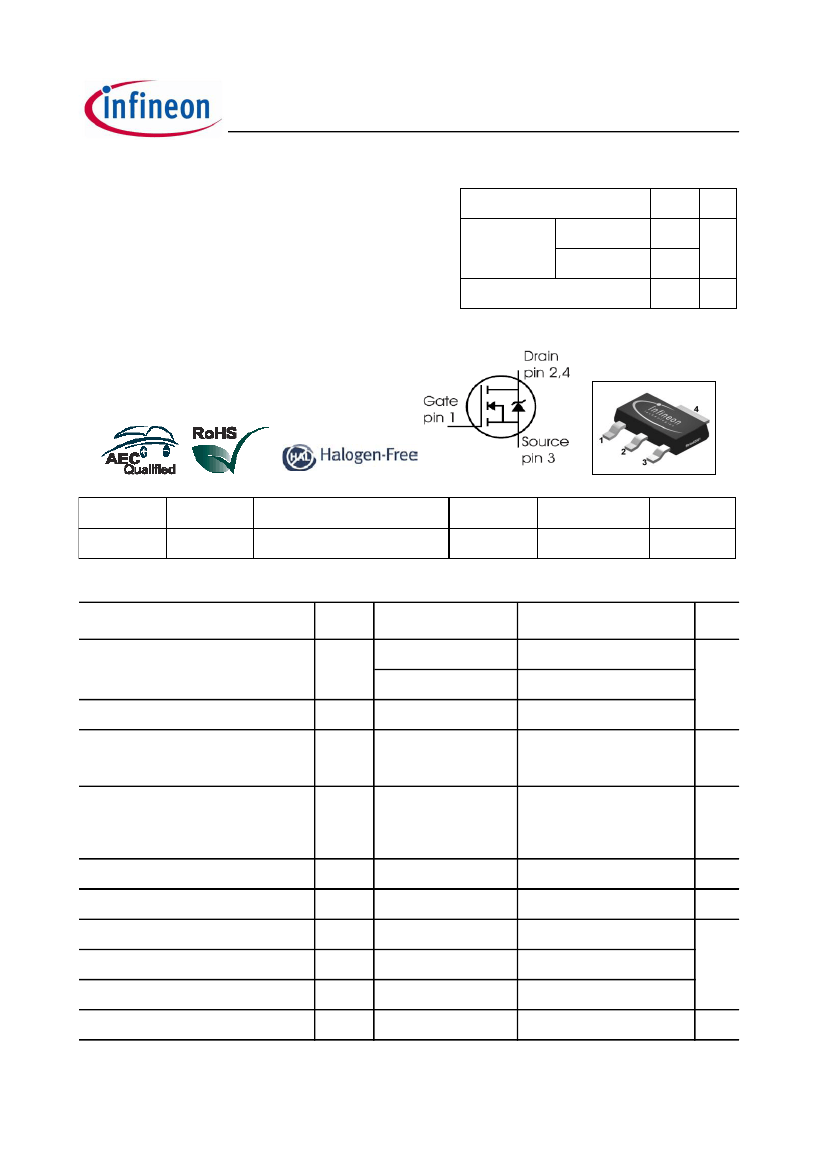

BSP296N

OptiMOS Small-Signal-Transistor

Features

• N-channel

• Enhancement mode

• Logic level (4.5V rated)

• Avalanche rated

• Qualified according to AEC Q101

• 100% lead-free; RoHS compliant

• Halogen-free according to IEC61249-2-21

™

Product Summary

DS(on),max

=10 V

=4.5 V

100

0.6

0.8

1.2

PG-SOT223

Type

BSP296N

Package

SOT223

Tape and Reel Information

H6327: 1000 pcs/ reel

Marking

BSP296N

Halogen-Free

Yes

Packing

Non dry

Maximum ratings,

=25 °C, unless otherwise specified

Parameter

Continuous drain current

Symbol Conditions

=25 °C

=70 °C

Pulsed drain current

Avalanche energy, single pulse

D,pulse

=25 °C

=1.2 A,

=25

=1.2 A,

=80 V,

di /dt =200 A/µs,

j,max

=150 °C

Value

1.2

0.9

4.6

15.0

Unit

Reverse diode dv /dt

dv /dt

kV/µs

Gate source voltage

Power dissipation

Operating and storage temperature

ESD Class

Soldering Temperature

IEC climatic category; DIN IEC 68-1

tot

stg

JESD22-A114 -HBM

=25 °C

±20

1.8

-55 ... 150

0 (<250V)

260 °C

55/150/56

°C

Rev 2.0

page 1

2013-04-04
