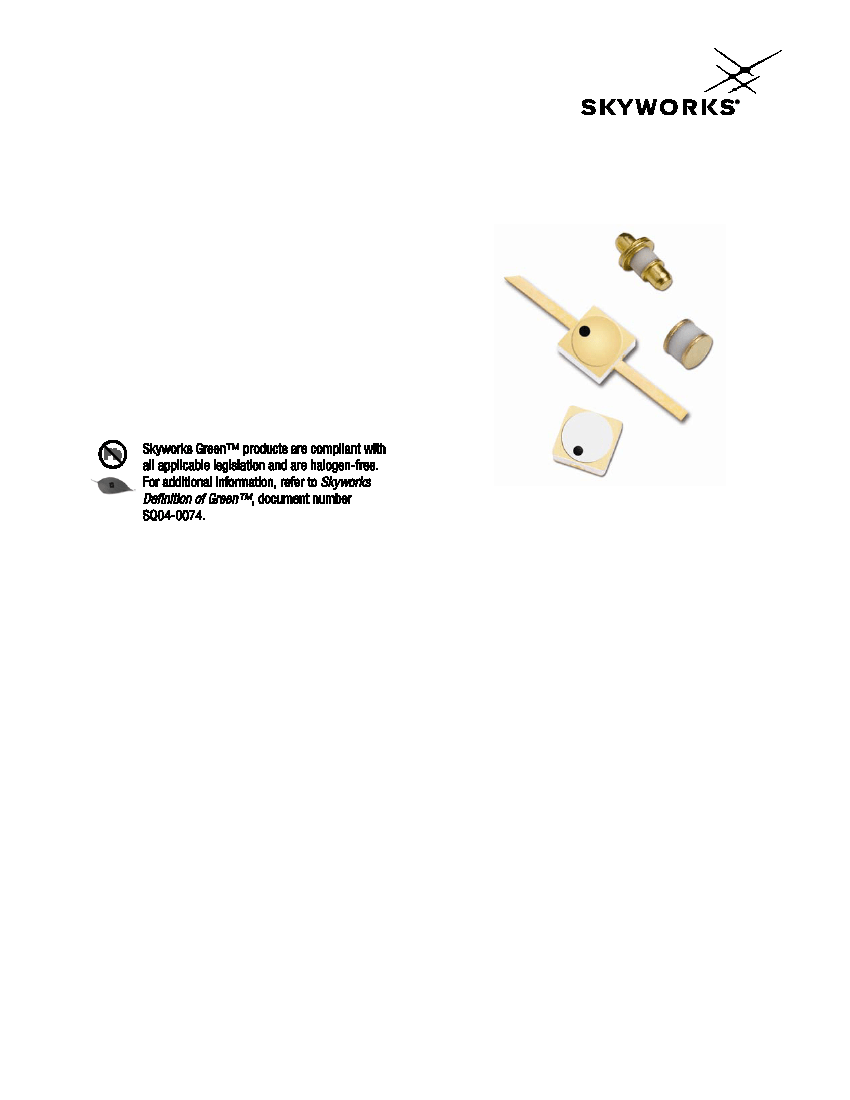

SMV2019-SMV2023: Silicon Hyperabrupt Junction Varactors,
Packaged and Bondable Planar Chips
Applications
•
VCOs
Features
•
High Q for low-loss resonators
•
Low leakage current
•
High tuning ratio for wideband VCOs
•
SPICE model parameters
•
Small footprint chip design
Description
Skyworks
silicon hyperabrupt junction varactor diodes are
processed using established
ion-implantation
technology
resulting in low series resistance, wide tuning ratio devices with
high Q values. These diodes are available as chips or in ceramic
packages. The planar chips have a small outline size (12 x 12
mils, nominal) and are fully passivated, which results
in low
leakage current and high reliability. These varactor chips are
intended for assembly in hybrid integrated circuit resonators used
in
Voltage Controlled Oscillators (VCOs) and analog tuned filters.
The absolute maximum ratings of the SMV2019-SMV2023
varactors are provided in Table 1. Electrical specifications are
specified in Table
2.
Typical capacitance values are listed in
Table 3.
The SPICE model is shown in Figure 1. SPICE parameters are
listed in Table 4. Typical performance characteristics are provided
in
Figures
2
and 3.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200138E • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • June 29, 2011
1
DATA SHEET • SMV2019-SMV2023 VARACTORS
Table 1. SMV2019-SMV2023 Absolute Maximum Ratings
Parameter
Power dissipation
Reverse voltage
Forward current
Operating temperature
Storage temperature
Note:
Symbol
P
DIS
V
R
I
F
T
OP
T
STG
Minimum
Typical
Maximum
250
22
100
Units
mW
V
mA
°C
°C
–55
–65
+150
+200
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other
parameters set at or below their nominal value.
CAUTION:
Although this device is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this device. This device
must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body
or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times.
Table 2. SMV2019-SMV2023 Electrical Specifications (Note 1)
(T
OP
= +25
°C,
C
J
Measured at 1 MHz, Unless Otherwise Noted)
Part Number
C
J
@ 0 V
(pF)
Typical
SMV2019-000
SMV2020-000
SMV2021-000
SMV2022-000
SMV2023-000
2.3
3.1
4.5
7.1
10.8
C
J
@ 4 V
(pF)
Minimum
0.68
1.13
1.58
2.48
4.28
Maximum
0.88
1.43
1.98
3.08
5.28
Minimum
0.13
0.23
0.32
0.48
0.78
C
J
@ 20 V
(pF)
Maximum
0.23
0.33
0.44
0.68
1.08
Q @ 4 V,
50 MHz
(Note 2)
Minimum
500
500
500
400
400
1 GHz R
S
@4V
(Ω)
Typical
4.8
4.1
2.8
2.2
1.4
I
R
@ 17.6 V
(nA)
(Note 3)
Maximum
50
50
50
50
50
Note 1:
Performance is guaranteed only under the conditions listed in this Table and is not guaranteed over the full operating or storage temperature ranges. Exceeding any of the conditions
listed here may result in permanent damage to the device. Operation at elevated temperatures may reduce reliability of the device.
Note 2:
50 MHz Q calculated from 1 GHz R
S
and 1 MHz C
J
.
Note 3:
V
B
at 10
μA
specified at 22 V, minimum.
Skyworks
Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
2
June 29, 2011 • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • 200138E
DATA SHEET • SMV2019-SMV2023 VARACTORS
Table 3. Typical Capacitance Values
Reverse Voltage, V
R
(V)
0
0.5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Junction Capacitance, C
J
(pF)
SMV2019
2.25
1.79
1.53
1.19
0.99
0.89
0.71
0.57
0.46
0.38
0.33
0.29
0.26
0.24
0.23
0.21
0.20
0.19
0.19
0.18
0.17
0.16
SMV2020
3.14
2.50
2.16
1.72
1.44
1.24
1.07
0.90
0.74
0.61
0.52
0.46
0.42
0.38
0.36
0.34
0.32
0.31
0.29
0.28
0.27
0.26
SMV2021
4.48
3.57
3.09
2.45
2.09
1.83
1.60
1.37
1.17
0.97
0.81
0.69
0.61
0.56
0.51
0.48
0.45
0.43
0.41
0.39
0.38
0.36
SMV2022
7.08
5.66
4.88
3.89
3.19
2.71
2.30
1.87
1.52
1.25
1.07
0.94
0.85
0.78
0.73
0.69
0.65
0.62
0.59
0.57
0.55
0.54
SMV2023
10.76
8.76
7.67
6.31
5.38
4.75
4.21
3.66
3.17
2.68
2.25
1.89
1.66
1.49
1.35
1.24
1.16
1.10
1.04
0.99
0.95
0.91
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200138E • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • June 29, 2011
3
DATA SHEET • SMV2019-SMV2023 VARACTORS

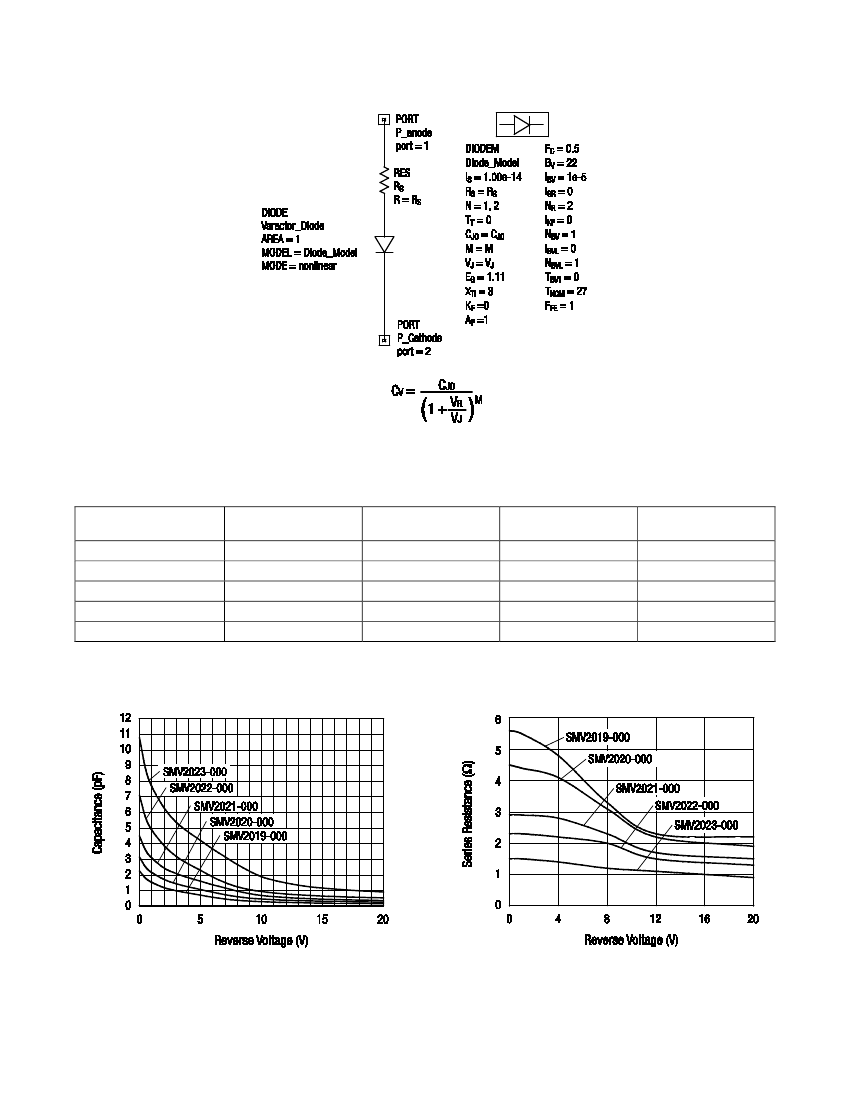

Figure 1. SPICE Model
Table 4. SPICE Model Parameters
Part Number
SMV2019
SMV2020
SMV2021
SMV2022
SMV2023
C
JO
(pF)
2.3
3.05
4.3
6.9
10.26
V
J
(V)
3.5
4.46
5.09
4.92
7.61
M
1.40
1.51
1.59
1.69
1.93
R
S
(Ω)
4.80
4.10
2.80
2.20
1.40
Typical Performance Characteristics at 25
°C
Figure 2. Capacitance vs Reverse Voltage
Figure 3. Series Resistance vs Voltage @ 1 GHz
Skyworks
Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
4
June 29, 2011 • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • 200138E
DATA SHEET • SMV2019-SMV2023 VARACTORS
Package Outline Drawings
Table 5 identifies the die part numbers with their corresponding
top contact diameters and die outline drawings. Table 6 identifies
the hermetic part numbers and outline drawing types. The
Table 5. SMV2019-SMV2023 Parts – Die Packages
Part Number
SMV2019-000
SMV2020-000
SMV2021-000
SMV2022-000
SMV2023-000
NominalTop Contact Diameter (mils)
2.00
2.50
3.00
3.75
5.00
package outline die drawing for the SMV23019-SMV2023
varactors
is
shown in Figure 4. Hermetic package outlines are
shown in Figures 5 through 8.
Die Drawing
149-801
149-801
149-801
149-801
149-801
Table 6. SMV2019-SMV2023 Parts – Hermetic Packages
Hermetic Stripline
Drawing
SMV2019-240
SMV2020-240
SMV2021-240
SMV2022-240
SMV2023-240
Hermetic Pill
Drawing
SMV2019-203
SMV2020-203
SMV2021-203
SMV2022-203
SMV2023-203
Hermetic Stripline
Drawing
SMV2019-219
SMV2020-219
SMV2021-219
SMV2022-219
SMV2023-219
Hermetic Coaxial
Drawing
SMV2019-210
SMV2020-210
SMV2021-210
SMV2022-210
SMV2023-210
Die Package
Figure 4. 149-801 Package
