BAT-18-05-E6327 datasheet, PDF

Datasheet> All Categories > semiconductor> Discrete semiconductor> BAT-18-05-E6327

BAT-18-05-E6327: DescriptionPIN Diodes Silicon RF Switching Diode; Categorysemiconductor Discrete semiconductor; File Size806KB，5 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAT-18-05-E6327 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT-18-05-E6327	-	-	View	Buy Now

BAT-18-05-E6327 Overview

PIN Diodes Silicon RF Switching Diode

BAT-18-05-E6327 Parametric

Parameter Name	Attribute value
Product Category	PIN Diodes
Manufacturer	Infineon
RoHS	Details
Vr - Reverse Voltage	35 V
Maximum Diode Capacitance	1 pF
Maximum Series Resistance @ Maximum IF	0.7 Ohms
If - Forward Current	100 mA
Vf - Forward Voltage	1.2 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOT-23
Packaging	Reel
Packaging	MouseReel
Packaging	Cut Tape
Carrier Life	0.12 us
Configuration	Dual Common Cathode
Frequency Range	VHF, UHF
Height	1 mm
Ir - Reverse Current	200 nA
Length	2.9 mm
Factory Pack Quantity	3000
Type	Switch
Width	1.3 mm
Unit Weight	0.000282 oz

Preview

Download Datasheet

View All

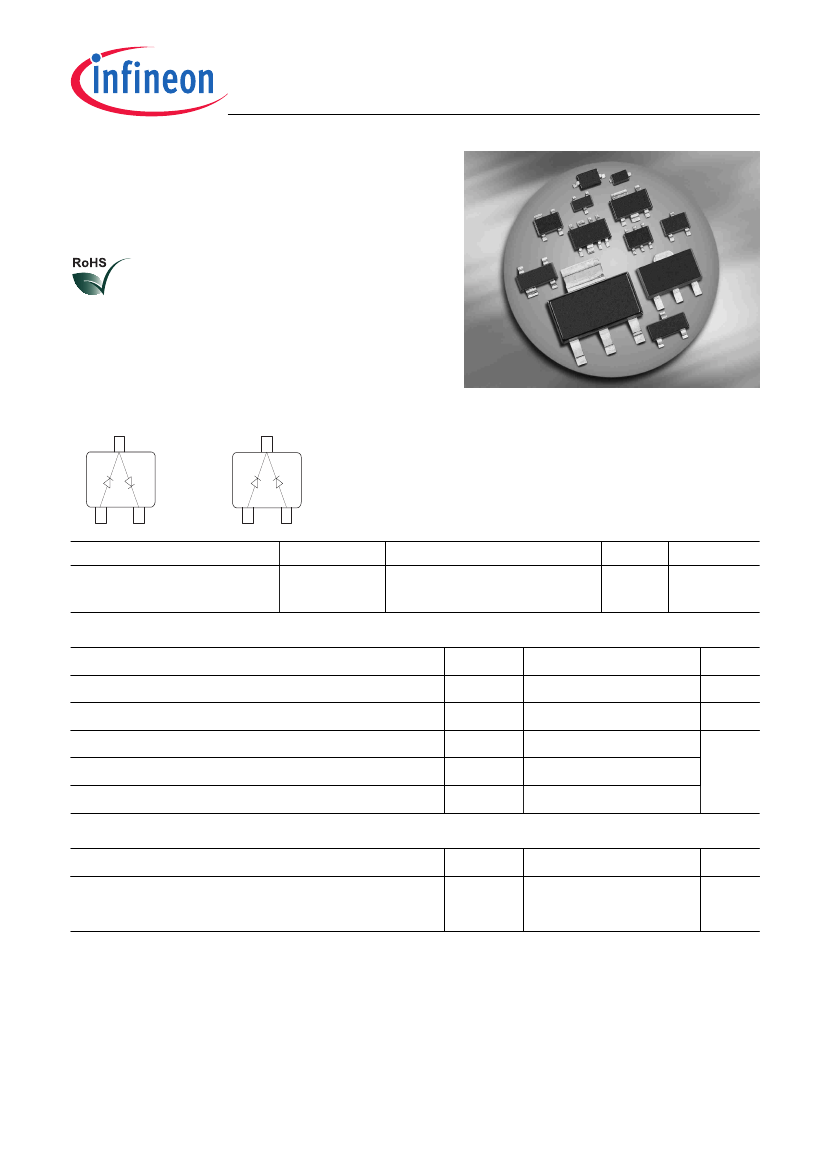

BAT18...

Silicon RF Switching Diode

•

Low-loss VHF / UHF switch above 10 MHz

•

PIN diode with low forward resistance

•

Pb-free (RoHS compliant) package

BAT18-04

BAT18-05

Type

BAT18-04

BAT18-05

Package

SOT23

Configuration

series

common cathode

(nH)

1.8

Marking

AUs

ASs

Maximum Ratings

= 25°C, unless otherwise specified

Parameter

Diode reverse voltage

Forward current

Junction temperature

Operating temperature range

Storage temperature

Thermal Resistance

Parameter

Symbol

thJS

Value

≤

290

Unit

Symbol

stg

Value

100

150

-55 ... 125

-55 ... 150

Unit

°C

Junction - soldering point

BAT18-04, BAT18-05

For

K/W

calculation of

thJA

please refer to Application Note Thermal Resistance

2011-06-14

BAT-18-05-E6327 Related Products

	BAT-18-05-E6327	BAT-18-04-E6327
Description	PIN Diodes Silicon RF Switching Diode	PIN Diodes Silicon RF Switching Diode
Product Category	PIN Diodes	PIN Diodes
Manufacturer	Infineon	Infineon
RoHS	Details	Details
Vr - Reverse Voltage	35 V	35 V
Maximum Diode Capacitance	1 pF	1 pF
Maximum Series Resistance @ Maximum IF	0.7 Ohms	0.7 Ohms
If - Forward Current	100 mA	100 mA
Vf - Forward Voltage	1.2 V	1.2 V
Minimum Operating Temperature	- 55 C	- 55 C
Maximum Operating Temperature	+ 125 C	+ 125 C
Mounting Style	SMD/SMT	SMD/SMT
Package / Case	SOT-23	SOT-23-3
Carrier Life	0.12 us	0.12 us
Configuration	Dual Common Cathode	Dual Series
Height	1 mm	1 mm
Length	2.9 mm	2.9 mm
Factory Pack Quantity	3000	3000
Type	Switch	Switch
Width	1.3 mm	1.3 mm
Unit Weight	0.000282 oz	0.000282 oz
