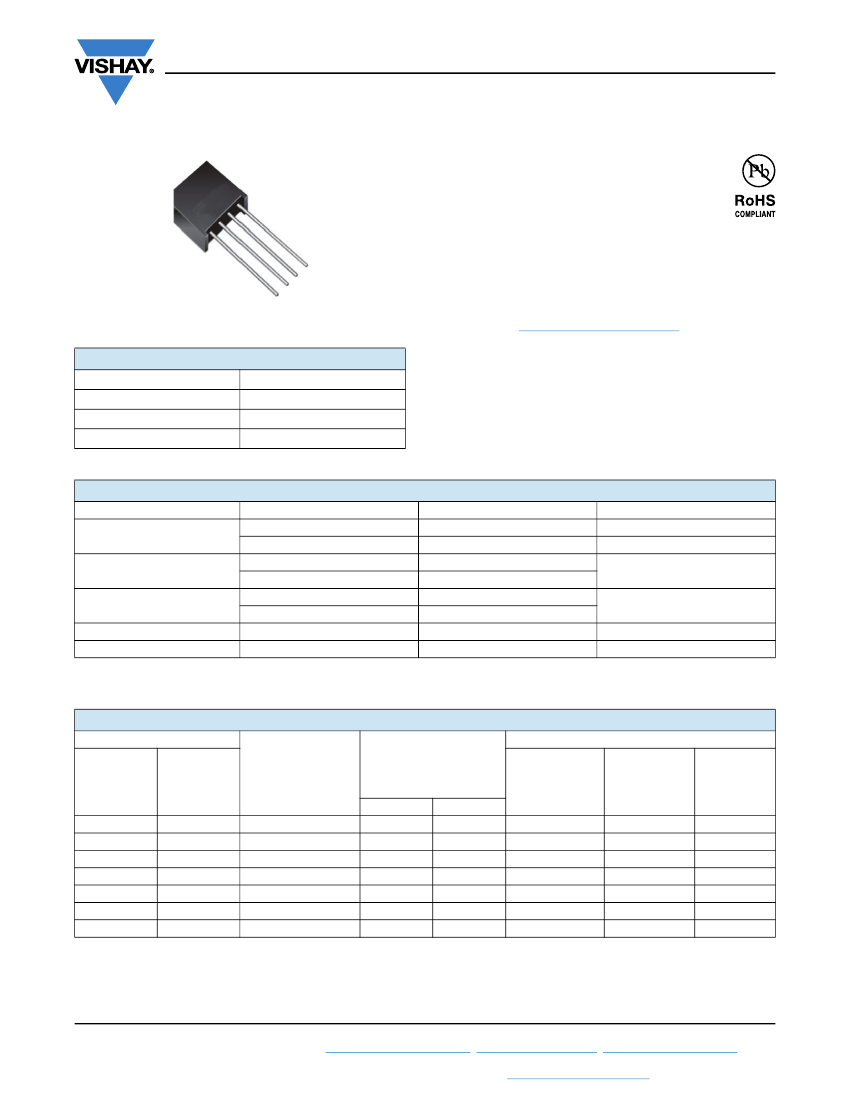

VS-2KBB Series
www.vishay.com
Vishay Semiconductors
Single Phase Rectifier Bridge, 1.9 A
FEATURES
• Suitable for printed circuit board mounting
• Leads on standard 2.54 mm (0.1") grid
• Compact construction
• High surge current capability
• Polarized package
• Equivalent to standard DIN parts
2KBB
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
I
O
V
RRM
Package
Circuit configuration
1.9 A
50 V to 1000 V
2KBB
Single phase bridge
DESCRIPTION
A 1.9 A single phase diode bridge rectifier assembly
consisting of four silicon diodes in a plastic encapsulation,
intended for general applications in industrial and consumer
equipment.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
O
I
FSM
I
2
t
V
RRM
T
J
T
C
50 Hz
60 Hz
50 Hz
60 Hz
CHARACTERISTICS
VALUES
1.9
45
50
52
17.7
16.1
100 to 1000
-40 to 150
UNITS
A
°C
A
A
2
s
V
°C
ELECTRICAL SPECIFICATIONS
VOLTAGE RATINGS AND APPLICATION DATA
CROSS REFERENCE
PART
NUMBER
VS-2KBB05
VS-2KBB10
VS-2KBB20
VS-2KBB40
VS-2KBB60
VS-2KBB80
VS-2KBB100
V
RRM
, V
RSM
MAXIMUM PEAK
REVERSE VOLTAGE
T
J
= 15 °C
(V)
50
100
200
400
600
800
1000
I
RM
TYPICAL PEAK REVERSE
CURRENT PER DIODE
AT RATED V
RRM
(μA)
T
J
= 25 °C
10
10
10
10
10
10
10
T
J
= 150 °C
500
500
500
500
500
500
500
APPLICATION DATA (SEE FIGURE 3)
V
RMS
MAXIMUM
RECOMMENDE
D AC SUPPLY
VOLTAGE
(V)
20
40
80
125
250
380
500
C
MAX
R
MIN
MAXIMUM
MINIMUM
LOAD
SOURCE
CAPACITANCE RESISTANCE
(μF)
()
7000
5000
3300
1600
1200
800
600
0.3
0.5
0.8
1.5
2.5
3.0
5.0
DIN CODE
B20C1500
B40C1500
B80C1500
B125C1500
B250C1500
B380C1500
B500C1500
Note
• For PIN configuration - ~ ~ + add “R” to end of part number, e.g. 2KBB05R (see also dimensions for details - link at the end of datasheet)
Revision: 14-Sep-17
Document Number: 93561
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-2KBB Series
www.vishay.com
Vishay Semiconductors
SYMBOL
I
O
I
FSM
TEST CONDITIONS
T
C
= 45 °C, resistive and inductive load
T
C
= 45 °C, capacitive load
t = 6 ms
t = 5 ms
t = 10 ms
Following any rated load
condition, and with rated V
RRM
applied following surge
Rated V
RRM
applied following
surge, initial
T
J
= 150 °C
VALUES
1.9
1.5
50
52
12.5
11.3
17.7
16.1
177
1.1
40 to 2000
A
2
s
V
Hz
A
2
s
A
UNITS
A
FORWARD CONDUCTION
PARAMETER
Maximum DC output current
Maximum peak one cycle,
non-repetitive surge current
Maximum I
2
t for fusing,
initial T
J
= T
J
maximum
I
2
t
I
2
t
t = 8.3 ms
t = 10 ms
t = 8.3 ms
Maximum
capability for fusing
I
2
t
(1)
V
FM
f
t = 0.1 to 10 ms, V
RRM
following surge = 0
I
O
= 1.9 A (3.0 A
pk
)
Maximum peak forward voltage per diode
Operating frequency range
Note
(1)
I
2
t for time t = I
2
t
x
t
x
x
THERMAL AND MECHANICAL SPECIFICATIONS
PARAMETER
Operating junction and storage temperature range
Approximate weight
SYMBOL
T
J
, T
Stg
VALUES
-40 to 150
4
0.14
UNITS
°C
g
oz.
Average Output Current (A)
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20
40
60
Resistive, inductive load
Maximum Peak Output Current (A)
2.0
60
50
40
30
20
10
0
10
-2
Capacitive load
80
100
120
140
160
10
-1
1
10
Maximum Allowable Ambient Temperature (°C)
Fig. 1 - Average (DC) Output Current vs.
Maximum Allowable Ambient Temperature
Equal Amplitude Pulse Train Duration (s)
Fig. 2 - Maximum Non-Repetitive Surge Current vs.
Pulse Train Duration (f = 50 Hz)
Revision: 14-Sep-17
Document Number: 93561
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-2KBB Series
www.vishay.com
Vishay Semiconductors
10
600
C
L
= 200 µF
500
C
L
= 600 µF
400
C
L
= 800 µF
300
C
L
= 1200 µF
200
C
L
= 3300 µF
100
C
L
= 7000 µF
0
0
1
2
3
4
5
6
C
L
= 5000 µF
C
L
= 1600 µF
Average Output Current (A)
C
L
= 400 µF
RMS Supply Voltage (V)
5
Resistive, inductive load
2
Capacitive load
1
0.5
10
-1
1
10
10
2
10
3
Minimum Required Value of Source Resistance (Ω)
Fig. 3 - Minimum Required Source Resistance vs.
RMS Supply Voltage and Load Capacitance
Switch-On Surge Duration (s)
Fig. 4 - Maximum Switch-On Surge Current vs.
Surge Duration
CIRCUIT CONFIGURATION
AC
(+)
AC
(-)
LINKS TO RELATED DOCUMENTS
Dimensions
www.vishay.com/doc?95328
Revision: 14-Sep-17
Document Number: 93561
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Outline Dimensions
Vishay Semiconductors
2KBB
DIMENSIONS
in millimeters (inches)
15.50 (0.610)
14.50 (0.570)
-
~
+
~
18.00 (0.709)
17.00 (0.669)
7.00 (0.276)
6.00 (0.236)
20.00 (0.787)
(TYP.)
Ø 5.10 (0.201)
Ø 4.30 (0.169)
Ø 0.9 (0.035)
(TYP.)
Ø 0.7 (0.028)
Note
• For PIN configuration - ~ ~ + add “R” to end of part number
Document Number: 95328
Revision: 04-Jul-08
For technical questions, contact:
indmodules@vishay.com
www.vishay.com
1
