D2SB05 - D2SB80
Taiwan Semiconductor
CREAT BY ART

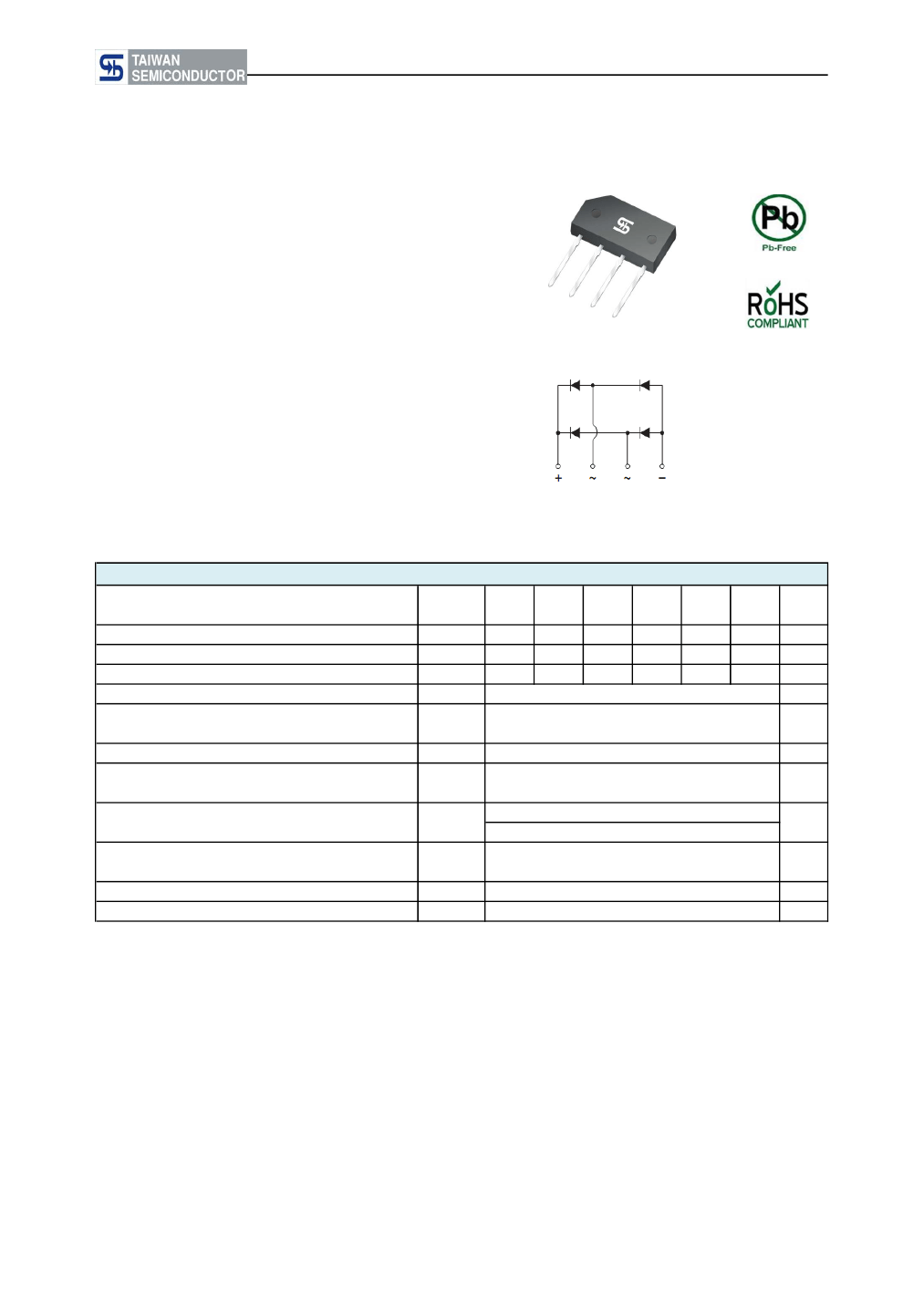

2A, 50V - 800V Glass Passivated Single-Phase Bridge Rectifiers
FEATURES
- Ideal for printed circuit board
- High case dielectric strength
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
+
~
~ –
GBL
MECHANICAL DATA
Case:
GBL
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Weight:
2 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-
wave superimposed on rated load
Rating of fusing ( t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 2 A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
D2SB D2SB D2SB D2SB D2SB D2SB
05
50
35
50
10
100
70
100
20
200
140
200
2
80
26
1.1
10
500
10
47
- 55 to +150
- 55 to +150
40
400
280
400
60
600
420
600
80
800
560
800
UNIT
V
V
V
A
A
A
2
s
V
μA
°C/W
°C
°C
Document Number: DS_D1408052
Version: J15
D2SB05 - D2SB80
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
D2SBxx
(Note 1)
PART NO.
SUFFIX
H
PACKING CODE
C2
X0
D2
G
PACKING CODE
SUFFIX
(*)
PACKAGE
GBL
GBL
GBL
PACKING
25 / Tube
25 / Tube / Forming
25 / Tube
Note 1: "xx" defines voltage from 50V (D2SB05) to 800V (D2SB80)
*: Optional available
EXAMPLE
PREFERRED P/N
D2SB80HC2G
PART NO.
D2SB80
PART NO.
SUFFIX
H
PACKING CODE
C2
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

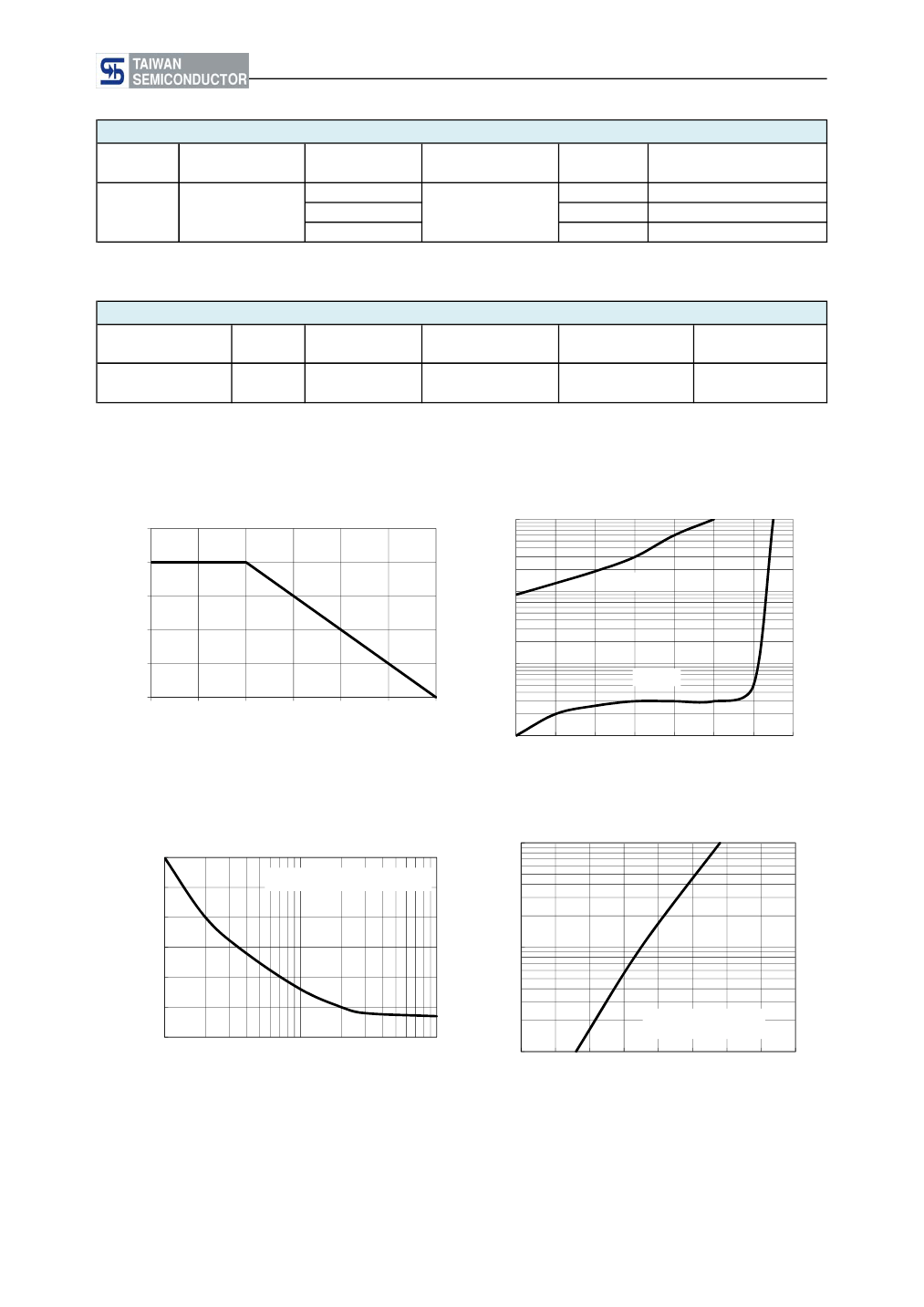

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT (A)
INSTANTANEOUS REVERSE CURRENT (μA)
2.5
2
1.5
1
0.5
0
0
25
50
75
100
(
°
C)
125
150
AMBIENT TEMPERATURE
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
10
T
J
=125
°
C
1
T
J
=25
°
C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
80
70
60
50
40
30
20
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
8.3mS Single Half Sine Wave
1
PULSE WIDTH-300μs
1% DUTY CYCLE
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
FORWARD VOLTAGE (V)
Document Number: DS_D1408052
Version: J15
D2SB05 - D2SB80
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
600
JUNCTION CAPACITANCE (pF)
500
400
300
200
100
0
0.1
1
10
REVERSE VOLTAGE(V)
100
1000
f=1.0MHz
Vslg=50mVp-p

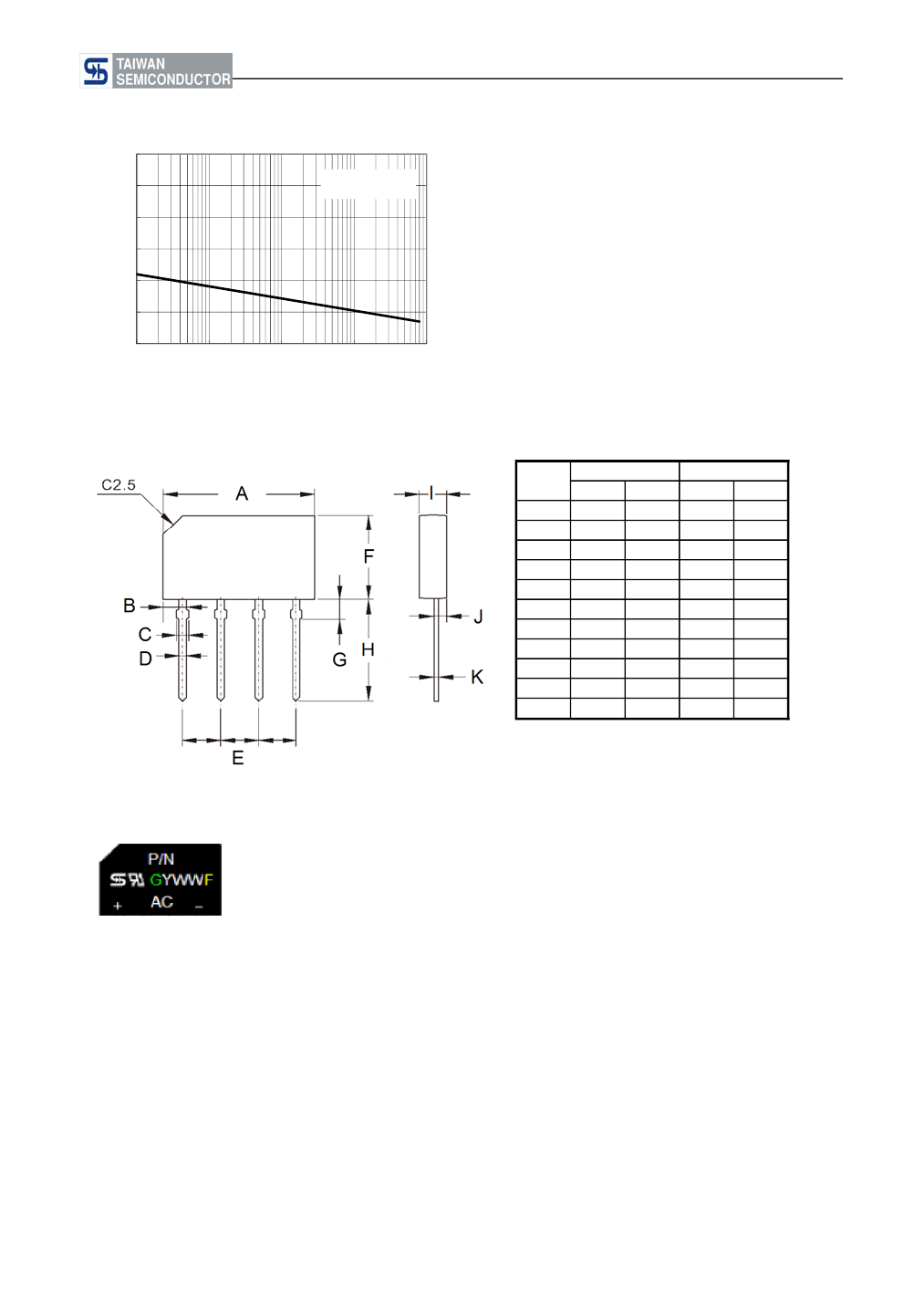

PACKAGE OUTLINE DIMENSIONS
GBL
DIM.
A
B
C
D
E
F
G
H
I
J
K
Unit (mm)
Min
19.70
2.30
1.30
0.90
4.80
10.70
2.30
13.00
3.30
0.80
0.40
Max
20.30
2.70
2.00
1.10
5.20
11.30
2.70
14.00
3.70
1.20
0.60
Unit (inch)
Min
0.776
0.091
0.051
0.035
0.189
0.421
0.091
0.512
0.130
0.031
0.016
Max
0.799
0.106
0.079
0.043
0.205
0.445
0.106
0.551
0.146
0.047
0.024
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1408052
Version: J15
D2SB05 - D2SB80
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1408052
Version: J15
