105311-1304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 105311-1304

105311-1304: DescriptionHeaders u0026 Wire Housings NanoFit Hdr Vrt 4Ckt SR SldrClip Blk 30Au; CategoryThe connector; File Size45KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

105311-1304 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	105311-1304	-	-	View	Buy Now

105311-1304 Overview

Headers u0026 Wire Housings NanoFit Hdr Vrt 4Ckt SR SldrClip Blk 30Au

105311-1304 Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	Molex
RoHS	Details
Product	Headers
Type	Power
Number of Positions	4 Position
Pitch	2.5 mm
Number of Rows	1 Row
Mounting Style	Board Lock
Termination Style	Through Hole
Mounting Angle	Straight
Contact Gender	Pin (Male)
Contact Plating	Gold
Packaging	Tray
Application	Power, Wire to Board
Contact Material	Brass
Contact Type	-
Current Rating	6.5 A
Flammability Rating	UL 94 V-0
Housing Gender	-
Housing Material	Liquid Crystal Polymer (LCP)
Row Spacing	-
Factory Pack Quantity	1
Termination Post Length	3.2 mm
Voltage Rating	300 V
Unit Weight	0.020812 oz

Preview

Download Datasheet

View All

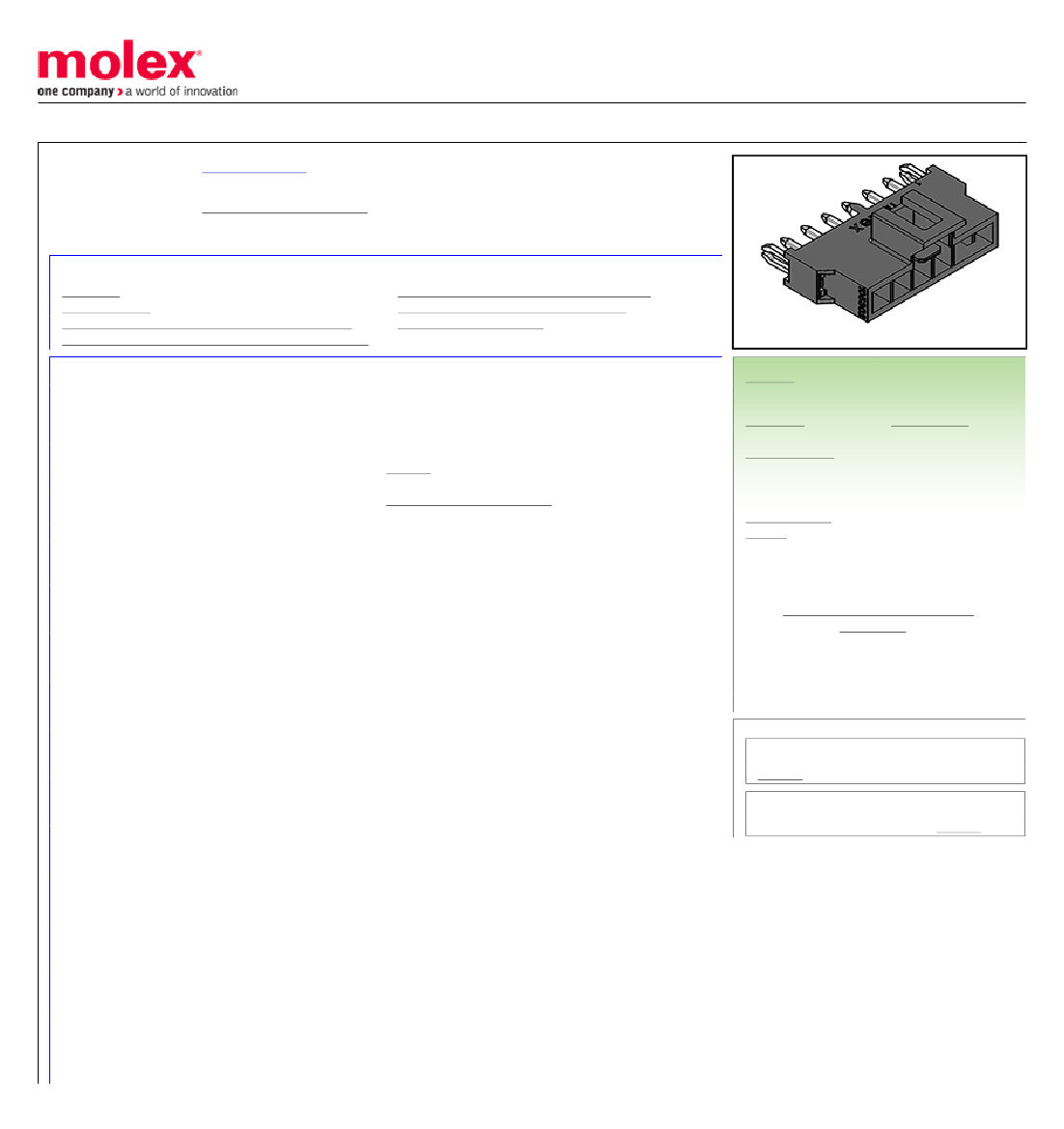

This document was generated on 10/20/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1053111304

Active

Nano-Fit Power Connectors

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 4 Circuits, with

Solder Clips, 0.76µm Gold (Au) Plating, Black

Documents:

3D Model

Drawing (PDF)

Product Specification PS-105300-100-001 (PDF)

Packaging Specification PK-105309-300-000 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Test Summary 1053000000-TS-000 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

105311

Power, Wire-to-Board

Nano-Fit Power Connectors

987651-1223

Nano-Fit

887191932965

Black

94V-0

Yes

Brass

Gold over Nickel

Tin over Nickel

Liquid Crystal Polymer

0.590/g

Vertical

3.20mm

Yes

1.60mm, 2.40mm

Tray

2.50mm

0.762µm

1.524µm

Yes

Search Parts in this Series

105311 Series

Mates With

Nano-Fit Receptacle Housing 105307
