5962-9679306MLX datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-9679306MLX

5962-9679306MLX: DescriptionPipeline Register, 8-Bit, CMOS, CDIP24, CERAMIC, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size184KB，5 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

5962-9679306MLX Overview

Pipeline Register, 8-Bit, CMOS, CDIP24, CERAMIC, DIP-24

5962-9679306MLX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;
boundary scan	NO
External data bus width	8
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
low power mode	NO
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	8
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
Base Number Matches	1

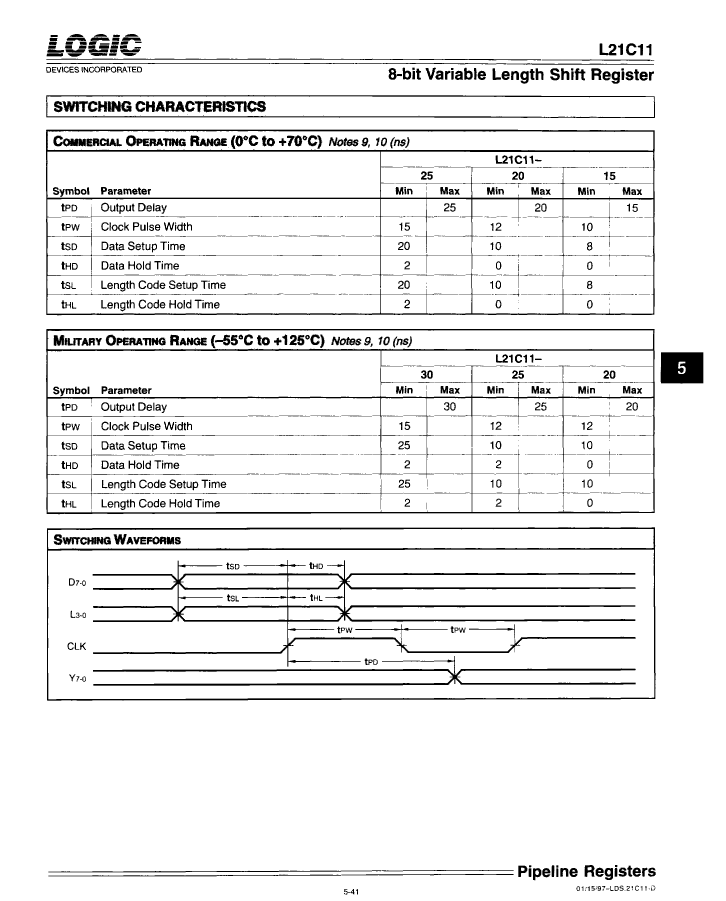

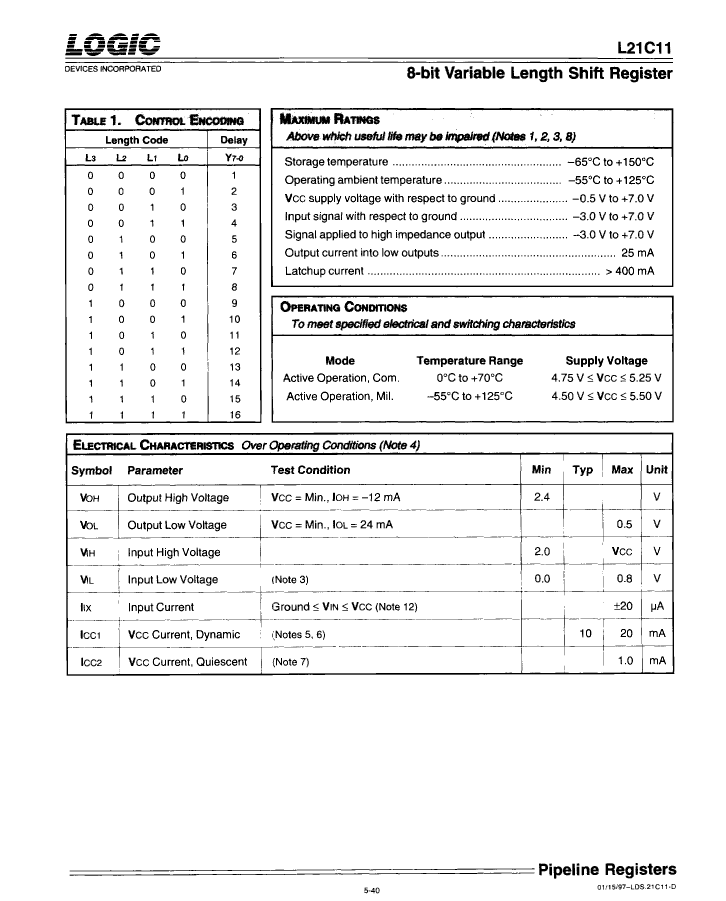

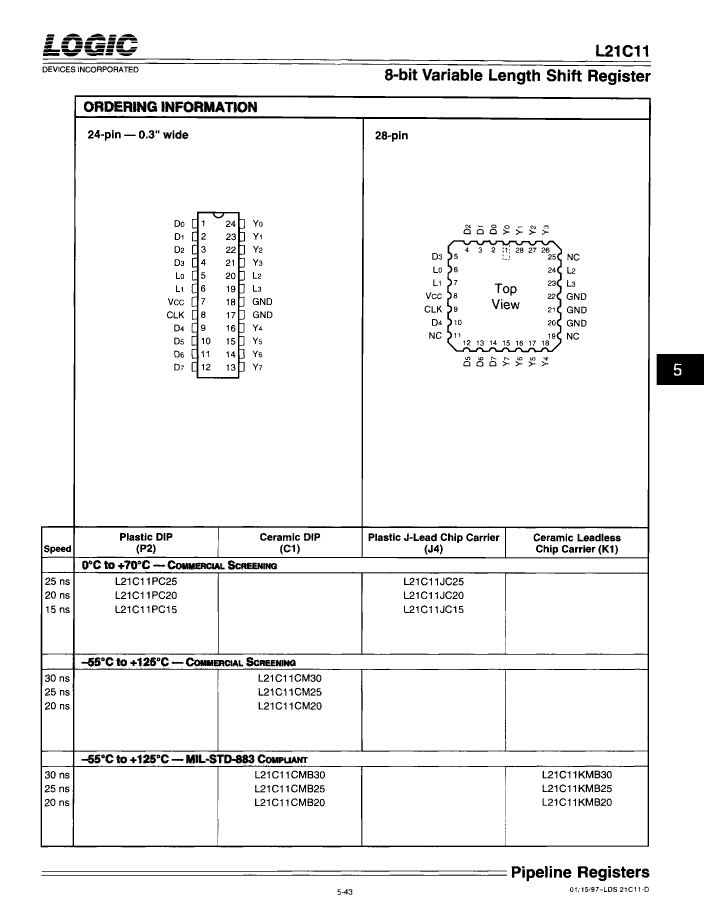

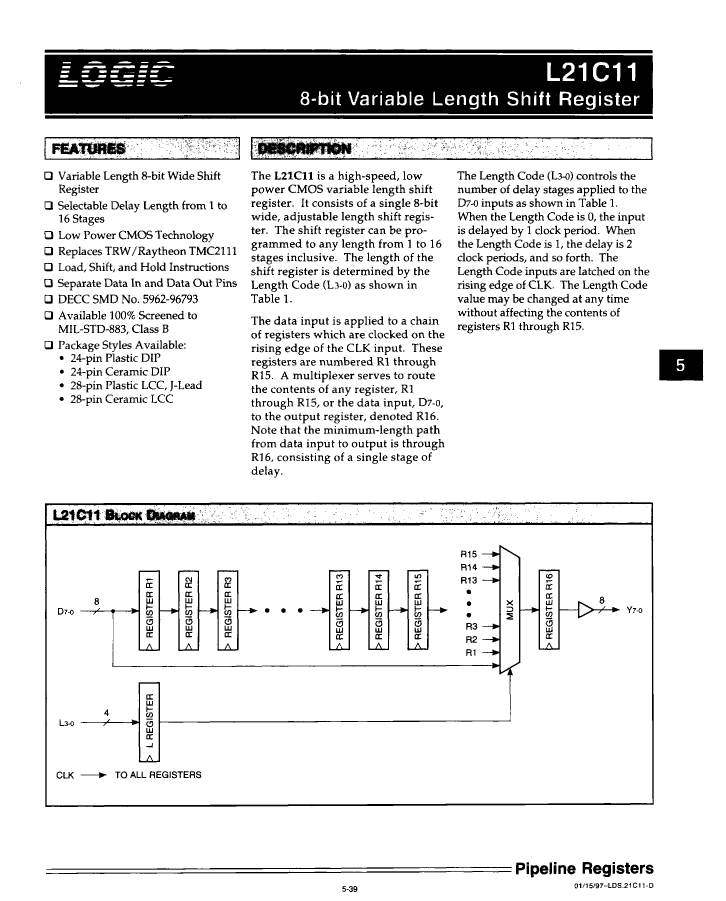

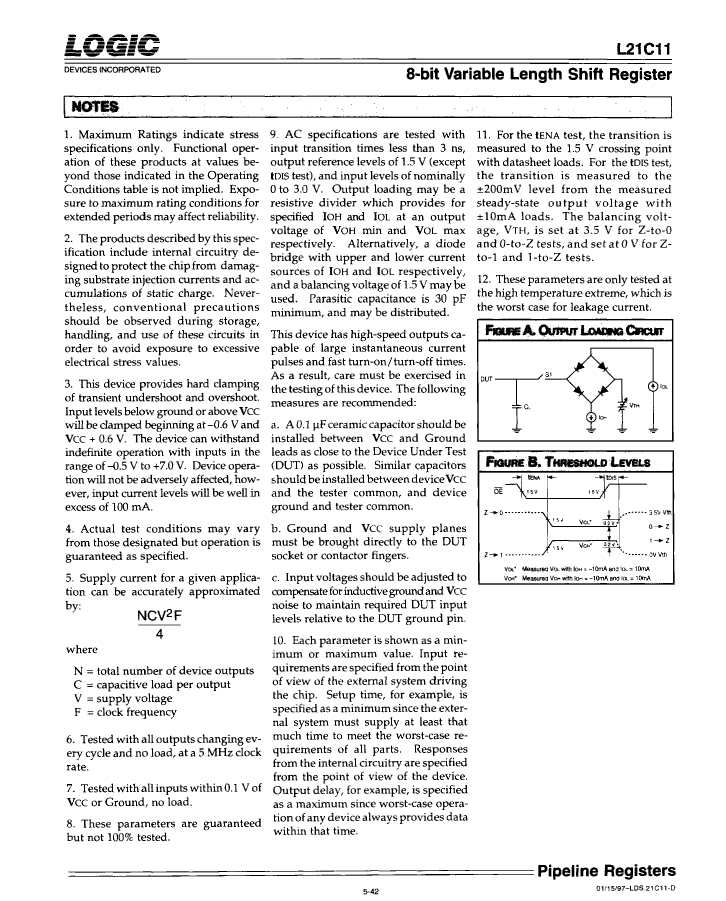

Preview

Download Datasheet

View All

5962-9679306MLX Related Products

	5962-9679306MLX	5962-9679304M3X	5962-9679305MLX	5962-9679304MLX	5962-9679304M3C	5962-9679306M3C	5962-9679305M3X	5962-9679305M3C	5962-9679306M3X
Description	Pipeline Register, 8-Bit, CMOS, CDIP24, CERAMIC, DIP-24	Pipeline Register, 8-Bit, CMOS, CQCC28, CERAMIC, LCC-28	Pipeline Register, 8-Bit, CMOS, CDIP24, CERAMIC, DIP-24	Pipeline Register, 8-Bit, CMOS, CDIP24, CERAMIC, DIP-24	Pipeline Register, 8-Bit, CMOS, CQCC28, CERAMIC, LCC-28	Pipeline Register, 8-Bit, CMOS, CQCC28, CERAMIC, LCC-28	Pipeline Register, 8-Bit, CMOS, CQCC28, CERAMIC, LCC-28	Pipeline Register, 8-Bit, CMOS, CQCC28, CERAMIC, LCC-28	Pipeline Register, 8-Bit, CMOS, CQCC28, CERAMIC, LCC-28
Parts packaging code	DIP	QLCC	DIP	DIP	QLCC	QLCC	QLCC	QLCC	QLCC
package instruction	DIP,	QCCN,	DIP,	DIP,	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,
Contacts	24	28	24	24	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;	SELECTABLE DELAY LENGTH FROM 3 TO 18 STAGES;
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8	8
JESD-30 code	R-GDIP-T24	S-CQCC-N28	R-GDIP-T24	R-GDIP-T24	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e4	e4	e0	e4	e0
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	24	28	24	24	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	8	8	8	8	8	8	8	8	8
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DIP	DIP	QCCN	QCCN	QCCN	QCCN	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Gold (Au)	Gold (Au)	TIN LEAD	Gold (Au)	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
Base Number Matches	1	1	1	1	1	1	1	1	1
