BZX85C160GP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX85C160GP

BZX85C160GP: DescriptionZener Diode, 162V V(Z), 5.5%, 1.3W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size70KB，4 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

BZX85C160GP Overview

Zener Diode, 162V V(Z), 5.5%, 1.3W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2

BZX85C160GP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-41
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	1100 Ω
JEDEC-95 code	DO-41
JESD-30 code	R-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Certification status	Not Qualified
Nominal reference voltage	160 V
surface mount	NO
technology	ZENER
Terminal surface	Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5.5%
Working test current	1.5 mA
Base Number Matches	1

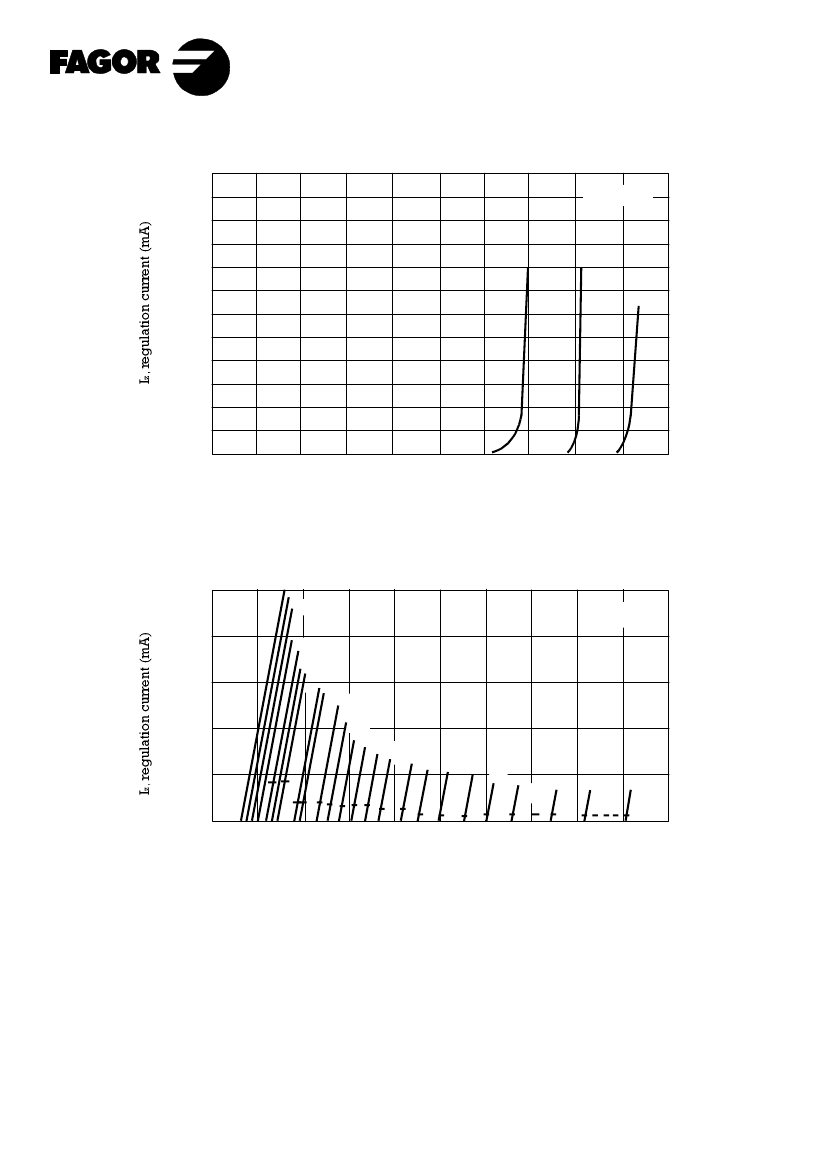

Preview

Download Datasheet

View All

BZX85C6V2GP........BZX85C220GP

1.3 W Glass Passivated Zener Diodes

Dimensions in mm.

DO-41

(Plastic)

Voltage

6.2 to 220 V

Power

1.3 W

± 0.2

58.5

±0.5

Standard Voltage Tolerance is ± 5%

•

Glass Passivated Junction

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

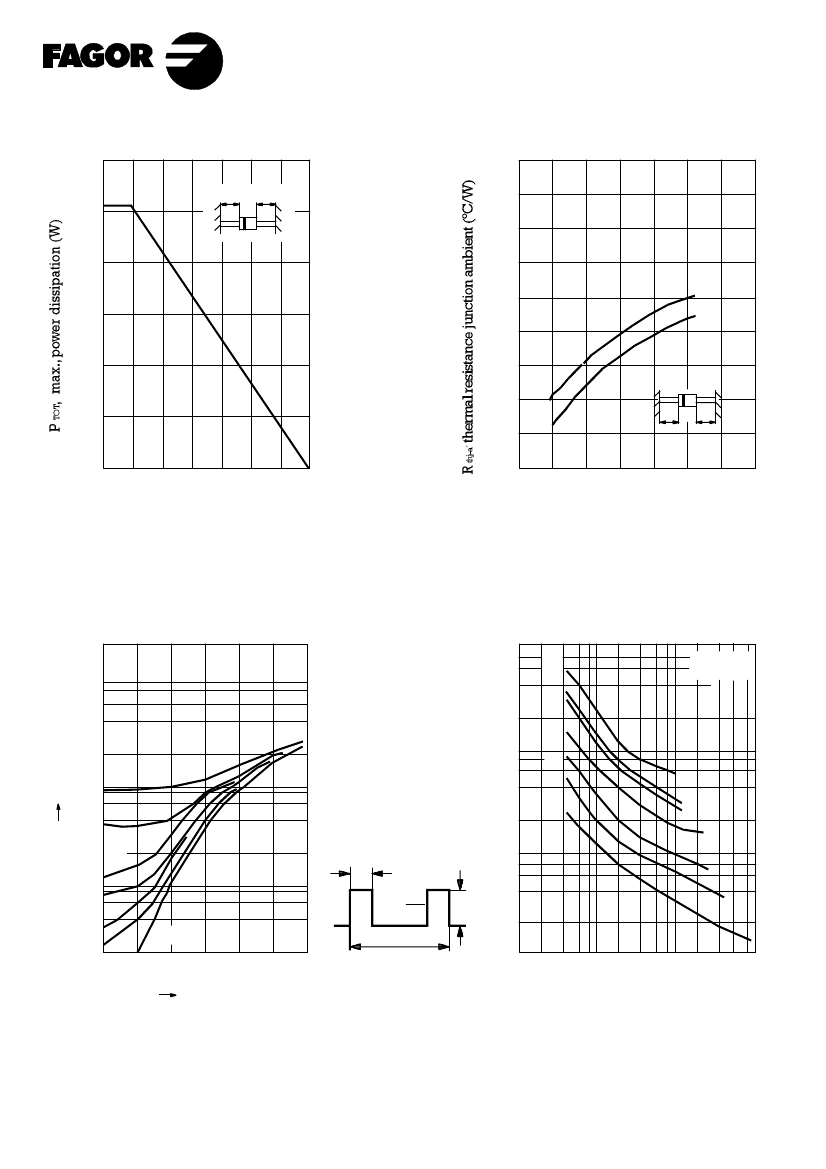

Maximum Ratings, according to IEC publication No. 134

tot

stg

Power dissipation at Tamb = 25

Operating temperature range

Storage temperature range

1.3 W

– 55 to + 175 °C

Electrical Characteristics at Tamb = 25 °C

thj-a

Max. forward voltage drop at I

= 0.2 A

Max. thermal resistance at 10 mm.

lead length

1.0 V

60 °C/W

Nov - 02
