14-56-7052: DescriptionAntennas 2.4GHz CHIP ANTENNA ULTRA MINI 0.37mm; CategoryThe connector The connector; File Size45KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

14-56-7052 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14-56-7052	-	-	View	Buy Now

14-56-7052 Overview

Antennas 2.4GHz CHIP ANTENNA ULTRA MINI 0.37mm

14-56-7052 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SL, POLARIZED
body width	0.259 inch
subject depth	0.6 inch
body length	0.499 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70400
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	150u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	5
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.278 N
Base Number Matches	1

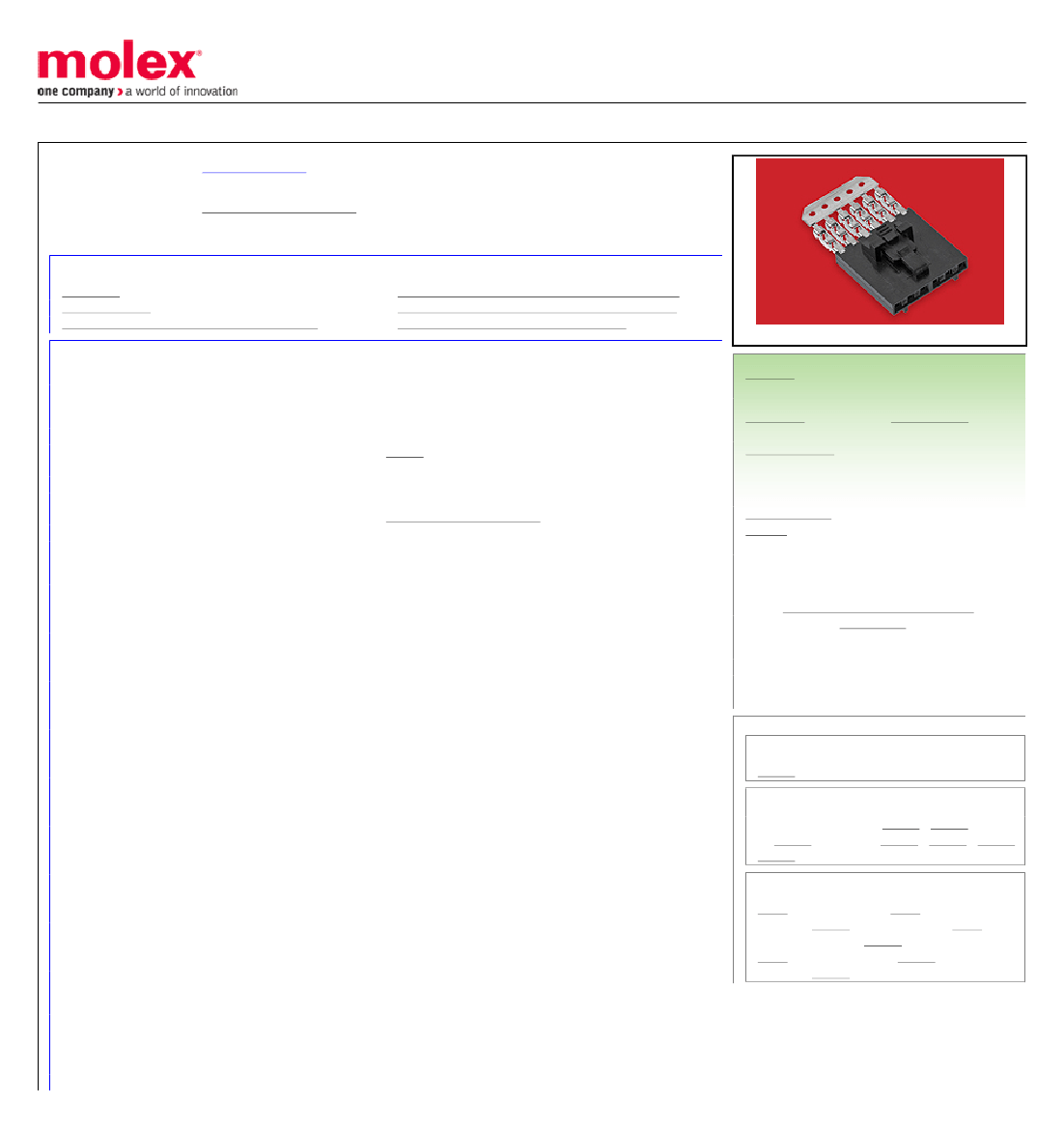

Preview

Download Datasheet

View All

This document was generated on 12/12/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014567052

Active

SL™ Modular Connectors

2.54mm Pitch SL Insulation Displacement Connector Assembly, Female, Single Row,

Version G, Positive Lock, Wire Size 22 AWG, 3.81µm Tin/Lead (SnPb), 5 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-70400-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Engineering Number

Product Specification TS-70541-001-001 (PDF)

Packaging Specification PK-70873-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

SL™ Modular Connectors

800753763753

Black

Vertical

94V-0

Yes

Phosphor Bronze

Tin

Polyester Alloy

0.943/g

None

Tube

2.54mm

3.810µm

1.905µm

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm max.

Discrete Wire, Ribbon Cable

3.0A

250V

70400-3143

Search Parts in this Series

70400 Series

Mates With

Single Row Housing 70018 , 70107 Version

A, 70107 Version B, 70543 , 70545 , 70553 ,

70555

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG
