Generated Part Number
KMDPLX-3S-100
Part Number Builder
LR78160
KMDPLX
3
Number
of Contacts
S
Contact
Type
100
Wire
Length

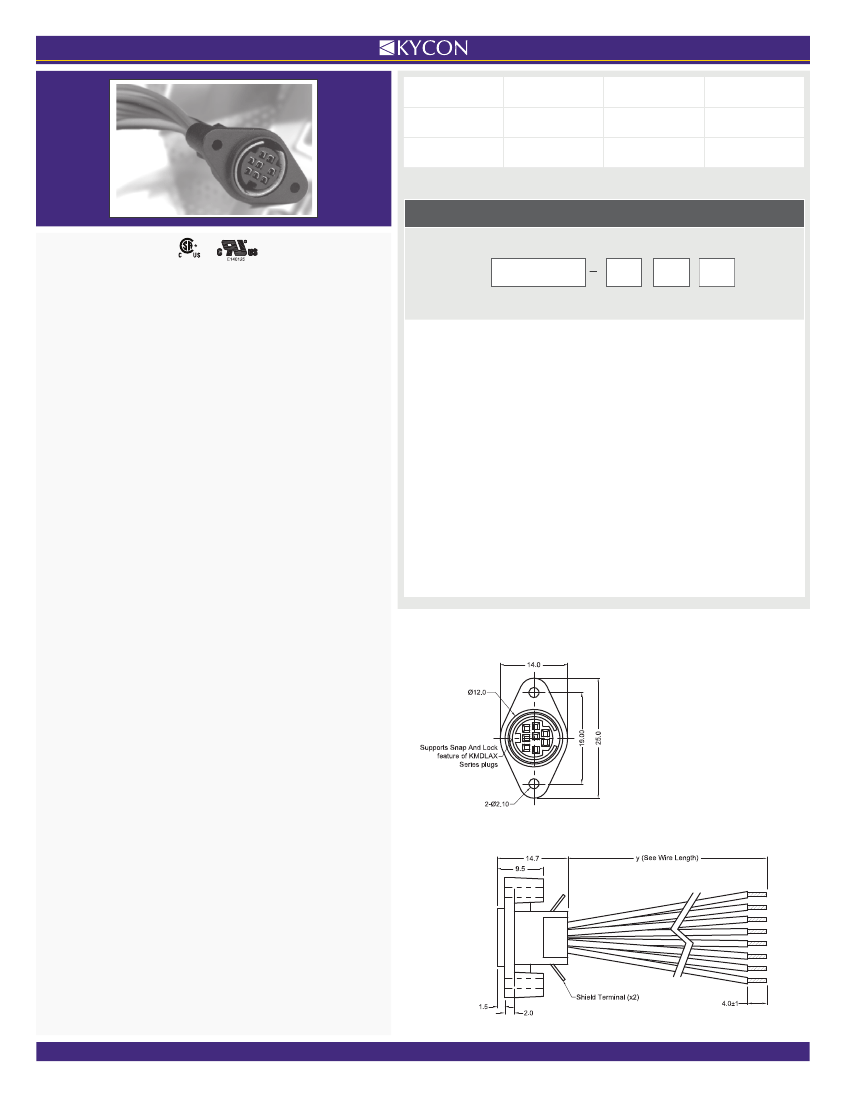

MINI/CIRCULAR DINs:
KMDPLX Series
Panel Mount Mini-DIN
Product Features
Panel Mount
Mates with Standard and Snap and Lock Plugs
Available with various wire length
CSA/NRTL Certified File No. LR78160
UL File No. E140125
Series
Series
KMDPLX
- Panel Mount Mini-DIN
Number of Contacts
3
Contacts
4
Contacts
5
Contacts
6
Contacts
8
Contacts
Performance Specifications
Materials and Finish
Shell
Steel, Tin Plated
Contacts
Phosphor Bronze, Tin Plated
Insulation
PBT Thermoplastic, Black Color, UL 94V-0 Rated
Wire
100mm, Stripped and Tinned, 26 AWG
Contact Type
S
- Receptacle
Wire Length*
100
- Standard Length 100mm
*Contact Kycon for Other Lengths Available (500pc min)
Electrical Characteristics
KMDPLX Series
Dimensions in mm
Rated Current
0.8A
Rated Voltage
12V DC
Insulation Resistance
50 Megohm Min. at 250V DC
Contact Resistance
30 milliohms Max.
Dielectric Withstanding Voltage
250V AC RMS For 1 Minute
Operating Temperature
-25°C to + 75°C
Phone: +1.408.494.0330
l
Fax: +1.408.494.0325
l
WWW.KYCON.COM
l
2013
