DF61-2P-22V21 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DF61-2P-22V21

DF61-2P-22V21: DescriptionHeaders u0026 Wire Housings 2P HDR SMT 1.2MM WTB LOW-PRF SWING LK; CategoryThe connector; File Size653KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF61-2P-22V21 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF61-2P-22V21	-	-	View	Buy Now

DF61-2P-22V21 Overview

Headers u0026 Wire Housings 2P HDR SMT 1.2MM WTB LOW-PRF SWING LK

DF61-2P-22V21 Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	Hirose
RoHS	Details
Product	Headers
Type	Shrouded
Number of Positions	2 Position
Pitch	2.2 mm
Number of Rows	1 Row
Mounting Style	-
Termination Style	SMD
Mounting Angle	Straight
Contact Gender	Pin (Male)
Contact Plating	Tin
Packaging	MouseReel
Packaging	Cut Tape
Packaging	Reel
Application	Wire-to-Board
Contact Material	Brass
Current Rating	4 A
Flammability Rating	UL 94 V-0
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Resistance	1000 MOhms
Factory Pack Quantity	3000
Voltage Rating	350 V

Preview

Download Datasheet

View All

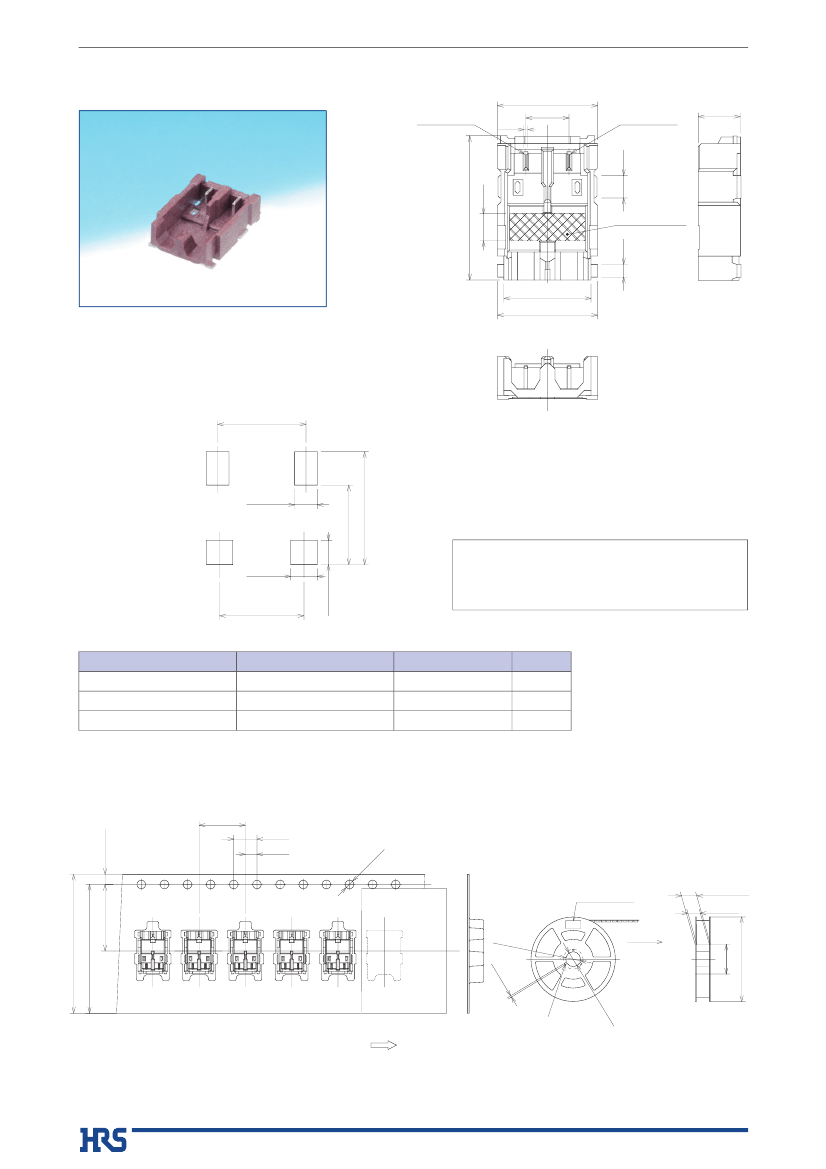

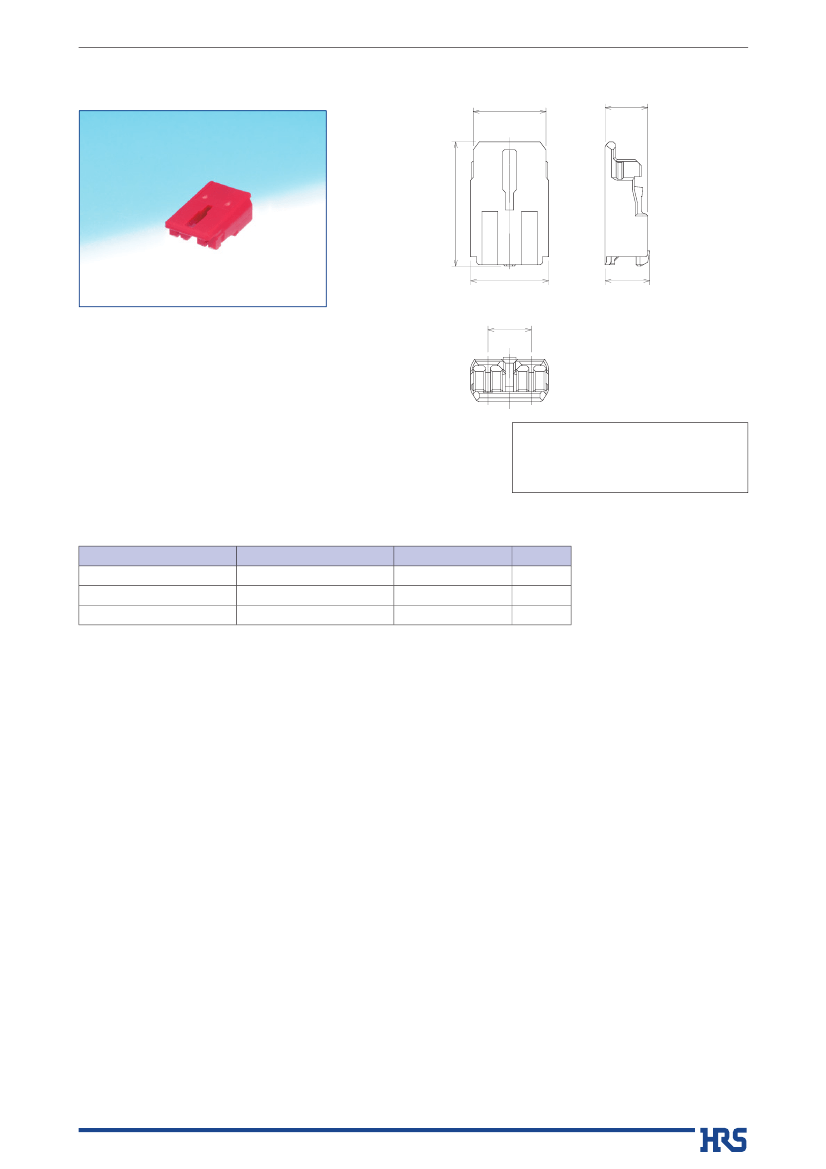

Wire-to-Board Swing-Lock Connector for Low-Profile Power Source

DF61 Series

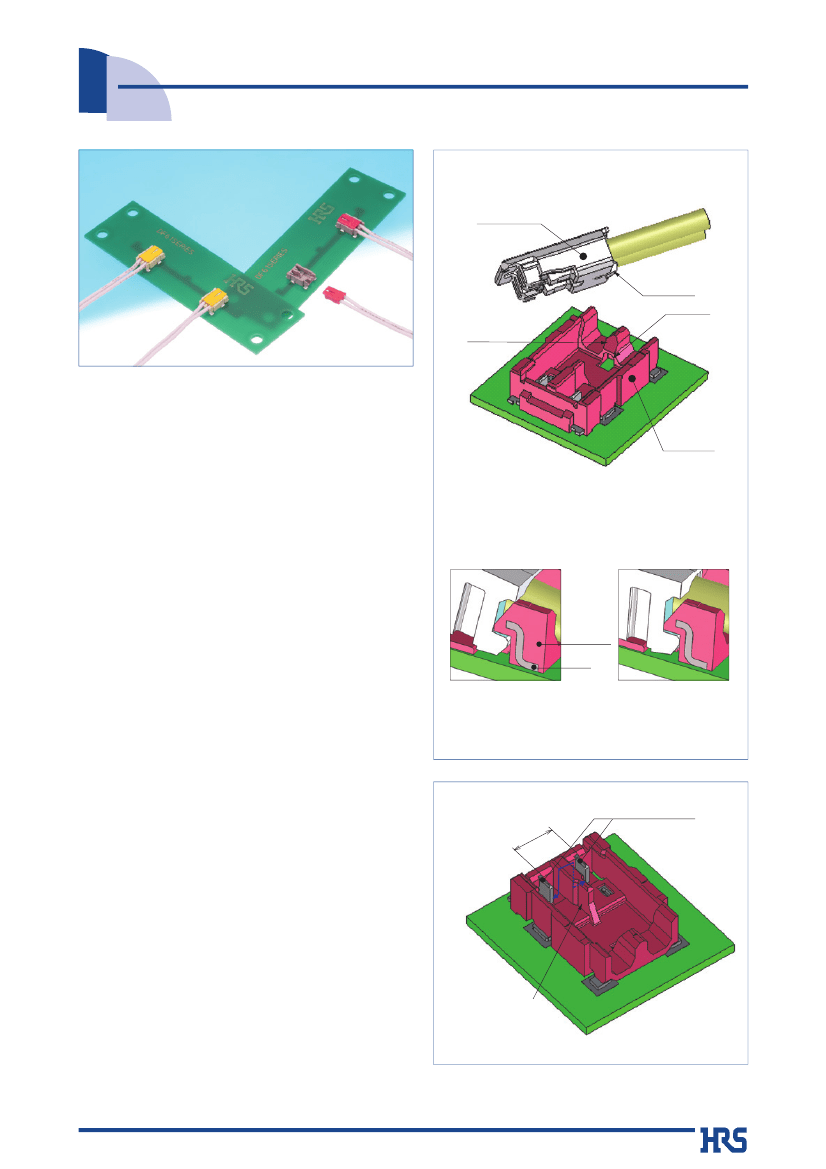

Swing-Lock Structure Illustration

Socket

Protrusion

Recess

Header lock

■Features

1.Reinforced Swing Lock Structure

Our unique swing-lock structure cradles the wire

side plug and resists the plug from becoming

disengaged due to handling strain or loads.

Header

2.Header Lock Improves Plug Retention

During mating, the hea der lock engages with the

plug assembly. The lock is reinforced with metal

which adds strength to the lock and increases the

retention between the header and the plug.

The protrusion on the bottom side of the socket fits into a

corresponding recess on the header. This aligns the socket

into the correct mating position.

Before Mating

After Mating

3.Compact Size- High Voltage

The compact 2.2mm pitch connector has a voltage

rating of 350V due to the long creep distance.

Header Lock

Metal

4.Solder Wicking Prevention

Header is molded in one piece. This ensures a tight

fit between the contact and the header and prevents

solder wicking.

Reinforced with Metal

The Header pushes down

the protrusion of the socket

and locks it in place.

5.High Current of MAX 5 Amps (22AWG)

A highly conductive material is used for the

contacts. The material provides for a high current

flow by reducing the contact resistance.

Maximum Creep Distance

■Applications

Digital cameras, digital video cameras, LED lights,

laptop computers, tablet computers, portable

devices, power supply equipment, etc.

2016.10③

DF61-2P-22V21 Related Products

	DF61-2P-22V21	DF61-2630SCF	DF61-2S-22C12	DF61-2S-22C13
Description	Headers u0026 Wire Housings 2P HDR SMT 1.2MM WTB LOW-PRF SWING LK	Headers u0026 Wire Housings FEMALE CRIMP CONTACT 30-26AWG	Battery Management Host-Side Modelgauge (1-Cell)	Headers u0026 Wire Housings FML CRIMP CNTCT/REEL AWG#28 to AWG#30
Product Category	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings
Manufacturer	Hirose	Hirose	Hirose	Hirose
Mounting Style	-	Cable	Cable	Cable
Termination Style	SMD	Crimp	Crimp	Crimp
Contact Plating	Tin	Tin	Tin	Tin
Contact Material	Brass	Copper Alloy	Copper Alloy	Copper Alloy
Current Rating	4 A	3.2 A	4 A	4 A
Flammability Rating	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Factory Pack Quantity	3000	1	1000	1000
RoHS	Details	-	Details	Details
Product	Headers	-	Wire Housings	Wire Housings
Type	Shrouded	-	Receptacle Housing	Receptacle Housing
Number of Positions	2 Position	-	2 Position	2 Position
Pitch	2.2 mm	-	2.2 mm	2.2 mm
Number of Rows	1 Row	-	1 Row	1 Row
Mounting Angle	Straight	-	Straight	Straight
Contact Gender	Pin (Male)	-	Socket (Female)	Socket (Female)
Packaging	Reel	Reel	Bulk	Bulk
Application	Wire-to-Board	-	Wire-to-Board	Wire-to-Board
Housing Material	Liquid Crystal Polymer (LCP)	-	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Insulation Resistance	1000 MOhms	-	1000 MOhms	1000 MOhms
Voltage Rating	350 V	-	350 V	350 V
