PANDUIT
PART NUMBER
P22-2R
P22-4R
P22-6R
P22-8R
STUD
SIZE
#2
#4
#6
#8
#10
A
(MAX)
.52
(13.20)
.52
(13.20)
.52
(13.20)
.63
(16.00)
.63
(16.00)
DIMENSIONS
W
C
+/- .010 (MIN)
.205
.16
(5.20) (4.06)
.205
.16
(5.20) (4.06)
.205
.16
(5.20) (4.06)
.260
.25
(6.60) (6.35)
.315
.22
(8.00) (5.59)
in.
M
H
+/- .02 +/- .010
.42
.092
(10.67)
(2.34)
.42
.132
(10.67)
(3.35)
.42
.152
(10.67)
(3.86)
.50
.175
(12.70)
(4.45)
.47
.215
(11.93)
(5.46)
1
TOOL
W
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
CT-100A
(POCKET B)
CT-200
H DIA
B
P22-10R
B
A
M
NOTES:
1. RECOMMENDED FOR #26-22 SOLID OR
STRANDED COPPER WIRE
2. MATERIAL:
A. STAMPING - .020 (0.51) THK COPPER,
TIN PLATED
3. SEE WWW.PANDUIT.COM FOR PACKAGE QUANTITIES
4. DIMENSIONS IN BRACKETS ARE IN MILLIMETERS
5. WIRE STRIP LENGTH:
3/16 + 1/32 (4.8 +.8)
- 0
- 0
BEVELED
EDGE
.05 (1.27)
.03 (.76) DIA.
C RAD
BRAZED
SEAM
.08 (2.05)
DIA. (REF.)

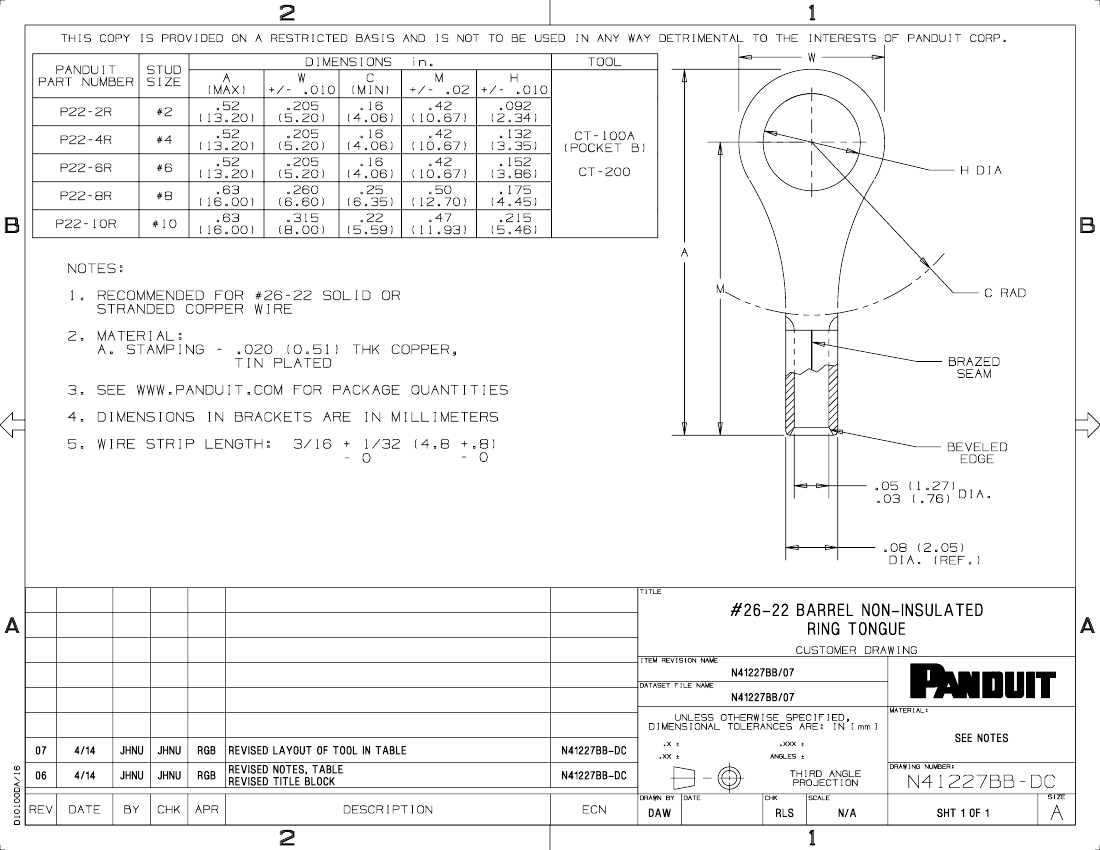

TITLE
A
ITEM REVISION NAME
DATASET FILE NAME
#26-22
BARREL
NON-INSULATED
RING
TONGUE
CUSTOMER DRAWING
A
N41227BB/07
N41227BB/07
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
07
D10100DA/16
4/14
4/14
DATE
JHNU
JHNU
JHNU
JHNU
RGB
RGB
REVISED
LAYOUT
OF
TOOL
IN
TABLE
REVISED
NOTES,
TABLE
REVISED
TITLE
BLOCK
N41227BB-DC
N41227BB-DC
.X
.XX
.XXX
ANGLES
DRAWING NUMBER:
SEE
NOTES
06
REV
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
N41227BB-DC
SIZE
BY
CHK
APR
DESCRIPTION
ECN
DAW
RLS
N/A
SHT
1
OF
1
A
2
1
