54928-0371 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 54928-0371

Preview

54928-0371: DescriptionPluggable Terminal Blocks 7.5 Multi Term Conn Rec HsgAssy3CktBlack; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54928-0371 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54928-0371	-	-	View	Buy Now

54928-0371 Overview

Pluggable Terminal Blocks 7.5 Multi Term Conn Rec HsgAssy3CktBlack

54928-0371 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

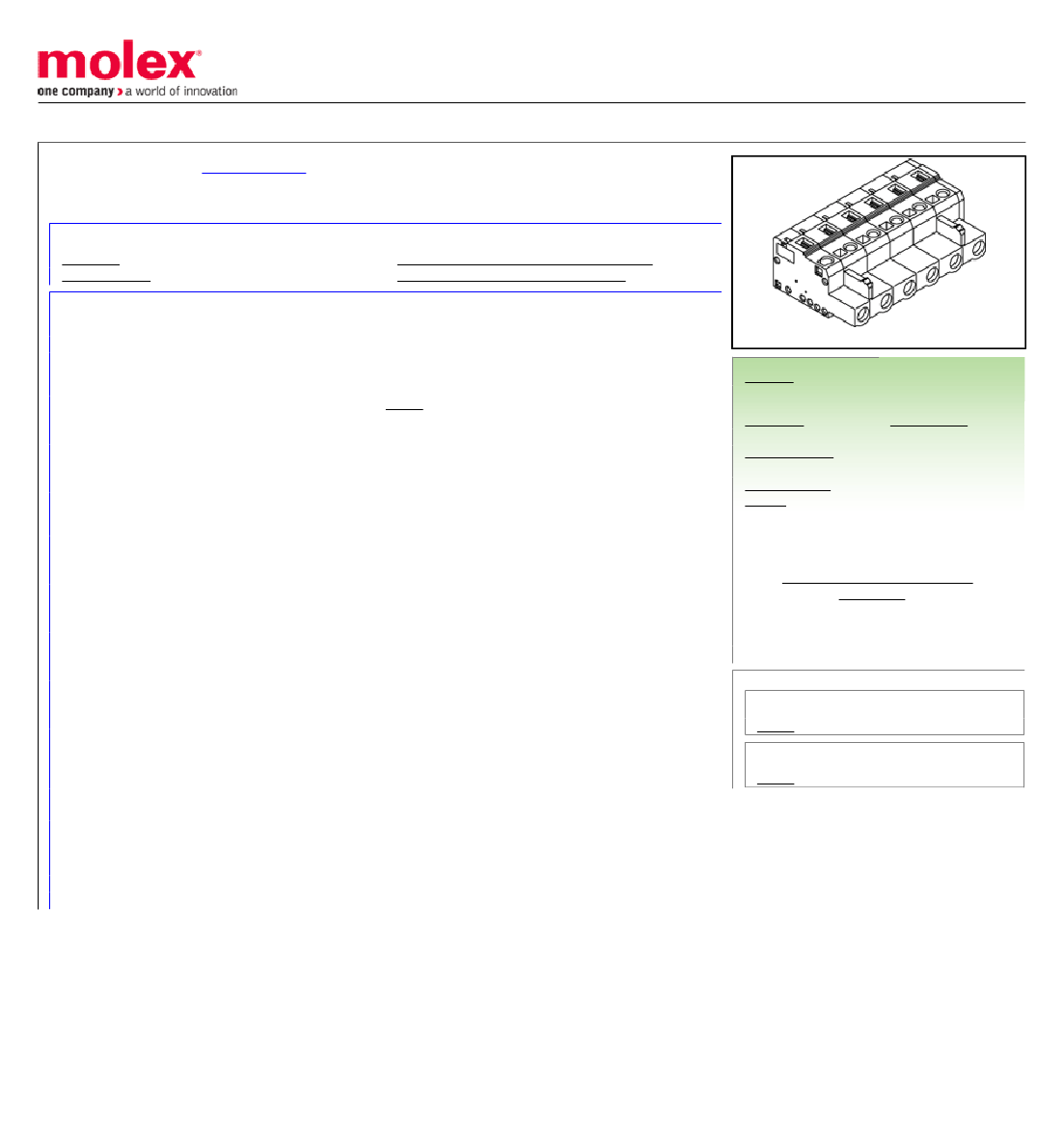

This document was generated on 03/04/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Component Type

Product Name

Type

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-51241-005

SD-54928-004

0549280371

Active

7.50mm Pitch MTC™ Spring Type Receptacle, 3 Circuits Version, Black Color

Product Specification PS-51241-005 (PDF)

RoHS Certificate of Compliance (PDF)

LR19980

E29179

Terminal Blocks

54928

N/A

Plug

MTC™

Euro Block

822348355877

3

Vertical

94V-0

Yes

1

Vertical

No

7.50mm

Yes

Fully

No

-30°C to +85°C

14, 16, 18, 20, 22, 24, 26

16.0A

400V

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Reviewed

Search Parts in this Series

54928 Series

Mates With

55759

This document was generated on 03/04/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
