390-038

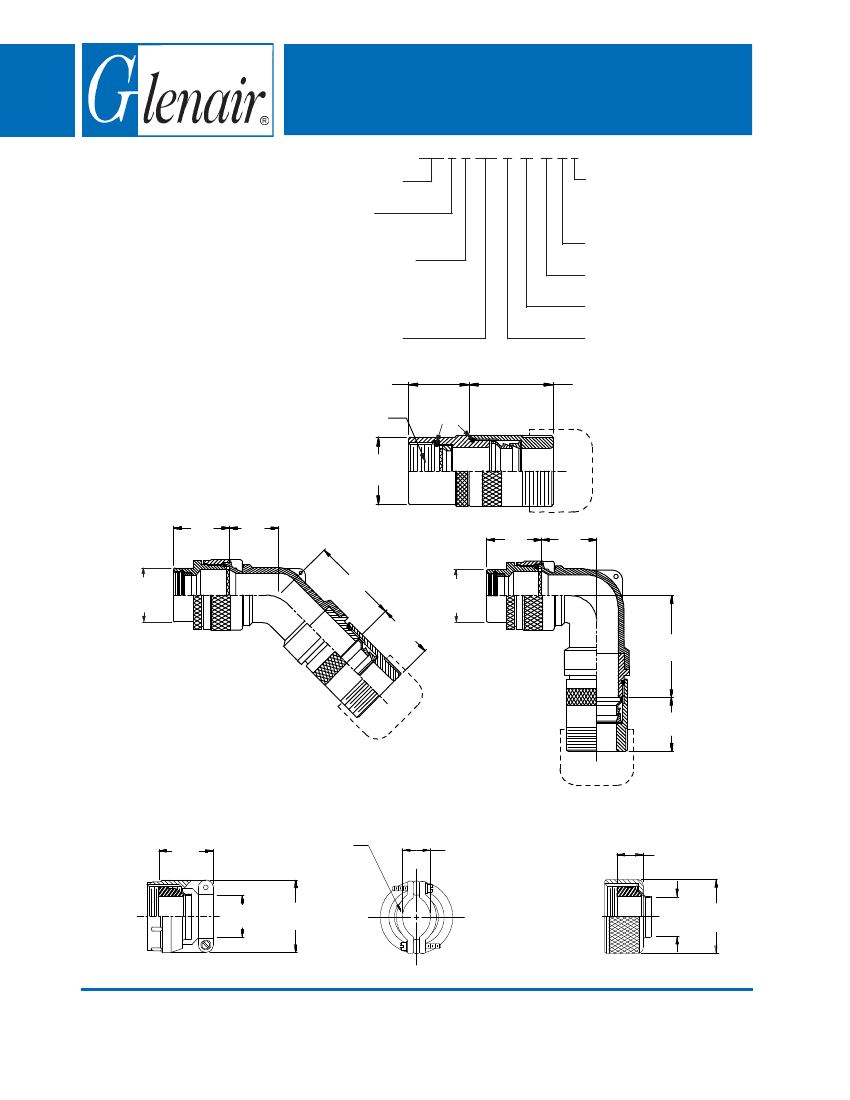

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type G - Direct Coupling - Low Profile
39
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 5
CONNECTOR
DESIGNATORS
*
390 F S 038 M 16 10 E 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
1.250 (31.8)
Max
O-Rings
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (C, E)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 3)
DIRECT COUPLING
TYPE G INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
A Thread (Table I)
B
(Table I)
J
E
(Table III) (Table IV)
J
(Table III)
G
(Table IV)
B
(Table I)
F (Table IV)
B
(Table I)
H (Table IV)
1.680 (42.7) Ref.
1.680 (42.7) Ref.
T
STYLE C
Medium Duty
(Table X)
Clamping
Bars
STYLE E
Medium Duty
(Table XI)
X (See
Note 4)
Y
Cable
Range
W
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 80
with Strain Relief
Type G - Direct Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
J-H-L-S
D-B-G-K
C
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
1.180 (30.0) 1.440 (36.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
Dash
E
No.
Max
03 .500 (12.7)
04 .500 (12.7)
06 .590 (15.0)
08 .610 (15.5)
10 .700 (17.8)
12 .880 (22.4)
16 .970 (24.6)
20 1.120 (28.4)
24 1.220 (31.0)
28 1.570 (39.9)
32 1.770 (45.0)
TABLE IV
G
F
Max
Max
1.250 (31.8) .520 (13.2)
1.610 (40.9) .520 (13.2)
1.730 (43.9) .580 (14.7)
1.750 (44.5) .640 (16.3)
1.820 (46.2) .730 (18.5)
2.080 (52.8) .920 (23.4)
2.190 (55.6) 1.020 (25.9)
2.190 (55.6) 1.040 (26.4)
2.360 (59.9) 1.040 (26.4)
2.610 (66.3) 1.090 (27.7)
2.780 (70.6) 1.180 (30.0)
H
Max
1.140 (29.0)
1.170 (29.7)
1.650 (41.9)
1.720 (43.7)
1.800 (45.7)
1.910 (48.5)
2.100 (53.3)
2.250 (57.2)
2.300 (58.4)
2.400 (61.0)
2.600 (66.0)
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
T
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
W
Max
.812 (20.6)
.937 (23.8)
1.062 (27.0)
1.188 (30.2)
1.312 (33.3)
1.562 (39.7)
1.750 (44.5)
2.250 (57.2)
2.375 (60.3)
2.625 (66.7)
2.812 (71.4)
TABLE X
X
Ref
.135 (3.4)
.203 (5.2)
.285 (7.2)
.350 (8.9)
.390 (9.9)
.460 (11.7)
.510 (13.0)
.695 (17.7)
.715 (18.2)
.915 (23.2)
1.070 (27.2)
Cable Range
Max
Min
.219 (5.6)
.156 (4.0)
.312 (7.9)
.188 (4.8)
.438 (11.1)
.281 (7.1)
.531 (13.5)
.312 (7.9)
.625 (15.9)
.375 (9.5)
.750 (19.1)
.500 (12.7)
.938 (23.8)
.625 (15.9)
1.250 (31.8)
.938 (23.8)
1.375 (34.9)
1.000 (25.4)
1.625 (41.3)
1.250 (31.8)
1.875 (47.6)
1.500 (38.1)
1. Metric dimensions (mm) are
indicated in parentheses.
2. Cable range is defined as the
accommodations range for the
wire bundle or cable. Dimen-
sions shown are not intended
for inspection criteria.
3. Consult factory for shorter
lengths on straight backshells.
4. Saddles are bottomed on
Clamp Ears.
5. When using Connector
Designator B refer to pages 18
and 19 for part number
development.
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
Y
Max
.739 (18.8)
.739 (18.8)
.739 (18.8)
.739 (18.8)
.791 (20.1)
.880 (22.4)
.901 (22.9)
1.031 (26.2)
1.250 (31.8)
1.250 (31.8)
1.312 (33.3)
TABLE XI
Cable Range
Z
Max
Min
Max
.812 (20.6)
.156 (4.0)
.219 (5.6)
.937 (23.8)
.188 (4.8)
.312 (7.9)
1.062 (27.0)
.281 (7.1)
.438 (11.1)
1.188 (30.2)
.312 (7.9)
.531 (13.5)
1.312 (33.3)
.375 (9.5)
.625 (15.9)
1.562 (39.7)
.500 (12.7)
.750 (19.1)
1.750 (44.5)
.625 (15.9)
.938 (23.8)
2.250 (57.2)
.938 (23.8)
1.250 (31.8)
2.375 (60.3)
1.000 (25.4)
1.375 (34.9)
2.625 (66.7)
1.250 (31.8)
1.625 (41.3)
2.812 (71.4)
1.500 (38.1)
1.875 (47.6)
