Product Catalog
Dimension : mm (inch)
www.fciconnect.com/basics
1
FCI: SETTING
THE STANDARD
FOR CONNECTORS
With 13,000 employees
in 30 countries and sales of
1.25 billion euros in 2008,
FCI is a leading manufacturer
of connectors for various
markets such as automotive,
telecommunication
infrastructures and consumer
and industrial electronics.

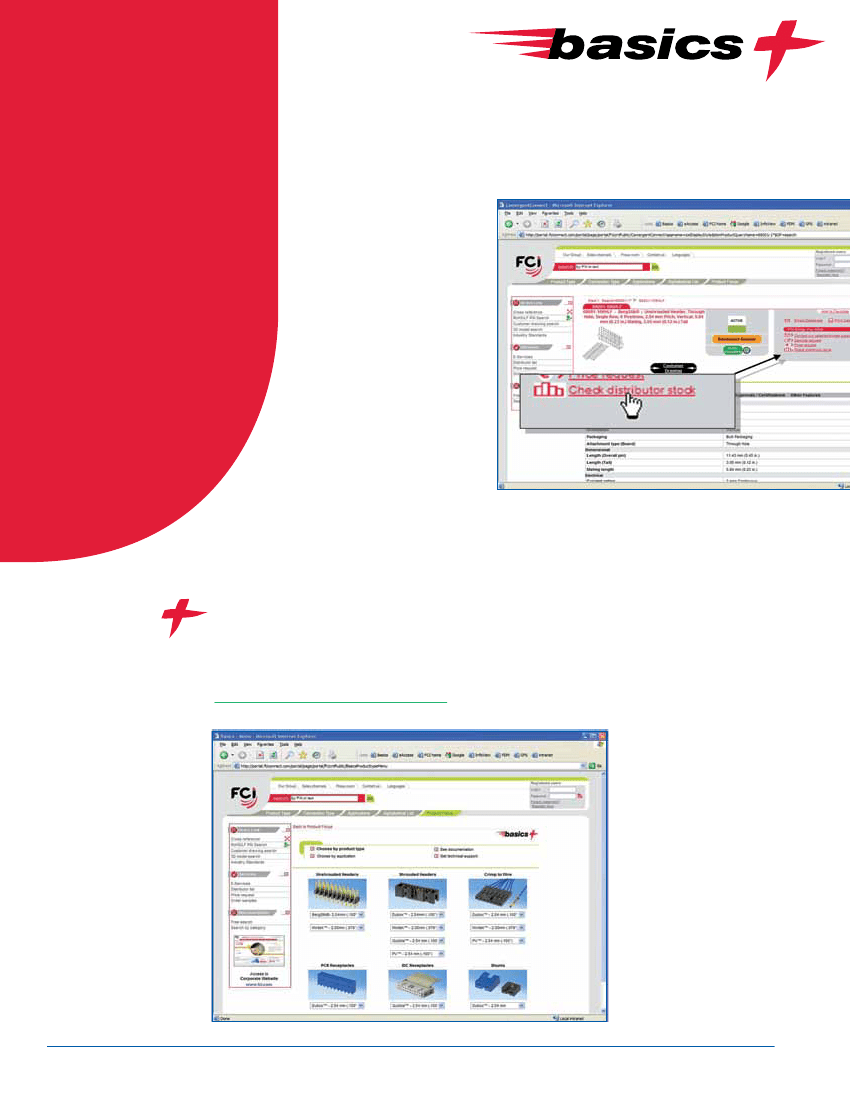

MORE SERVICE.
More Service
Easy product selection, samples, prototypes,
documentation, drawings and more at
www.fciconnect.com/basics
2
www.fciconnect.com/basics
LESS WAITING.
Easy Availability
Catalog range direct from FCI’s extensive
local distribution network.
Global too: design here, build there.

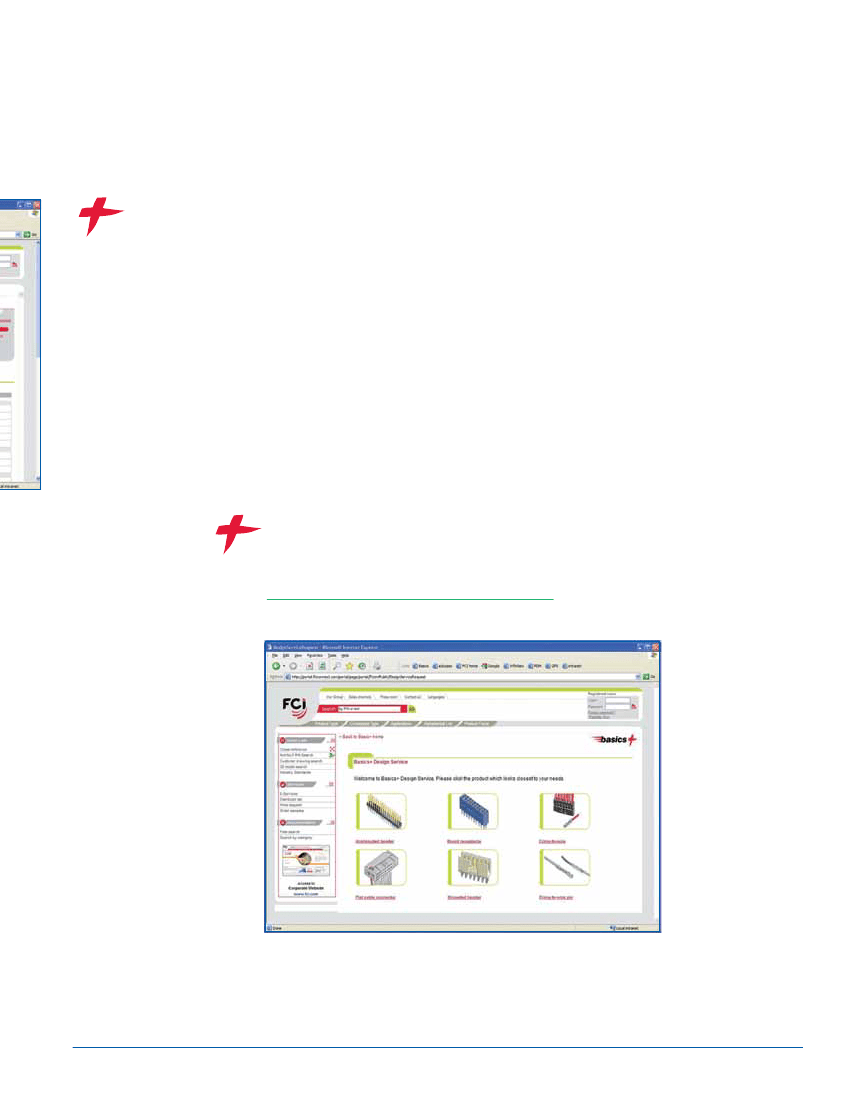

Easy Customization
Just go here
www.fciconnect.com/basicsdesign
and tell us what you want
Dimension : mm (inch)
www.fciconnect.com/basics
3
CONTENTS
UNSHROUDED HEADERS
BergStik® Unshrouded Headers 2.54mm (.100”)
Vertical - standard sizes
Vertical - surface mount
Vertical - continuous
Right angle - standard sizes
Stacking headers
8
10
12
14
16
Minitek™ Unshrouded Headers 2.00mm (.079”)
Vertical
Right angle
Pin-in-Paste
Stacking
50
52
54
56
SHROUDED HEADERS
Dubox™ Shrouded Headers 2.54mm (.100)
PV™ Superior Performance Shrouded Headers 2.54mm (.100”)
Minitek™ Shrouded Headers 2.00mm (.079”)
Vertical
Right angle
Pin-in-Paste
Eject latch
Quickie® Shrouded Headers 2.54mm (.100”)
Low Profile
Surface Mount and Pin-in-Paste
Eject latch
28
34
62
64
66
68
40
42
44
BOARD-
TO-BOARD RECEPTACLES
Dubox™ Board-to-Board Receptacles 2.54mm (.100”)
Vertical
Low profile vertical - through mount
Low profile vertical - surface mount
Horizontal
Minitek™ Vertical receptacles
20
22
24
26
58
CRIMP-TO-
WIRE TERMINALS AND HOUSINGS
Dubox™ Crimp-To-Wire 2.54mm (.100”)
Contacts
Housings
PV™ Superior Performance Crimp-To-Wire 2.54mm (.100”)
Contacts
Housings
Minitek™ Crimp-To-Wire 2.00mm (.079”)
Contacts
Housings
Active latch
30
32
36
38
70
70
72
IDC RECEPTACLES
Quickie® IDC Receptacles 2.54mm (.100”)
Quickie® IDC PCB connector 2.54mm (.100”)
Minitek™ IDC strain relief
46
48
74
SHUNTS
Dubox™ Shunts 2.54mm (.100”)
Minitek™ Shunts 2.00mm (.079”)
18
60
MORE OPTIONS
APPLICATION EQUIPMENT
PART NUMBER INDEX
76
78
80
4
www.fciconnect.com/basics
WHAT’S NEW ?
SH
LEA
RT
O
TIMES
D
Standard parts available
for immediate shipment
from participating distributors
Pin-in-Paste
Our new PiP range has been
specifically designed to meet the
requirements of this process,
complete with paste stencil design
Pages 54, 66
Minitek Active Latch
A latching crimp-to-wire system for
demanding environments
Pages 64, 72
Minitek Eject Latch Header
This ribbon cable connector mates
securely, but can be unmated with
no difficulty.
Pages 68, 74
The Minitek 2mm Modular System
Now the most complete and versatile
system available: intermateable,
high temperature compatible,
low coplanarity and space saving
Pages 50 – 74
