52746-1833 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52746-1833

52746-1833: DescriptionSwitching Voltage Regulators; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52746-1833 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52746-1833	-	-	View	Buy Now

52746-1833 Overview

Switching Voltage Regulators

52746-1833 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.169 inch
body length	0.594 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN BISMUTH OVER NICKEL
Contact completed and terminated	Tin/Bismuth (Sn/Bi) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Base Number Matches	1

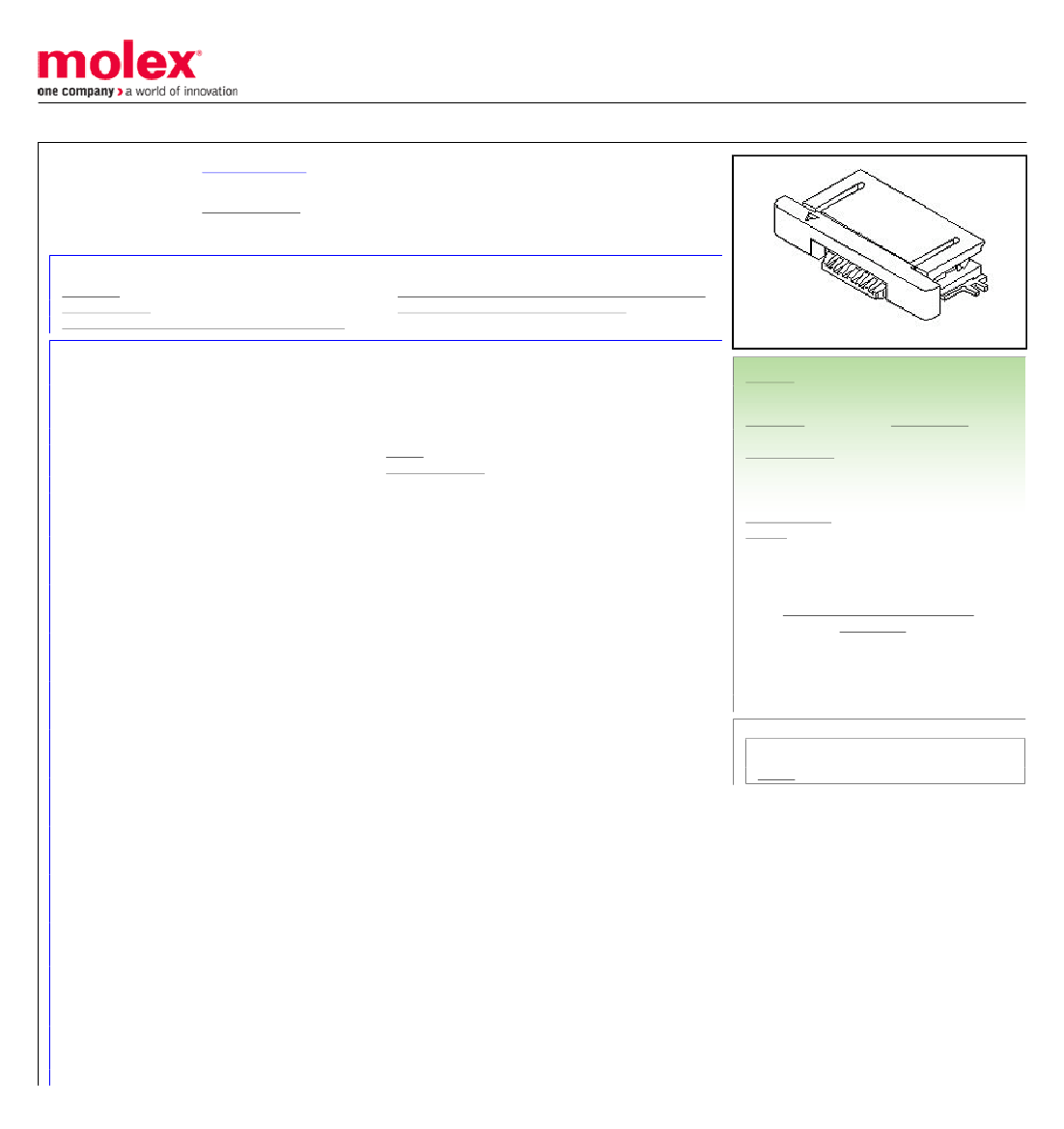

Preview

Download Datasheet

View All

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0527461833

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On Type FFC/FPC Connector, Right Angle, Surface Mount, ZIF,

Bottom Contact Style, 18 Circuits, High Barrier Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52746-017-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Packaging Specification SPK-52746-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

FFC/FPC Connectors

52746

FFC-FPC (SMT)

Easy-On

887191295299

Natural

Bottom

90° Angle

94V-0

2.00mm

Phosphor Bronze

Silver, Tin-Bismuth

Nylon

212.200/mg

Right Angle

2.00mm

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

52746 Series

SPK-52746-002-001

PS-52746-017-001
