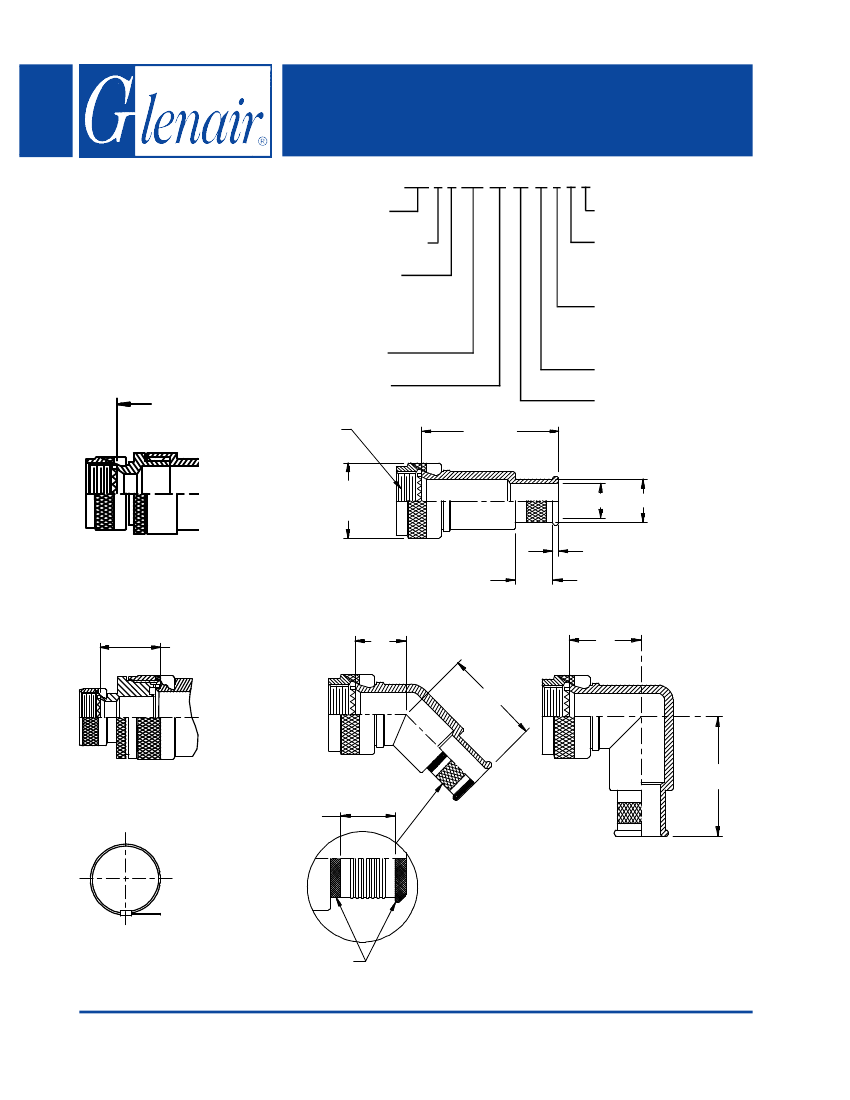

440-073
EMI/RFI Banding Adapter
Rotatable Coupling - Standard Profile
440 F S 073 NF 16 12-8 K P
440
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Angle and Profile
H = 45
J = 90
S = Straight
Basic Part No.
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Cable Entry (Table IV)
A-F-H-L-S
ROTATABLE
COUPLING
Finish (Table II)
Length ± .060 (1.52)
Min. Order
A Thread
Length 1.5 inch
(Table I)
Shell Size (Table I)
Length *
* Length ± .060 (1.52)
Min. Order Length 1.0 Inch
(See Note 3)
J **
K **
** (Table IV)
C Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
.060 (1.5) Typ.
.380 (9.7) Typ.
.88 (22.4)
Max
E
(Table III)
G
(Table III)
F (Table III)
STYLE 2
(45° & 90°
See Note 1)
H (Table III)
Termination Area
Free of Cadmium.
Knurl or Ridges
Mfr's Option
Band Option
(K Option Shown -
See Note 4)
© 2005 Glenair, Inc.
Polysulfide Stripes
P Option
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 44
Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
08
09
11
10
12
13
15
14
17
16
18
19
21
20
22
23
25
24
E
Max
.639 (16.2)
.664 (16.9)
.688 (17.5)
.705 (17.9)
.732 (18.6)
.748 (19.0)
.773 (19.6)
.800 (20.3)
.823 (20.9)
F
Max
.890 (22.6)
.920 (23.4)
.940 (23.9)
.970 (24.6)
.990 (25.1)
1.000 (25.4)
1.020 (25.9)
1.060 (26.9)
1.090 (27.7)
G
Max
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.140 (29.0)
1.200 (30.5)
H
Max
1.000 (25.4)
1.060 (26.9)
1.120 (28.4)
1.190 (30.2)
1.250 (31.8)
1.270 (32.3)
1.330 (33.8)
1.410 (35.8)
1.480 (37.6)
TABLE IV: CABLE ENTRY
J
K
Dash
Dia
Dia
No.
.125 (3.2)
.250 (6.4)
02
.188 (4.8)
.312 (7.9)
03
.250 (6.4)
.375 (9.5)
04
.312 (7.9)
.438 (11.1)
05
.375 (9.5)
.500 (12.7)
06
.438 (11.1)
.562 (14.3)
07
.500 (12.7)
.625 (15.9)
08
.562 (14.3)
.688 (17.5)
09
.625 (15.9)
.750 (19.1)
10
.688 (17.5)
.812 (20.6)
11
.750 (19.1)
.875 (22.2)
12
.812 (20.6)
.938 (23.8)
13
.875 (22.2) 1.000 (25.4)
14
.938 (23.8) 1.062 (27.0)
15
16 1.000 (25.4) 1.125 (28.6)
17 1.062 (27.0) 1.188 (30.2)
18 1.125 (28.6) 1.250 (31.8)
20 1.250 (31.8) 1.375 (34.9)
22 1.375 (34.9) 1.500 (38.1)
24 1.500 (38.1) 1.625 (41.3)
1. When maximum cable entry (page 21)
is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not
apply. Please consult factory.
2. Metric dimensions (mm) are indicated
in parentheses.
3. Consult factory for shorter lengths on
straight backshells.
4. Backshells supplied with 600-052-*
band, see Glenair Series 600 Tool
Catalog for installation.
Now Available
with the “NESTOR”
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 45
440
440-073
EMI/RFI Banding Adapter
