TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN PLATED
FLANGE SCREW: STEEL
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO +105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
CERTIFIED E315414
cULus
12A
300V AC
2500 VAC/min
20 mΩ max
A
B
B±0.3
A±0.2
±
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
24-16 AWG / 0.205-1.31 MM²
24-16 AWG / 0.205-1.31 MM²
A
B
WIRE STRIP LENGTH: 6-8 MM
PITCH: 2,5 MM
PACKAGING
BOX
C
RoHS Compliant
G
F
E
D
C
B
A
REV
12-AUG-15
23-JUL-14
DATE
REMOVE SOLDER
PDF
FILE
AK
AS
BY
APPROVAL: FBr
SCALE:
SHEET: 1/2
DRAW: AS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

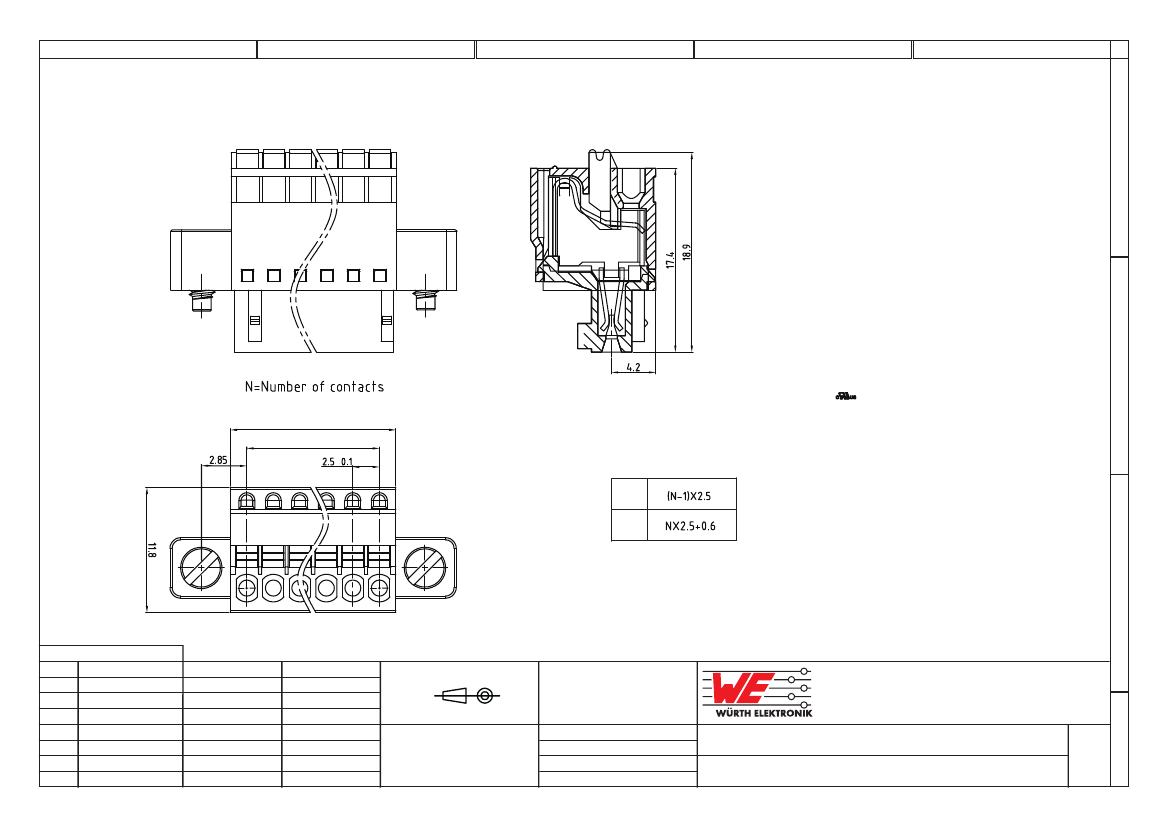

DESCRIPTION: SERIE 381 - VERTICAL CABLE ENTRY PLUG SCREWLESS
WITH FLANGES - PITCH 2.5mm - WR-TBL
WERI PART NO: 691 381 030 0XX
SIZE
A4
D
1
2
3
4
5
