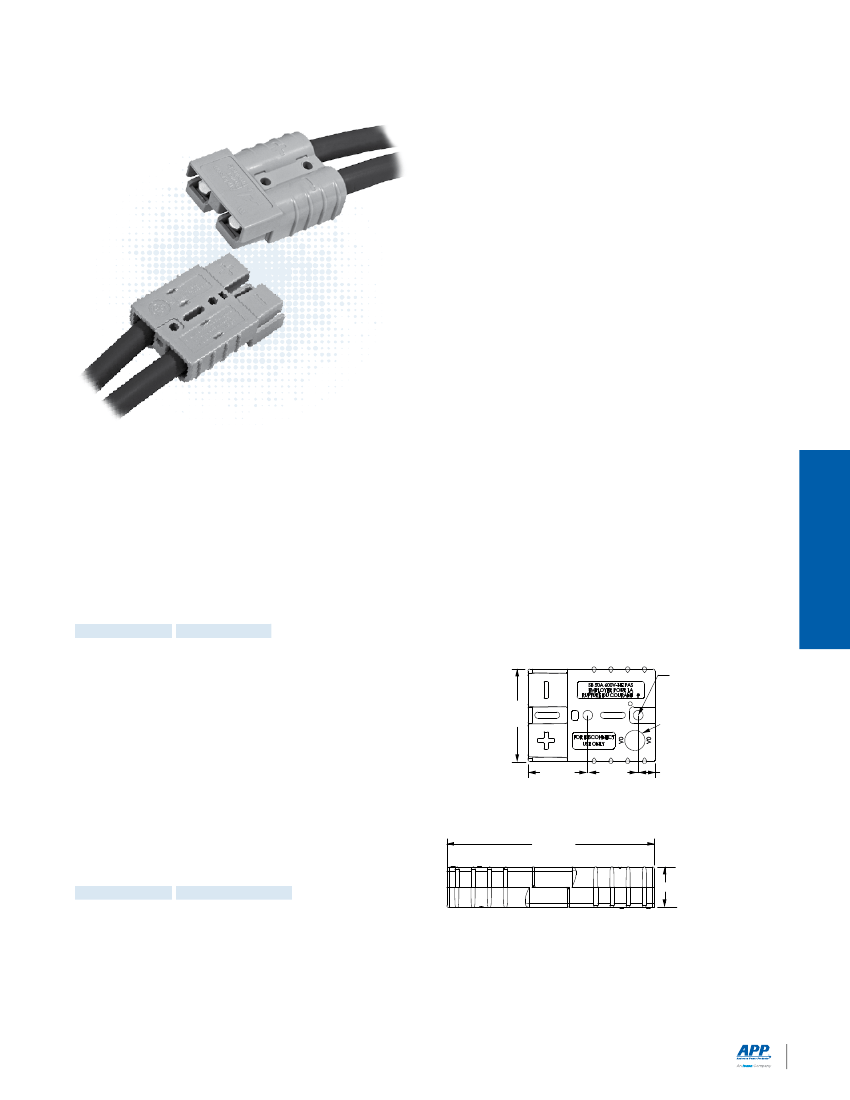

SB
®
50 Connectors
- up to 120 amps
Based off the design pioneered by Anderson in 1953, the
two pole SB
®
connectors set the standard for DC power
distribution and battery connections. SB
®
50 connectors
feature a one piece plastic housing using stainless steel
springs to hold low resistance contacts in place. Wires
sizes from #16 (1.5 mm²) to #6 (13.3 mm²) are held in
the smallest of the SB
®
series housings.
• Low Resistance Silver or Tin Plated Copper Contacts
Allows UL rated currents up to 120 amps
• UL Rated for Hot Plugging up to 50 Amps
Great for battery or other applications where the ability to
interrupt circuits is required
Allows one connection system to meet multiple needs
• Wire, PCB, and Busbar Contacts
SB
®
50
SECTION 3
| SB50
®
ORDERING INFORMATION |
SB
®
50 Standard Housings
The smallest SB
®
housings work with wire contacts up to
6 AWG [10 mm²] as well as PCB, and busbar contacts.
Genderless design mates with itself. Mechanical keys are
color coded.
Description
---- Part Numbers ----
Minimum Quantity ....
500
100 ...
Yellow
992G5-BK 992G5
Orange
992G7-BK 992G7
Red
992G1-BK 992G1
Gray
992-BK
992
Blue
992G4-BK 992G4
Green
992G6-BK 992G6
Black
992G2-BK 992G2
®
NOTE: SB 50 Black and Gray housings have the
same keying features and can be intermated.
Bottom View
[ 3.7 ]
Ø 0.14
(2) PLC’S
Material ID
P = Chemical Resistant
[ 35.1 ]
1.38
[ 22.5 ]
0.89
[ 19.1 ]
0.75
[ 6.4 ]
0.25
SB
®
50 Chemical Resistant Housings
Same features as the Standard SB
®
50 but molded in a
chemical resistant PBT/ PC blend. Suitable for use to -40°C.
Description
---- Part Numbers ----
Minimum Quantity ....
500
100 ...
Red
P992G1-BK
P992G1
Gray
P992-BK
P992
Black
P992G2-BK
P992G2
®
NOTE: SB 50 Black and Gray housings have the
same keying features and can be intermated.
[ 81.3 ]
3.20
[ 15.9 ]
0.63
Mated Length
© 2017 Anderson Power Products, Inc. All rights reserved. APP®, Anderson Power Products®, A®, SB® and the APP Logo are registered trademarks of Anderson Power Products, Inc.
All Data Subject To Change Without Notice
www.andersonpower.com
- 61 -
SB
®
50 Silver Plated Wire Contacts
Use two silver plated contacts per housing for the best electrical
performance and durability up to 10,000 mating cycles. See redushing
bushings in accessory section for smaller wires.
Dimensions
Mating
Loose Piece
- A -
AWG
mm²
Force
--- Part Numbers ---
inches mm
Minimum Quantity ...................
1,000 100
.........................
6
13.3
Low
1307-BK 1307
0.22
5.59
6
13.3
High
5900-BK 5900
0.22
5.59
8
8.4
High
5952-BK 5952
0.19
4.83
12 to 10 3.3 to 5.3 Low
5953-BK 5953
0.14
3.56
12 to 10 3.3 to 5.3 High
5915-BK 5915
0.14
3.56
[ 11.1 ]
0.44
A
[ 7.2 ]
0.28
[ 30.0 ]
1.18
[ 7.1 ]
0.28
SB
®
50 Silver Plated Busbar Contacts
Use 2 busbar contacts per housing to provide a quick disconnect input or output
busbar connection. Busbar contacts are for mating with wire contacts only. Part number
75BBS includes lock nuts. Locknuts must be ordered separately for B01915P1.
Mating
Type
Thread Force
Minimum Quantity .................
Busbar
#10-24 High
Lock Nut #10-24 -
---- Loose Piece Part Numbers ----
1,000
20
10 ...
B01915P1 -
75BBS
H1216P8 110G54
-
See Busbar contact drawing on
website for further detail.
[ 17.1 ]
0.68
[ 2.0 ]
0.08
[ 69.1 ]
2.72
SECTION 3
55A Right Angle Standard Powerclaw PCB Contacts
Standard Powerclaw contacts are for use inside a SB
®
50 housing
and provide a color coded right angle connection to the PCB.
Description
-
Loose Piece Part Numbers -
Minimum Quantity ....
500
100 .......
Tin Plated
PC5930T-BK PC5930T
Silver Plated
PC5930S-BK PC5930S
Top View
[ 21.6 ] [ 19.05 ]
0.750
0.85
[ 22.6 ]
0.89
[ 23.7 ]
0.93
[x]
x
Side View
SB
®
50
[ 8.0 ]
0.32
[ 27.4 ]
1.08
[ 15.6 ]
0.62
[ 35.0 ]
1.380
[ 63.6 ]
2.51
[ 3.7 ]
Ø 0.14 (2)
See PCB contact drawing on website for further detail.
[ 11.4 ]
0.45
Right angle Mini Powerclaw contacts can be used on the PCB edge
without a SB
®
50 housing on the PCB side. A self polarizing design only
allow SB
®
50 wire housings to mate to PCB contacts one way.
Description
-
Loose Piece Part Numbers -
Minimum Quantity ....
1,000
100 .......
Tin Plated
PC5934T-BK PC5934T
Silver Plated
PC5934S-BK PC5934S
55A Right Angle Mini Powerclaw PCB Contacts
[ 8.1 ]
0.32
[ 7.6 ]
0.30
[ 2.42 ]
0.095
[ 6.10 ]
0.240
[ 24.6 ]
0.97
[ 12.19 ]
0.480
[ 17.5 ]
0.69
[ 25.4 ]
1.00
[ 1.27 ]
0.050
- 62 -
www.andersonpower.com
All Data Subject To Change Without Notice
55A Vertical Mini Powerclaw PCB Contacts
Vertical Mini Powerclaw contacts save space by not requiring a SB 50
housing on the PCB side. The guide housing is required for to provide a
polarized connection. (See SB
®
50 accessories).
®
[ 12.2 ]
0.48
[ 24.3 ]
0.96
[ 9.7 ]
0.38
[2.32]
0.091
[ 10.29 ]
0.405
[ 6.25 ]
0.246
Description
-
Loose Piece Part Numbers -
Minimum Quantity ....
1,500
100 .........
Tin Plated
PC5933T-BK PC5933T
Silver Plated
PC5933S-BK PC5933S
[ 1.27 ]
0.050
[ 4.98 ]
0.196
| SB
®
50 CONNECTOR SPECIFICATIONS |
Electrical
Current Rating Amperes ¹
Wire to Wire UL 1977 (6 AWG)
Wire to PCB UL 1977 (6 AWG)
Voltage Rating AC/DC
UL 1977
UL 1977
120
50
CSA
50
Mechanical
Wire Size Range
Wire Contacts with Bushings
Max. Wire Insulation Diameter
AWG
16 to 6
in.
0.440
mm²
1.3 to 13.3
mm
11.200
600
PCB Connector Recommended Voltage
per IEC 60950-1 Table 2L Pollution Degree
2
Mini Vert. Contact
522
Mini Horiz. Contact
504
Standard Contact
950
Dielectric Withstanding Voltage
Volts AC
2,200
Avg. Mated Contact Resistance Milliohms ¹
1 1/4” of #6 AWG wire
0.200
PCB Contact to Contact
0.500
UL Hot Plug Current Rating Amperes - 250 cycles at 120V DC
Wire- wire
50A
PCB- wire
40A
(Vertical Mini Powerclaw)
Operating Temperature ²
°F
°C
Standard
-4° to 221°
-20° to 105°
Chemical Resistant*
-40 to 221°
-40° to 105°
*Chemical resistant material not available for PCB guide housings
Mating Cycles No Load by Plating
Wire and PCB Contacts
Avg. Mating / Unmating Force
Wire to Wire Low Force Contacts
Wire to Wire High Force Contacts
Standard Powerclaw to Wire
Mini Powerclaw to Wire
PCB Specifications
Mounting Style
Max PCB Thickness- in. [mm]
Recommended Traces
Min. Contact / Spring Retention Force
Wire Housing
Min. Creepage / [Clearance] Distance
Standard Powerclaw
Mini Vert. Powerclaw
Mini Horz. Powerclaw
Mechanical Shock
4
MIL-STD-202
Silver (Ag)
10,000
Lbf.
10
15
15
8
Tin (Sn)
1,500
N
44
67
66
36
SB
®
50
SECTION 3
Materials
Plated Through Hole
Standard: 0.15 [0.381]
Mini: 0.25 [0.635]
#8 AWG Cross Section
Lbf.
50
in.
0.374
0.213
0.205
N
222
mm
9.5
5.4
5.2
Housing
Standard Plastic Resin
Chem. Resistant Resin
Contact Retention Spring
Housing Flammability Rating
UL94
Glow Wire
Contact
Base
Wire Plating
PCB Plating
Contact Termination Methods
Crimp ³
Hand Solder
Solder Dip*
Wave Solder*
Wrench / Socket
Polycarbonate
Polycarbonate / PBT blend
Stainless Steel
V-0
960°C (GWFI) / 800°C (GWIT)
213 Condition A
50g’s
Copper Alloy
Silver
Sn or Ag over Ni
Vibration High Frequency
4
MIL-STD-202
204 Condition A
Connector
Series
SB®50
10g’s
Wire Contacts
Wire and PCB Contacts
PCB Contacts
PCB Contacts
Busbar Contacts
Creepage/Clearance Material
Configurations per IEC 60950-1
Group
Unmated
Mated
2.99 mm
2.99 mm
IIIa
NOTE 1: See IEC 60664-1 for working voltage.
NOTE 2: Amp ratings are stated per position and based on all positions
being fully loaded.
¹ Based on: 105°C rated or better cable of the largest size, Properly
calibrated APP recommended tooling, and a 25°C ambient temperature.
UL rating not to exceed the maximum operating temperature. CSA rating
below a 30°C temperature rise.
² Limited by the thermal properties of the connector plastic housing.
³ Use APP recommended tooling only. Alternate tools may adversely
affect the performance of our connectors along with UL and CSA recognition.
4
Tested with contact part number 5900.
Protection
Touch Safety with Wire Contacts
IEC 60529
IP10
Environmental Sealing with Boots
IEC 60529
IP64
All Data Subject To Change Without Notice
www.andersonpower.com
- 63 -

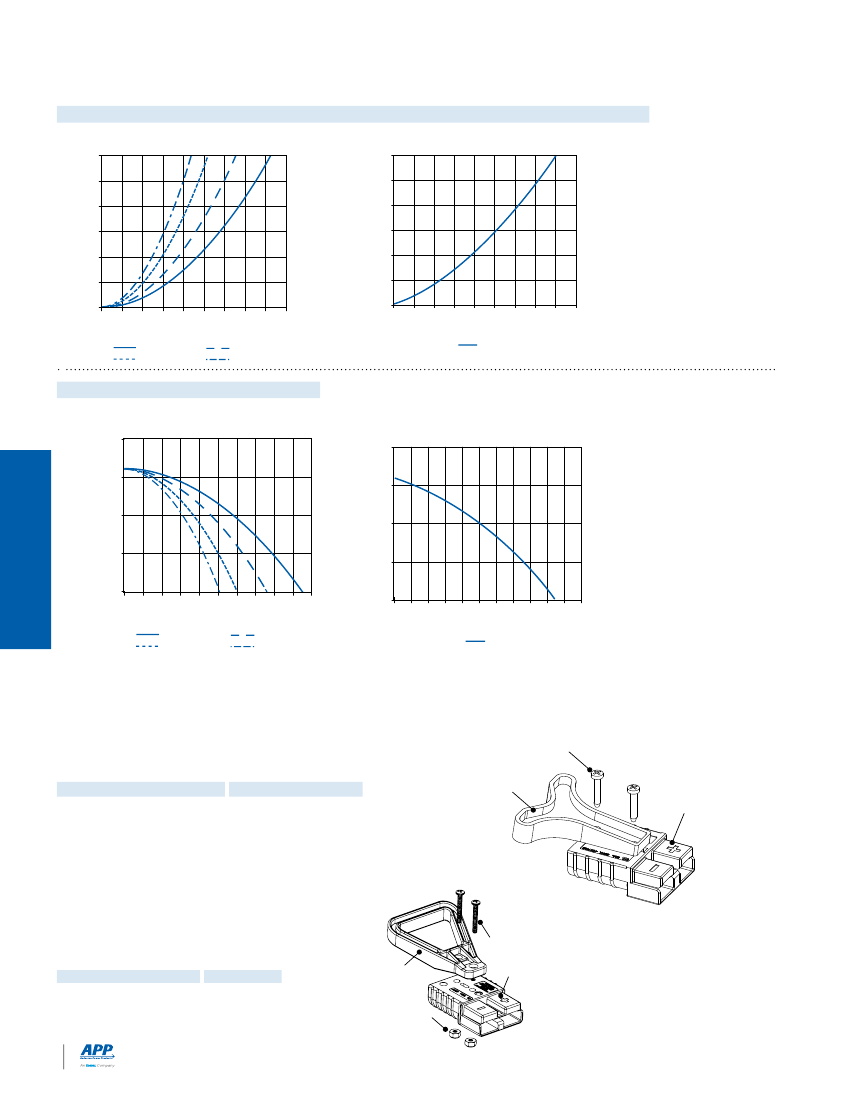

| SB
®
50 CONNECTOR TEMPERATURE CHARTS |
SB
®
50
Temperature Rise at Constant Current
Temperature rise charts are based on a
25°C ambient temperature.
For Temperature Rise Above 60°C, Consult the Extended Temperature Rise Charts in the Appropriate Product Section on the Website.
Mini Powerclaw
Temperature Rise at Constant Current
60
50
40
30
20
10
0
0
60
Temperature Rise
Above Ambient (°C)
50
40
30
20
10
Temperature Rise
Above Ambient (°C)
10 20 30 40 50 60 70 80 90
Amperes Applied
6 AWG
10 AWG
8 AWG
12 AWG
0
0
10 20 30 40 50 60 70 80 90
Amperes Applied
SB®50
Current - Temperature Derating per IEC 60512-5-2 Test 5B
125
Ambient Temperature (°C)
SB
®
50
Derating vs. Ambient Temperature
125
Ambient Temperature (°C)
Mini Powerclaw
Derating vs. Ambient Temperature
100
75
100
75
SECTION 3
50
25
50
25
SB
®
50
0 10 20 30 40 50 60 70 80 90 100
Amperes Applied
6 AWG
8 AWG
SB®50
10 AWG
12 AWG
NOTE: Powerclaw charts are based on #8 AWG equivalent copper foil on board side, mated to #6 AWG conductor on wire side.
0 10 20 30 40 50 60 70 80 90 100110
Amperes Applied

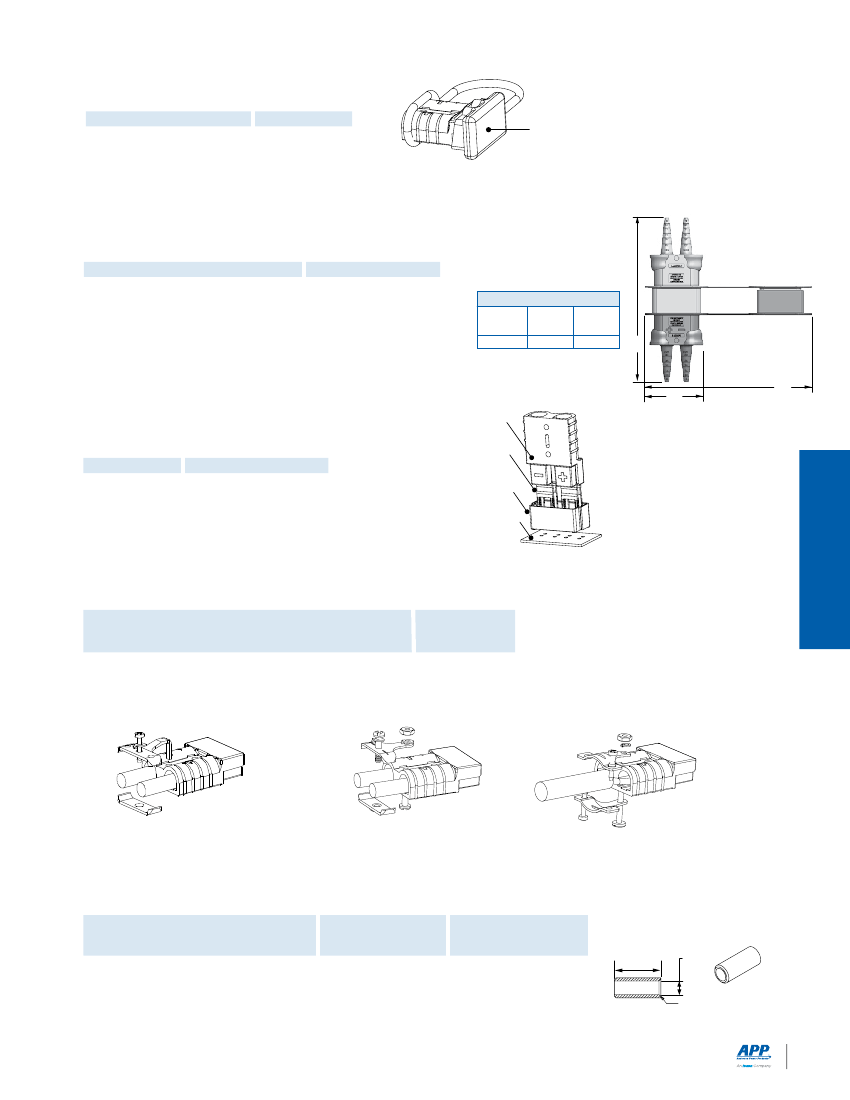

| SB
®
Accessories |
“T” Handle
The “T” handle makes mating and unmating the connector easier. The
non-conductive red plastic material is strong and safe. (2) Self tapping
screws are used to secure the handle to the connector housing.
Description
Minimum Quantity ...............................
Red “T” Handle + Hardware Bag
Hardware Bag (2 Screws)
Red “T” Handle Only
#8 x 5/8” Screw (Order 2 Per Handle)
--------- Part Numbers ---------
1,000
50 ........
-
SB50-HDL-RED
-
104G17
113899P1 -
H1120P55 -
Handle
(2) Self-tapping
Screws
Connector
Housing
“A” frame handle for SB
®
50
Handle makes mating and unmating the connector easier.
The non-conductive gray plastic material is strong and safe.
Machine screws and locknuts included.
Description
Gray “A” Handle & Hardware
- Part Number -
997G1
Handle
Minimum Quantity ...................... 200 .......
Locknuts
Screws
Connector
Housing
- 64 -
www.andersonpower.com
All Data Subject To Change Without Notice
Dust Cover
Prevents dust and dirt from entering the mating interface of
the connector when unmated. NOTE: Not a Hermetic Seal.
Description
---- Part Numbers ----
Minimum Quantity ..............................
500
50 ...
Dust Cover with Lanyard Strap, Red 113890P1 134G1
Slide cover over
mating end.
SB
®
Environmental Boots
SB
®
Environmental Boots provide water, dirt, chemical and UV protection for SB
®
50
connectors. The durable boots shield the connectors from water and dirt to IP64 in
both the mated and unmated condition.
Description
---------- Part Numbers --------
25 ...
3-6054P2
3-6055P2
3-6054P1
3-6055P1
Dimensions
-A-
-B-
-C-
in mm
in mm in mm
5.9 151.4 1.8 45.1 6.3 160
A
Minimum Quantity ...................................... 250
3-6054P2-BK
SB
®
50 Environmental Boot with Cover, Load
3-6055P2-BK
SB
®
50 Environmental Boot with Cover, Source
®
3-6054P1-BK
SB
50 Environmental Boot (no cover), Load
3-6055P1-BK
SB
®
50 Environmental Boot (no cover), Source
B
Prevents polarity being reversed when a SB 50 is mated
to vertical mini Powerclaw contacts.
®
C
Guide Housings for Vertical Mini Powerclaw Contacts
SB®50 Connector
Mini-vertical
Powerclaw
Contacts
Description
------------ Part Numbers -----------
Minimum Quantity ....
1,000
50 ......
Black Guide Housing PC-HSG-SB-BK PC-HSG-SB
SB
®
50
SECTION 3
Guide
Housing
PCB
Cable Clamps
Durable metal cable clamps securely hold cables to prevent accidental strain or pulls from dislodging
wire or contacts from the housing. Cable clamps are recommended for solder terminated wires.
Cable Size
AWG or
mm² or
Description
(Inches O.D.)
(mm O.D.)
Minimum Quantity ...........................................................................................
Self Attaching for Discrete Conductor 8 to 6
10
Self Attaching for Discrete Conductor 12 to 10
4 to 6
Bolt on for Discrete Conductor
12 to 6
4 to 10
Bolt on for Bundled Conductor
(0.320 to 0.450) (4.27 to 11.43)
---- Part Numbers ----
500
50 ...
990-BK
990
990G2-BK 990G2
990G1-BK 990G1
5905-BK
5905
990 990G1 5905
Self attaching discrete conductor.
Bolt on discrete conductor.
Bolt on bundled conductors.
The given wire O.D. information is an estimate. Cable clamps should be evaluated for performance with the actual wire to be used.
Reducing Bushings
Use with contact part number 5900-BK or 1307-BK to allow a smaller wire to be used with the connector.
Electrical capability is derated with smaller wire.
Dimensions
- ID -
- Length -
Contact Barrel Size
Wire Size
-------- Part Numbers --------
inches mm inches mm
Minimum Quantity ...................................................... 3,000
1,000 100 ...................................................
#6 AWG [13.3 mm²] #8 AWG [8.4 mm²]
-
5912-BK 5912 0.18 4.57 0.45
11.43
#6 AWG [13.3 mm²] #12- 10 AWG [3.3- 5.3 mm²] 5910-BK -
5910 0.14 3.56 0.47
11.94
#6 AWG [13.3 mm²] #16- 14 AWG [1.3- 2.1 mm²] 5913-BK -
5913 0.09 2.29 0.47
11.94
Length
ID
Wire Entrance
All Data Subject To Change Without Notice
2017-0041
DS-SB50 REV C5
www.andersonpower.com
- 65 -
京公网安备 11010802033920号
EEWORLD
