7000 Series/High Reliability Reed Relays
High Reliability Reed Relays
The 7000 Series is ideally suited to the needs of Instrumentation, Data
Acquisition, Process Control, Telecommunications and General Purpose
requirements. The specification tables allow you to select the appropri-
ate relay for your particular application. These models are specifically
designed for high quality and reliability with versatile switching
capabilities and contact forms. If your requirements differ, please
consult your local representative or Coto’s Factory to discuss a custom
reed relay.
7000 Series Features
Multi-pole contact forms (Form A, B, and C)
Wide range of switching capabilities; Low level, High Voltage, Hg wet
Hermetically sealed contacts for long life and high reliability
High speed switching compared to electromechanical relays
Potted in metal shell - Magnetic Shield
Optional Electrostatic Shield for reducing capacitive coupling
PCB mounting versatility - 1.0" x 0.100" grid
Optional coil suppression diode offered to protect coil drivers
*
* Height of Model 7003-5193 is .480 (12.2)

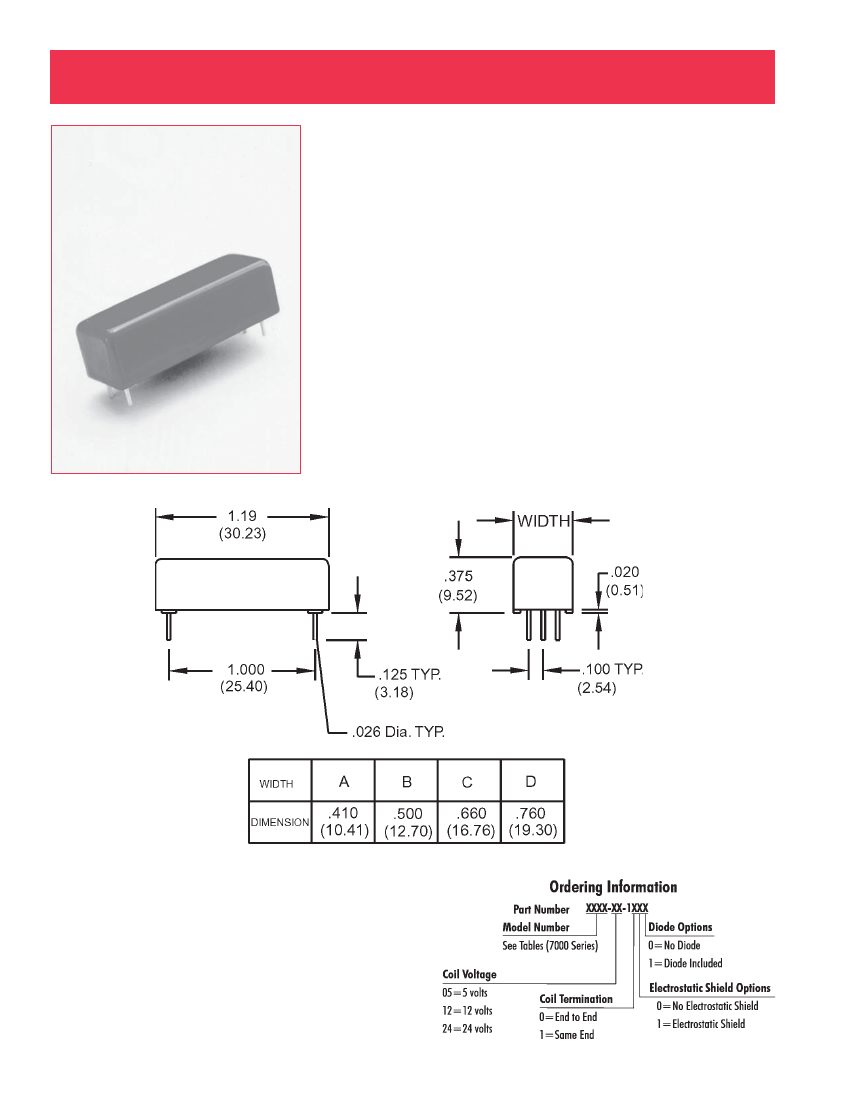

Dimensions in Inches (Millimeters)
Table #1
2
20
COTO TECHNOLOGY (USA)
Tel:
(401) 943-2686 / Fax (401) 942-0920
6
(Europe) Tel: +31-45-5439345 / Fax +31-45-5427216
7000 Series/High Reliability Reed Relays
Parameters
Test Conditions
Units
Form A, B,
Latch
Form C
Form A
Hg Wet
4
Form C
Hg Wet
4
Form A
High Voltage
Form A
Sensor
(7003-5193)
CONTACT RATINGS
Switching Voltage
Switching Current
Carry Current
Contact Rating
Life Expectancy-Typical
1
Static Contact
Resistance (max. init.)
Dynamic Contact
Resistance (max. init.)
RELAY
SPECIFICATIONS
Insulation Resistance
(minimum)
Capacitance - Typical
Across Open Contacts
Dielectric Strength
(minimum)
Operate Time - including
bounce - Typical
Release Time - Typical
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Signal Level 1.0V,10mA
50mV, 10mA
0.5V, 50mA
at 100 Hz, 1.5 msec
Volts
Amps
Amps
Watts
x 10
6
Ops.
Ω
Ω
200
0.5
2.0
10
1000
0.100
0.150
150
0.25
0.5
3
100
0.150
0.200
500
1.0
2.0
50
1000
0.075
0.100
500
1.0
2.0
50
1000
0.100
0.150
500
0.5
2.0
10
100
0.100
0.150
50
0.05
0.5
3
100
0.200
N/A
Between all Isolated Pins
at 100V, 25°C, 40% RH
No Shield
Shield Guarding
Between Contacts
Contacts to Shield
Contacts/Shield to Coil
At Nominal Coil Voltage,
30 Hz Square Wave
Zener-Diode Suppression
3
Ω
pF
pF
VDC/peak AC
VDC/peak AC
VDC/peak AC
msec.
msec.
x
10
12
1.0
0.2
250
1000
1500
1.0
0.1
x
10
10
2.0
1.0
200
1000
1500
2.0.
2.5
x
10
12
1.0
0.2
1000
1000
1500
2.0
1.0
x
10
12
2.0
1.0
1000
1000
1500
2.0
1.5
x
10
12
1.0
0.2
1200
1000
1500
1.0
0.1
x
10
10
1.0
0.2
200
N/A
2850
0.35
0.25
Dot stamped on top of relay
refers to pin #1 location

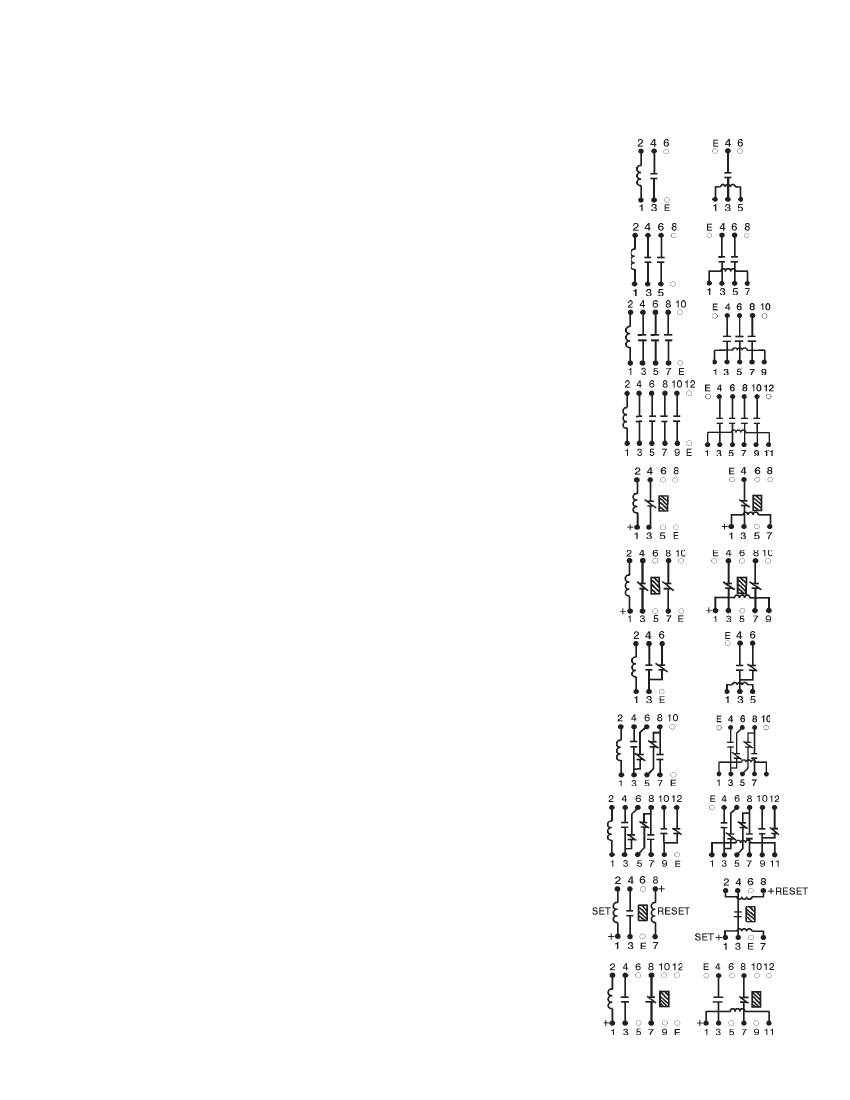

(See following pages for schematic
diagrams and coil data.)
Notes:
1
Consult factory for life expectancy at other switching
loads.
2
Optional coil suppression diode is available for all
models.
3
Consists of 20V Zener-diode and 1N4002 diode in
series, connected in parallel with coil
4
7200 series mercury content, approximately .06 grams
per individual contact
Environmental Ratings:
Storage Temp: -35°C to
+100°C;
Operating Temp: -20°C to
+85°C
Solder Temp: 270°C max; 10 sec. max
The operate and release voltage and the coil resis-
tance are specified at 25°C. These values vary by
approximately 0.4%/°C as the ambient temperature
varies.
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
6
E-mail: info@cotorelay.com
For Most Recent Data, Consult the Coto Technology Website:
www.cotorelay.com
21
Contact
Form
Model
Number
Nominal
Coil
Voltage
VDC
5
12
24
Must
Operate
Voltage
VDC max.
3.75
9.0
18.0
Must
Release
Voltage
VDC min.
0.4
1.0
2.0
Coil
Width

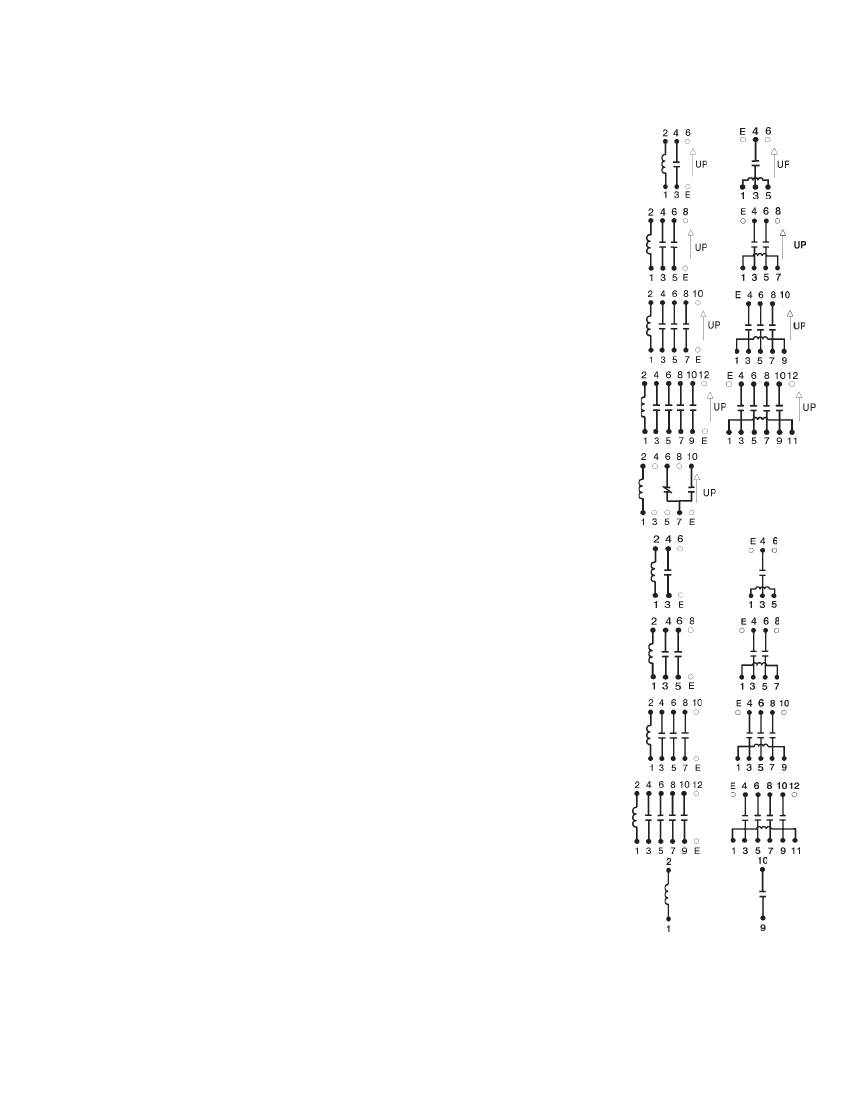

Schematic Top View
8
Resistance (See Table #1)
±10%_
End to End Same End
@25°C
Coil
Coil
300
1600
4200
A
1A
7101
2A
7102
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
150
1000
3500
B
3A
7103
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
100
800
2400
C
4A
7104
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
80
550
2000
D
1B
1
7121
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
150
1000
3500
B
2B
1
7122
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
100
800
2400
C
1C
7141
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
175
1100
4200
A
2C
7142
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
65
490
1550
C
3C
7143
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
55
300
1350
D
1A Latch
5, 6
7150
5
12
3.75
9.0
0.4
1.0
550/550
1750/1750
B
1A1B
5, 7
7160
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
80
550
2000
6
D
22
COTO TECHNOLOGY (USA)
Tel:
(401) 943-2686 / Fax (401) 942-0920
(Europe) Tel: +31-45-5439345 / Fax +31-45-5427216
Contact
Form
Model
Number
Nominal
Coil
Voltage
VDC
5
12
24
Must
Operate
Voltage
VDC max.
3.75
9.0
18.0
Must
Release
Voltage
VDC min.
0.4
1.0
2.0
Coil
Resistance
±10%_
@25°C
70
450
1785
Width
(See Table #1)
Schematic Top View
8
End to End Same End
Coil
Coil
1A Hg wet
9
7201
A
2A Hg wet
9
7202
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
60
340
1330
B
3A Hg wet
9
7203
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
50
300
1200
C
4A Hg wet
9
7204
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
40
250
960
D
1C Hg wet
9
7241
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
50
300
1200
C
1A High Voltage7301
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
175
1100
4200
A
2A High Voltage7302
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
100
640
2450
B
3A High Voltage7303
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
65
490
1550
C
4A High Voltage7304
5
12
24
3.75
9.0
18.0
0.4
1.0
2.0
55
300
1350
D
1A Current Sensor 7003-5193
10
N/A
13.0
(mA Max)
5.0
(mA Min)
8
C
Notes:
5
6
7
8
9
10
These relays contain bias magnets. Correct coil polarity must be observed.
Coil suppression diode is required for proper operation. Correct coil polarity must be observed.
Break before make not guaranteed.
Dot stamped on top of relay refers to pin #1 location. E-pin indicates Electrostatic shield pin. Unused pins omitted.
Pin numbers for reference only.
All models with Hg wet contacts are position sensitive, must be mounted within 30
o
of vertical plane. See schematic.
Model #7003-5193 represents a complete part number.
For Most Recent Data, Consult the Coto Technology Website:
www.cotorelay.com
6
E-mail: info@cotorelay.com
