M80-4125005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-4125005

M80-4125005: DescriptionHeaders u0026 Wire Housings 25+25 WAY FEMAL VRT SMT WOJS; CategoryThe connector The connector; File Size148KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4125005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4125005	-	-	View	Buy Now

M80-4125005 Overview

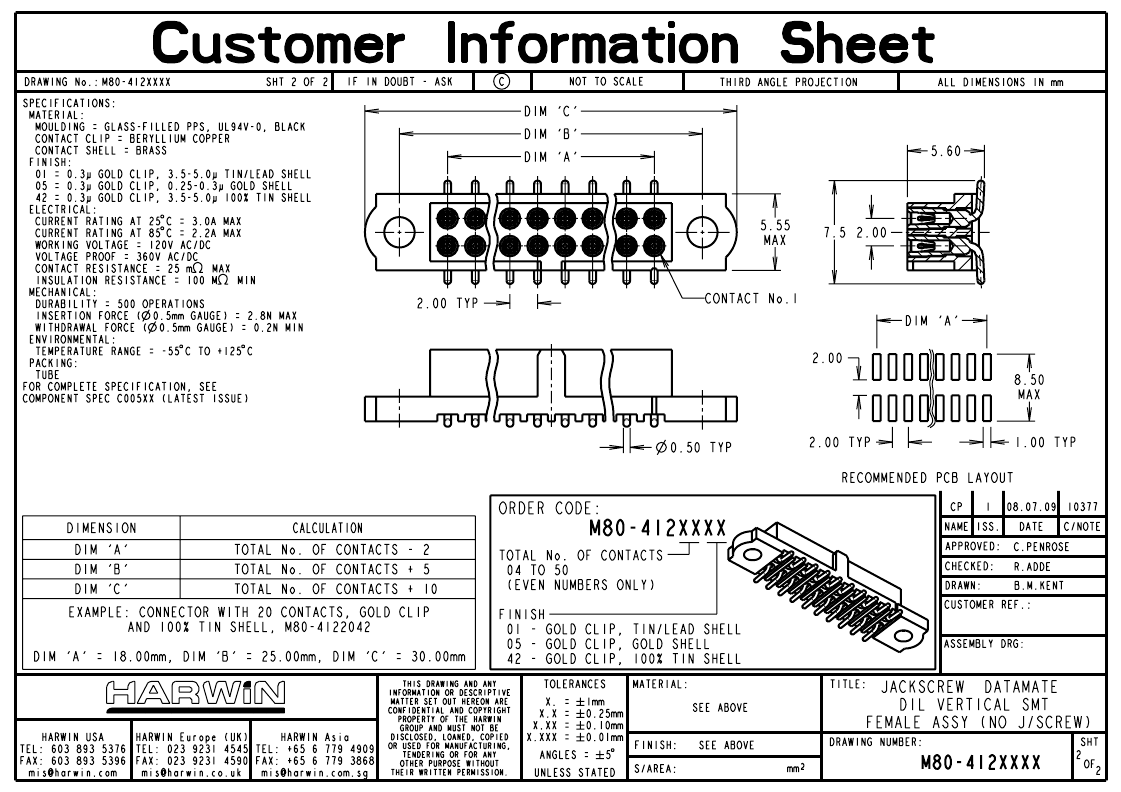

Headers u0026 Wire Housings 25+25 WAY FEMAL VRT SMT WOJS

M80-4125005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.219 inch
subject depth	0.22 inch
body length	2.362 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.2578 mm
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0
