RJE72
Product Specification S6051C Rev 1.3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJSSE

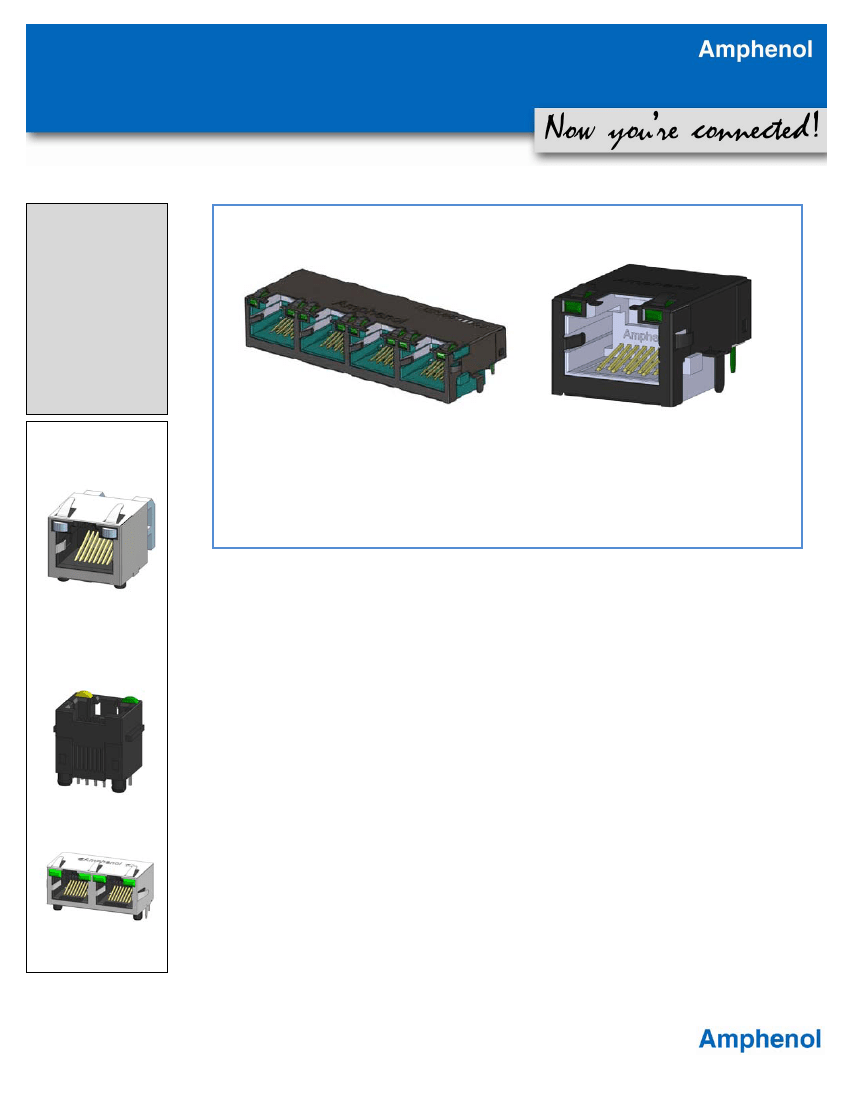

P/N RJE72‐488‐1453 SHOWN
4 PORT, 8 POSITION,
WITH SHIELD AND LEDs
P/N RJE72‐188‐11353 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LEDs
Overview
P/N RJSSE‐5381 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
RJE72 series of modular jacks.
Availability: Single and 1x4 port connectors available with a wide variety of LED and shielding
options.
RJHSE
Usage
The RJE72 series of modular jacks meet CAT5e performance per EIA-568-C.2. It supports Gigabit
Ethernet Protocols. Shielding available for increased EMI performance and LEDs for Link Activity
and Network Speed verification.
Applications
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
Revision date: May 29,2012
Page 1 of 2
S6051C Rev 1.3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
LED forward DC current:
LED forward Voltage:
LED reverse voltage:
LED light intensity:
LED wave length:
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.25 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
20mA typical
1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red:
625± 5 nm measured @ 20mA
Related Products
RJULE
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Operating temperature: -55° C to +85° C
Recommended soldering temperature:
Wave soldering peaked at 260° C for 5 seconds maximum.
Note: IR reflow compatible version also available. Consult factory for details.

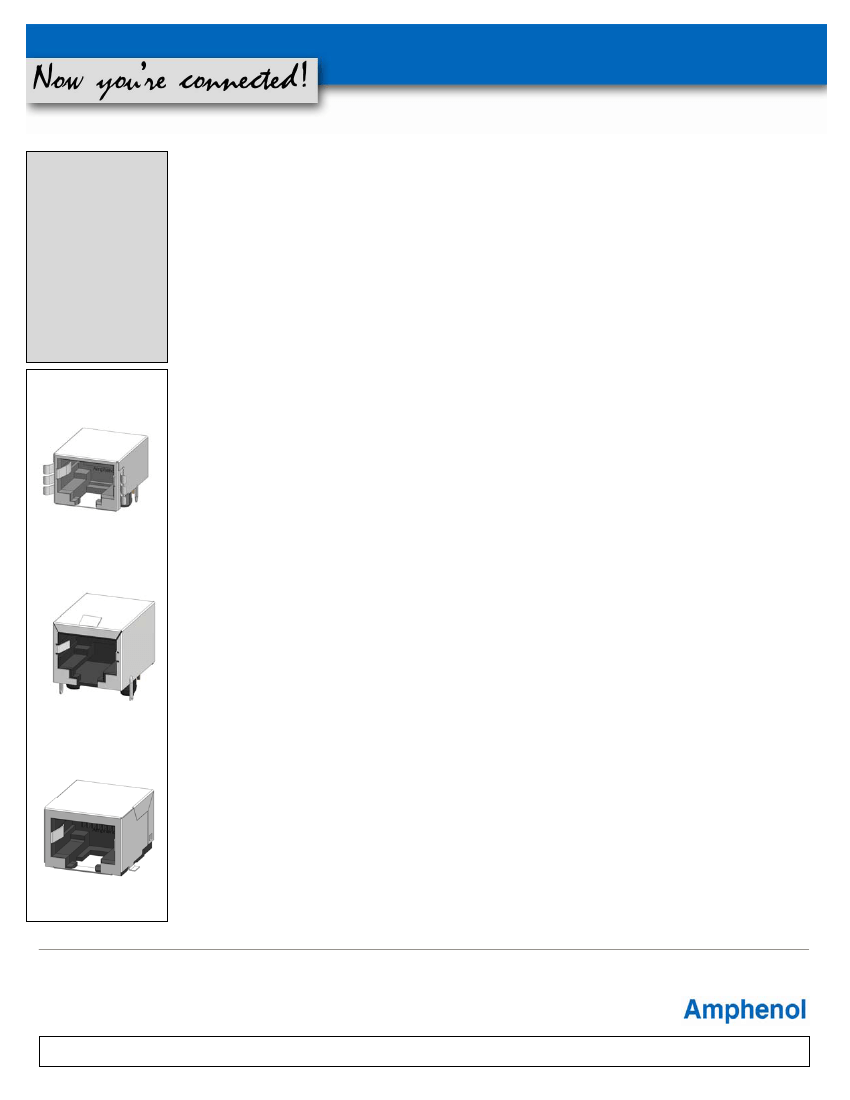

P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
FRJAE
Material Requirements
RJE72 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
RJLSE
Available Documents
Drawing Numbers:
P-RJE72-188-1XXX
P-RJE72-288-1XXX
P-RJE72-488-1XXX
Single port Cat 5E Modular Jack, 8 Position, with LEDs and Shield. Ultra low profile
Two Port CAT5e Modular Jack, 8 Position, with LEDs and Shield. Ultra low profile
Four Port CAT5e Modular Jack, 8 Position, with LEDs and Shield. Ultra low profile
Contact factory or Authorized Amphenol representative for additional configurations.
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
