1N1539 datasheet, PDF - EEWORLD Datasheet

1N1539: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.6A, 150V V(RRM), Silicon, DO-4,; CategoryDiscrete semiconductor diode; File Size383KB，4 Pages; ManufacturerSemitronics Corp.

Download Datasheet Parametric View All

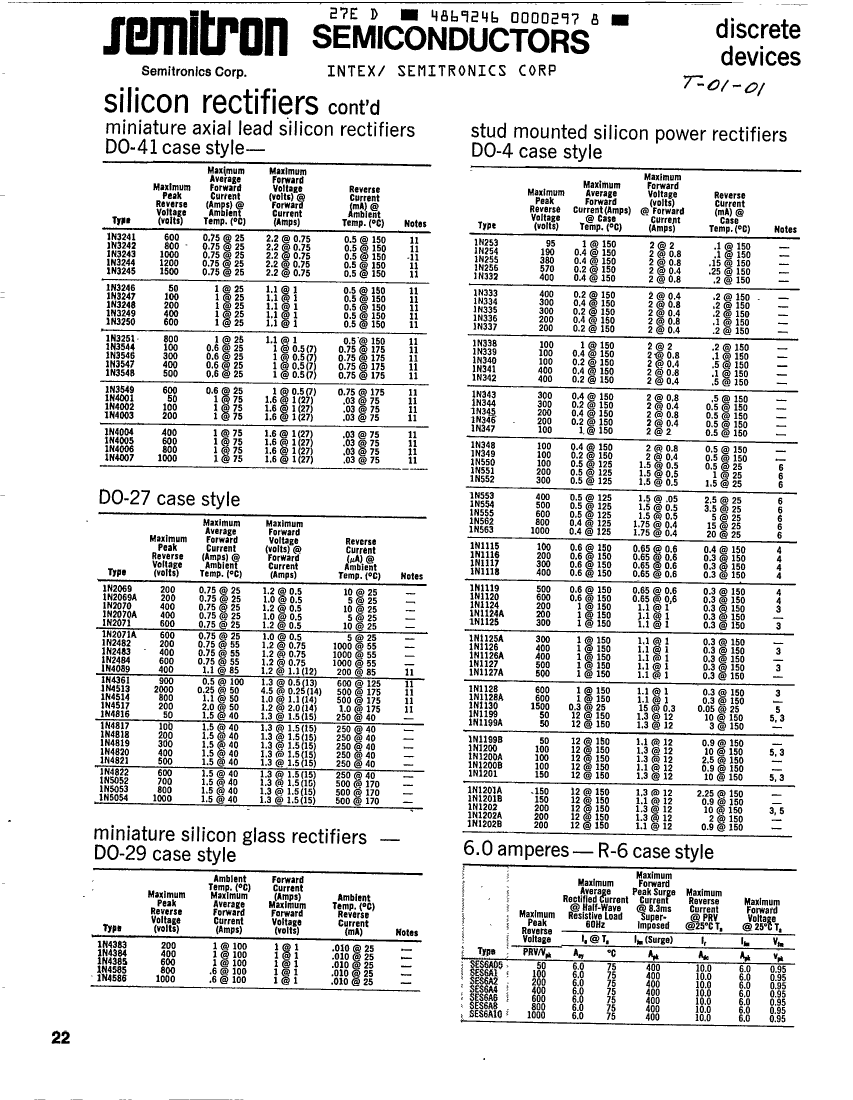

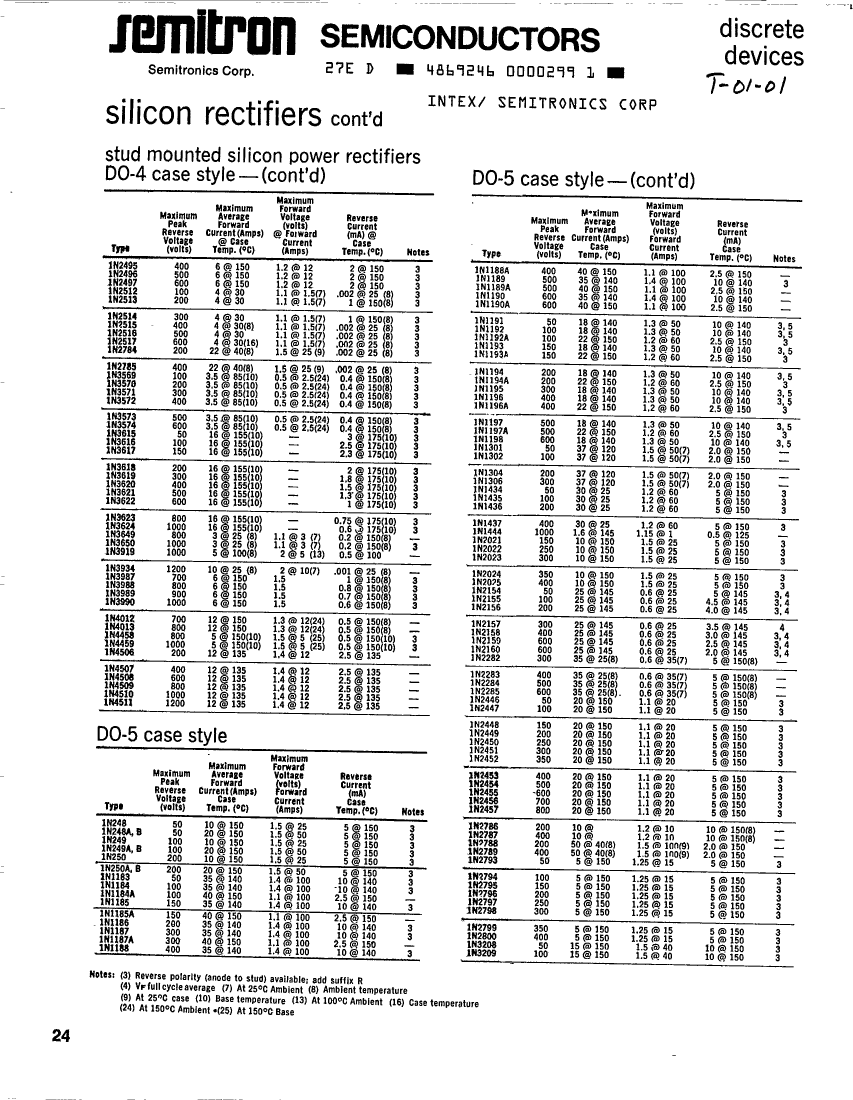

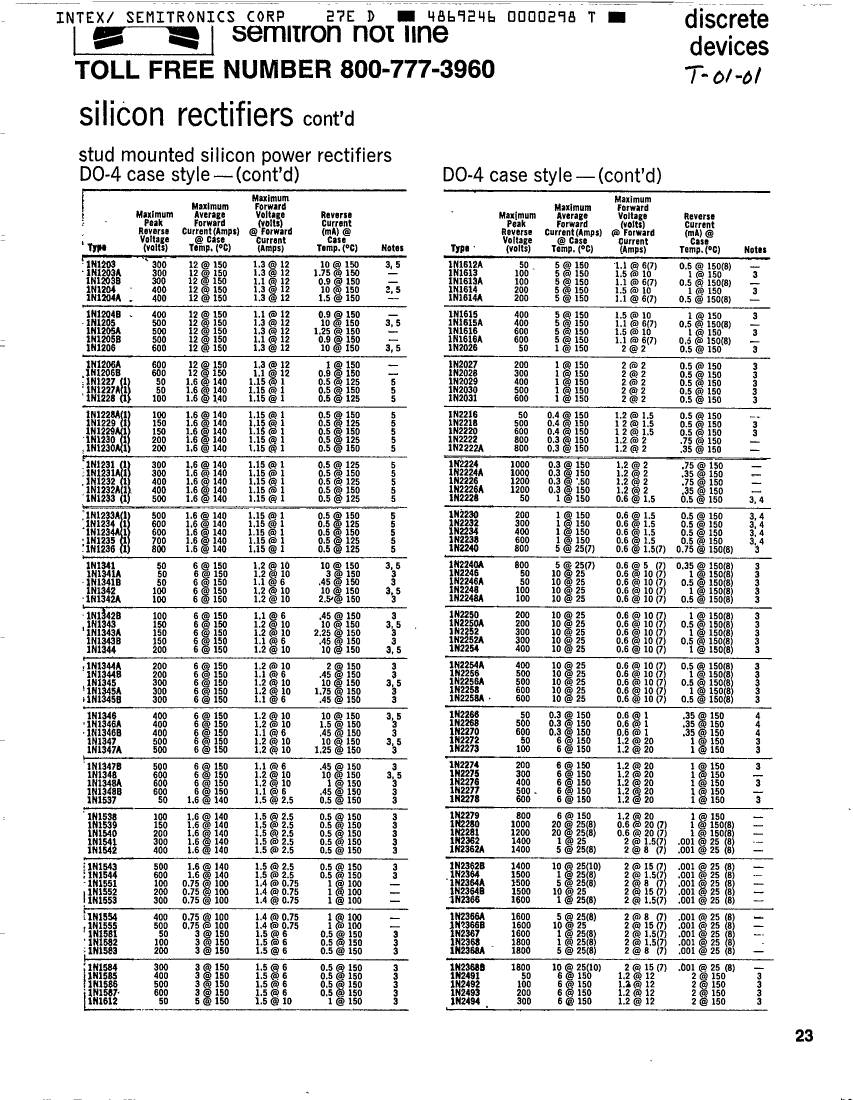

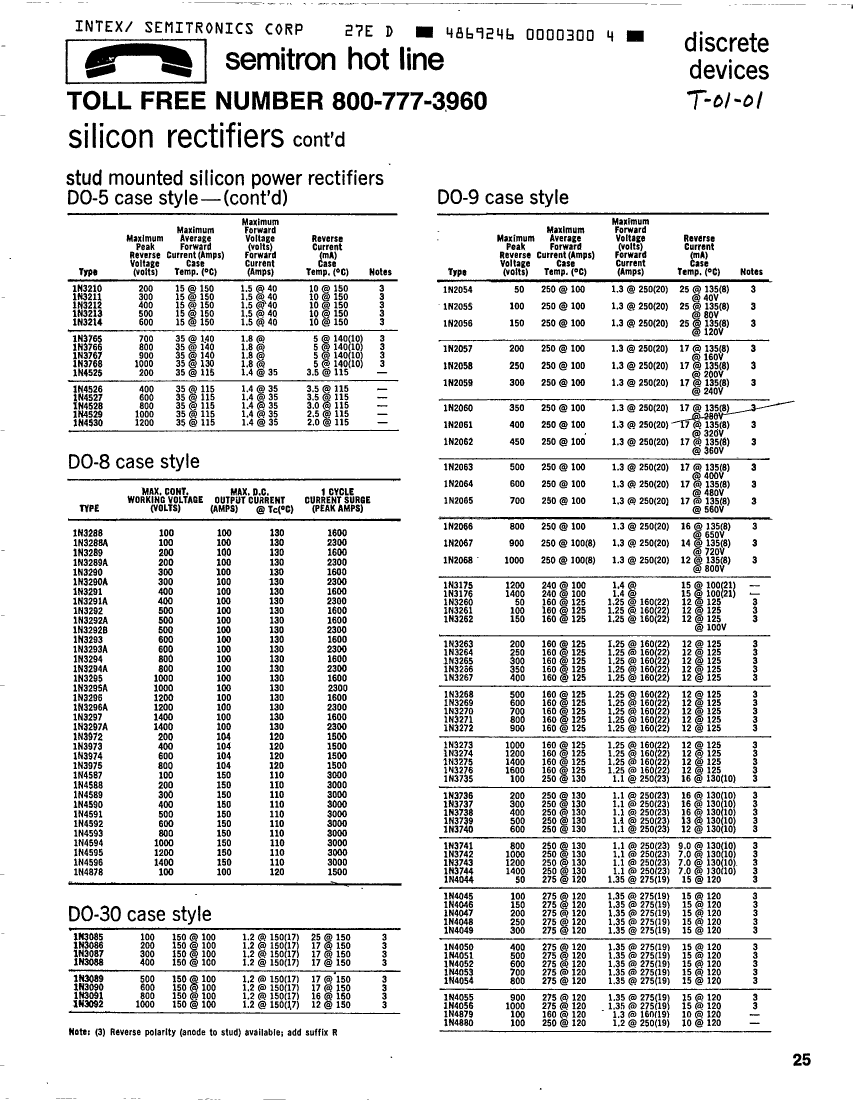

1N1539 Overview

Rectifier Diode, 1 Phase, 1 Element, 1.6A, 150V V(RRM), Silicon, DO-4,

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
application	POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	20 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	1.6 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1
