SPECIFICATION
Part No.
:
PCB.RPSMAFRA.HT

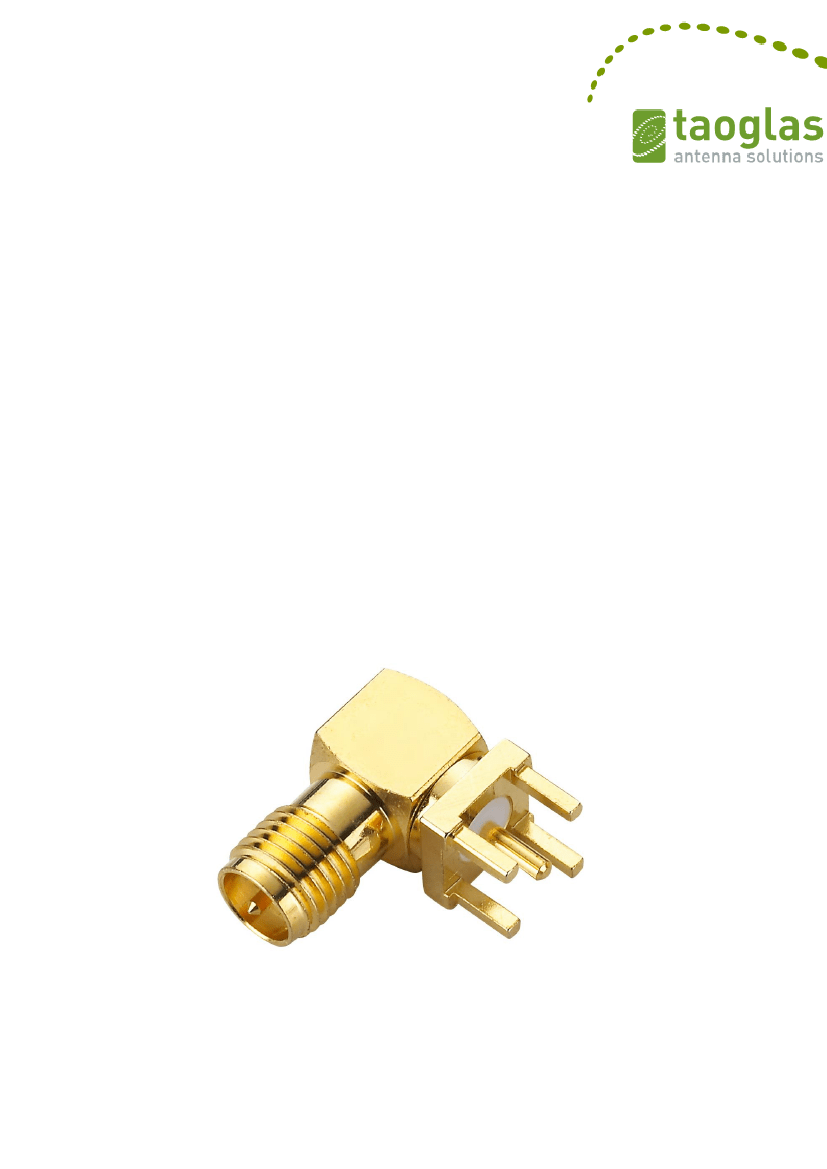

RP-SMA(F)RA PCB Mount Jack Connector
Solder Attachment Through Hole
Product Name
:
Feature
:
RP-SMA(F)RA Jack
Through Hole
Frequency Range: DC up to 6GHz
Finish: Gold
Dimensions: 13.75mm*15.1mm
RoHS Compliant
SPE-14-8-101/C/AD
Page 1 of 3
1. Introduction
The PCB.RPSMAFRA.HT connector was designed to be mounted on a PCB. The maximum
thickness of PCB that the connector can be used with is 0.4mm. The connector pin is directly
soldered onto pads on the PCB. The connector is a standard RP-SMA(F)RA Jack. Taoglas
connectors are all RoHS compliant.
2. Specification
ELECTRICAL
Impedance
Frequency Range
Working Voltage
Dielectric withstanding Voltage
Insulation Resistance
MECHANICAL
Connector Dimension
Connector Pin Diameter
Connector Type
13.75mm*15.1mm
1.25 mm
RP-SMA(F)RA Through Hole Jack
ENVIRONMENTAL
RoHS compliant
50Ω
DC~6 GHz
Max. ≤170 Vrms
500 Vrms
≥1000M MΩ
SPE-14-8-101/C/AD
Page 2 of 3

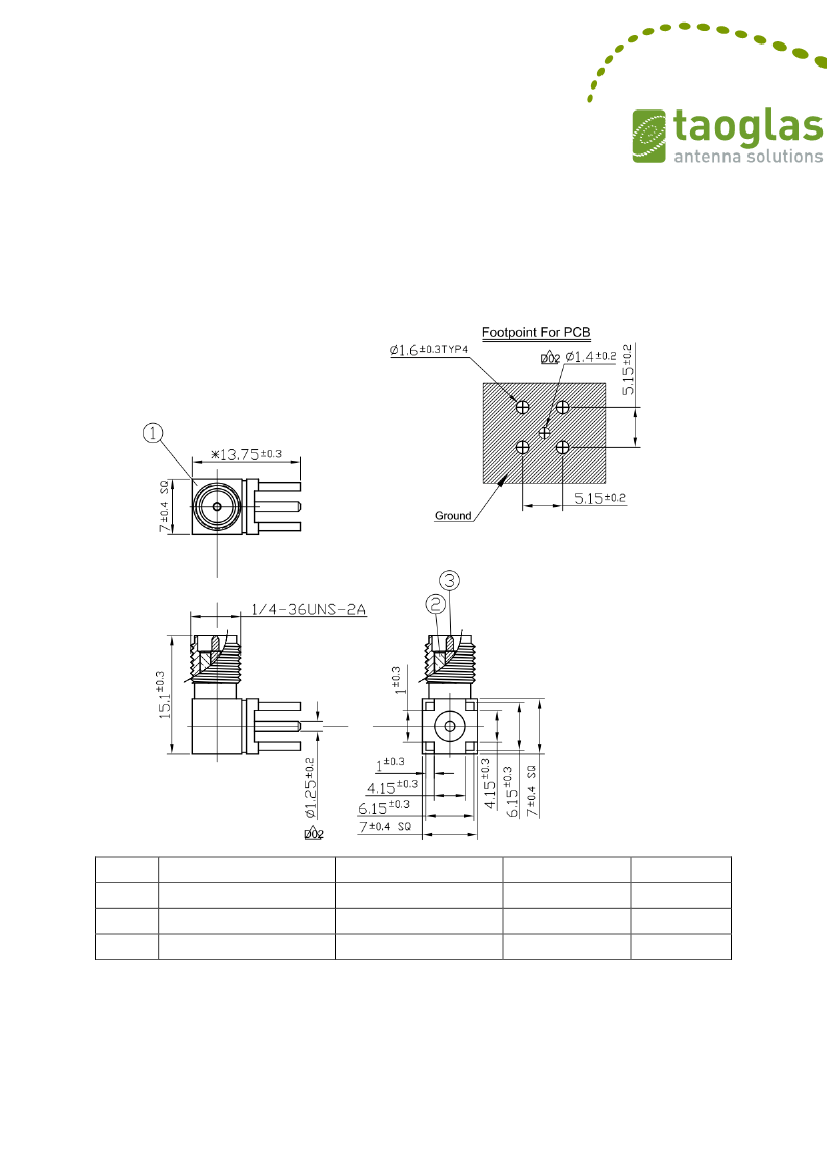

3. Connector Drawing
Name
1
2
3
Body
Insulator
Pin
Material
Brass
Teflon
Brass
Finish
Gold
White
Gold
QTY
1
1
1
Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to
make changes to specifications and product descriptions at any time without notice.
Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties
without express permission is strictly prohibited. Copyright © 2014, Taoglas Ltd.
SPE-14-8-101/C/AD
Page 3 of 3
