53748-0504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53748-0504

53748-0504: Description8-bit Microcontrollers - MCU USB-64K-Flash; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

53748-0504 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53748-0504	-	-	View	Buy Now

53748-0504 Overview

8-bit Microcontrollers - MCU USB-64K-Flash

53748-0504 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Samacsys Description	Molex SLIMSTACK Series, Series Number 53748, 0.5mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 0.5A
Other features	SLIMSTACK, SHROUDED
body width	0.169 inch
subject depth	0.094 inch
body length	0.641 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7784 N
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	53748
Plug contact pitch	0.02 inch
Match contact row spacing	0.072 inch
Plug information	52991-0508
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.4036 mm
Plating thickness	4u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

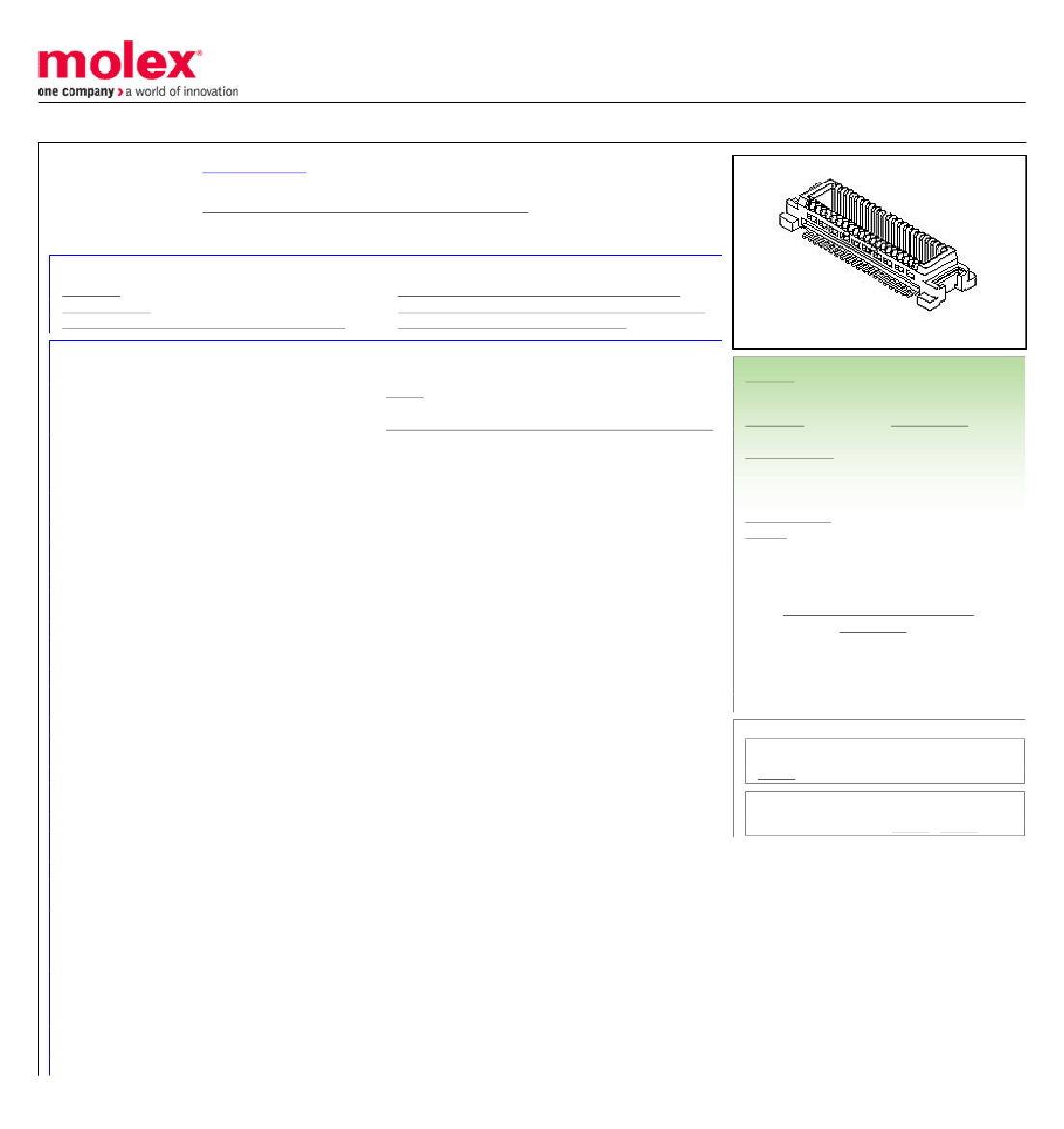

Preview

Download Datasheet

View All

This document was generated on 12/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0537480504

Active

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 3.00mm Stack

Height, 50 Circuits, with Vacuum Pick-up Tape

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52991-003-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Product Specification PS-52991-007-001 (PDF)

Packaging Specification SPK-53748-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

53748

Board-to-Board, Signal

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

SlimStack

800754359573

None

3.00mm

Brass

Gold

271.000/mg

Vertical

None

Embossed Tape on Reel

0.50mm

0.102µm

Vacuum Pick-Up Tape

Fully

-40°C to +105°C

Surface Mount

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

53748 Series

Mates With

SlimStack Receptacle 52991 , 54167

SPK-53748-001-001

PS-52991-003-001, PS-52991-007-001

SD-53748-003, SD-53748-004
