501571-3007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 501571-3007

501571-3007: DescriptionHeaders u0026 Wire Housings 40CKT WTB CONN DR RIGHT ANGLE; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

501571-3007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	501571-3007	-	-	View	Buy Now

501571-3007 Overview

Headers u0026 Wire Housings 40CKT WTB CONN DR RIGHT ANGLE

501571-3007 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Samacsys Confidence	3
Samacsys Status	Released
Samacsys PartID	284459
Samacsys Pin Count	30
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	501571-3007
Samacsys Released Date	2016-07-19 14:44:04
Is Samacsys	N
Other features	PICO-CLASP
body width	0.325 inch
subject depth	0.256 inch
body length	0.709 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (4)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	350VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.039 inch
Match contact row spacing	0.104 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 10/23/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

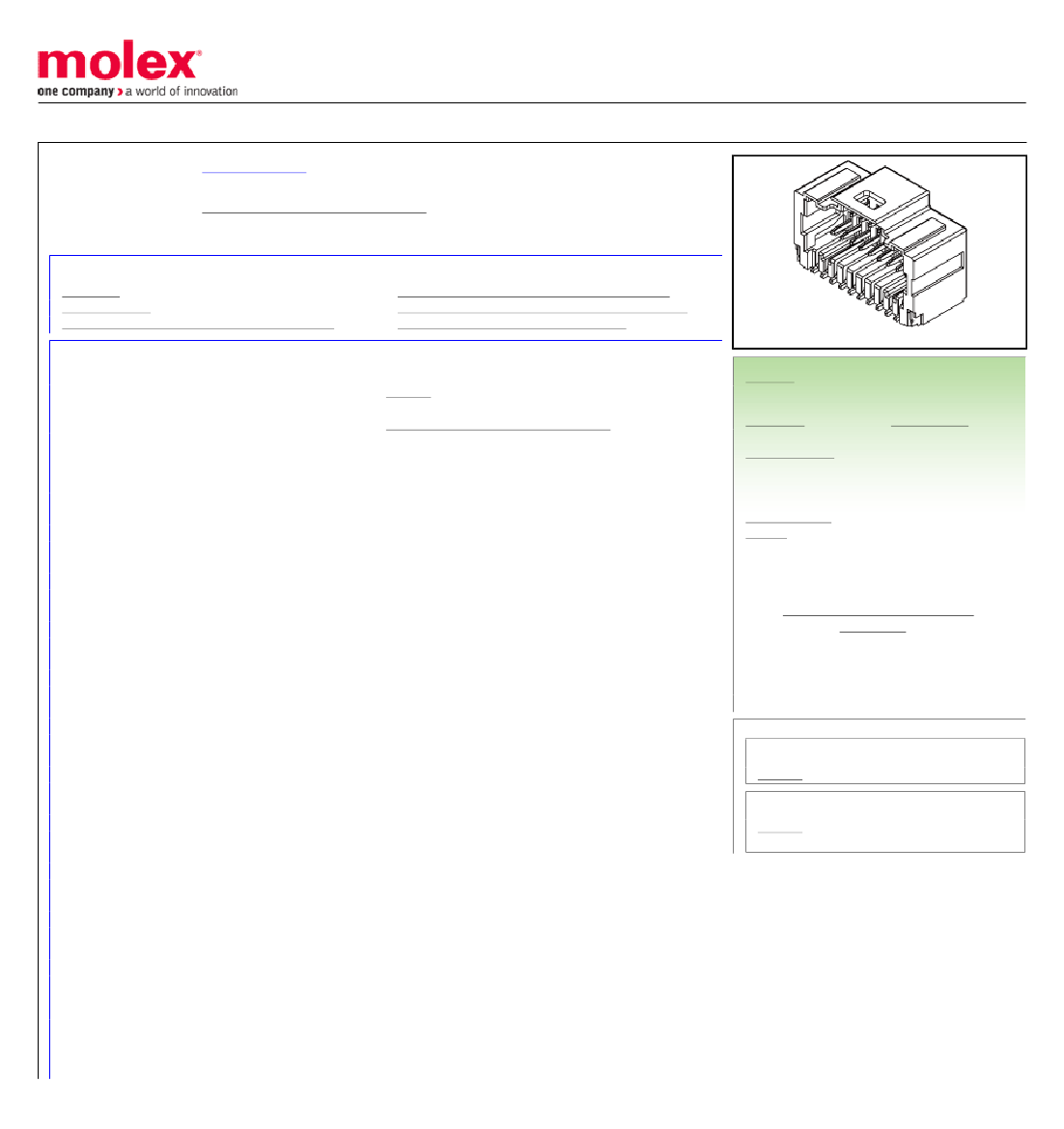

5015713007

Active

Pico-Clasp Wire-to-Board Connectors

1.00mm Pitch Pico-Clasp Wire-to-Board Header, Surface Mount, Dual Row, Right

Angle, Gold Plated, with Inner Positive Lock, 30 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification 5011890000-A00 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Product Specification 5011890000-A01 (PDF)

Product Specification PS-501571-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

501571

Signal, Wire-to-Board

Pico-Clasp Wire-to-Board Connectors

Pico-Clasp

822348828395

Natural

None

Yes

Phosphor Bronze

Gold

High Temperature Thermoplastic

853.000/mg

Right Angle

Yes

Embossed Tape on Reel

1.00mm

0.102µm

Yes

-40°C to +105°C

Surface Mount

0.8A, 1.0A

50V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

501571 Series

Mates With

501189 Pico-Clasp Wire-to-Board Female

Housing

Recommended Resources
