Printed-circuit board connector - BCH-500HS- 3 GY - 5432737
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Color: signal
grey, Contact surface: Tin, Mounting: Wave soldering
The figure shows a 5-pos. version of
the product
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
1.4 g
85366990
China
Technical data
Dimensions
Length
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Hole diameter
12 mm
5.00 mm
10 mm
3.5 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
BCH-HS
I
4 kV
4 kV
4 kV
04/27/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/5432737
Printed-circuit board connector - BCH-500HS- 3 GY - 5432737
Technical data
General
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
250 V
320 V
400 V
EN-VDE
12 A
12 A
PA
V0
signal grey
3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
30211801
39121432
39121432
39121409
04/27/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/5432737
Printed-circuit board connector - BCH-500HS- 3 GY - 5432737
Classifications
UNSPSC
UNSPSC 13.2
39121432
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
IECEE CB Scheme
04/27/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/5432737
Printed-circuit board connector - BCH-500HS- 3 GY - 5432737
Approvals
cULus Recognized
Accessories
Accessories
Coding element
Coding section - CR-BC-M - 5436157
Coding section
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
Labeled terminal marker
Marker card - SK 5/3,8:FORTL.ZAHLEN - 0804183
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5 mm, Lettering field: 5 x 3.8 mm
Terminal marking
04/27/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/5432737
Printed-circuit board connector - BCH-500HS- 3 GY - 5432737
Accessories
Marker card - SK U/3,8 WH:UNBEDRUCKT - 0803906
Marker card, Sheet, white, unlabeled, can be labeled with: Plotter, Office printing systems, Mounting type: Adhesive,
Lettering field: 186 x 3.8 mm

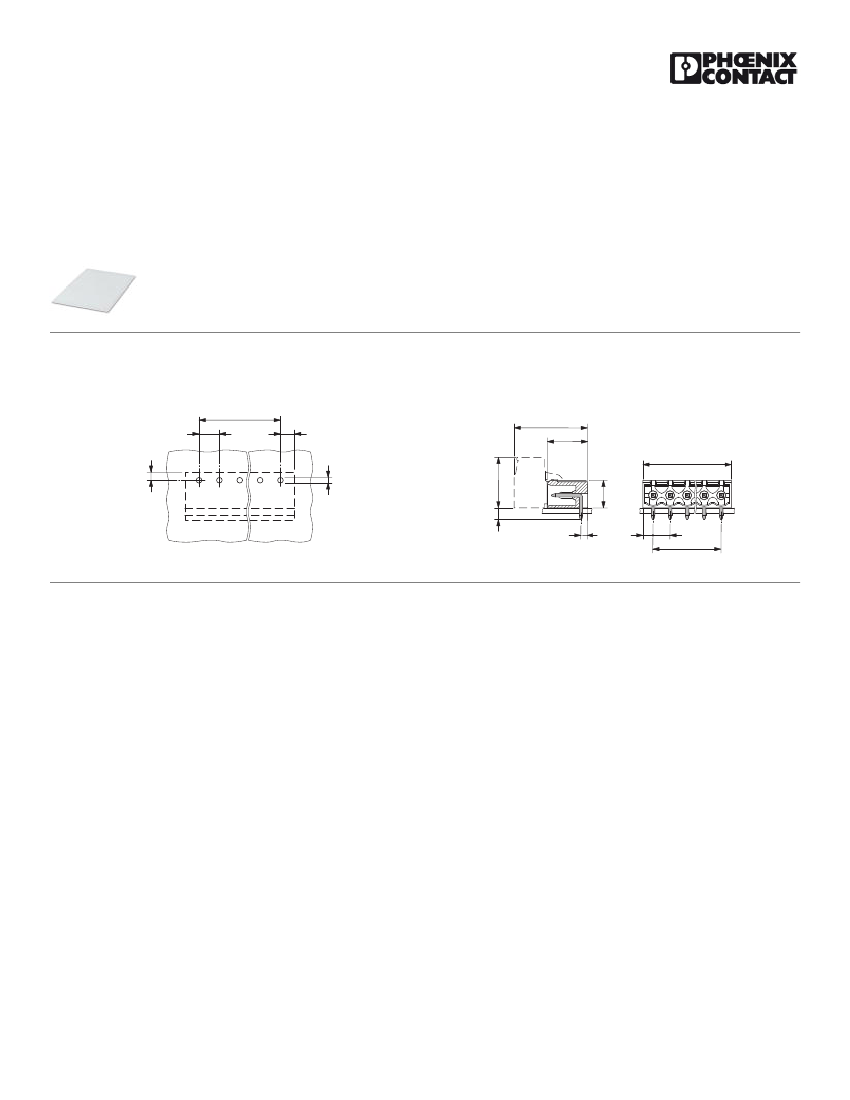

Drawings
Drilling diagram
a
5
(5,08)
2
Dimensional drawing
3,5
(3,54)
22
12
a+7
(a+7,08)
Ø1,4
15
8,6
3,5
(3,54)
3,5
2
5
(5,08)
a
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/27/2016 Page 5 / 5
