Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5110

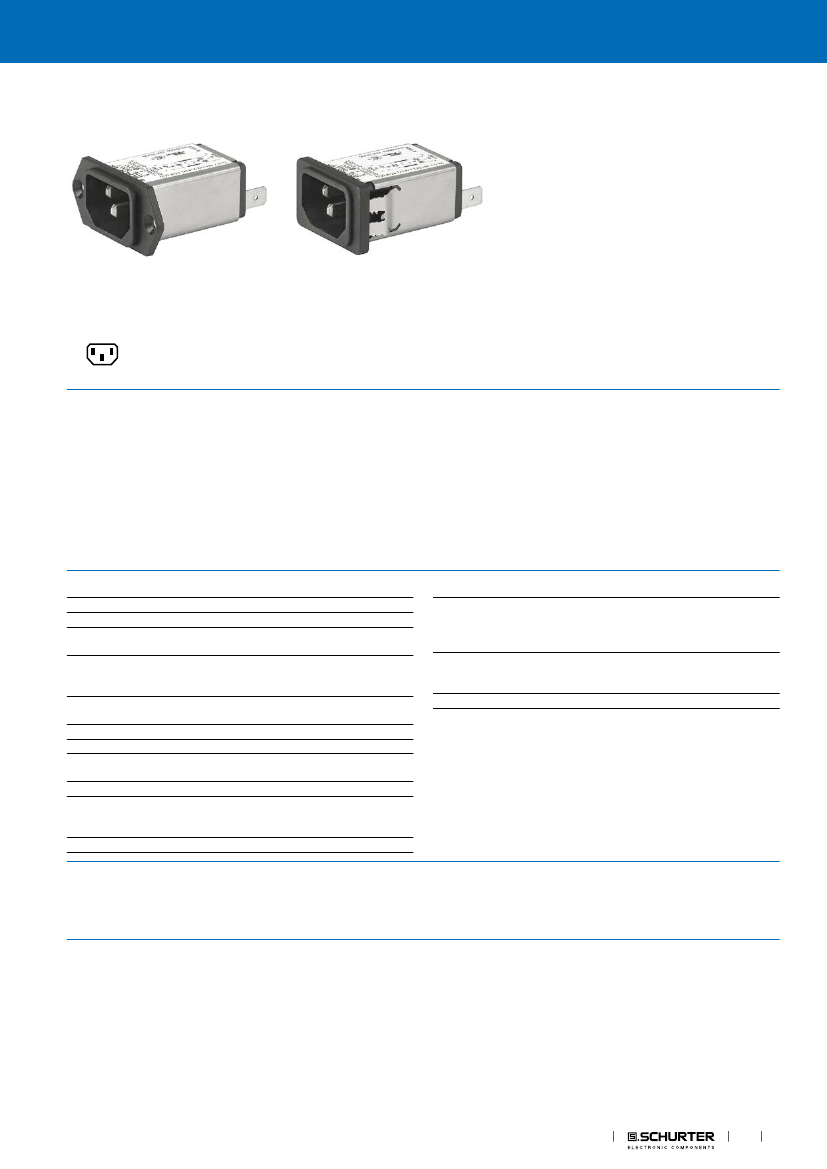

IEC Appliance Inlet C14 with Filter
C14
70° C
Approvals and Compliances
Description
- Panel Mount :
Snap-in or screw-on mounting from front side
- 2 Functions :
Appliance Inlet Protection class I , Line filter in standard and medical
version
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- All single elements are already wired
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
- Capacity CX 100 nF
- Medical version M80
Unique Selling Proposition
-
-
-
-
Ultra-compact design
High quality filter case made of stainless steel
Highly resistant since potted filter
Various filter variants
References
Weblinks
Alternative: version without line filter
6100-3; 6100-4
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 15 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 5 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 3'100'000 h acc. to MIL-HB-217 F
Line Filter
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
MTBF
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
5110
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5110
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40035745
UL File Number: E72928
CCC File Number: 2006010204191430
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5110

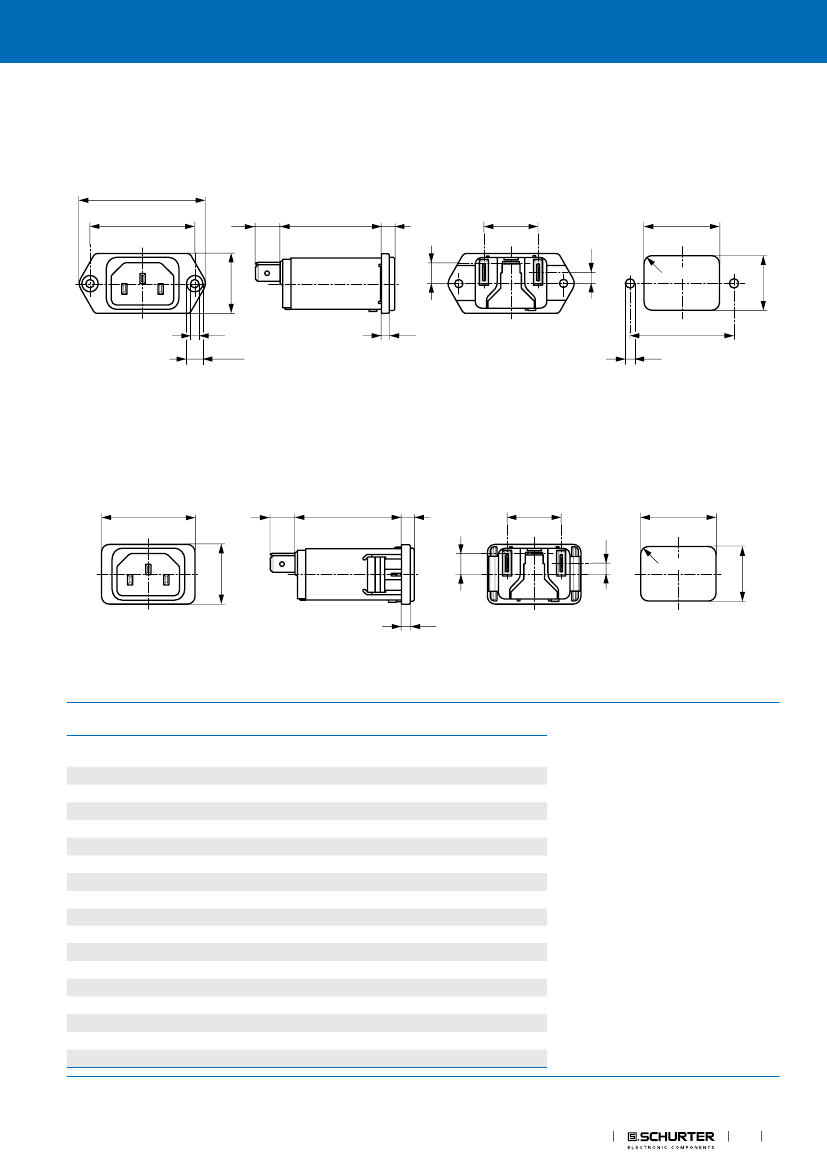

Dimension [mm]
Screw-on mounting
48.4
40
9.5
40.9
5.2
21
4.1
29
+0.2
0
7.9
23
3.2
6.3x90˚
2.7
3.6
40
±0.10
Snap-in mounting
36
9.5
41.2
5
21
4.1
29
+0.2
0
7.9
23
3.5
Technical Data of Filter-Components
Rated Current
[A]
1
2
3
4
6
8
10
15
1
2
3
4
6
8
10
15
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Standard and Medical Version
Inductances
L [mH]
2 x 11
2x4
2 x 2.5
2 x 1.6
2 x 0.7
2 x 0.6
2 x 0.4
2 x 0.1
2 x 11
2x4
2 x 2.5
2 x 1.6
2 x 0.7
2 x 0.6
2 x 0.4
2 x 0.1
2 x 0.4
Capacitance
CX [nF]
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
-
-
-
2.2
R [MΩ]
-
-
-
-
-
-
-
-
1
1
1
1
1
1
1
1
1
EMC Products
21
+0.2
0
max.R3
3
21
+0.2
0
max.R3
5110

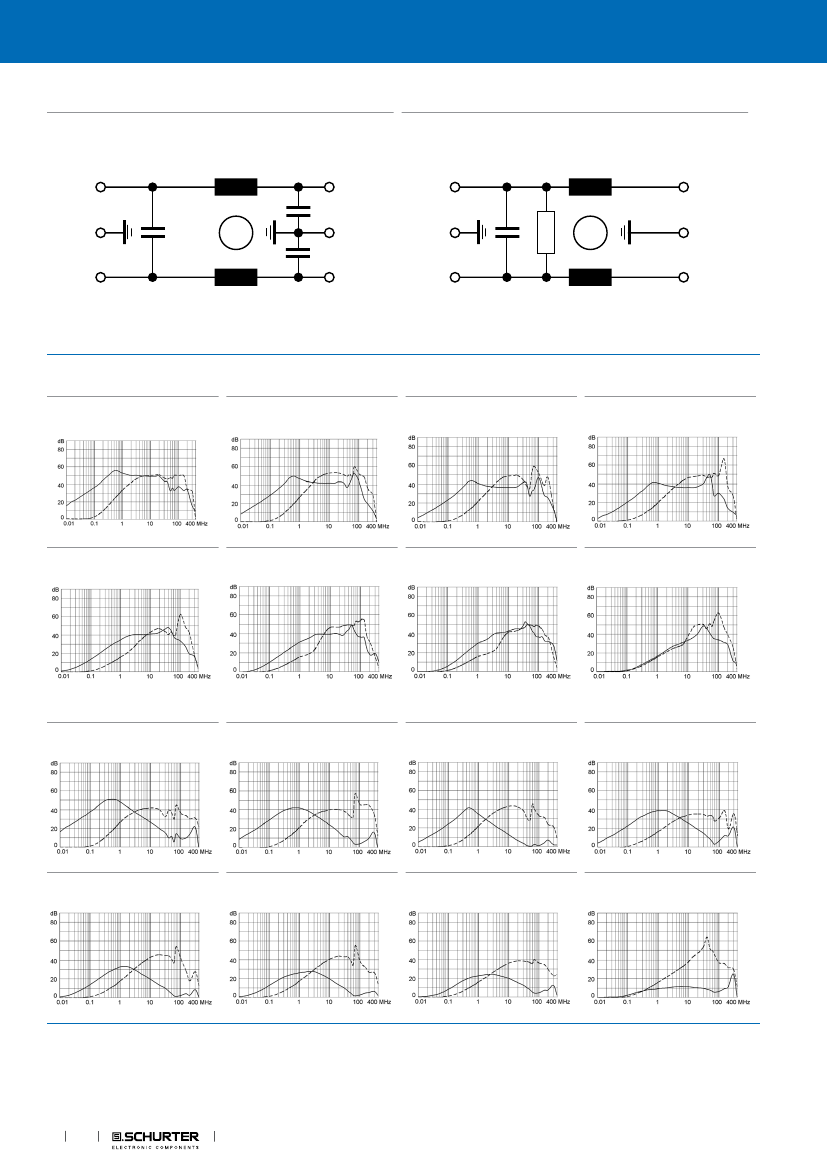

Diagrams
Standard version
Medical version (M5)
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
L
L1
L’
R
L2
Cy
Cy
L
L1
L’
R
L2
1)
PE
Cx
PE’
2)
N’
1)
PE
Cx
PE’
2)
N’
N
1) Line
2) Load
N
1) Line
2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
1A
2A
3A
4A
6A
8A
10 A
15A
Medical version (M5)
1A
2A
3A
4A
6A
8A
10 A
15A
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5110
All Variants
Rated Current
[A]
1
2
3
4
6
8
10
15
1
2
3
4
6
8
10
15
1
2
3
4
6
8
10
15
1
2
3
4
6
8
10
15
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-
Check/Stock-Check-SCHURTER
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Order Number
5110.0143.1
5110.0243.1
5110.0343.1
5110.0443.1
5110.0643.1
5110.0843.1
5110.1043.1
5110.1543.1
5110.0133.1
5110.0233.1
5110.0333.1
5110.0433.1
5110.0633.1
5110.0833.1
5110.1033.1
5110.1533.1
5110.0143.3
5110.0243.3
5110.0343.3
5110.0443.3
5110.0643.3
5110.0843.3
5110.1043.3
5110.1543.3
5110.0133.3
5110.0233.3
5110.0333.3
5110.0433.3
5110.0633.3
5110.0833.3
5110.1033.3
5110.1533.3
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
Packaging unit
10 Pcs
EMC Products
5
