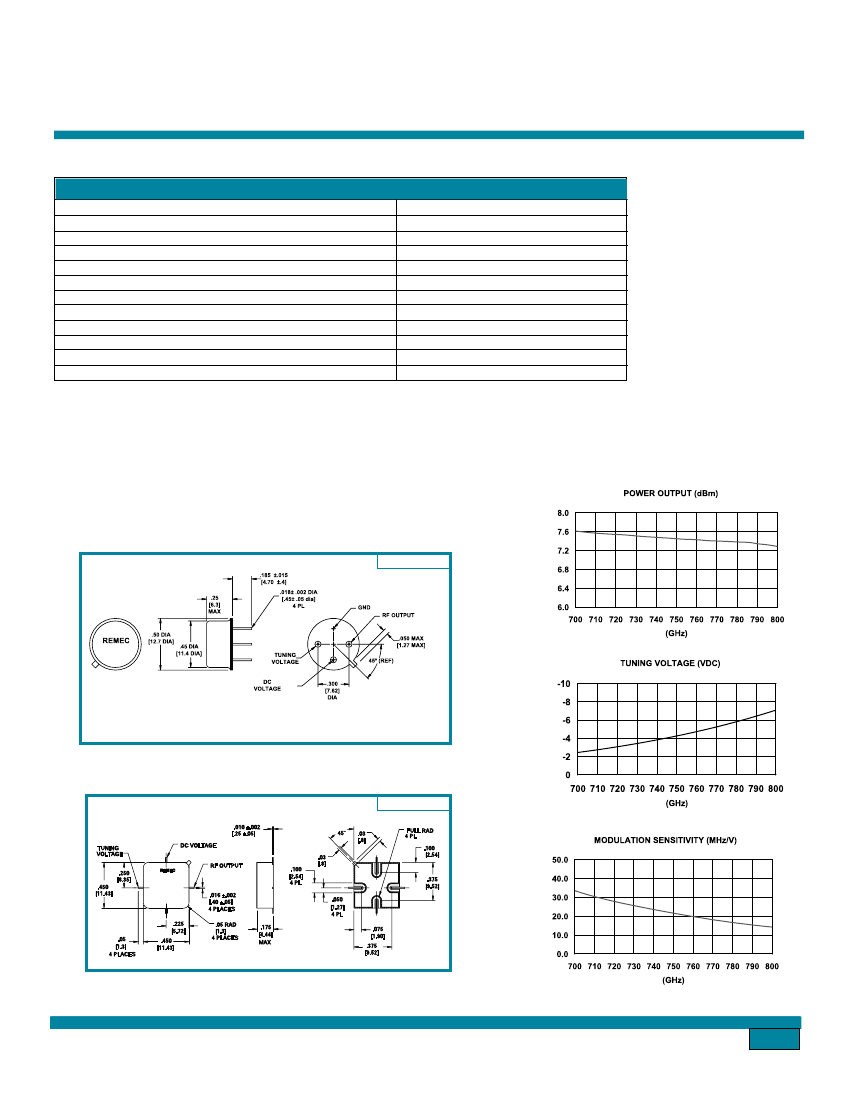

REMEC
Voltage Controlled Oscillator
RF Band, Negative Tune, Negative Bias
Electrical Specifications
(1)
:
Parameter
Frequency Range
Power Output at 25°C (50 Ohm load)
Frequency Drift vs. Temperature
(2)
Frequency Pulling (12 dB Return Loss)
Frequency Pushing
Tuning Voltage Limits
SSB Phase Noise (50 kHz offset)
Harmonics
(3)
Spurious
Bias Voltage
(4)
Bias Current
(5)
Operating Temperature
Specifications
700 to 800 MHz
5.0 to 10.0 dBm, typical
10 MHz, typical
10 MHz, typical
2.0 MHz/V, typical
0 to -10 VDC
-100 dBc/Hz, typical
-10 dBc, typical
-60 dBc, max.
-10 VDC ±1%
50 mA, typical
-55 to +85
°C
700 to 800 GHz
V41T-14
V41SM-142
Notes:
1. Specifications guaranteed over the operating temperature range. Those specifications indicated as typical are not
guaranteed.
2. Total frequency drift over the full temperature range.
3. Worst case harmonics over the frequency range.
4. Alternate bias voltages available.
5. Lower bias current available.
6. Other package available see page 4-45.
7. Military screening available.
Typical Performance at 25°C
V41T-14
Outline: TO-8
All dimensions are in inches and [mm].
V41SM-142
Outline: SMV2
Specifications subject to change without notice.
Specifications subject to change without notice.
1590 Buckeye Drive - Milpitas, CA 95035 - TEL: 408-432-9898 - FAX: 408-432-1551 - components@remec.com - www.remec.com
4-20
